Cartridge Type

Description

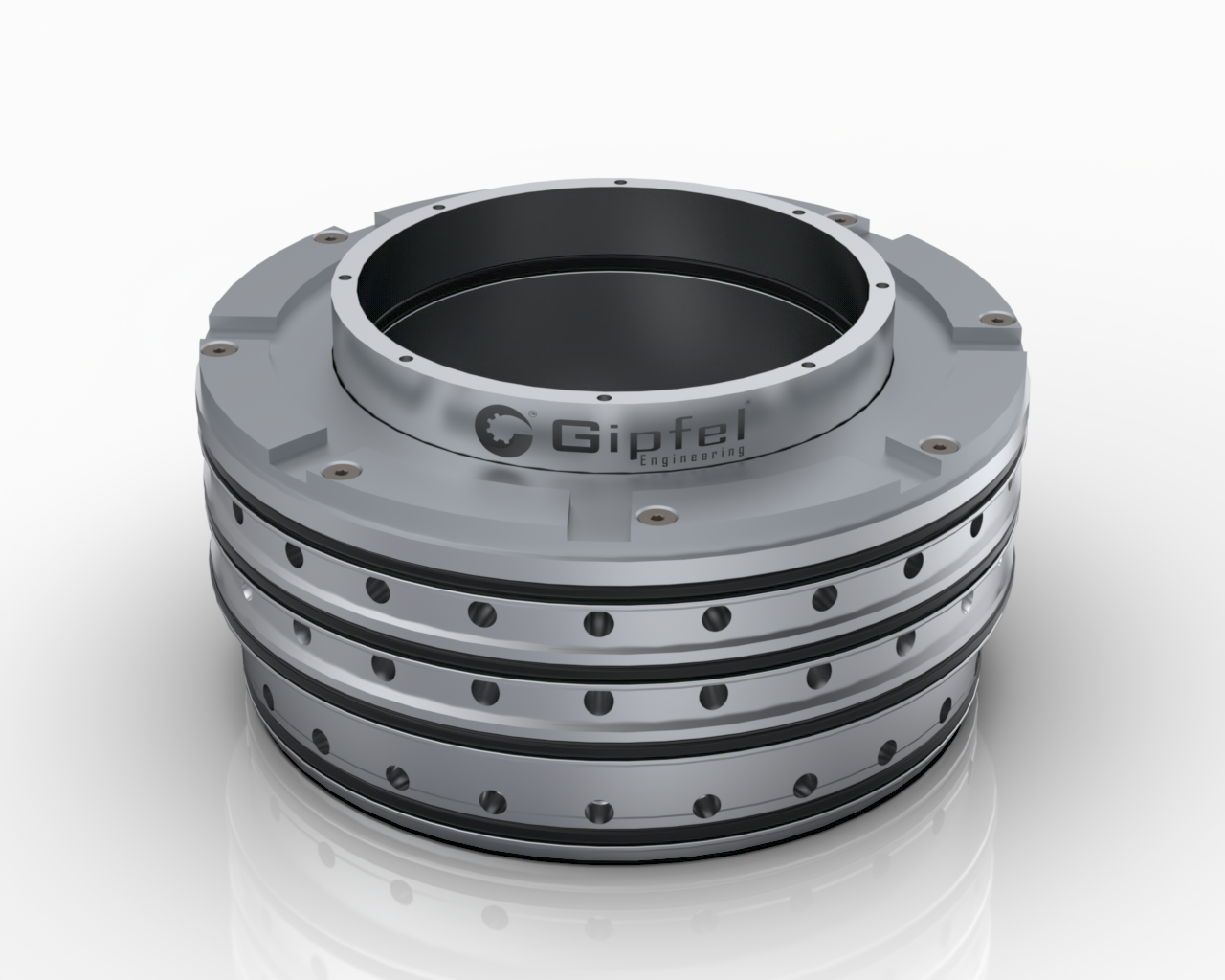

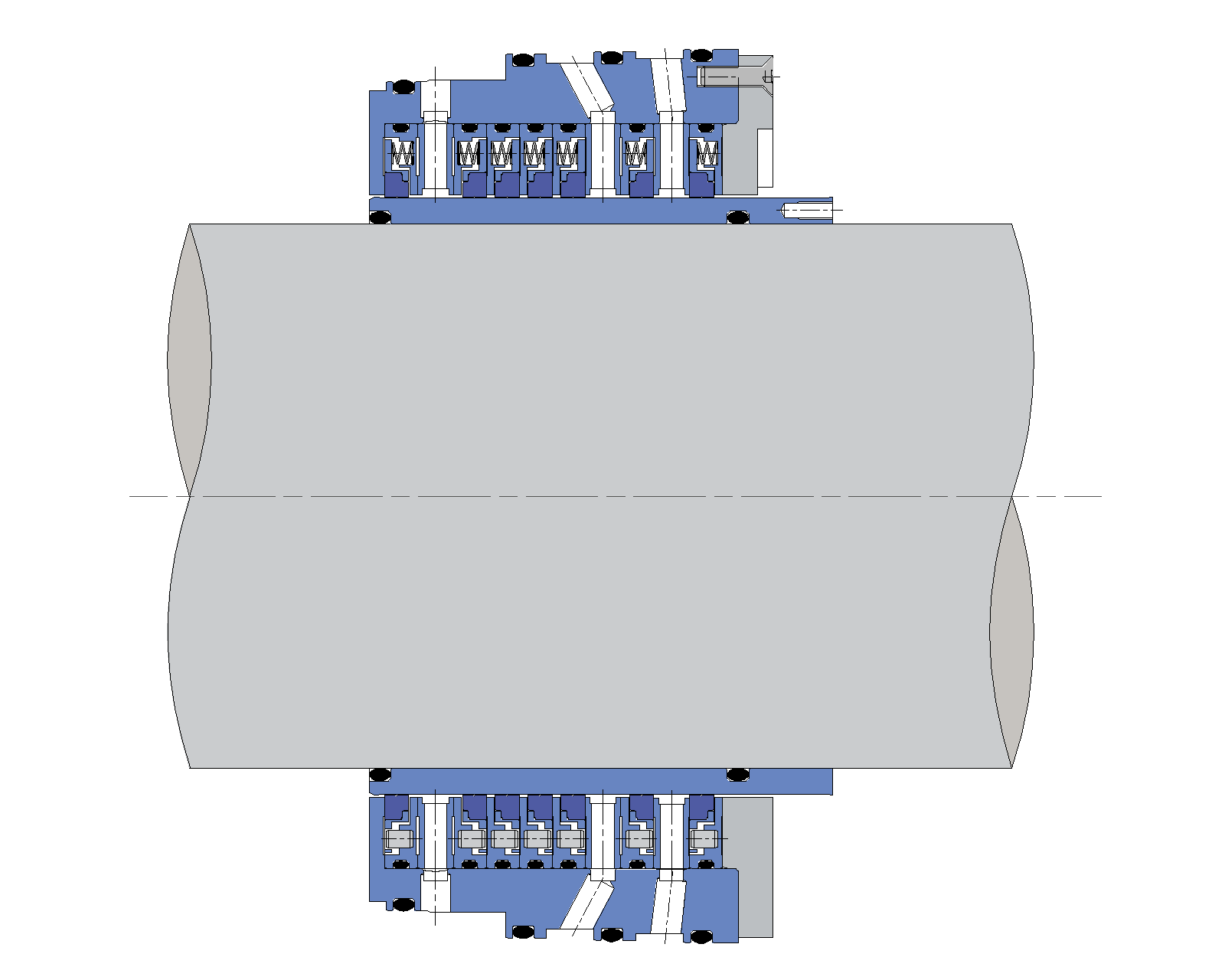

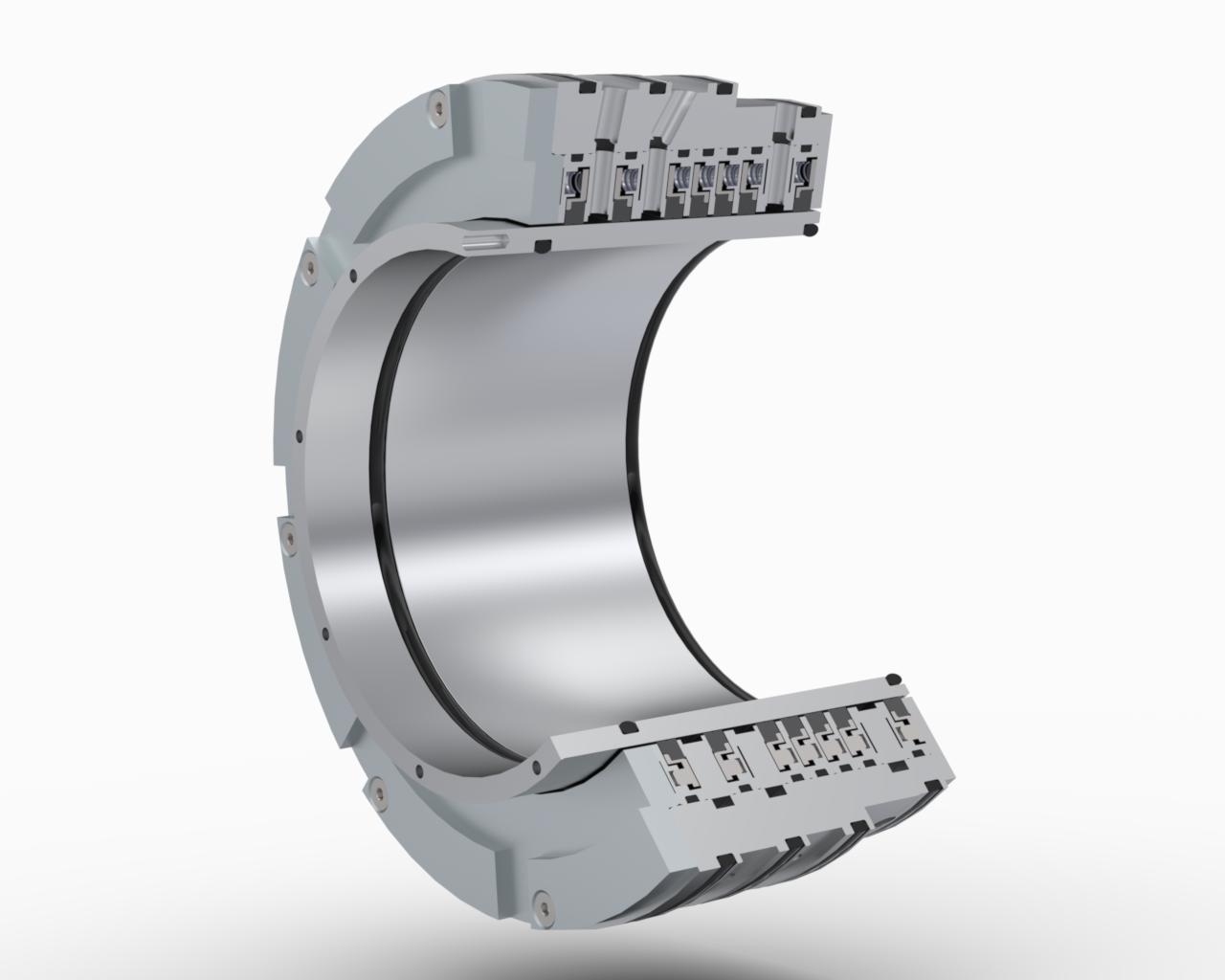

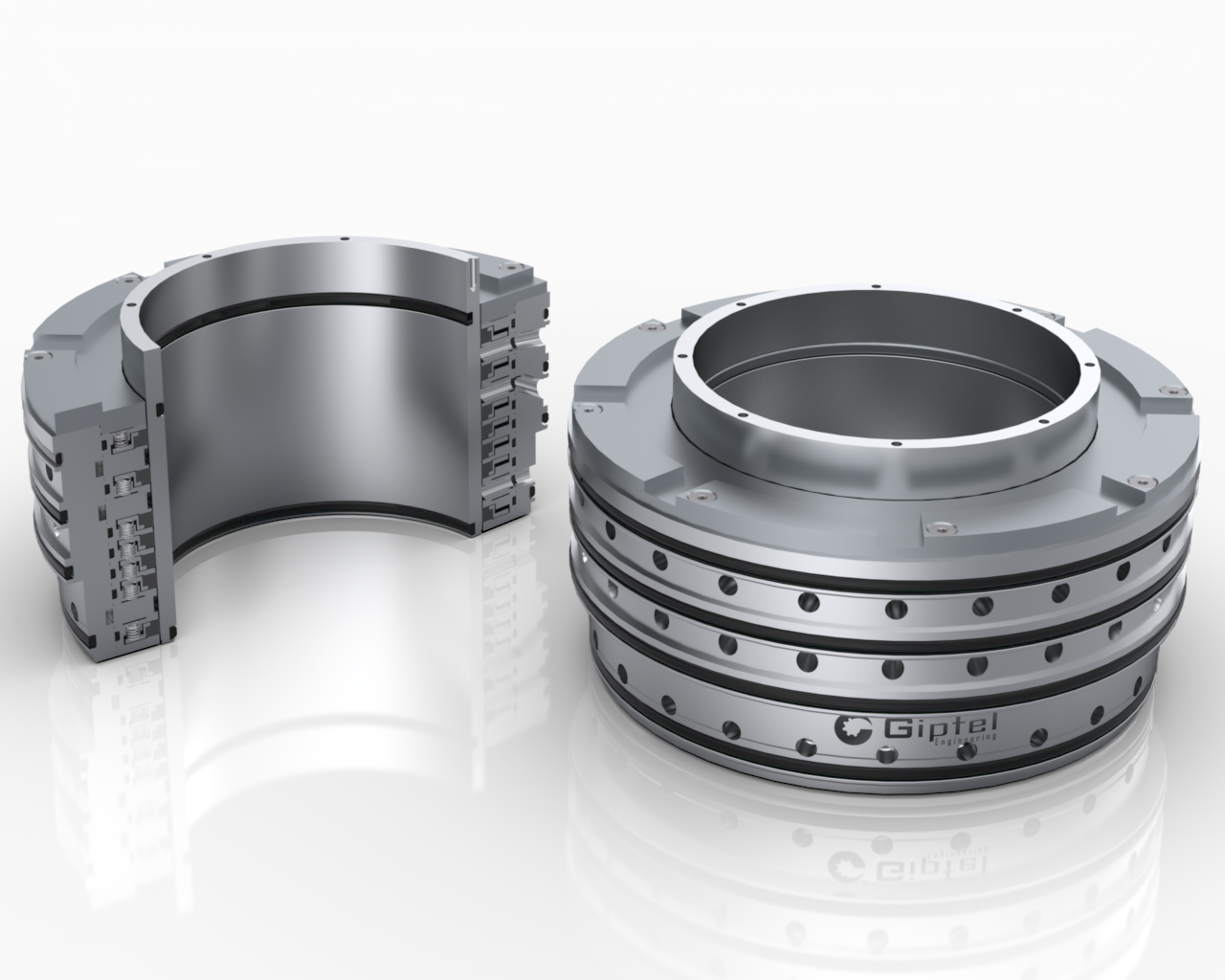

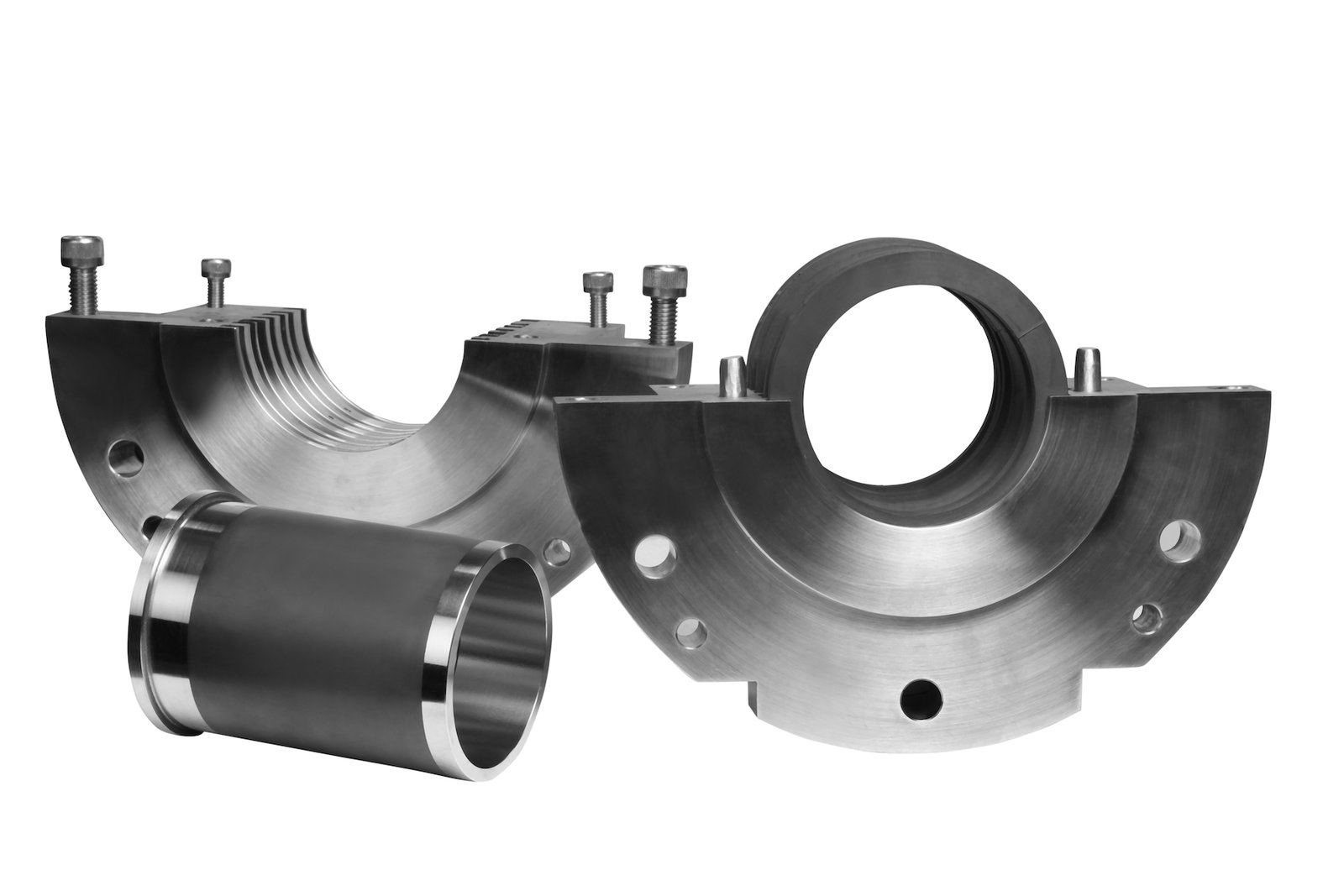

The CF-1410 Carbon Floating Ring Seal is a cartridge-construction shaft sealing assembly engineered for high-speed rotating equipment handling gases, vapours, fumes, exhaust streams, oil mist, water mist, and selected process media. Its floating carbon ring design operates with a controlled radial clearance, allowing the ring set to follow shaft movement while maintaining low leakage across the sealing chamber. Reference designs for this seal family use dry-running, self-adjusting carbon or PTFE compound rings, very small operating gaps, and segmented ring arrangements for maintainability.



For the target industry/application, the CF-1410 is best positioned for high-speed turbomachinery and process-gas sealing across chemical, petrochemical, oil & gas, refining, power generation, pulp & paper, food processing, metal production, mining, shipbuilding, and plant engineering. Gipfel’s product scope includes carbon floating seal rings in cartridge-type configurations, while reference carbon floating ring seal documentation identifies applications in compressors, steam turbines, fans/blowers, mixers, agitators, mills, dryers, bearing seals, and process-gas equipment.



Technical Key Features

• Floating carbon ring geometry accommodates radial shaft movement and thermal growth.

• Very small operating clearance for controlled leakage in gas, vapour, mist, and exhaust duties.

• Cartridge construction for controlled assembly, easier installation, and reduced site-fitment error.

• Dry-running, low-friction operation with no dynamic sealing element clamped directly to the shaft.

• Suitable for high sliding velocity applications where conventional contact seals or lip seals are unsuitable.

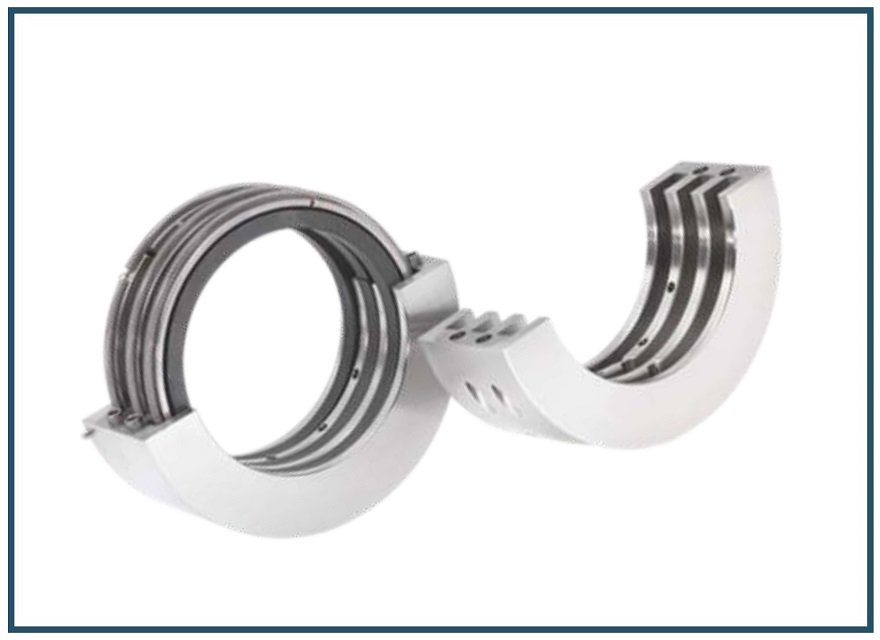

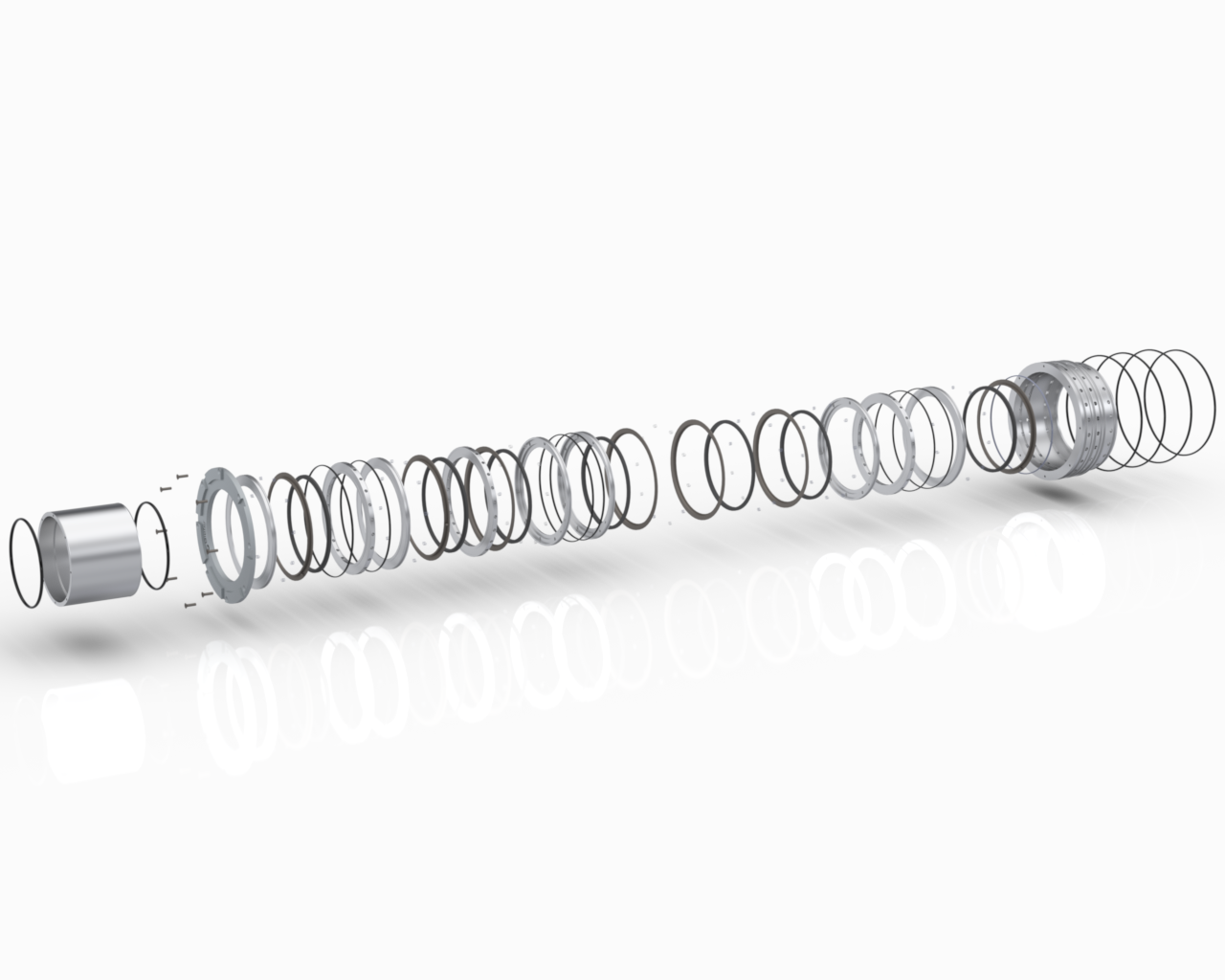

• Segmented or multi-part ring design enables replacement without full shaft redesign, depending on configuration.

• Optional buffer gas, suction, vent, or grease-barrier ports for demanding process-gas and contaminated services.



Service Overview

Parameter	Value
Equipment	Compressors, steam turbines, fans, blowers, mixers, agitators, dryers, mills, centrifuges, gearboxes, bearing housings
Fluid	Process gas, vapour, fumes, exhaust gas, oil mist, water mist, steam/liquid mist, selected clean or contaminated gas streams
Service Nature	High-speed, dry-running, low-leakage shaft sealing with radial shaft movement compensation
Operating Mode	Continuous duty, intermittent duty, standby equipment, thermal-cycling service, gas-barrier-assisted service



Specifications

Item	Min	Max	Typical/Notes
Size	12 mm (0.5”)	300 mm (12.000”)	Standard cartridge range inferred from chamber-type carbon floating seal references; larger sizes on request
Pressure	Vacuum	20 bar (290 psi)	Standard process-gas duty; engineered high-pressure variants available after duty review
Temperature	-120°C  (-184°F)	+500°C (+932°F)	Carbon ring construction; PTFE compound options are typically lower-temperature
Speed	—	3600 RPM	High-speed carbon ring duty; special designs may be engineered for higher sliding velocity



Materials

Component	Standard Material	Optional Material	Comment
Floating Seal Rings	Carbon graphite	PTFE compound, antimony-impregnated carbon, resin-impregnated carbon, carbon with metallic bandage	Selected by pressure, gas composition, temperature, and shaft hardness
Cartridge / Chamber Parts	SS 316 / SS 316L	SS 304, 1.4021, 1.4571, Hastelloy, Inconel, Titanium	Corrosion and temperature compatibility to be confirmed by the duty
Springs / Anti-Rotation Elements	SS 316 / 1.4571	Hastelloy, Inconel, Titanium	Maintains ring positioning and controlled radial compliance
Secondary Seals / Gaskets	FKM, PTFE, graphite flat gasket	FFKM, NBR, high-temperature graphite, special PTFE seals	Selected for gas, temperature, and chemical compatibility



Applications

• Steam turbines and vapour recovery equipment in power and process plants.

• Process-gas compressors in chemical, petrochemical, refining, and oil & gas service.

• Metal production, heat treatment, furnace circulation, and hot-gas handling systems.

• Bearing seals for gearboxes, motors, and rotating equipment requiring non-contact shaft sealing.

• Food, dairy, beverage, pulp & paper, mining, water treatment, and plant engineering applications.

• Mixers, agitators, dryers, and mills handling powders, vapours, fumes, or gas-phase process media.

• High-speed fans and blowers for exhaust gas, solvent recovery, sulphur recovery, and vapour compression.



Operating Limits

Parameter	Value
Pressure	Vacuum to 20 bar (290 psi), higher-pressure engineered versions on request
Temperature	-120°C to +500°C (-184°F to +932°F), dependent on ring and secondary seal material
Speed	Up to 3600 RPM, high-speed special designs on request
Size Range	12 mm to 300 mm (0.500” to 12.000”), custom sizes on request



Engineering verification note

CF-1410-specific certified limits were not provided in the uploaded files, so the operating envelope above is inferred from comparable cartridge/chamber carbon floating ring seal references and should be verified against final shaft size, gas composition, pressure differential, temperature, shaft hardness, runout, axial movement, and porting arrangement before release for quotation or manufacture.
