Non-metallic Monoblock Type

Description

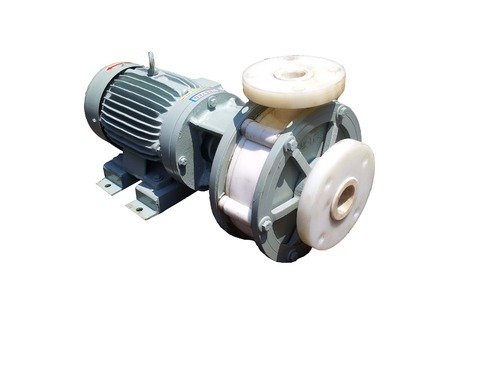

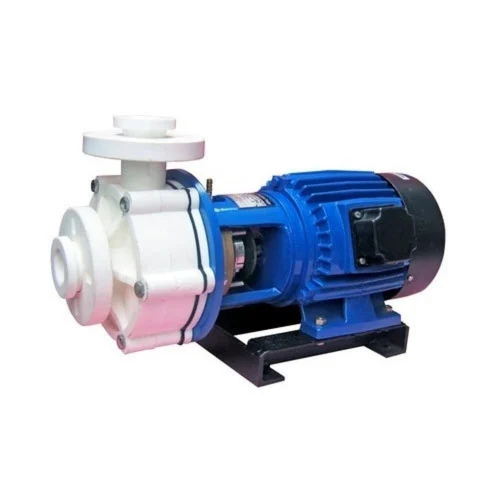

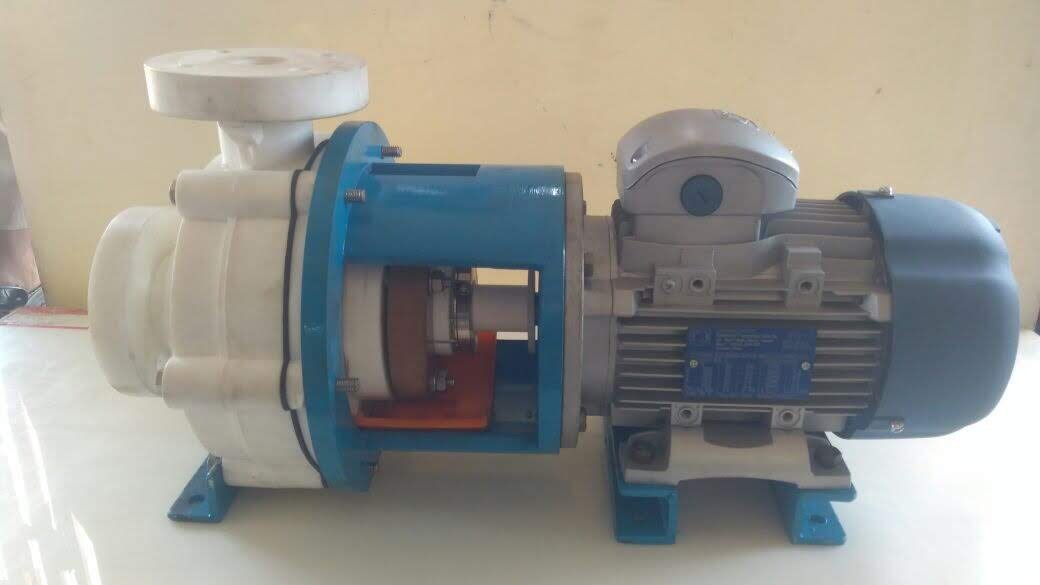

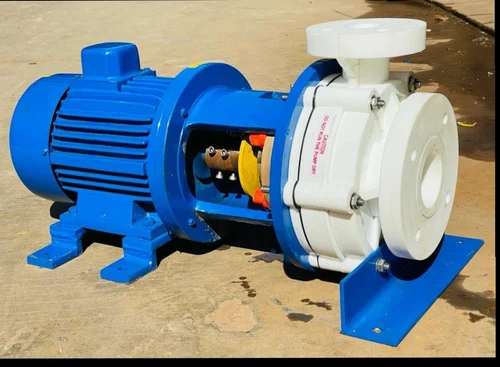

The HM-1105 Horizontal Non-Metallic Monoblock Pump is a close-coupled, single-stage, end-suction centrifugal pump designed for corrosive chemical service where metallic wetted parts are not suitable. Its non-metallic hydraulic construction, available with open or semi-open impellers and a mechanical seal driven directly by an electric motor, provides reliable resistance to acids, alkalis, chlorinated media, plating chemicals, pickling solutions, and contaminated effluents. The monoblock arrangement minimizes footprint, coupling alignment issues, and installation complexity while supporting cost-competitive, compact pump layouts.

Wetted components such as the volute and impeller are typically fabricated in polypropylene or other chemical-resistant polymers, with the shaft protected by replaceable sleeves in materials compatible with the handled liquid. High-quality ball bearings and corrosion-resistant construction extend service life in continuous duty, especially in scrubber circulation, effluent transfer, and other aggressive environments.

Engineered for chemical process plants, effluent treatment plants (ETP), acid regeneration units, gas scrubbers, filter-press feed, and general industrial transfer duties, the HM-1105 is well-suited for applications where leakage control, chemical compatibility, and low maintenance are critical. Typical usage includes acid and alkali transfer, electroplating and pickling lines, dyes and paint manufacture, pharmaceutical processes, steel re-rolling auxiliaries, water-treatment systems, and power-sector balance-of-plant services.

Technical Key Features

• · Compact design with optimum machining accuracy for smooth, efficient operation.
• · Reliable and robust construction, with every component subjected to strict quality control.
• · Back pull-out design simplifies inspection and maintenance without disturbing connected piping.
• · Low-maintenance hydraulic design with minimized metallic corrosion exposure in wet-end components.
• · Non-metallic wetted construction for improved resistance to acids, alkalis, and corrosive process liquids.
• · Close-coupled motor–pump arrangement provides a compact layout, low noise, and reduced vibration risk.
• · Horizontal monoblock design eliminates flexible coupling alignment and reduces required installation space.
• · Application flexibility for ETP, water treatment, filter press, electroplating, and chemical process circulation.
• · Optional material selections available for media compatibility across acids, alkalis, solvents, and oxidizing environments.
• · Suitable for corrosive chemical transfer, including HCl handling, scrubber circulation, pickling liquor, and effluent duties.

Service Overview

Specifications

Materials

Applications

• · Acid regeneration plants.
• · Dyes and intermediates industries.
• · Paint and pigment processing plants.
• · Pickling systems in steel rolling mills.
• · Chemical and pharmaceutical industries.
• · Electroplating and surface treatment lines.
• · Hydrochloric acid loading and unloading systems.
• · Steel re-rolling plants and process utility systems.
• · Power station auxiliary chemical handling systems.
• · Filter press feed duties in dyes and chemical plants.
• · Effluent treatment plants and water treatment systems.
• · Scrubbing of corrosive gases including Cl₂, Br₂, F₂, I₂, SO₂, SO₃, CO₃, and NH₃.

Operating Limits
