Description

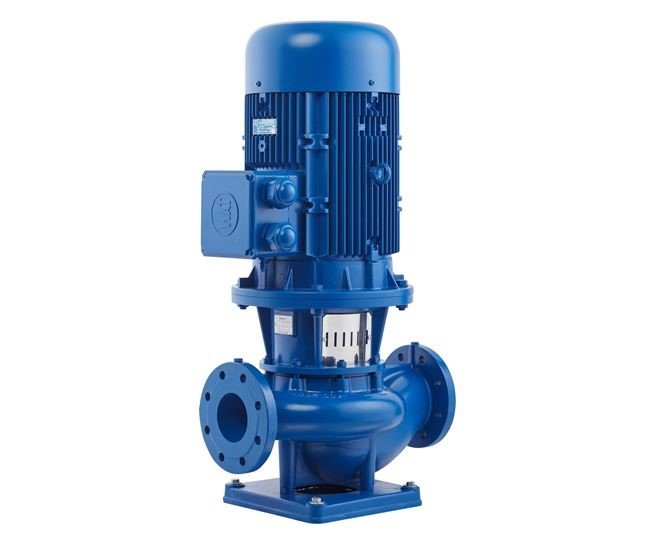

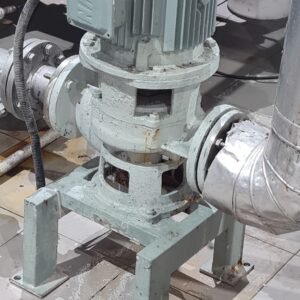

The IL-1150 Centrifugal Vertical In-Line Metallic Coupled Pump is a space-saving, end-suction style vertical in-line centrifugal pump engineered for clean-water and utility-water circulation duties where compact footprint, stable hydraulic performance, and direct pipeline installation are required. Its metallic volute casing, flanged suction/discharge connections, and close-coupled motor arrangement provide a rigid, low-maintenance pumping package suitable for mechanical rooms, plant rooms, process utility skids, and marine auxiliary systems.
Designed for continuous circulation and pressure boosting, the IL-1150 supports HVAC chilled-water loops, condenser-water circuits, heating and boiler-feed circulation support, washdown systems, and commercial/industrial water distribution. The vertical in-line configuration reduces floor-space demand compared with base-mounted horizontal pumps while maintaining service access to the motor, coupling area, mechanical seal, and rotating assembly.
Technical Key Features
- Vertical in-line configuration for direct pipe mounting and reduced plant-room footprint.
- Coupled pump construction enables efficient power transmission and easier motor serviceability.
- Metallic hydraulic casing suitable for clean water, treated water, glycol-water mixtures, and utility water services.
- Suitable for continuous-duty circulation in commercial buildings, industrial facilities, and marine auxiliary systems.
- Mechanical seal compatibility supports clean-water operation with optional elastomer and face-material upgrades.
- Flanged suction and discharge ports provide rigid installation for HVAC, fire support, and industrial circulation networks.
- Back pull-out service concept allows inspection of rotating components with minimal pipe disturbance, where design clearance is provided.
Service Overview
| Parameter | Value |
| Equipment | Vertical in-line centrifugal metallic coupled pump |
| Fluid | Clean water, treated water, chilled water, condenser water, hot water, glycol-water mixture, utility water |
| Service Nature | Circulation, transfer, pressure boosting, washdown, and cooling-water support |
| Operating Mode | Continuous or intermittent duty with stable suction conditions |
Specifications
| Item | Min | Max | Typical/Notes |
| Size | 32 mm (1.250”) | 300 mm (12.000”) | Nominal suction/discharge flange range; final size by duty point |
| Pressure | — | 16 bar (232 psi) | Typical casing/flange pressure rating for HVAC and utility water service |
| Temp | -30°C (-22°F) | +140°C (+288°F) | Higher limits available with upgraded seals and elastomers |
| Speed | 1450 rpm | 3600 rpm | 50 Hz / 60 Hz motor options; selected by duty and efficiency point |
Materials
| Component | Standard Material | Optional Material | Comment |
| Pump Casing / Volute | Cast iron / ductile iron | Stainless steel/bronze | Selection based on water quality, corrosion risk, and project specification |
| Impeller | Cast iron/bronze | SS 304 / SS 316 | Dynamically balanced for stable operation |
| Shaft / Sleeve | SS 304 | SS 316 / duplex stainless steel | Sleeve recommended for seal-area protection |
| Mechanical Seal | Carbon vs ceramic / SiC with NBR or EPDM | SiC vs SiC, FKM, EPDM, PTFE | Selected according to temperature, glycol content, and chemical treatment |
| Fasteners / Hardware | Carbon steel / SS 304 | SS 316 | Upgrade for marine, washdown, or corrosive atmospheres |
Applications
- Heating systems and boiler-feed circulation support.
- Cleaning, washdown, and utility water supply systems.
- Industrial water circulation and utility transfer systems.
- Fire protection systems and jockey pump support duties.
- HVAC chilled-water and condenser-water circulation systems.
- Air-conditioning plant circulation and chilled-water distribution.
- Marine engine-room cooling water and auxiliary water systems.
- Pressure boosting systems for commercial and industrial facilities.
Operating Limits
| Parameter | Value |
| Pressure | Up to 16 bar (232 psi) |
| Temp | -30°C to +140°C (-22°F to +284°F) |
| Speed | Up to 3600 rpm |
| Size Range | 32 mm to 300 mm (1.250” to 12.000”) |
Verification Note
The operating limits and material options above are inferred from standard vertical in-line centrifugal pump practice for clean-water HVAC, utility, and marine auxiliary services. Final values should be verified against the IL-1150 manufacturer curve, GA drawing, motor rating, flange standard, and project duty point before procurement or publication.
