Gipfel Engineering

Vertical Type

The

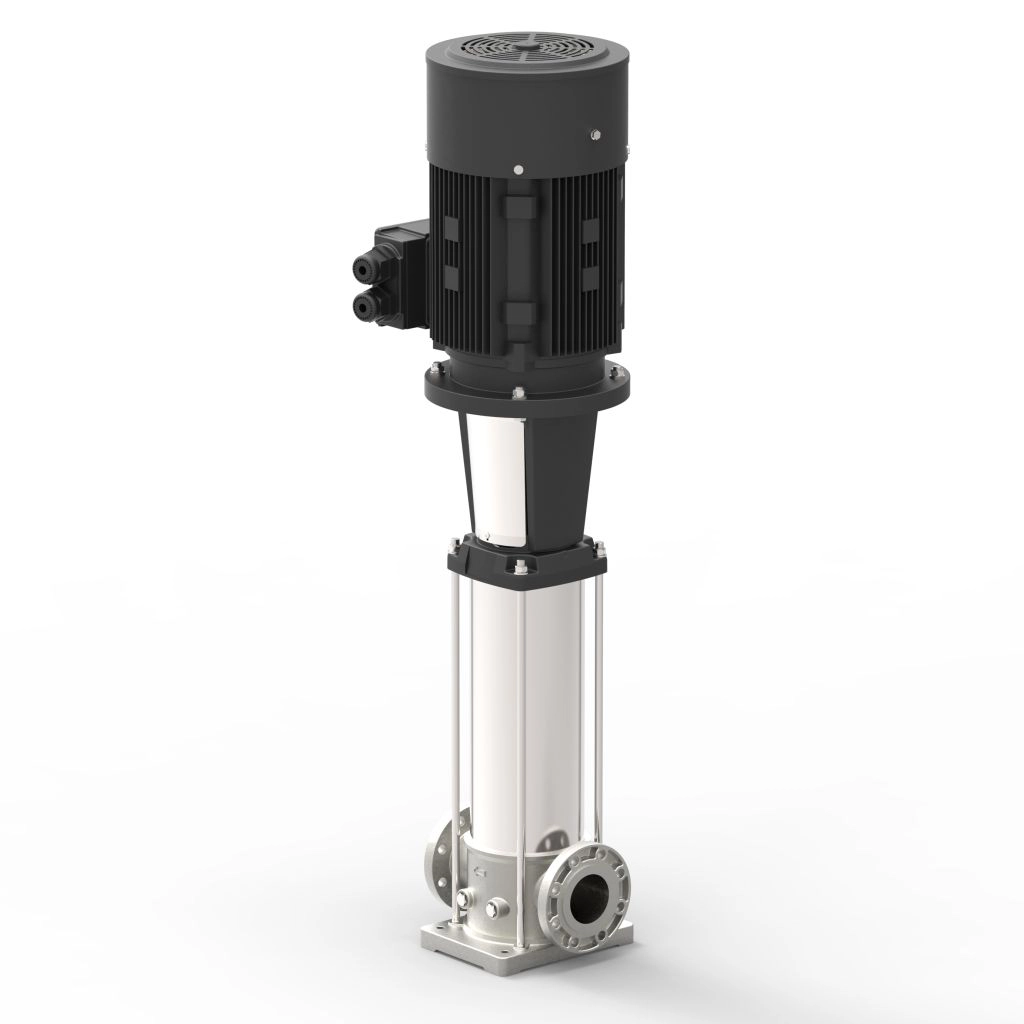

is a vertical multi-stage centrifugal pump engineered for high-head water transfer where compact installation, stable hydraulic performance, and continuous-duty operation are required. Its stacked impeller-and-diffuser stage arrangement develops higher discharge pressure than a single-stage centrifugal pump while maintaining a narrow vertical footprint suitable for borewell, sump, tank, and pressure-boosting installations. Vertical multi-stage pumps are commonly used in water supply, pressure boosting, boiler-feed, cooling-water, irrigation, dewatering, washing, and fire-fighting services.

For submersible-type applications, the pump is suitable for clean or slightly contaminated water duties such as groundwater extraction, domestic and drinking-water supply, general irrigation, pressure boosting, groundwater lowering, fire-fighting support, cooling circuits, and industrial or municipal water transfer.

Key Features

  • Multi-stage high-head hydraulic design for pressure boosting and deep-well lifting duties.
  • Integrated intake screening to reduce ingress of coarse suspended particles at the pump inlet.
  • Low-vibration vertical assembly for stable operation in borewell, tank, and sump installations.
  • Continuous-duty electric motor compatibility for municipal, agricultural, and industrial operating cycles.
  • Vertical submersible configuration minimizes floor-space requirement and enables submerged operation.
  • Corrosion-resistant wetted construction with stainless-steel hydraulic components for clean-water reliability.
  • Application flexibility for groundwater, irrigation, building services, cooling water, washdown, and utility transfer.

Service Overview

Parameter Value
Equipment Vertical multi-stage submersible centrifugal pump
Fluid Clean water, raw water, potable water, groundwater, slightly contaminated water
Service Nature High-head lifting, pressure boosting, transfer, circulation, and dewatering
Operating Mode Continuous or intermittent duty with motor protection and dry-run safeguards recommended

Specifications & Operating Limits

Parameter Min Max Notes
Size On request On request Selected against the required flow, head, and duty point
Pressure / Head On request On request Selected against the required flow, head, and duty point
Temperature On request On request Selected against the required flow, head, and duty point
Speed On request On request Selected against the required flow, head, and duty point
Note: Limits are maximum values for individual parameters and are not simultaneous. The duty point, materials and motor are selected for each application; contact Gipfel Engineering to confirm suitability for your duty.

Materials of Construction

Component Standard Options Notes
Pump Casing / Outer Shell Stainless Steel SS 304 SS 316 / Duplex SS Selection depends on the chloride level and water chemistry
Impellers & Diffusers Stainless Steel SS 304 SS 316 / Engineered Polymer Multi-stage pressure generation components
Shaft & Coupling SS 304 / SS 316 Duplex SS Requires corrosion and torsional-load verification
Mechanical Seal / Wear Parts Carbon / Ceramic / NBR SiC / TC / FKM / EPDM Material pairing depends on water quality and temperature
Motor Housing Stainless Steel / Cast Iron with coating Full SS 316 For borewell, sump, or tank-mounted submersible duty

Applications

  • Agricultural irrigation and spray irrigation systems.
  • Domestic, commercial, and municipal water supply.
  • Construction dewatering and groundwater lowering.
  • Groundwater extraction from borewells and deep wells.
  • Fire-fighting support systems and sprinkler water supply.
  • Cooling-water circulation and HVAC make-up water service.
  • Raw-water transfer for treatment plants and industrial utilities.
  • Washdown systems, fountains, and general clean-water transfer.
  • Pressure boosting for buildings, distribution lines, and utility networks.

More Downloads

Frequently Asked Questions

  1. What is the VMS-1180?
    The
  2. Are sizes and ratings available on request?
    Yes. Size, pressure / head, temperature and speed are confirmed on request for each duty.
  3. Which materials are used in the VMS-1180?
    Pump Casing / Outer Shell: Stainless Steel SS 304; Impellers & Diffusers: Stainless Steel SS 304; Shaft & Coupling: SS 304 / SS 316. Options are listed in the materials table.
  4. Which shaft sealing is used?
    Carbon / Ceramic / NBR as standard, with SiC / TC / FKM / EPDM as options.
  5. Which fluids can the VMS-1180 handle?
    Clean water, raw water, potable water, groundwater, slightly contaminated water.
  6. Where is the VMS-1180 used?
    Agricultural irrigation and spray irrigation systems; Domestic, commercial, and municipal water supply; Construction dewatering and groundwater lowering; Groundwater extraction from borewells and deep wells; Fire-fighting support systems and sprinkler water supply.
