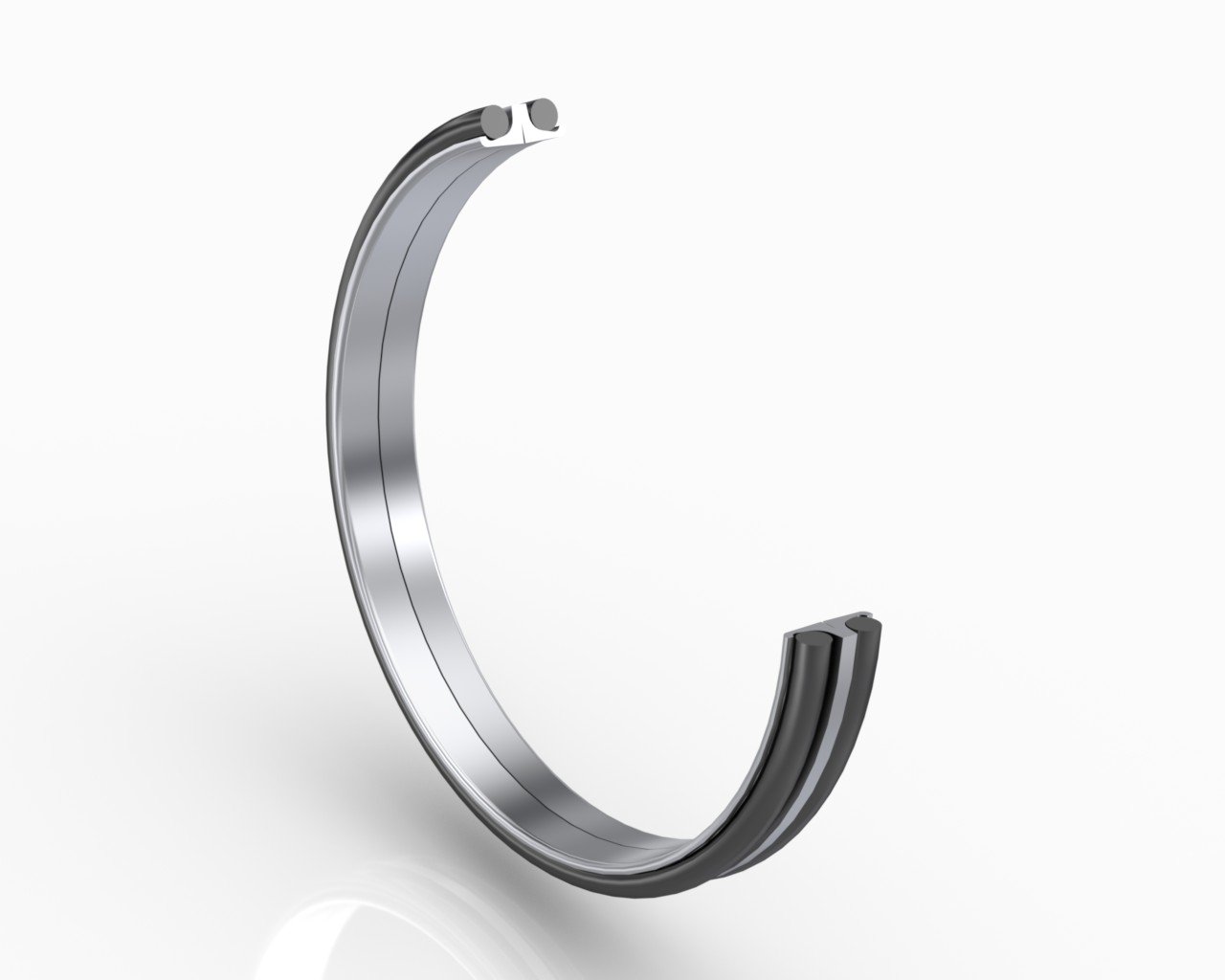

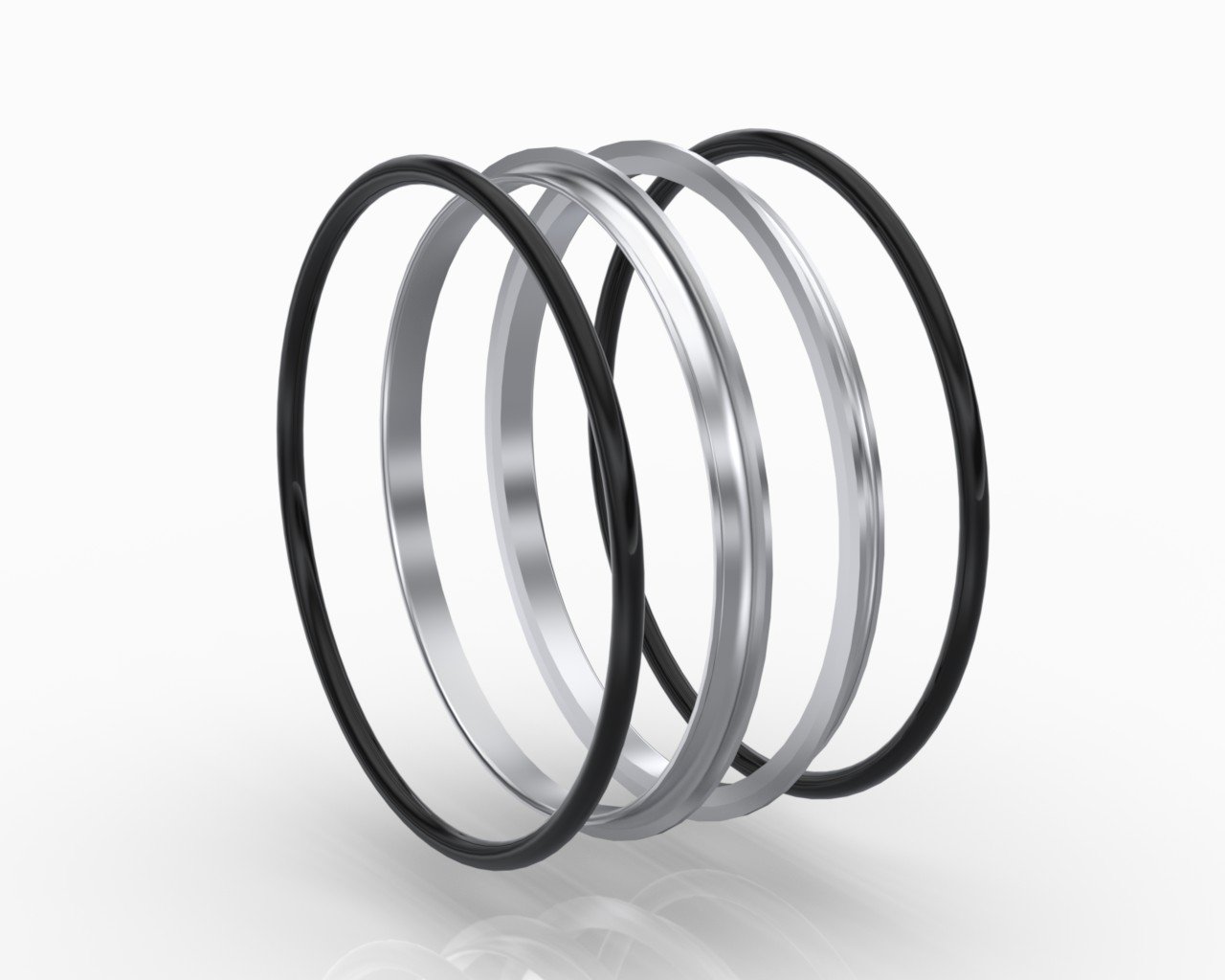

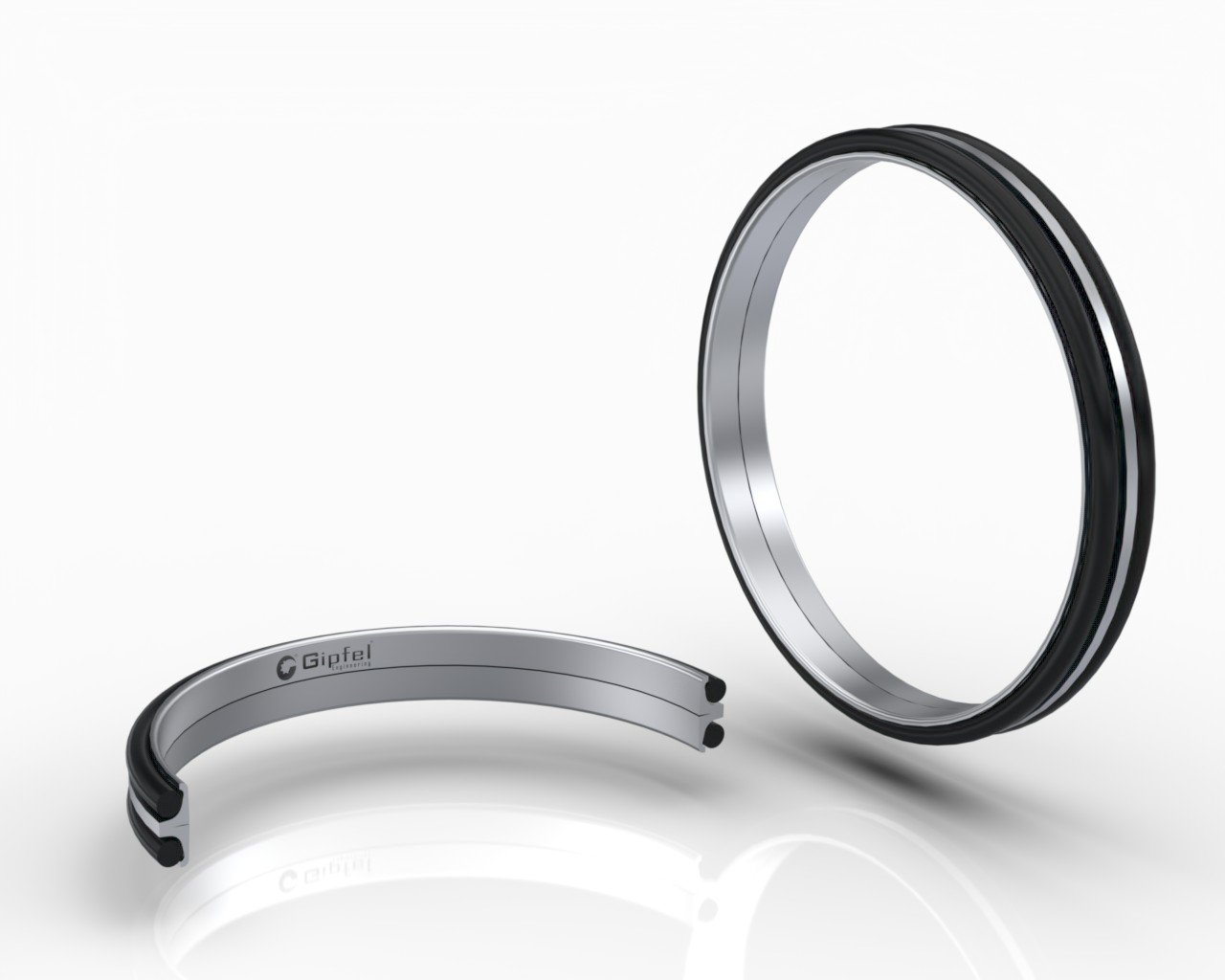

The Gipfel Track Roller Seal is a mechanical face seal, also known as a floating seal or heavy-duty seal, that retains lubricant and excludes mud, sand, dust and water in heavily loaded, slow-running assemblies. Each seal set comprises two identical metal seal rings with precision-lapped sealing faces and two elastomer toric rings that load the faces axially and seal against the housings.
The rings are installed face to face in their housings, one stationary and one rotating. The lapped faces run on a thin lubricant film, giving long, maintenance-free service in track rollers, idlers, final drives and wheel hubs of earth-moving, mining, agricultural and material-handling equipment.
Key Features
- Two identical metal seal rings with precision-lapped sealing faces.
- Elastomer toric rings provide the axial face load and static housing seal.
- Excludes abrasive contaminants such as mud, sand, dust and water.
- Retains lubricant for long, maintenance-free service.
- Compact, self-contained design for limited installation space.
- Elastomer selected to suit lubricant and operating temperature.
Service Overview
| Parameter | Value |
|---|---|
| Equipment | Track rollers, idlers, final drives, wheel hubs, axles and slow-running gearboxes |
| Medium | Lubricating oil or grease inside; mud, sand, dust and water outside |
| Service Nature | Heavy-duty, abrasive, outdoor operation |
| Operating Mode | Low-speed rotation, continuous or intermittent |
Specifications & Operating Limits
| Parameter | Min | Max | Notes |
|---|---|---|---|
| Size | On Request | On Request | Seal size to suit housing dimensions |
| Pressure | — | 3 bar (44 psi) | Cast iron rings; 1.5 bar (22 psi) for steel rings |
| Sliding Speed | — | 3 m/s (9.8 ft/s) | Cast iron rings; 2.2 m/s (7.2 ft/s) for steel rings |
| Temperature | -40°C (-40°F) | +200°C (+392°F) | Dependent on the toric ring elastomer |
Note: Limits are maximum values for individual parameters and are not simultaneous. Actual limits depend on the application, materials and size; contact Gipfel Engineering to confirm suitability for your duty.
Materials of Construction
| Component | Standard | Options | Notes |
|---|---|---|---|
| Seal Rings | Alloyed cast iron | Bearing steel 1.3505 | Hardened, precision-lapped faces |
| Toric Rings | NBR | HNBR / FKM / VMQ | Selected for lubricant compatibility and temperature |
Applications
- Excavators, dozers and other crawler machines (track rollers, idlers, final drives)
- Mining and tunnelling equipment
- Agricultural machinery and tractor axles
- Conveyors and bulk material handling equipment
- Mixers and slow-running heavy-duty gearboxes
More Downloads
Frequently Asked Questions
- What is the Track Roller Seal?
The Gipfel Track Roller Seal is a mechanical face seal, also known as a floating seal or heavy-duty seal, that retains lubricant and excludes mud, sand, dust and water in heavily loaded, slow-running assemblies. - What are the operating limits of the Track Roller Seal?
Pressure up to 3 bar (44 psi); sliding speed up to 3 m/s (9.8 ft/s); temperature -40°C (-40°F) to +200°C (+392°F). These limits are not simultaneous. - Are sizes and ratings available on request?
Yes. Size is confirmed on request for each application. - Which materials are used in the Track Roller Seal?
Seal Rings: Alloyed cast iron; Toric Rings: NBR. - Which media can the Track Roller Seal handle?
Lubricating oil or grease inside; mud, sand, dust and water outside. - Which equipment is the Track Roller Seal used on?
Track rollers, idlers, final drives, wheel hubs, axles and slow-running gearboxes. - Where is the Track Roller Seal used?
Excavators, dozers and other crawler machines (track rollers, idlers, final drives); Mining and tunnelling equipment; Agricultural machinery and tractor axles; Conveyors and bulk material handling equipment; Mixers and slow-running heavy-duty gearboxes.
