Description

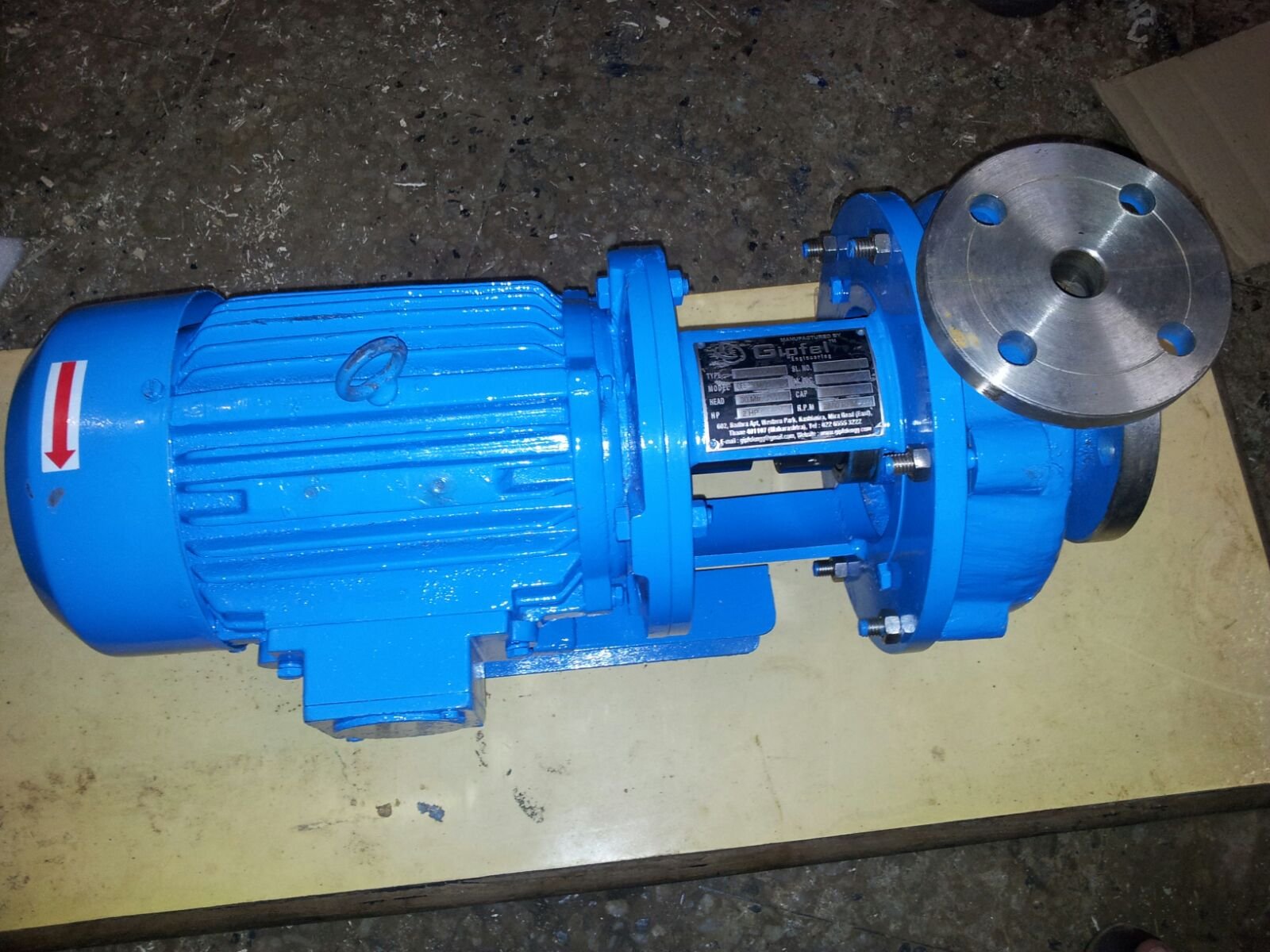

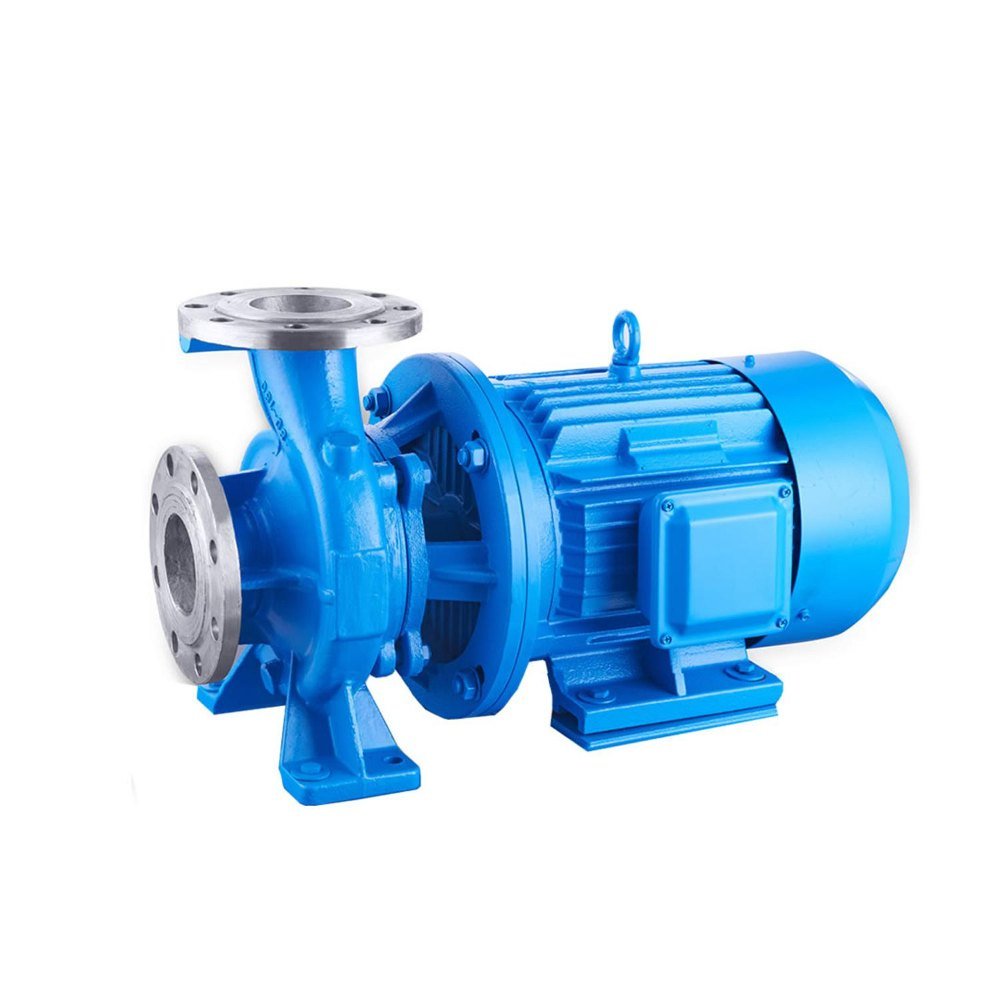

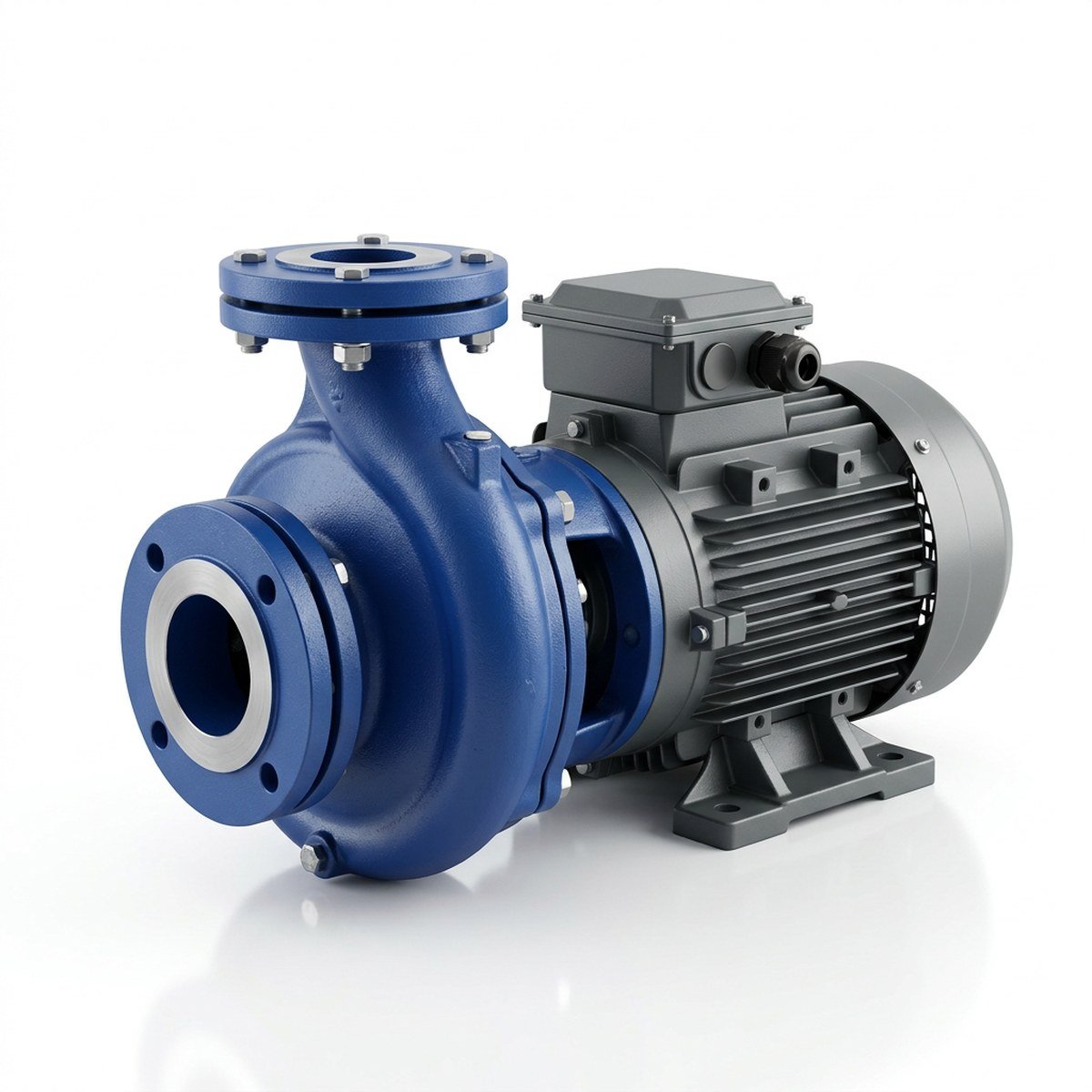

The HM-1110 Horizontal Metallic Monoblock Pump is a single-stage, end-suction, non-self-priming centrifugal pump in a compact, close-coupled construction. It is designed with an open or semi-open impeller and mechanical seal, driven directly by an electric motor to provide reliable transfer of thin, clean, non-explosive, non-aggressive liquids free from solid particles, fibres, and abrasive contaminants.
Its monoblock design integrates the hydraulic end with the motor, reducing coupling alignment requirements, minimizing installation footprint, and improving mechanical rigidity for continuous utility and circulation service. The HM-1110 is suitable for civil, industrial, commercial, and process-support applications, including wastewater and effluent treatment support systems, drainage and water extraction, HVAC heating and cooling circuits, air-conditioning and domestic water supply, irrigation networks, swimming pool circulation, electroplating utilities, shipbuilding services, firefighting booster duties, and food, beverage, and perfumery liquid transfer, where clean-liquid compatibility is maintained.
Technical Key Features
· Mechanical seal shaft sealing supports controlled leakage performance for clean-liquid operation.
· Compact horizontal configuration enables easy base mounting, piping access, and maintenance visibility.
· Close-coupled monoblock construction minimizes shaft alignment requirements and reduces installation space.
· Continuous-duty motor compatibility suitable for water supply, circulation, and process-support applications.
· Single-stage centrifugal hydraulic design suitable for clean water transfer, circulation, and moderate-head utility duties.
· Metallic wetted construction provides mechanical strength for industrial, civil, and commercial plant environments.
· Application versatility across HVAC, irrigation, firefighting, ETP/WTP support systems, swimming pools, and general industrial utilities.
Service Overview
Parameter Value
Equipment Horizontal metallic monoblock centrifugal pump
Fluid Thin, clean, non-explosive, non-aggressive liquids without solids, fibres, or abrasive particles
Service Nature Clean-liquid transfer, circulation, extraction, boosting, drainage support, and utility service
Operating Mode Continuous or intermittent duty, depending on motor rating and duty point
Specifications
Item Min Max Typical/Notes
Size On Request On Request To be selected by flow, head, suction/discharge nozzle size, and motor rating
Pressure — 16 bars (232 psi) Reference maximum operating pressure for comparable close-coupled centrifugal pump designs
Temp -30°C (-22°F) +140°C (+284°F) Dependent on seal, elastomer, bearing, and motor configuration
Speed 960 rpm 3500 rpm Typical 50 Hz / 60 Hz motor-speed range; exact speed depends on motor pole and supply frequency
Materials
Component Standard Material Optional Material Comment
Pump Casing Cast iron / metallic casing Bronze / stainless steel / ductile iron Select according to liquid chemistry and corrosion margin
Impeller Cast iron/bronze Stainless steel Matched to clean water, treated water, glycol water, or mild process liquids
Shaft / Shaft
Sleeve Carbon steel shaft with stainless steel sleeve Stainless steel shaft Sleeve recommended in the seal area for wear and corrosion protection
Shaft Seal Single mechanical seal Upgraded mechanical seal or elastomer combination Seal face and elastomer selection depend on liquid temperature and compatibility
Motor TEFC induction motor IE3 / IE4 efficiency motor, VFD-compatible motor For continuous-duty water, HVAC, and industrial circulation systems
Fasteners /
Hardware Carbon steel SS 304 / SS 316 Stainless hardware preferred for humid, marine, or corrosive environments
Applications
· Drainage systems and clean water transfer lines.
· Heating, cooling, air-conditioning, and circulation plants.
· Shipbuilding services and marine auxiliary water systems.
· Perfumery, electroplating, and light process-transfer duties.
· Food and beverage plants handling compatible clean liquids.
· Water extraction plants and domestic water supply systems.
· Industrial utility systems and firefighting booster applications.
· General irrigation, spray irrigation, and civil water distribution.
· Groundwater lowering systems and swimming pool circulation.
· Effluent treatment plants and wastewater treatment utility systems.
Operating Limits
Parameter Value
Pressure Up to 16 bars (232 psi)
Temp -30°C to +140°C (-22°F to +284°F)
Speed 960 rpm to 3500 rpm
Size Range On Request: select by required flow, head, and nozzle configuration
Engineering Verification Note
The operating envelope above is inferred from comparable close-coupled, single-stage centrifugal pump reference data, including clean-liquid applications, single-stage volute casing design, operating pressure up to 16 bar (232 psi), and temperature capability from -30°C to +140°C (-22°F to +284°F). Final HM-1110 limits should be verified against the actual pump curve, motor nameplate, seal selection, and liquid compatibility before quotation or installation.
