Description

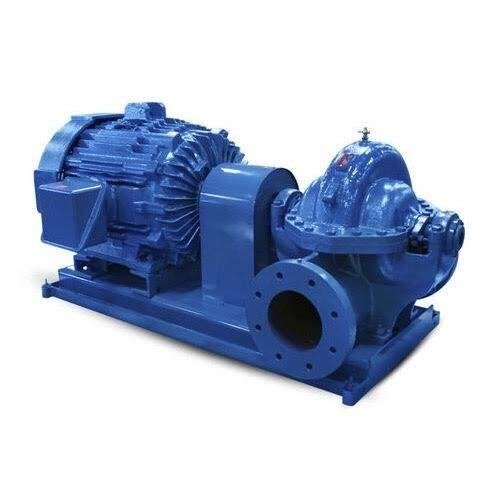

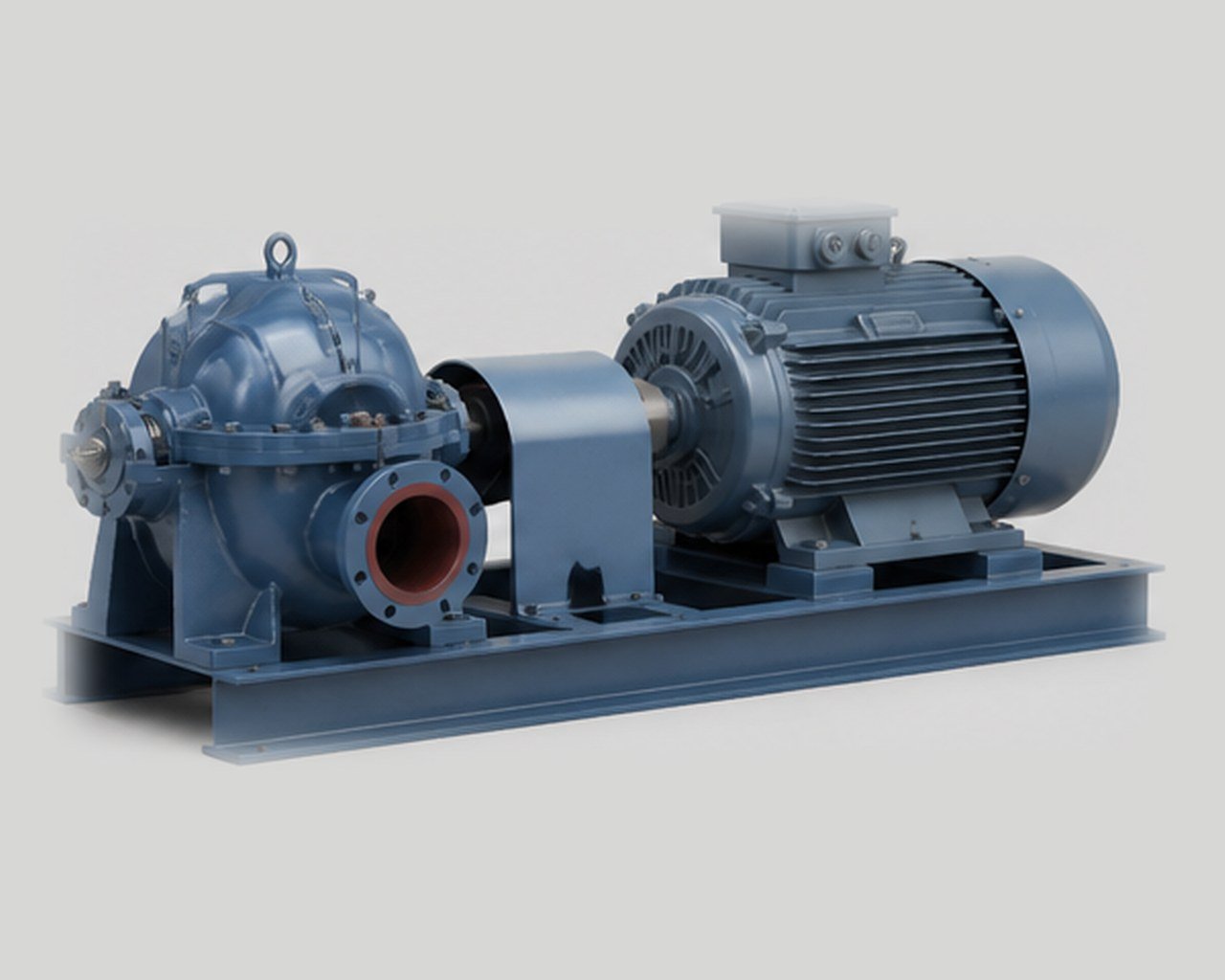

The AS-1160 Split Casing Pump is a heavy-duty centrifugal pump concept designed for high-flow, continuous-duty liquid transfer where efficiency, service accessibility, and mechanical stability are critical. The horizontally split casing arrangement allows the upper casing half to be removed for internal inspection and maintenance without disturbing major pipework, while double-suction hydraulic geometry is commonly used in split-case designs to reduce axial thrust and improve bearing and seal life. Split-case pump manufacturers commonly position this design for water supply, HVAC, district cooling, irrigation, and industrial utility duties.
For target applications, the AS-1160 should be positioned for municipal water distribution, chilled/condenser water circulation, fire-fighting systems, irrigation pumping stations, power-plant service water, petrochemical utility water, cooling-water recirculation, and general industrial transfer. Split-case pumps are used for public water supply, air-conditioning/heating systems, district heating/cooling, irrigation, fire-fighting, power stations, shipbuilding, petrochemical service, and clean/service-water handling.
Technical Key Features
- Rigid bearing support arrangement for stable shaft operation under sustained industrial duty.
- Double-suction impeller configuration reduces axial hydraulic load and supports smoother operation.
- Renewable wear components, such as wear rings and shaft sleeves, support long-term maintainability.
- Service-friendly construction enables internal access without full pump removal from the piping system.
- High-flow centrifugal hydraulic layout suitable for continuous water transfer and utility circulation duties.

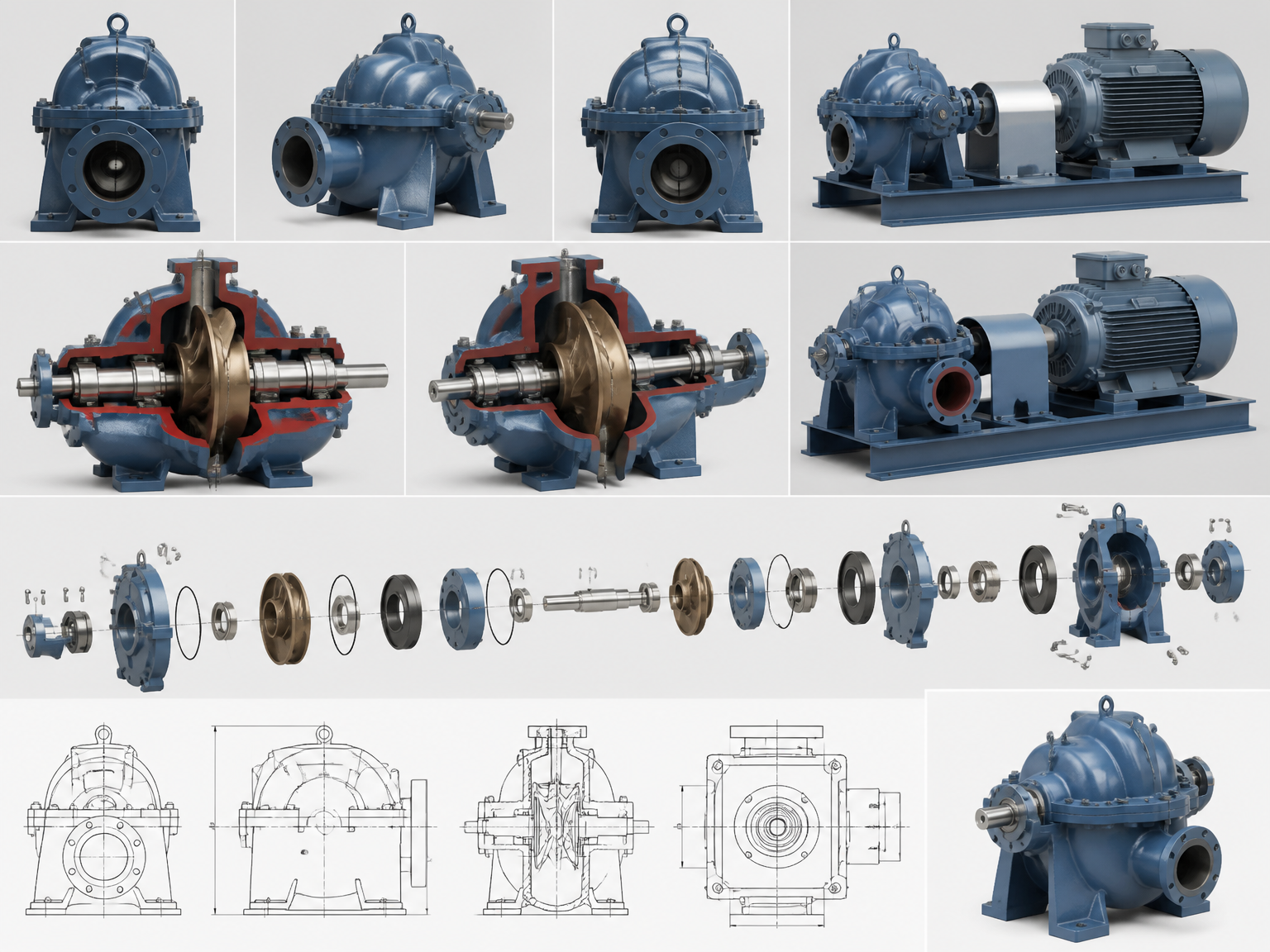

- Horizontally split casing design for rapid inspection of impeller, wear rings, shaft sleeves, and sealing area.
- Multiple sealing options, including gland packing, component mechanical seal, or cartridge mechanical seal.
Service Overview
| Parameter | Value |
| Equipment | Horizontal split casing centrifugal pump |
| Fluid | Clean water, raw water, treated water, chilled water, condenser water, service water, cooling water |
| Service Nature | High-flow, low-to-medium head, continuous utility and transfer service |
| Operating Mode | Continuous / standby / duty-assist operation in pump stations, HVAC plants, and industrial utilities |
Specifications
| Item | Min | Max | Typical / Notes |
| Size | On request | On request | Selected against the required flow, head, and duty point |
| Pressure | On request | On request | Selected against the required flow, head, and duty point |
| Temp | On request | On request | Selected against the required flow, head, and duty point |
| Speed | On request | On request | Selected against the required flow, head, and duty point |
Materials
| Component | Standard Material | Optional Material | Comment |
| Casing | Cast Iron / Ductile Iron | Cast Steel, SS 304, SS 316, Duplex SS | Select based on pressure, corrosion, and water chemistry |
| Impeller | Bronze / Cast Iron | SS 304, SS 316, Duplex SS | Double-suction impeller preferred for axial thrust balance |
| Shaft | SS 410 / SS 420 | SS 304, SS 316, Duplex SS | Shaft material to match corrosion and strength requirements |
| Wear Rings | Bronze / Stainless Steel | Duplex SS / Hardened SS | Renewable design recommended for lifecycle efficiency |
| Shaft Sealing | Gland Packing | Mechanical Seal / Cartridge Seal | Mechanical seal recommended for leakage-controlled service |
| Bearings | Anti-friction Bearings | Heavy-duty grease/oil lubricated arrangement | Selection depends on duty, speed, and bearing-life requirement |
Applications
- District cooling and district heating plants.
- Industrial cooling-water and service-water transfer.
- Irrigation, drainage, and raw-water intake pumping.
- Municipal water supply and distribution pumping stations.
- Power plant utility water, cooling water, and auxiliary circulation.
- Petrochemical, refinery, fertilizer, paper, sugar, and textile plant utilities.
- HVAC chilled-water, condenser-water, and hot-water circulation systems.
- Fire-fighting pump systems for sprinkler, hydrant, and standpipe networks.
Operating Limits
| Parameter | Value |
| Pressure | On request |
| Temp | On request |
| Speed | On request |
| Size Range | On request |
