Description

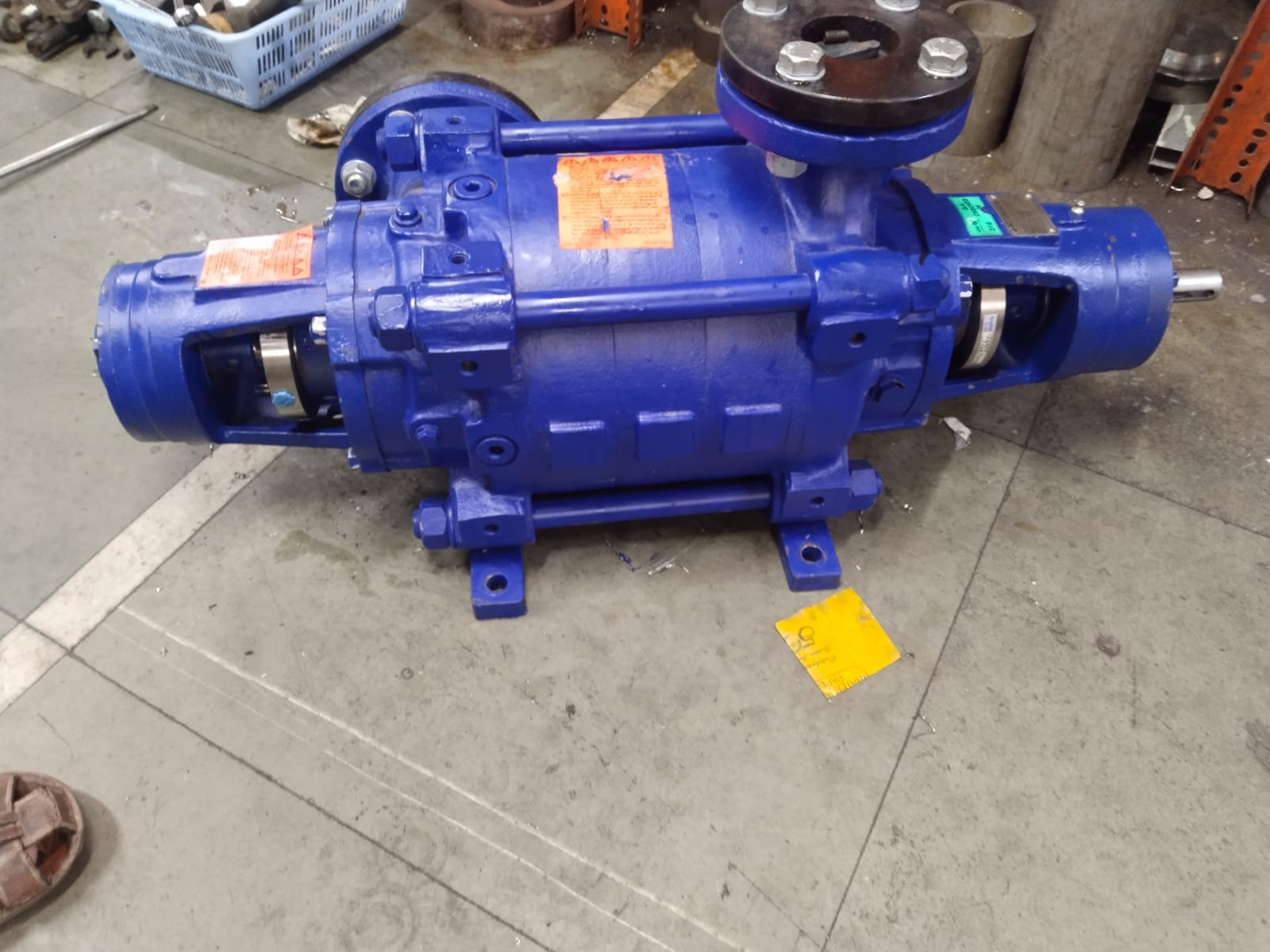

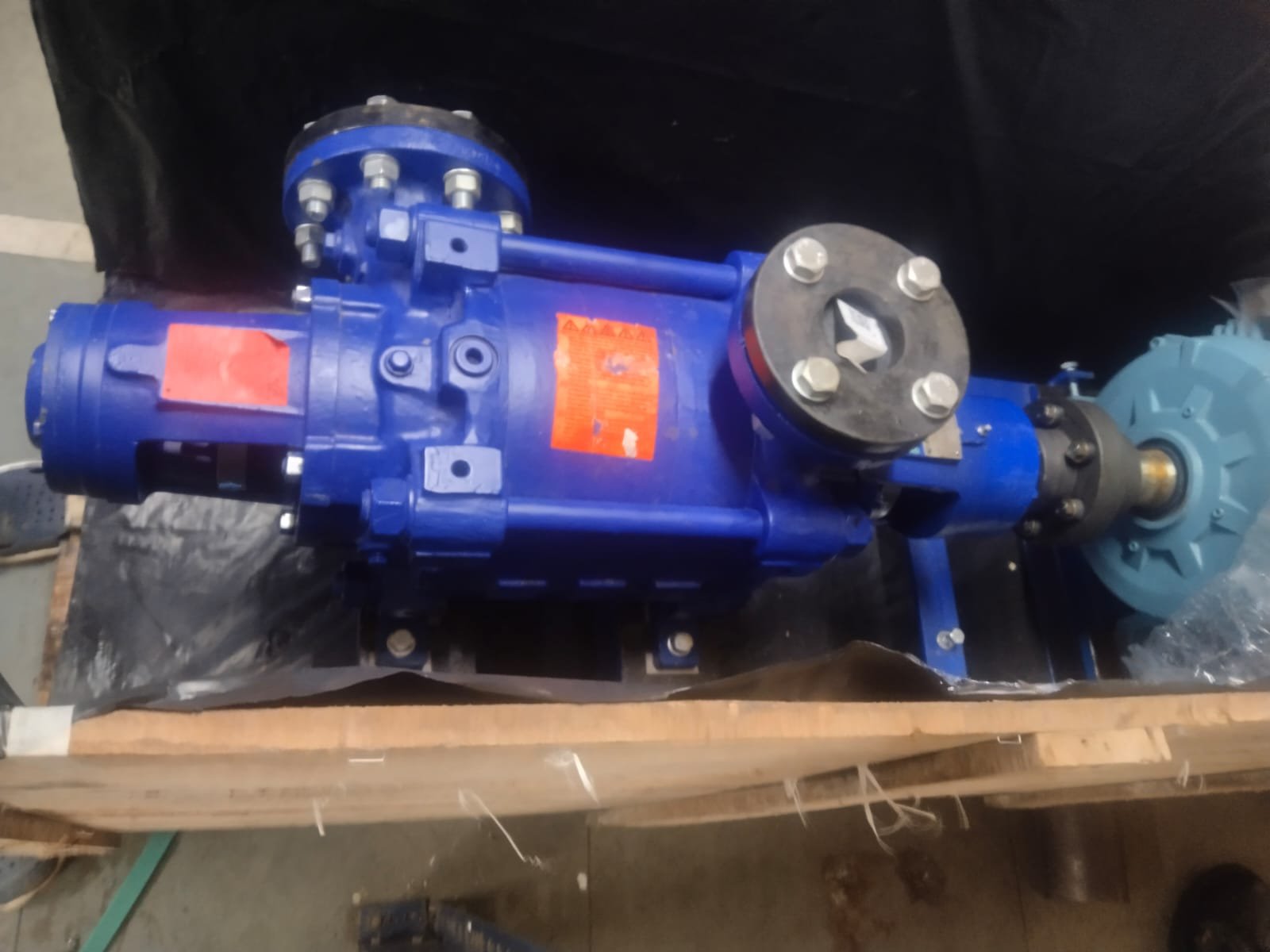

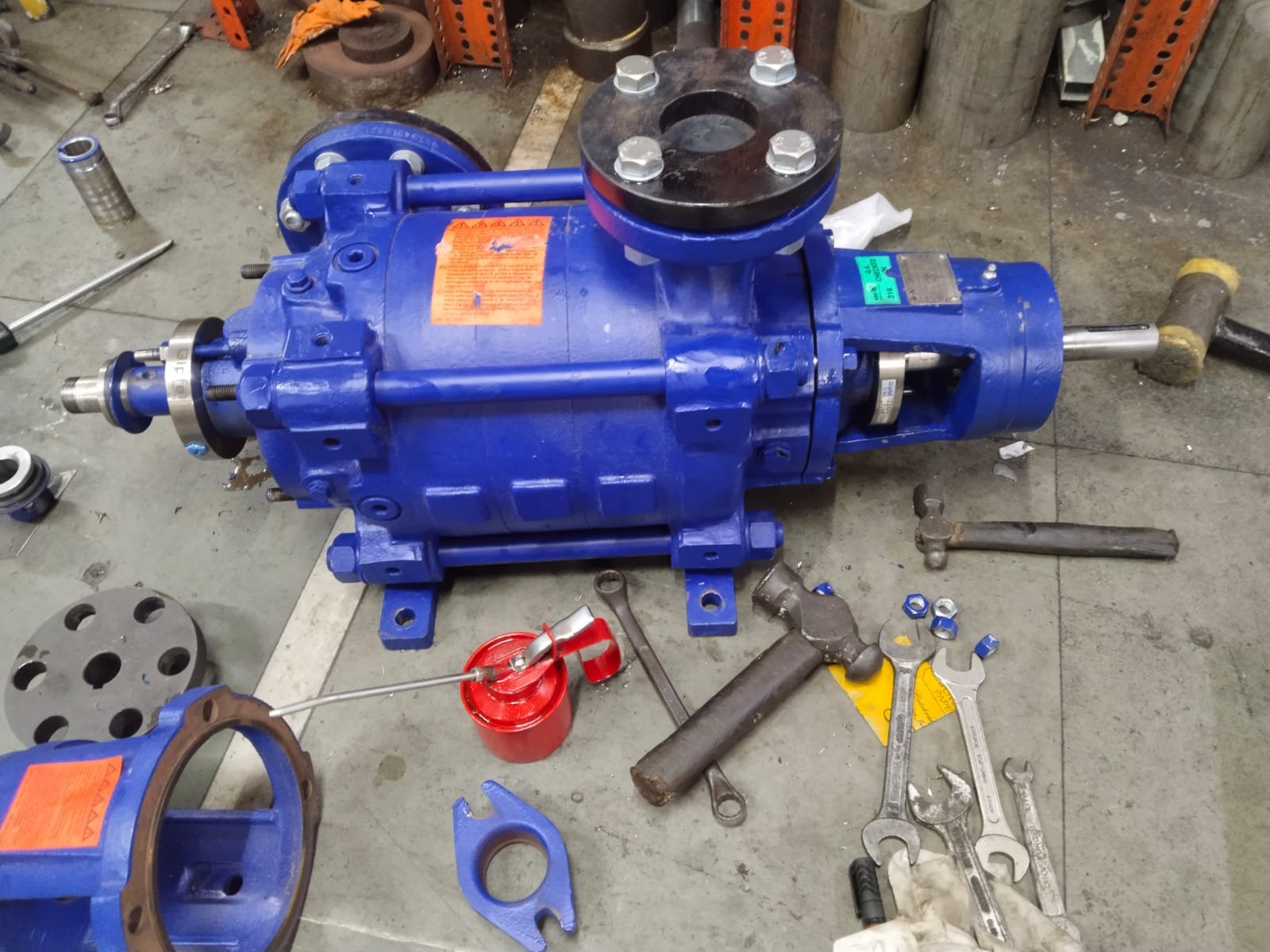

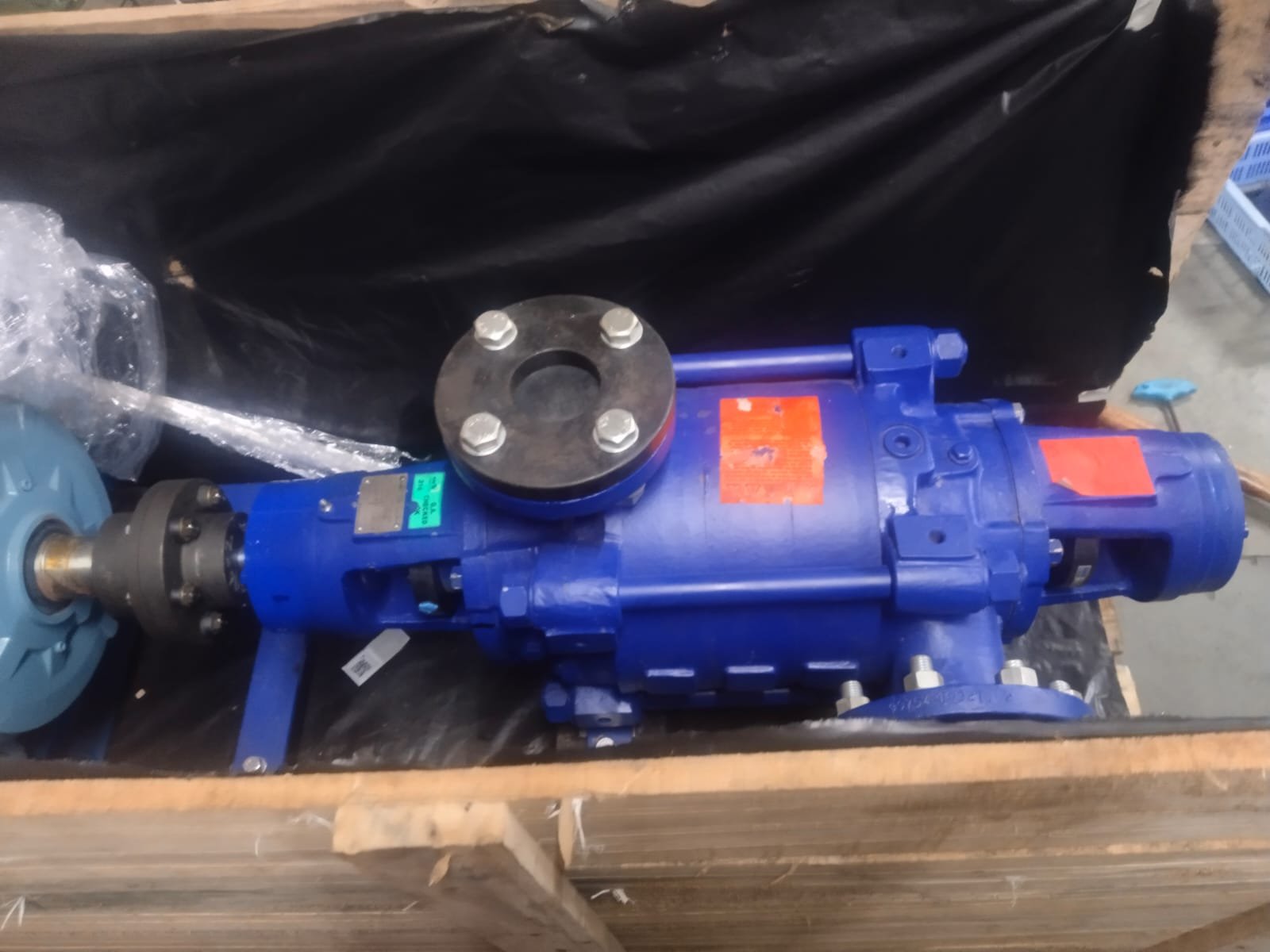

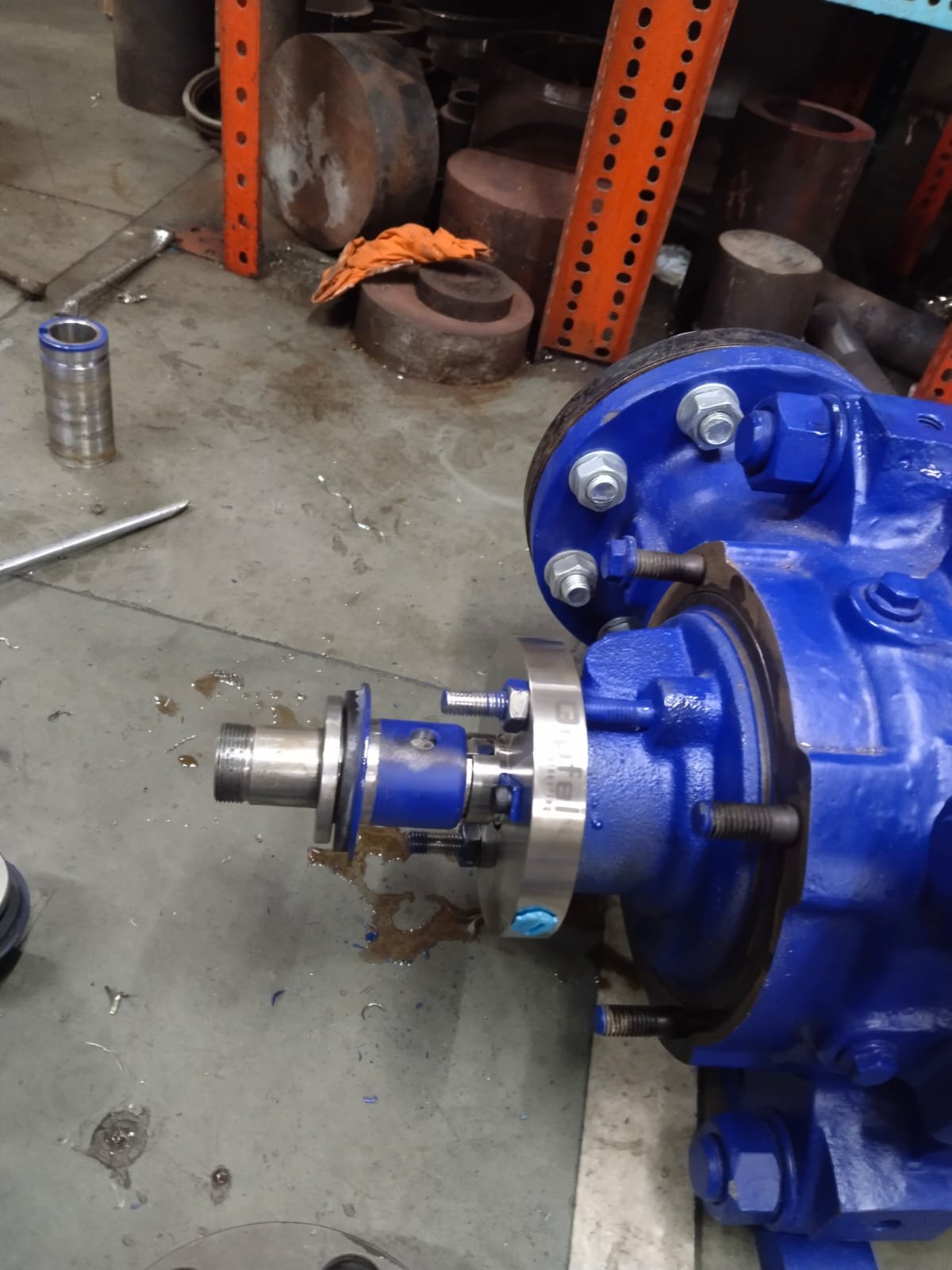

The HMS-1170 Horizontal Multi-Stage Pump is an industrial centrifugal pump designed to generate elevated discharge pressure by routing liquid through multiple impeller stages mounted in series. This configuration is suitable where a high head is required while maintaining stable flow, making it appropriate for pressure boosting, clean-water transfer, boiler feed, reverse osmosis feed, HVAC circulation, and utility-water distribution duties. Horizontal multi-stage pumps are widely used for high-head pressure boosting and liquid transfer applications across industrial water systems.
Engineered for continuous-duty plant operation, the HMS-1170 is suitable for clean water, treated water, condensate, softened water, cooling water, and compatible low-viscosity process fluids. Typical application areas include water treatment, air-conditioning, industrial heating/cooling circuits, process-water boosting, industrial washing, boiler feed, and RO systems.
Technical Key Features
- Robust cast construction for general industrial duty, vibration resistance, and long operating life.
- Mechanical shaft seal arrangement suitable for clean water and compatible process-water services.
- Electric motor-driven configuration compatible with fixed-speed or VFD-controlled booster systems.
- Flanged suction and discharge connections for rigid pipework integration in industrial utility systems.
- Suitable for continuous service in boiler feed, RO feed, water-transfer, and pressure-boosting systems.
- Horizontal split service envelope allowing easier access for coupling, seal, bearing, and alignment work.
- Multi-stage hydraulic design for high-head, high-pressure operation with stable discharge performance.
Service Overview
| Parameter | Value |
| Equipment | Horizontal multi-stage centrifugal pump |
| Fluid | Clean water, treated water, condensate, softened water, cooling water, compatible low-viscosity process fluids |
| Service Nature | High-head pressure boosting, clean-liquid transfer, utility circulation, boiler/RO feed duty |
| Operating Mode | Continuous or intermittent operation with electric motor drive; VFD operation available on request |
Specifications
| Item | Min | Max | Typical/Notes |
| Size | DN25 (1.000”) | DN150 (6.000”) | Final suction/discharge size to hydraulic duty point |
| Flow Rate | On request | On request | To be selected from the pump curve based on the required duty |
| Differential Head | On request | High-head duty | Multi-stage impeller stack selected for the required TDH |
| Pressure | Atmospheric suction | 40 bar (580 psi) | Subject to casing and flange rating |
| Temperature | -10°C (+14°F) | +120°C (+248°F) | Higher temperature available with suitable seal/elastomer selection |
| Speed | 1450 rpm | 3500 rpm | 50 Hz: 1450/2900 rpm; 60 Hz: 1750/3500 rpm, typical |
Materials
| Component | Standard Material | Optional Material | Comment |
| Pump Casing / Stage Casing | Cast Iron | Ductile Iron, Cast Steel, SS 304, SS 316 | Select based on pressure, corrosion, and fluid compatibility |
| Impellers / Diffusers | Bronze / SS 304 | SS 316, Duplex SS | Stainless options recommended for treated water and RO duty |
| Shaft | SS 410 / SS 420 | SS 304, SS 316, Duplex SS | Material selected for strength and corrosion resistance |
| Mechanical Seal | Carbon vs Ceramic / SiC | SiC vs SiC, TC vs TC, cartridge seal | Seal face pairing depends on fluid cleanliness and temperature |
| Elastomers | NBR / FKM | EPDM, PTFE, FEP-encapsulated FKM | Match the elastomer to the water chemistry and temperature |
| Bearings / Coupling | Anti-friction bearings, flexible coupling | Spacer coupling, heavy-duty bearing assembly | Spacer coupling improves seal access and maintainability |
Applications
- High-rise building water supply and distribution.
- Industrial washing, rinsing, and cleaning systems.
- Reverse osmosis feed and water-treatment systems.
- Boiler feed and condensate transfer in process plants.
- Industrial pressure-boosting systems for plant utility water.
- HVAC chilled-water, hot-water, and cooling-water circulation.
- Firefighting, irrigation, and long-distance clean-water transfer are compatible with the pump rating.
- Chemical, pharmaceutical, food & beverage, textile, power, steel, and general manufacturing utility services.
Operating Limits
| Parameter | Value |
| Pressure | Up to 40 bar (580 psi), subject to casing and flange rating |
| Temperature | -10°C to +120°C (+14°F to +248°F), seal/elastomer dependent |
| Speed | Up to 3500 rpm |
| Size Range | DN25 to DN150 (1.000” to 6.000”), duty dependent |
