Gipfel Engineering

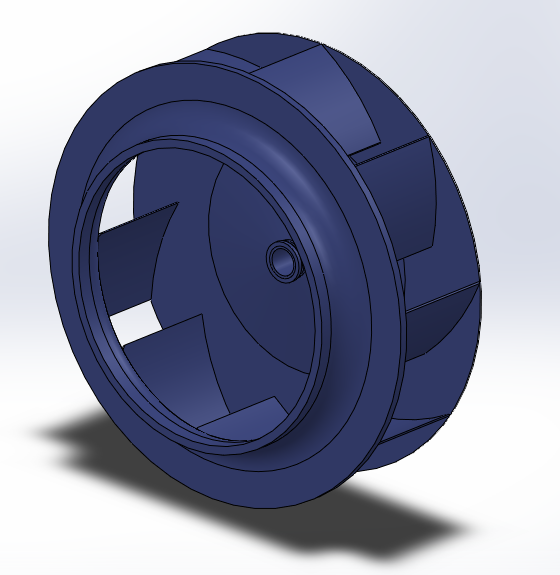

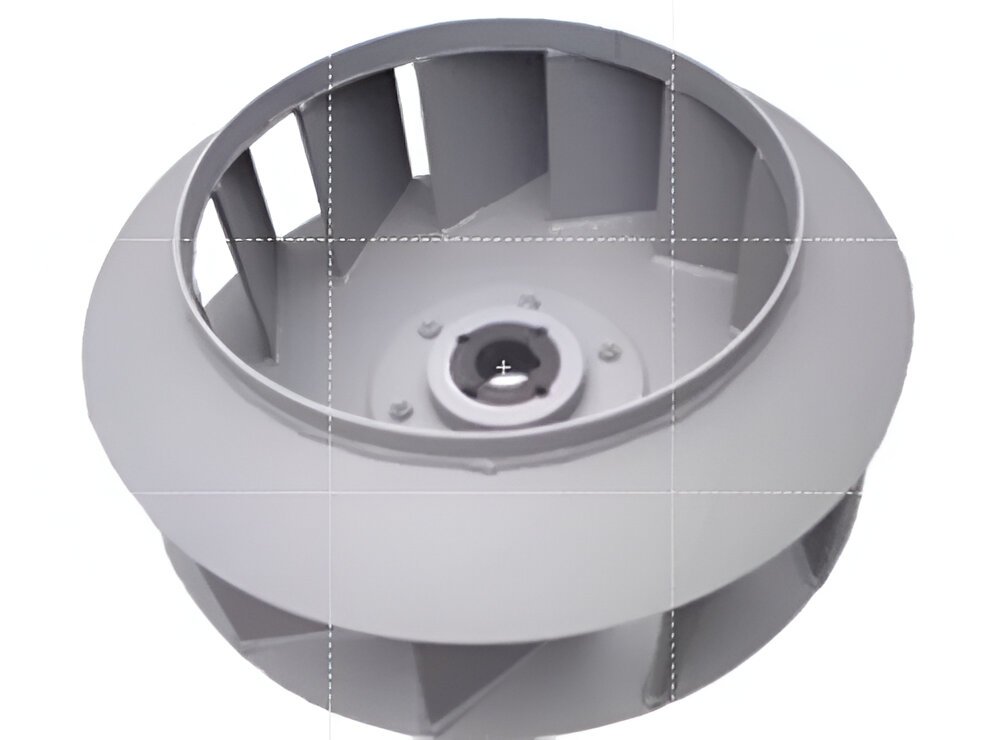

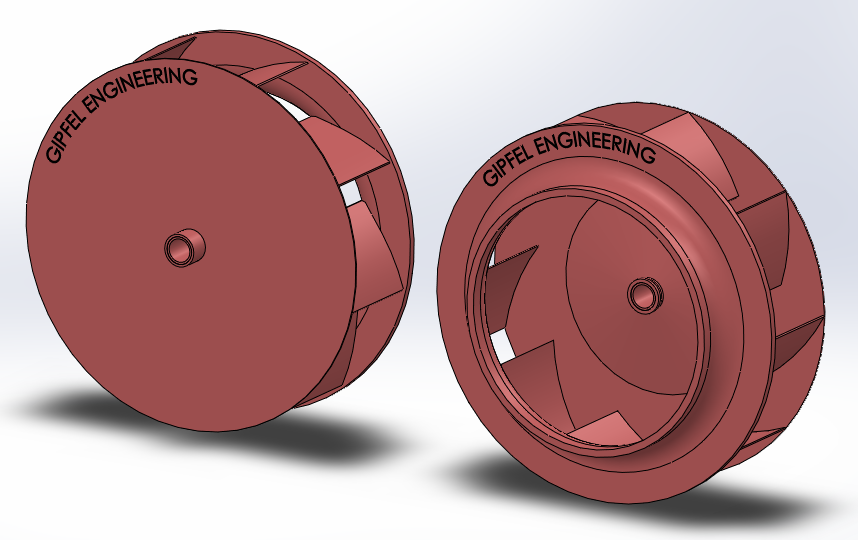

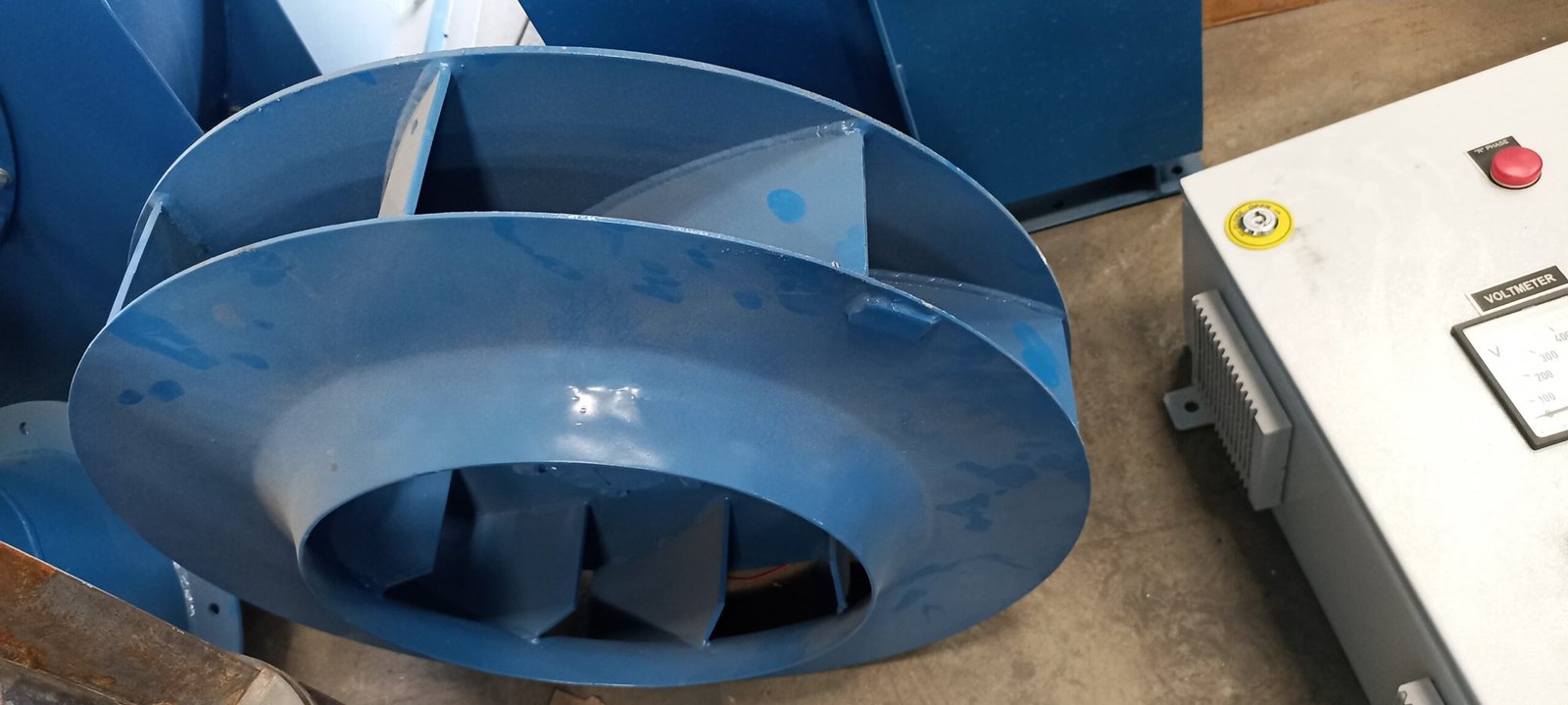

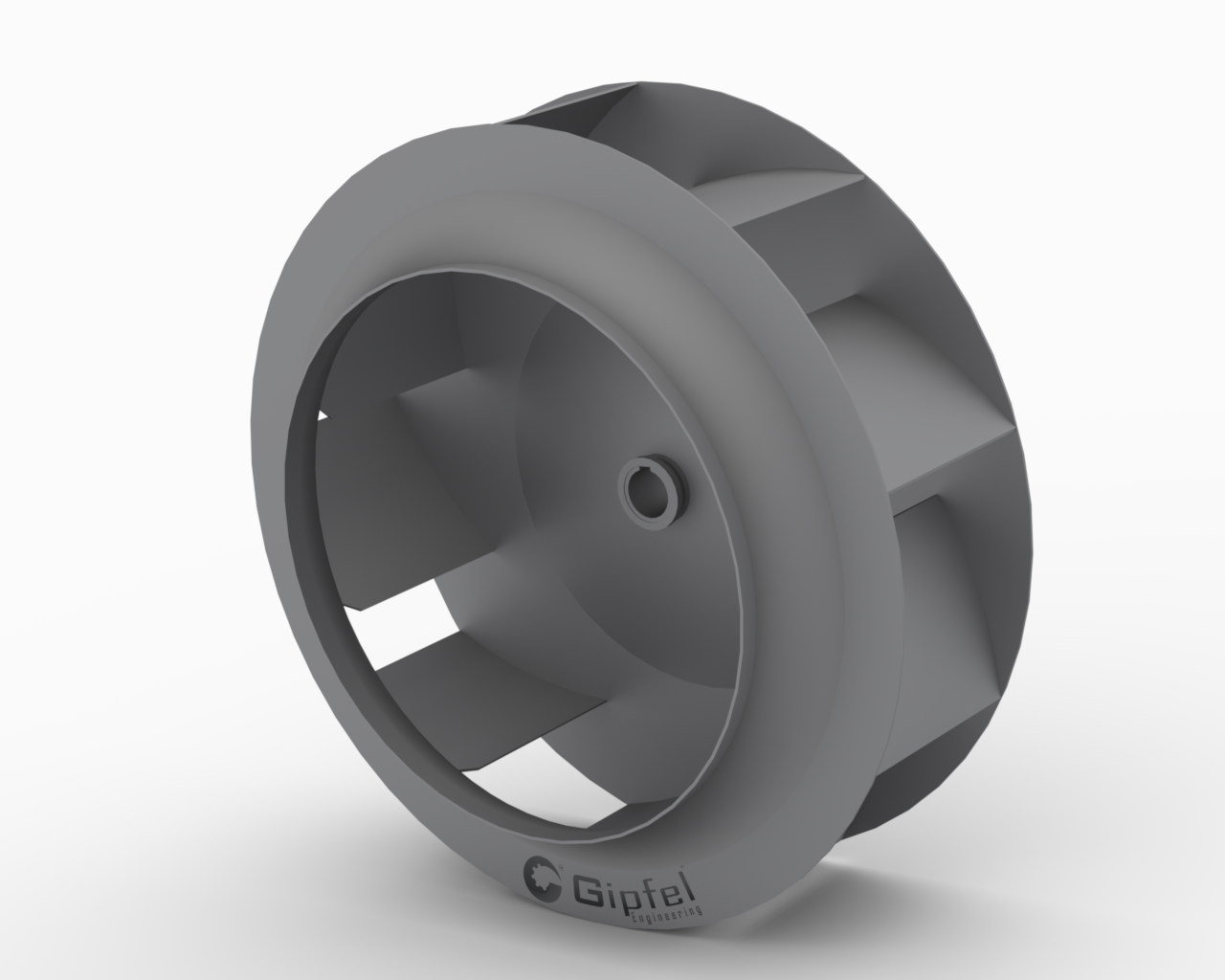

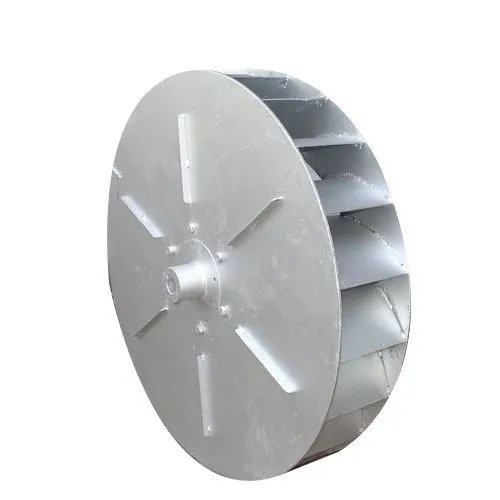

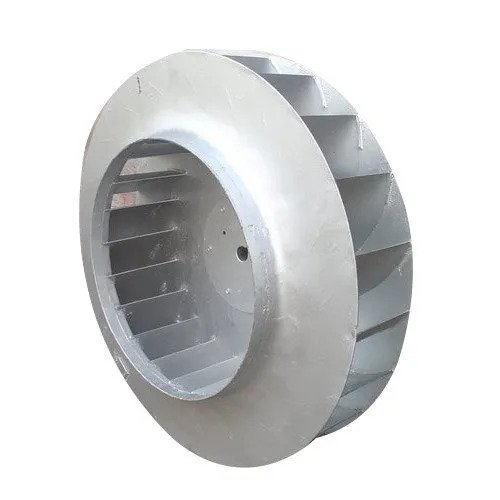

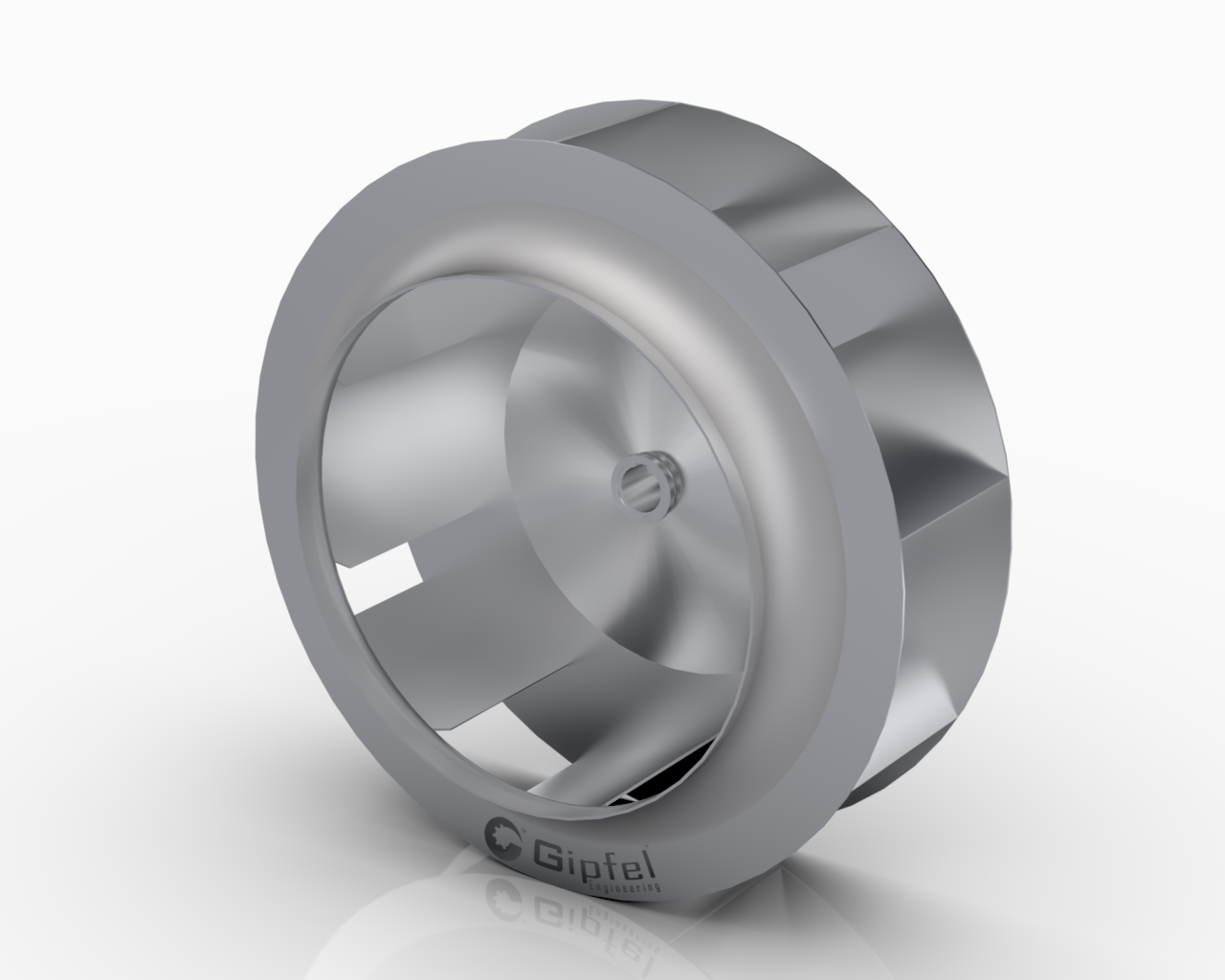

Blower’s Impeller

Category:

Product Type: 102920292

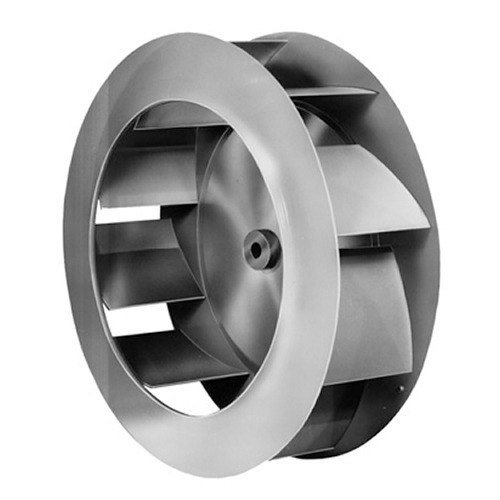

Gipfel Engineering industrial impellers are precision-engineered rotating elements that convert motor shaft power into controlled kinetic energy to move air, gas, steam, or process fluid in a wide range of industrial systems. In centrifugal blower duty, the impeller accelerates the medium radially outward through centrifugal action, using engineered vane geometries such as forward-curved, backward-curved, radial, or airfoil blade profiles to meet required pressure, flow, efficiency, and acoustic performance.

Constructed from durable and application-specific materials—including stainless steel, aluminium, mild steel, SS304, SS316, hard-faced alloys, Ni-Hard, FRP, or coated steels—these impellers are designed to withstand high temperatures, abrasive particles, and corrosive gases while maintaining dynamic balance to minimise vibration and mechanical wear. Optional wear liners and protective coatings are available for particularly abrasive, corrosive, or high-temperature services, helping extend operating life and reduce maintenance frequency.

The impeller range is suitable for clean-air ventilation, steam exhaust, fume extraction, combustion air, cooling and drying systems, dust-laden gas circulation, and selected centrifugal pump applications where custom hydraulic geometry is required for process-fluid handling. Typical end-use sectors include HVAC, power generation, chemical and petrochemical processing, cement, steel, pharmaceutical, food and beverage, mining, environmental control, and general process plants where precise and reliable airflow or fluid-flow control is essential for efficiency and safety.

Key Features

  • Closed or shrouded impeller configurations available to stabilize flow and reduce leakage and recirculation losses.
  • Application-specific configurability to match required flow, pressure, gas composition, and environmental conditions.
  • Precision weight and balance control to reduce dynamic loads, improve reliability, and optimize motor power utilization.
  • Dynamically balanced design to minimize vibration, extend bearing and shaft life, and reduce load on motors and drives.
  • Radial-flow centrifugal construction for controlled movement of air, gas, steam, fumes, or dust-laden media in industrial systems.
  • High energy efficiency, achieved through aerodynamic vane profiling and minimized internal losses to reduce operating power consumption.
  • Optional replaceable liners in rubber, ceramic, hard metal, polyurethane, or hybrid constructions for enhanced erosion and corrosion protection.
  • Blade design customization (type, blade count, and blade angle) to fine-tune airflow rate, developed pressure, efficiency, and acoustic performance.
  • Robust durability, with designs optimized for harsh operating conditions including high temperatures, particulate-laden streams, and corrosive atmospheres.
  • Custom material of construction (MOC) options for clean air, corrosive fumes, steam, abrasive dust, and high-temperature gases, including alloy steels and wear-resistant materials.
  • Optimized vane geometry with forward-curved, backward-curved, radial, airfoil, or mixed-flow blade designs to meet specific pressure, volume, efficiency, and noise requirements.
  • Flexible drive compatibility for direct-coupled, belt-driven, or gearbox-driven blower assemblies with keyed or keyless shaft mounting and engineered hub designs for secure attachment.

Service Overview

Parameter Value

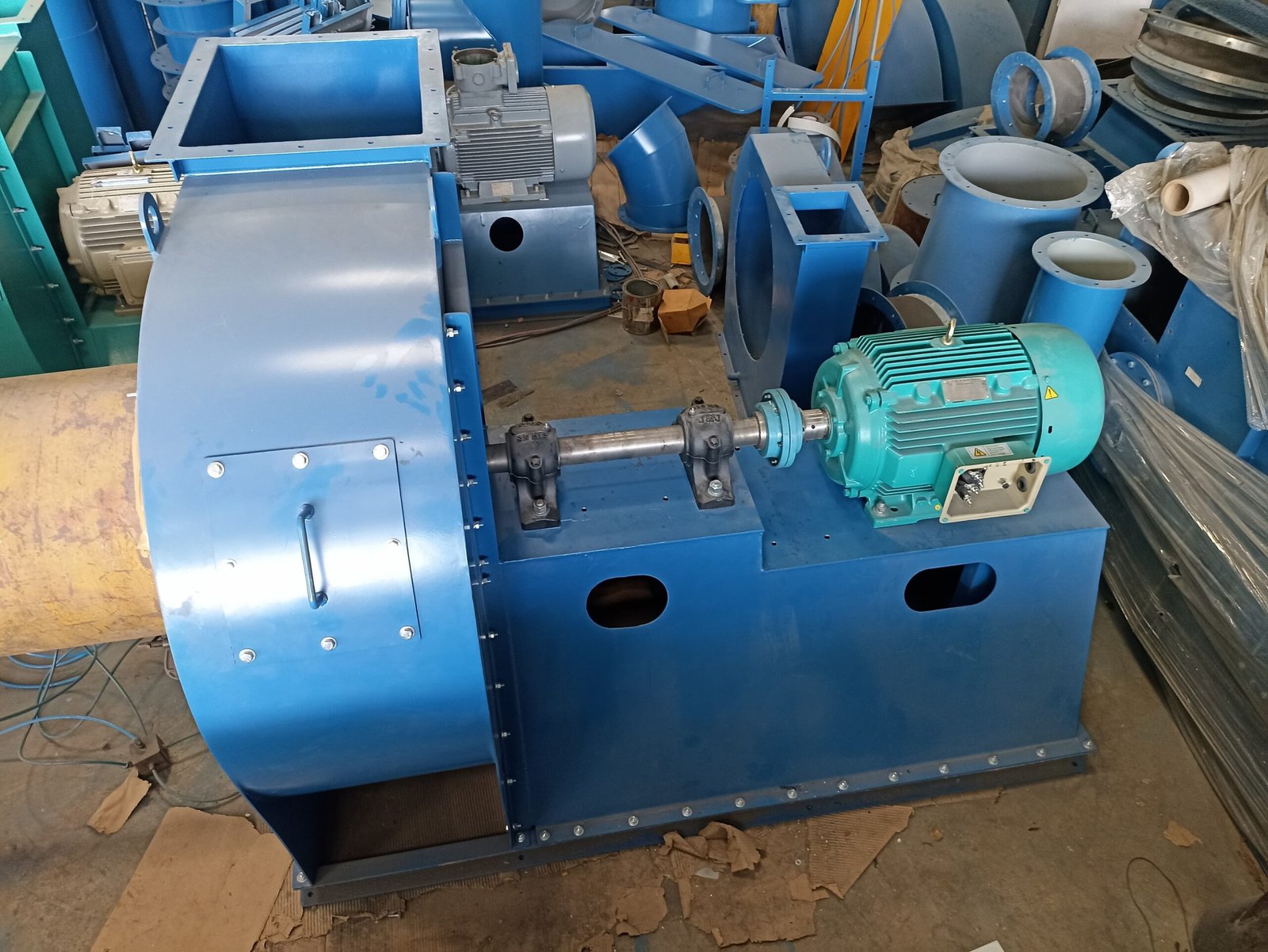

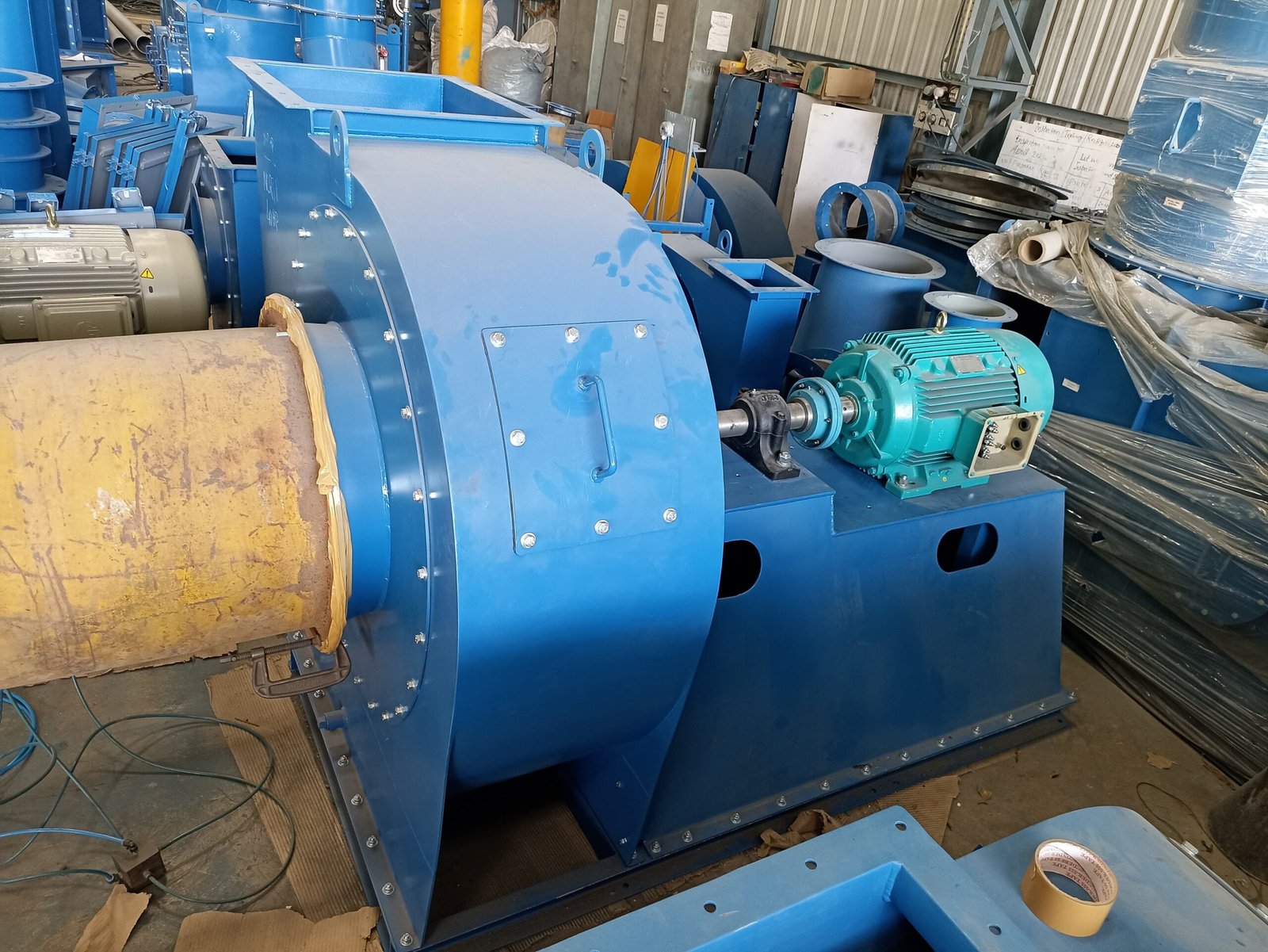

Equipment Centrifugal blowers, exhaust fans, ventilation fans, process fans, centrifugal pumps
Fluid Air, gas, steam, fumes, dust-laden air, cooling air, process fluids on request
Service Nature Clean, dusty, abrasive, corrosive, high-temperature, moisture-laden, or fume extraction service
Operating Mode Continuous industrial duty; direct, belt, or gearbox-driven operation

Specifications & Operating Limits

Parameter Min Max Notes
Size On Request On Request Custom OD, bore, hub, width, and vane geometry as per blower or pump drawing
Pressure — 6.00 kPa (24.1 in WG / 0.87 psi) Maximum static pressure capability
Temperature Ambient 200°C (392°F) Higher limits depend on MOC, liner, coating, and thermal growth allowance
Speed — 2,900 RPM Dynamically balanced to grade G 6.3
Note: Limits are maximum values for individual parameters and are not simultaneous. Actual limits depend on the application, materials and size; contact Gipfel Engineering to confirm suitability for your duty.

Materials of Construction

Component Standard Options Notes
Impeller Body MS / SS304 / SS316 Aluminium, FRP, hard-faced steel, Ni-Hard Selected based on corrosion, erosion, temperature, and weight limits
Vanes / Blades Same as the impeller body Hard-faced / SS316 / Ni-Hard / custom alloy Forward-curved, backward-curved, radial, paddle, or airfoil profiles available
Hub / Bore MS / SS304 / SS316 EN8, EN9, EN24, Duplex SS Keyed or keyless mounting; bore and fitment as per shaft drawing
Liners / Wear Protection Not required for clean service Rubber, ceramic, hard metal, polyurethane, hybrid liner Liner selection depends on abrasiveness, corrosiveness, temperature, and maintenance strategy
Surface Protection Standard finish Epoxy, PU, FBE, acid-resistant coating, wear-resistant coating Recommended for corrosive fumes, coastal duty, and abrasive dust service

Applications

  • HVAC ventilation, air filtration, clean rooms, and controlled environments.
  • Pulp and paper dryer air supply, moisture exhaust, and process fume removal.
  • Textile air circulation, humidity control, lint extraction, and dyeing-process ventilation.
  • Food and beverage drying, cooling, exhaust, and production-line contaminant removal.
  • Mining and quarrying dust extraction, tunnel ventilation, and worker air-quality control.
  • Pharmaceutical and biotechnology sterile-area ventilation, drying, and granulation processes.
  • Cement and steel plant kiln exhaust, clinker cooling, blast furnace air supply, and gas circulation.
  • Power plant turbine, generator, transformer cooling, boiler combustion air, and flue-gas handling.
  • Automotive paint booths, air filtration, fume extraction, engine-test cooling, and exhaust systems.
  • Environmental control systems, scrubbers, filters, waste-treatment ventilation, and exhaust handling.
  • Chemical and petrochemical fume extraction, corrosive gas transfer, drying, and distillation air supply.
  • Renewable energy, solar panel manufacturing, ventilation, wind turbine cooling, and gas compression support.

More Downloads

Frequently Asked Questions

  1. What is the Blower Impeller?
    Gipfel Engineering industrial impellers are precision-engineered rotating elements that convert motor shaft power into controlled kinetic energy to move air, gas, steam, or process fluid in a wide range of industrial systems.
  2. What are the operating limits of the Blower Impeller?
    Pressure up to 6.00 kPa (24.1 in WG / 0.87 psi); temperature ambient to 200°C (392°F); speed up to 2,900 RPM. These limits are not simultaneous.
  3. Are sizes and ratings available on request?
    Yes. Size is confirmed on request for each application.
  4. Which materials are used in the Blower Impeller?
    Impeller Body: MS / SS304 / SS316; Vanes / Blades: Same as the impeller body; Hub / Bore: MS / SS304 / SS316.
  5. Which media can the Blower Impeller handle?
    Air, gas, steam, fumes, dust-laden air, cooling air, process fluids on request.
  6. Which equipment is the Blower Impeller used on?
    Centrifugal blowers, exhaust fans, ventilation fans, process fans, centrifugal pumps.
  7. Where is the Blower Impeller used?
    HVAC ventilation, air filtration, clean rooms, and controlled environments; Pulp and paper dryer air supply, moisture exhaust, and process fume removal; Textile air circulation, humidity control, lint extraction, and dyeing-process ventilation; Food and beverage drying, cooling, exhaust, and production-line contaminant removal; Mining and quarrying dust extraction, tunnel ventilation, and worker air-quality control.
