Oil Lubricators

Category:

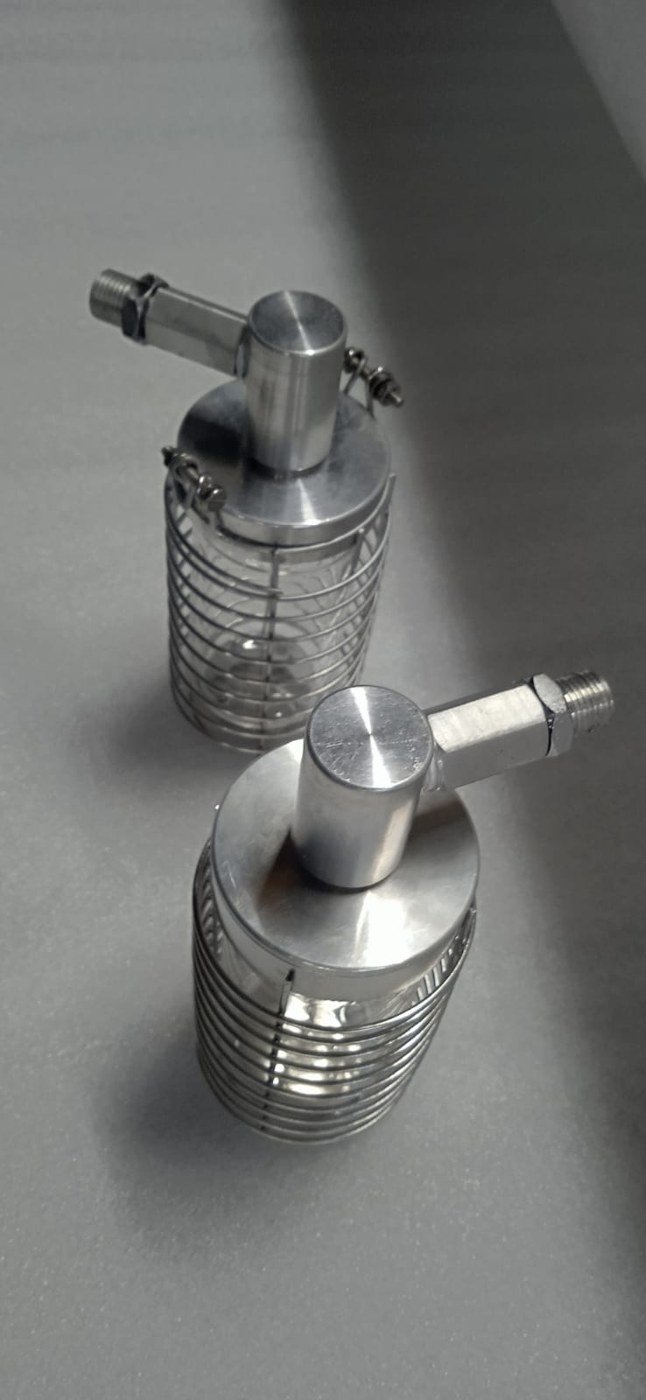

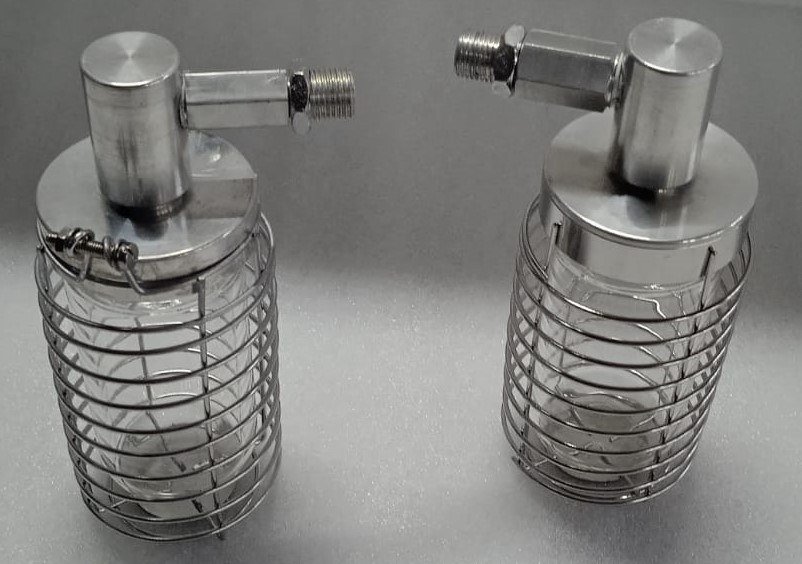

The Gipfel Constant Level Oil Lubricator keeps the oil in a bearing housing at a fixed level, automatically replacing oil as it is consumed. The transparent borosilicate glass dome lets operators check the oil supply at a glance, and a metal cage protects the dome from accidental impact in plant environments.

It mounts directly on oil-lubricated bearing housings of centrifugal pumps and other rotating equipment through a 1/4″ BSP connection. A steady oil level and clean oil are prerequisites for long bearing life.

Key Features

  • Constant level oiler for easy monitoring of the oil level.
  • 100 ml borosilicate glass dome, 5 mm thick.
  • Metal cage guard protects the glass dome.
  • Aluminium coupling, base holder and connector.
  • Stainless steel lock nut.
  • 1/4″ BSP connection to the bearing housing.

Materials of Construction

Item Material Remarks
Dome Borosilicate glass, 5 mm thick 100 ml
Coupling Aluminium 1/4″ BSP
Base Holder Aluminium —
Connector Aluminium 1/4″ BSP
Lock Nut Stainless steel 1/4″ BSP
Guard Metal cage —

Applications

  • Oil-lubricated bearing housings of centrifugal process pumps
  • Blowers, fans and other rotating equipment with oil-bath bearing lubrication

Operation & Maintenance

  • The oil supply should be visible in the middle of the oiler.
  • Check the oil periodically to make sure the lubricant is clean.
  • The oil must not contain foreign substances, acids, resins or water.

More Downloads

Frequently Asked Questions

  1. What is the Constant Level Oil Lubricator?
    The Gipfel Constant Level Oil Lubricator keeps the oil in a bearing housing at a fixed level, automatically replacing oil as it is consumed.
  2. Which materials are used in the Constant Level Oil Lubricator?
    Dome: Borosilicate glass, 5 mm thick; Coupling: Aluminium; Base Holder: Aluminium.
  3. Where is the Constant Level Oil Lubricator used?
    Oil-lubricated bearing housings of centrifugal process pumps; Blowers, fans and other rotating equipment with oil-bath bearing lubrication.
