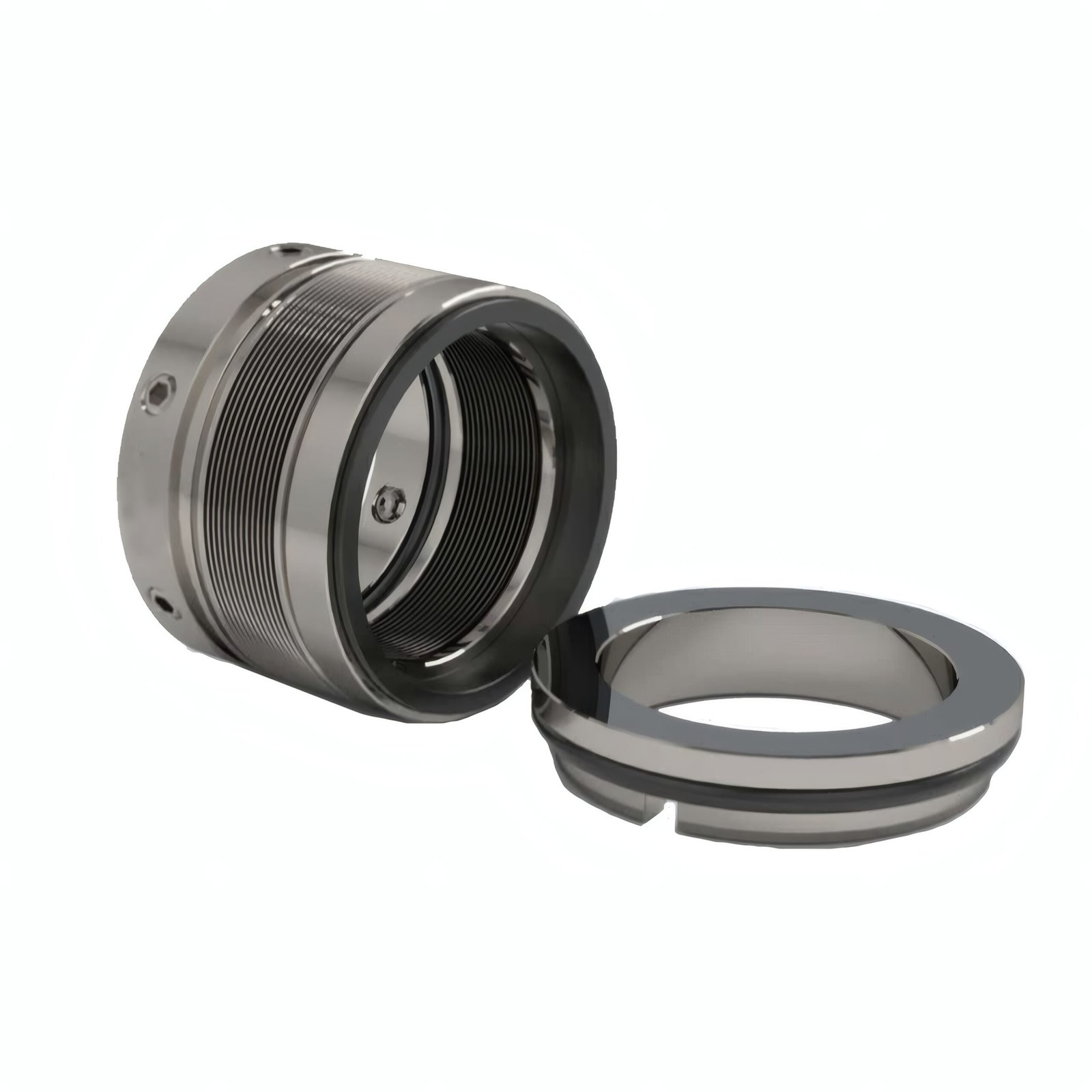

Metal Bellow Seal

Product Type: MB500

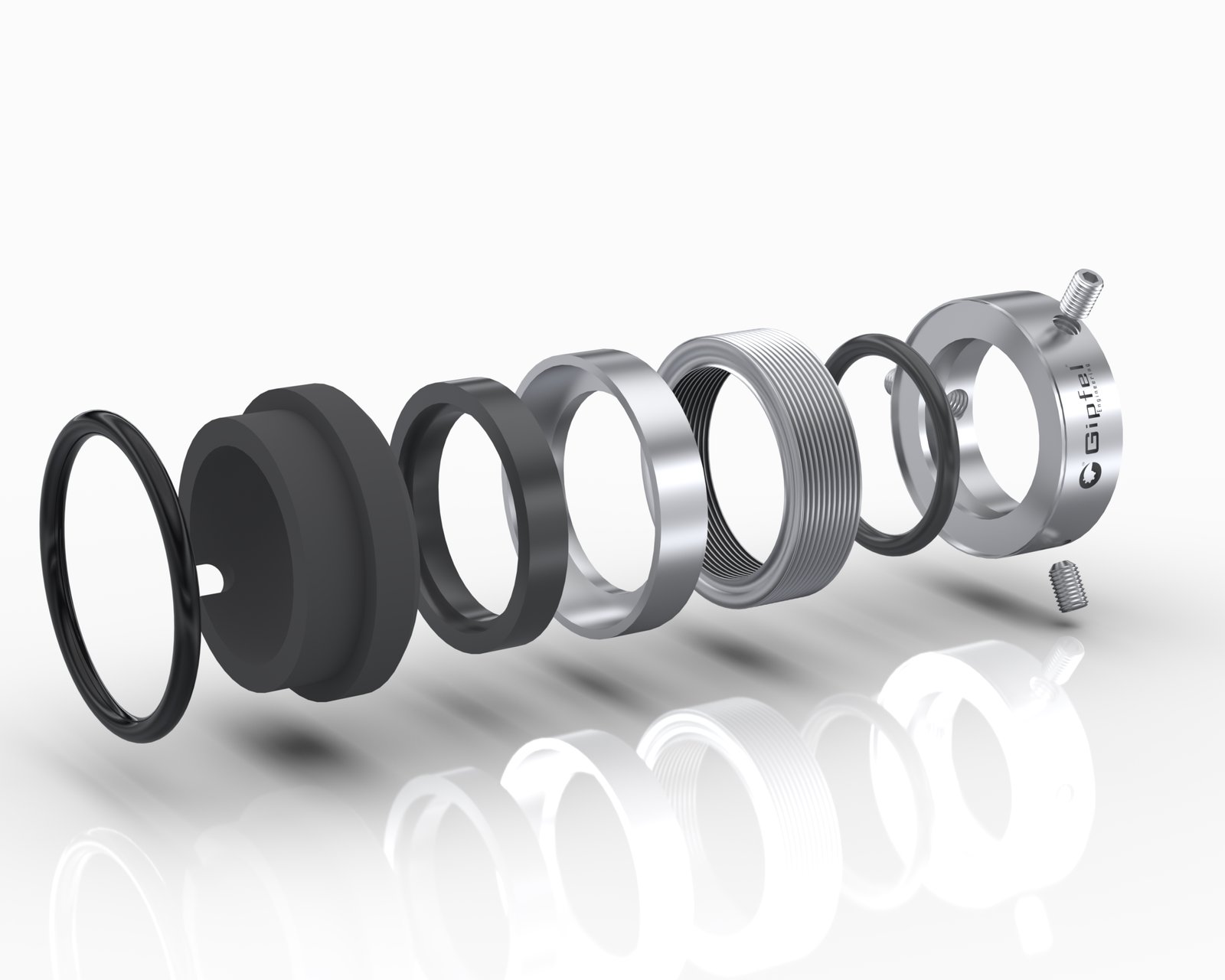

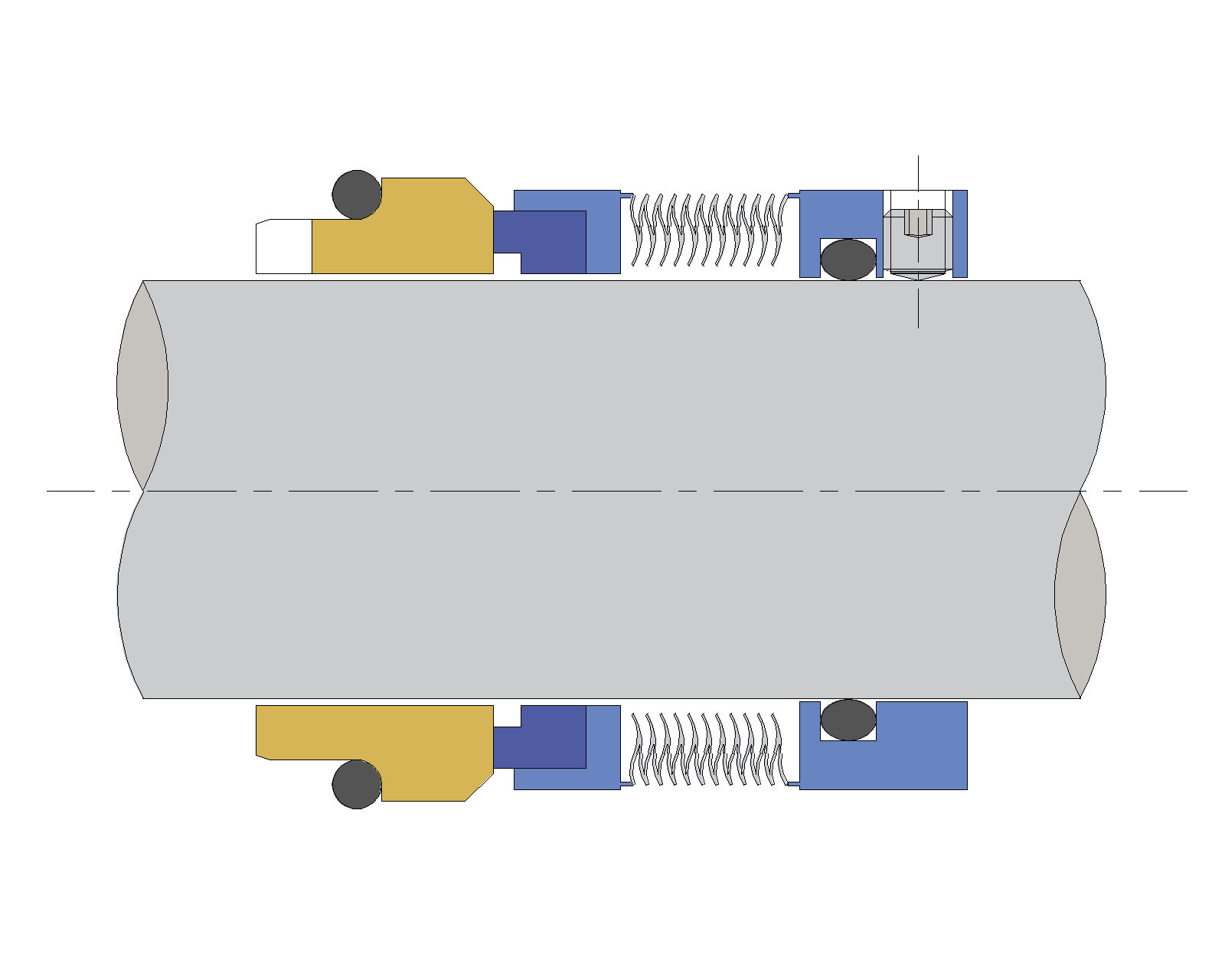

These mechanical seals are a non-pusher, balanced metal bellows design. The bellows provide axial flexibility and a self-cleaning action that throws off suspended particles, improving reliability in contaminated services. Because there is no dynamic elastomer, the design eliminates O-ring hang-up and many of the failure modes associated with pusher-type seals

The seals are also available as single & double mechanical seals in cartridge configuration for demanding applications. They are widely used in hydrocarbon processing, pulp and paper, steel, mining and power industries. Gipfel Engineering has extensive experience in the reconditioning and refurbishment of metal bellows mechanical seals.

Key Features

  • No springs
  • Single acting
  • Internally mounted
  • Inherently balanced
  • Edge-welded bellows
  • Independent of the direction of rotation

Specifications & Operating Limits

Parameter Value
Shaft Size 25.0 mm to 100.0 mm / 1.000” to 4.000” (inch series)
Pressure Up to Vacuum… to 25 bar (362 psi)
Temperature -50 °C to +260 °C (-58 °F to +500 °F)
Speed Up to 2900 rpm
Note: Limits are maximum values for individual parameters and are not simultaneous. Actual limits depend on the fluid, materials and seal size; contact Gipfel Engineering to confirm suitability for your duty.

Materials of Construction

Component Materials offered
Seal faces Carbon; Silicon Carbide; Tungsten Carbide
Elastomers FKM; PTFE; FFKM
Hardware SS 316; SS 316L; Hastelloy® B; Hastelloy® C; Alloy 20; Duplex SS
  • Faces: hard-on-hard pairs for abrasive or solids-laden duties; carbon-based pairs for clean, lubricating fluids.
  • Metals: selected by corrosion level, chloride content and temperature.

Hastelloy® is a registered trademark of their respective owners.

Applications

Thermic-fluid and hot-oil services; fatty-acid and other high-temperature process duties; hydrocarbons; petroleum refineries and edible-oil refineries, etc

More Downloads

Frequently Asked Questions

  1. What is the MB500?
    These mechanical seals are a non-pusher, balanced metal bellows design.
  2. What shaft sizes does the MB500 cover?
    25.0 mm to 100.0 mm (1.000” to 4.000”).
  3. What are the operating limits of the MB500?
    Up to Vacuum… to 25 bar (362 psi); -50 °C to +260 °C (-58 °F to +500 °F); and up to 2900 rpm. These limits are not simultaneous.
  4. Which materials are available?
    Faces in carbon, silicon carbide or tungsten carbide; elastomers in FKM, PTFE or FFKM; hardware in SS 316, SS 316L, Hastelloy® B, Hastelloy® C, Alloy 20 or Duplex SS.
  5. Does the MB500 work in both directions of rotation?
    Yes. It operates independently of the direction of shaft rotation.
  6. Where is the MB500 used?
    Thermic-fluid and hot-oil services; fatty-acid and other high-temperature process duties; hydrocarbons; petroleum refineries and edible-oil refineries.
