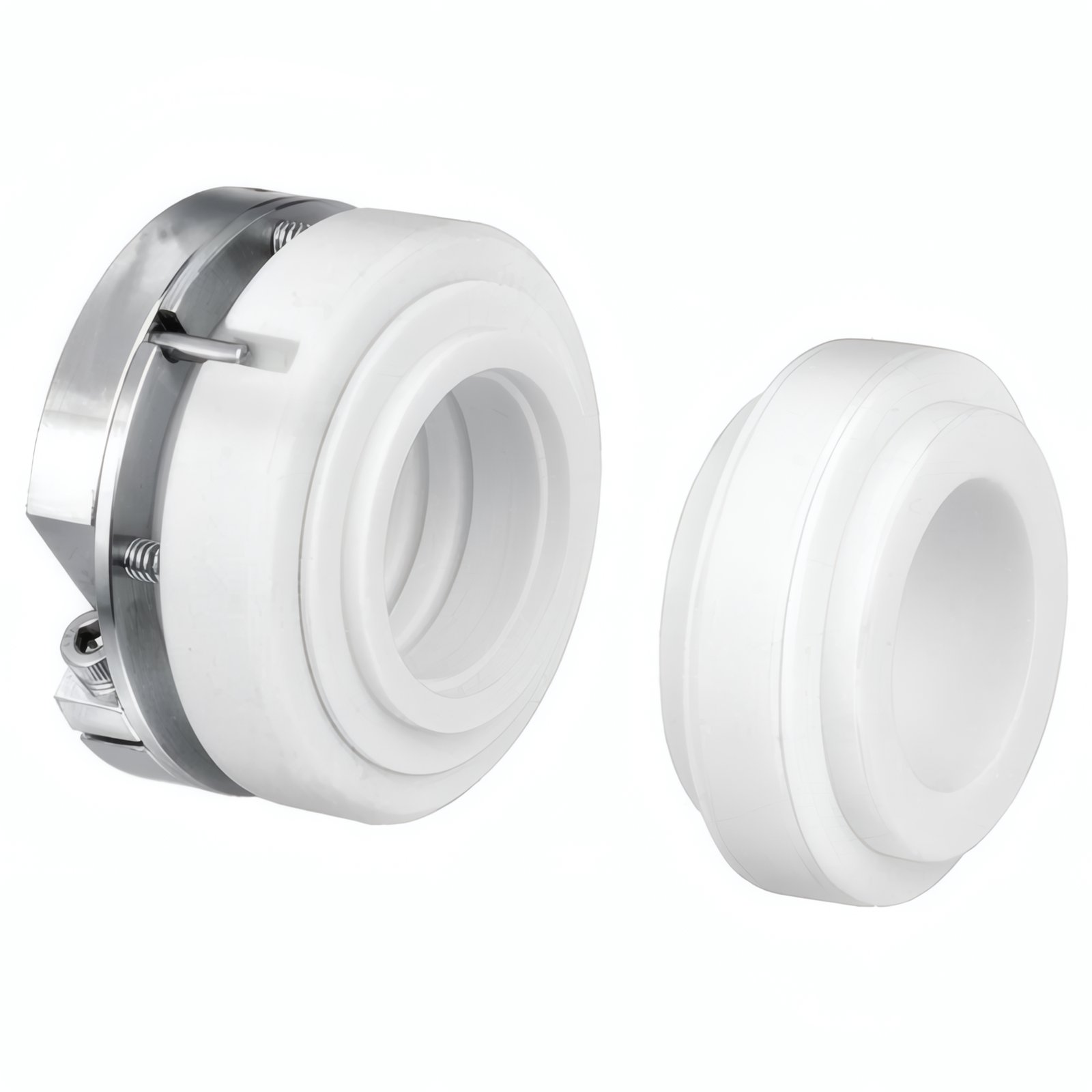

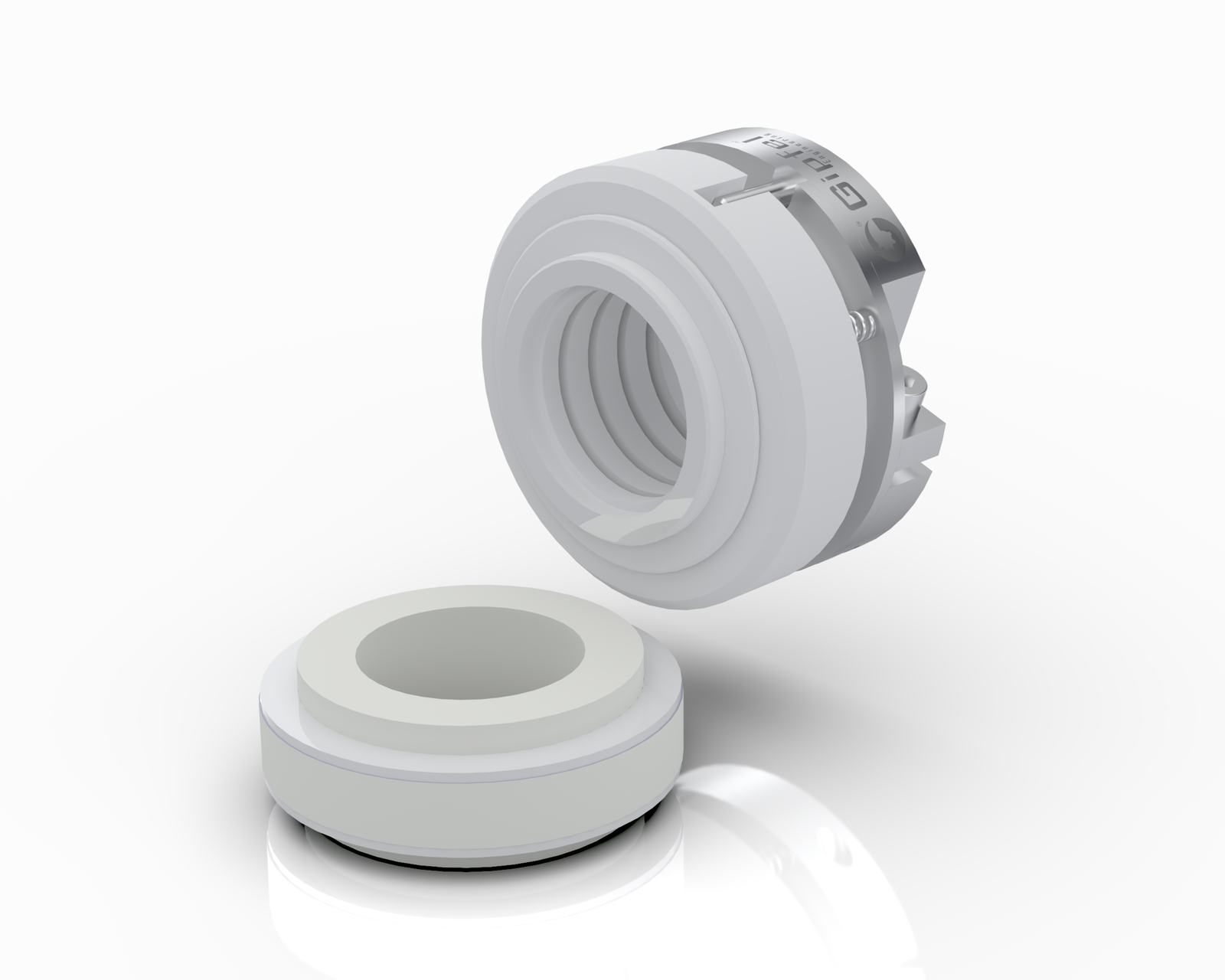

The Teflon Bellow Mechanical Seal is specifically designed for extreme corrosive chemical applications, including concentrated acids, salts, strong oxidizing and reducing agents, and chemically active organic compounds. All components in contact with the sealed media are made from chemically inert materials, such as PTFE (Teflon) and other high-performance fluoropolymers, ensuring excellent chemical resistance.
Feature;
- Single seal
- Pusher type
- Unbalanced design
- Externally mounted
- Rotary multi spring type
- Low cost & mass produced
- Independent of the direction of rotation
Specification;
| Application | Concentrated mineral acids (e.g., sulfuric, hydrochloric), strong oxidizing agents (e.g., nitric acid, hydrogen peroxide), aggressive organic chemicals, salt solutions, caustic media, highly corrosive liquids, and processes in the chemical and pharmaceutical industries, etc. | |
| Materials | Faces | GFT / CFT (composite moulded, highly flexible PTFE-based faces), Ceramic, Silicon Carbide. |
| Elastomers | PTFE | |
| Hardware | SS 316 / Hastelloy-C / Alloy-20 / Titanium | |
| Operating Limits | Size | 20.0 mm to 100.0 mm (0.750” to 4.000”) |
| Pressure | 5 bars (72 psi) | |
| Temperature | -50 °C to +110 °C (-58 °F to +230 °F) | |
| Speed | 2900 rpm | |
