Gipfel Engineering

Type : SSC695

, ,

Multi Spring Semi-Cartridge Mechanical Seal for HDD Machine

The SSC695 is a single, hydraulically balanced, semi-cartridge mechanical seal specifically engineered for abrasive slurry, dirty water, and horizontal directional drilling (HDD) applications. It is particularly suited for rotary joints and swivels in HDD rigs, where sealing integrity must be maintained under fluctuating pressure, vibration, and shaft misalignment.

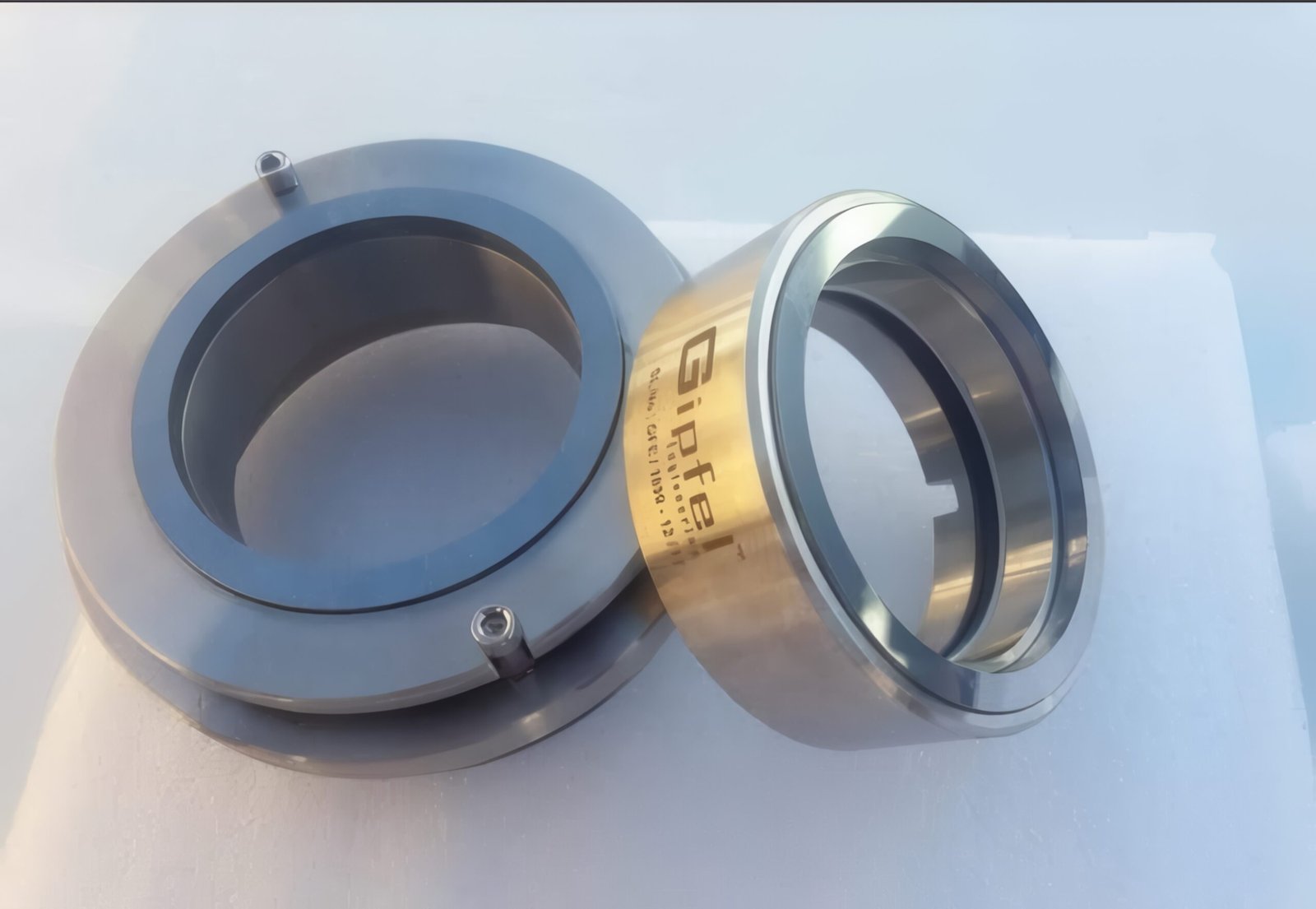

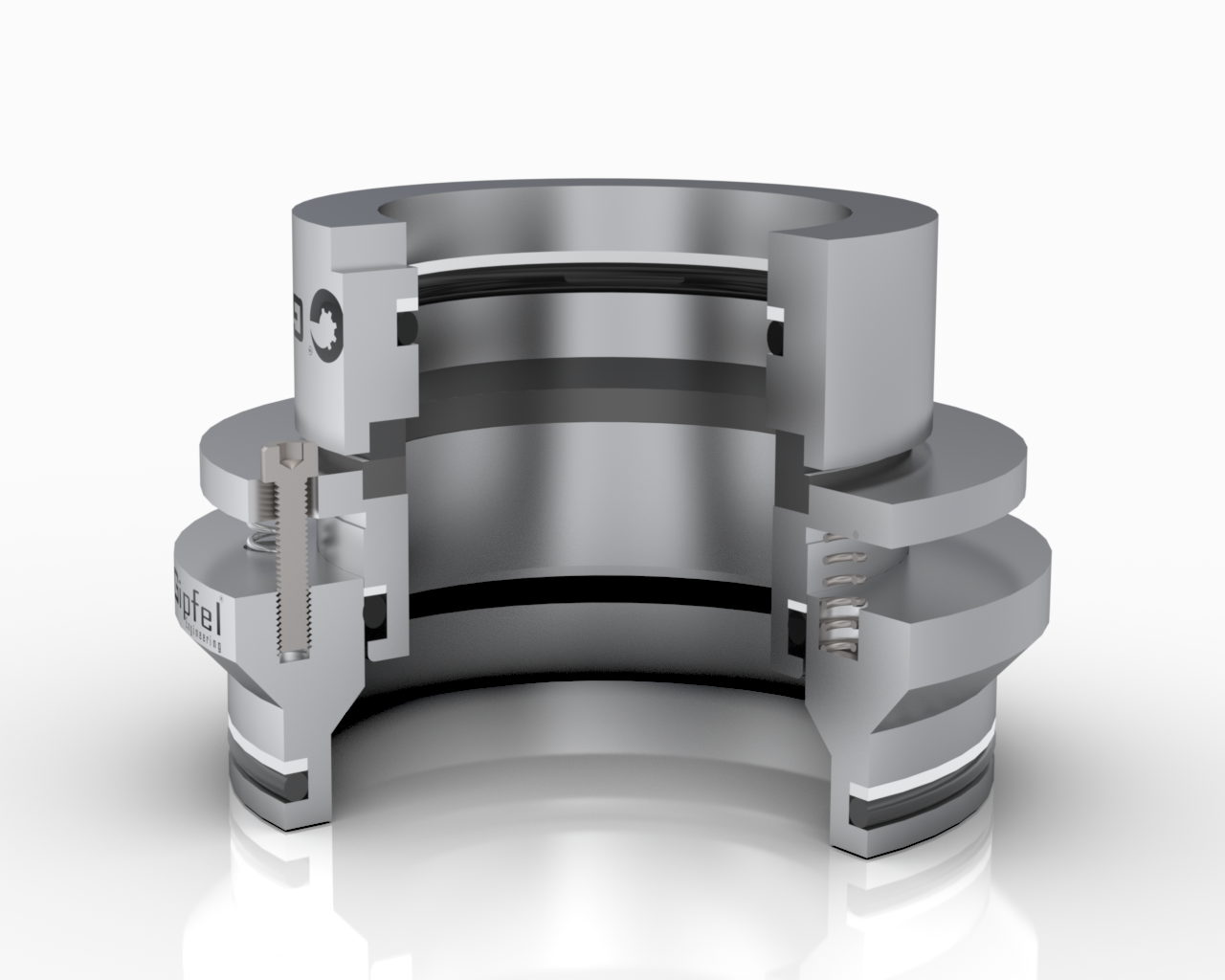

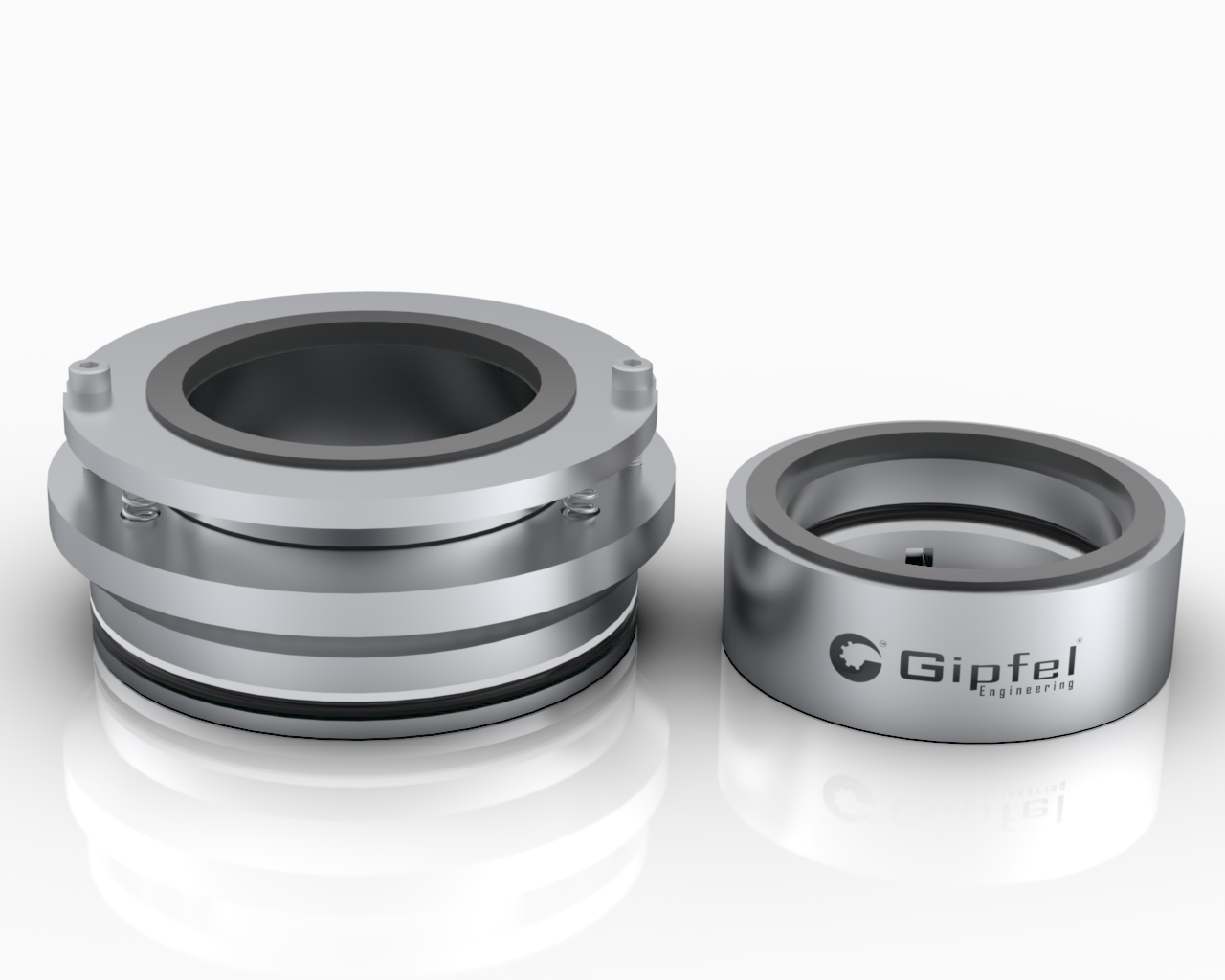

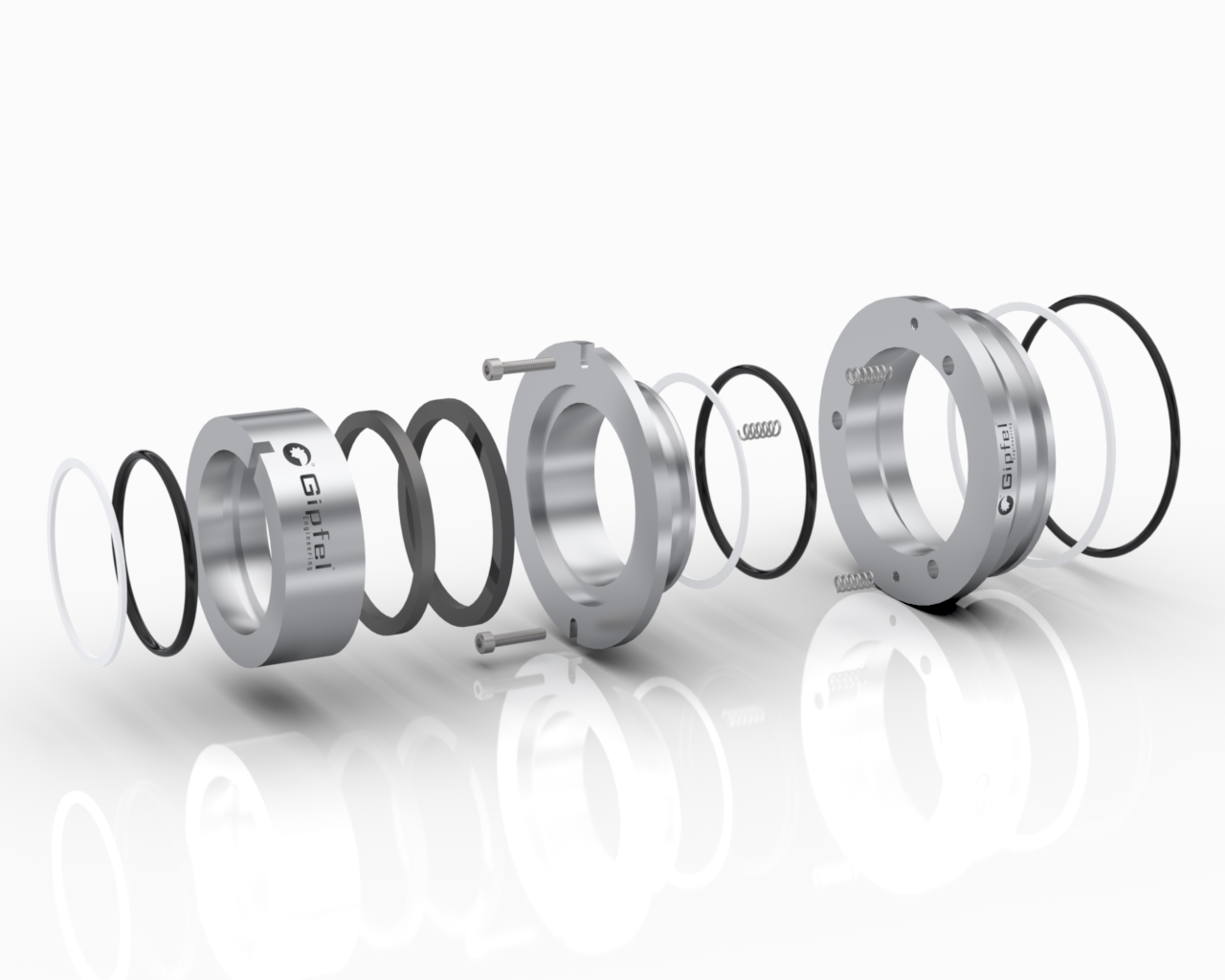

This non-clogging slurry seal is supplied as a factory-assembled, pre-set unit consisting of a seal head, sleeve, and gland, eliminating on-site setting measurements and minimizing alignment and installation errors. The semi-cartridge design ensures consistent installation quality and simplifies maintenance, supporting quick seal replacement to reduce downtime in demanding trenchless operations.

In typical HDD service, the SSC695 is mounted in the rotary joint or swivel that transmits drilling fluid while the drill string rotates, providing reliable sealing performance in road-crossing cable ducts, pipe-jacking, and other trenchless installations where operational reliability is critical. The hydraulically balanced, rugged construction—combined with slurry-duty face materials—maintains stable face loading, reduces heat generation, and delivers extended seal life in erosive, particle-laden environments.

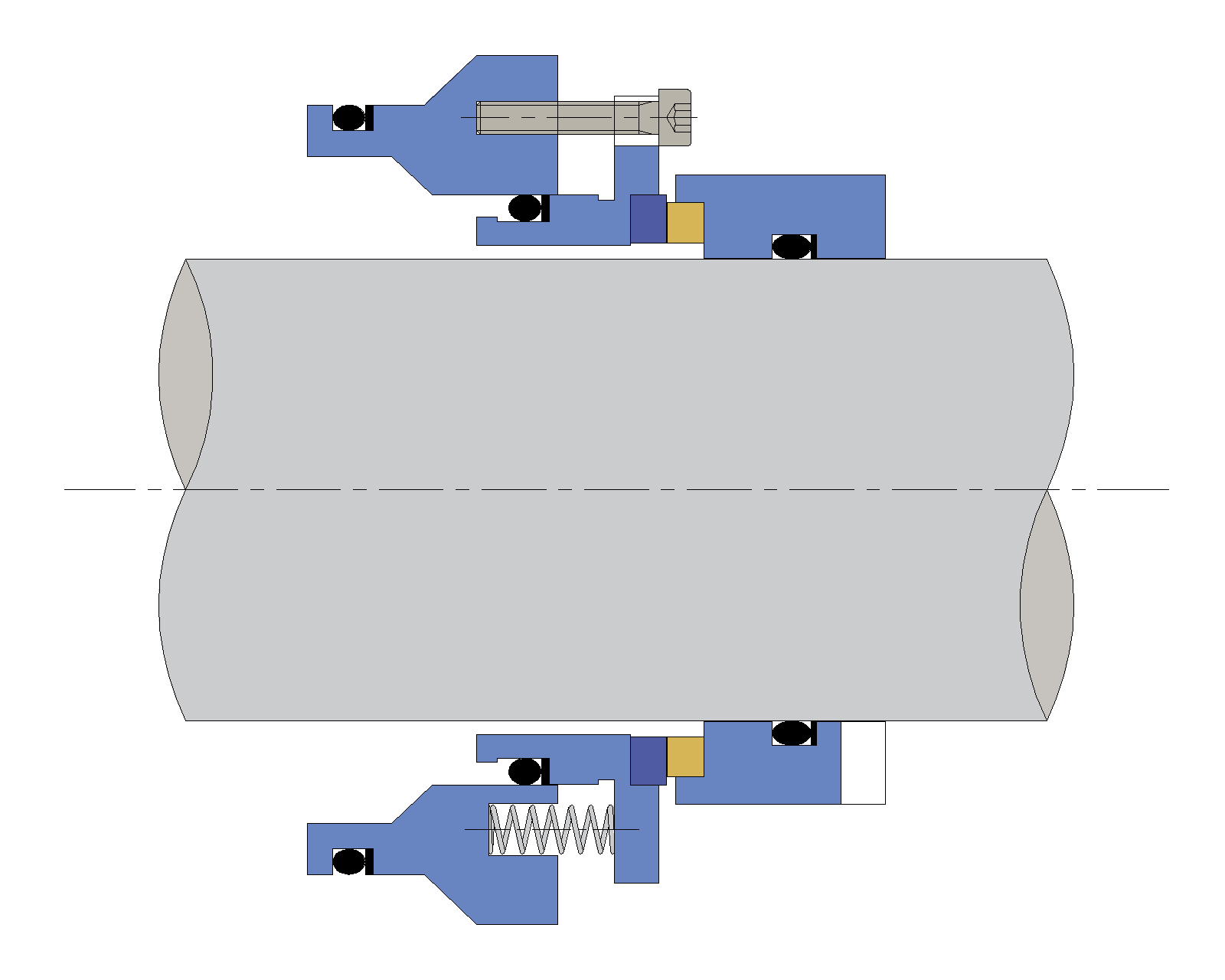

A multi-spring configuration distributes load uniformly across the seal faces, enhancing face stability and resistance to distortion at higher speeds. This arrangement helps prevent spring clogging and improves performance in services involving low solids, crystallizing media, and suspended particles, ensuring dependable operation across a wide range of contaminated fluid conditions.

Key Features

  • Available in metric and inch sizes.
  • Single, balanced mechanical seal design.
  • Independent of the direction of rotation.
  • Factory tested for reliability before dispatch.
  • Non-clogging design suitable for slurry service.
  • Multi-spring arrangement for stable face loading.
  • Suitable for rotary joints/swivels in HDD machines.
  • Quick installation and easy removal (reduced downtime).
  • Semi-cartridge construction (pre-set, factory assembled).
  • Designed for cost-effective maintenance and long service life.

Service Overview

Parameter Value
Seal Type Single, Semi-Cartridge, Multi-Spring
Typical Service HDD drilling fluid, slurry, dirty water
Equipment Rotary joints, swivels, HDD rigs
Fluid Characteristics Abrasive, low solids, crystallising media
Operating Mode Continuous/intermittent duty
Installation Pre-assembled, no field setting required

Specifications & Operating Limits

Parameter Min Max Notes
Shaft Size 20 mm / 0.750” 100 mm / 4.000” Metric and inch sizes
Pressure — 12 bar (174 psi) HDD slurry service
Temperature -50°C (-58°F) +180°C (+356°F) Depends on elastomer selection
Speed — 2900 rpm Application dependent
Note: Limits are maximum values for individual parameters and are not simultaneous. Actual limits depend on the fluid, materials and seal size; contact Gipfel Engineering to confirm suitability for your duty.

Materials of Construction

Seal face pairs (standard pair: silicon carbide vs silicon carbide)

Pair Face grades offered
Carbon vs silicon carbide Resin-impregnated or antimony-impregnated carbon graphite vs sintered or reaction-bonded silicon carbide
Carbon vs tungsten carbide Resin-impregnated or antimony-impregnated carbon graphite vs cobalt-bound or nickel-bound tungsten carbide
Silicon carbide vs silicon carbide Sintered or reaction-bonded silicon carbide on both faces
Silicon carbide vs tungsten carbide Sintered or reaction-bonded silicon carbide vs cobalt-bound or nickel-bound tungsten carbide
Tungsten carbide vs tungsten carbide Cobalt-bound or nickel-bound tungsten carbide on both faces
Component Standard Options
Elastomers FKM PTFE
Metal parts SS 304; SS 316 Hastelloy® B; Hastelloy® C; Alloy 20; Duplex SS; Titanium
Springs SS 316 Hastelloy® C; SS Alloy
  • Faces: hard-on-hard pairs for abrasive or solids-laden services; carbon-based pairs for clean, lubricating fluids.
  • Metals: selected by corrosion level, chloride content and temperature.

Hastelloy® is a registered trademark of their respective owners.

Applications

  • Chemical processing industries
  • General industrial slurry services
  • Crystallization processes (low solids)
  • Construction and trenchless technology
  • Steel plants and slurry handling systems
  • Rotary joints/swivels handling drilling fluids
  • Horizontal Directional Drilling (HDD) machines

Selection Guidance

  • Multi-spring configuration avoids clogging compared to single large spring designs in slurry service.
  • Ensure adequate flushing (API Plan 32 equivalent) if the solids tendency increases beyond recommended limits.
  • Hard vs hard face combination (SiC/TC) is recommended to withstand abrasive drilling fluids and extend seal life.
  • Semi-cartridge design minimizes installation errors, which is critical in field HDD operations where alignment control is limited.
  • For high solids or severe abrasion, a dual seal (API Arrangement 2/3) with flush/barrier fluid should be evaluated.

Recommended API Plans (Single Seal)

Plan Purpose Typical use
Plan 11 Product recirculation to the seal faces Clean services
Plan 21 Recirculation through a cooler Hot services
Plan 23 Internal circulation with pumping ring and cooler Hot services needing more efficient cooling
Plan 32 External clean flush to the faces Dirty or slurry services
Plan 62 Quench on the atmospheric side Preventing icing or crystallisation

The plan is selected with the P&ID and project specification for each duty.

More Downloads

Frequently Asked Questions

  1. What shaft sizes does the SSC695 cover?
    20 mm to 100 mm (0.750” to 4.000”). Metric and inch sizes are available.
  2. What are the operating limits of the SSC695?
    Up to 12 bar (174 psi); -50°C to +180°C (-58°F to +356°F), depending on elastomer selection; and up to 2900 rpm. These limits are not simultaneous.
  3. What is the SSC695?
    The SSC695 is a single, hydraulically balanced, semi-cartridge mechanical seal specifically engineered for abrasive slurry, dirty water, and horizontal directional drilling (HDD) applications.
  4. Which API plans suit the SSC695?
    Plans 11, 21, 23, 32 and 62, selected by duty: 11 for clean services, 21 and 23 for hot services, 32 for dirty or slurry services and 62 as an atmospheric-side quench.
  5. Which seal face materials are available?
    The standard pair is silicon carbide vs silicon carbide. Also offered: carbon vs silicon carbide, carbon vs tungsten carbide, silicon carbide vs tungsten carbide and tungsten carbide vs tungsten carbide.
  6. Which elastomers and metals are available?
    Elastomers: FKM as standard, with PTFE as options. Metal parts: SS 304 or SS 316 as standard, with Hastelloy® B, Hastelloy® C, Alloy 20, Duplex SS or Titanium as options.
  7. Does the SSC695 need on-site setting?
    No. It is supplied as a factory-assembled unit with preset working length, which reduces installation errors and maintenance time.
  8. Where is the SSC695 used?
    Chemical processing industries; General industrial slurry services; Crystallization processes (low solids); Construction and trenchless technology; Steel plants and slurry handling systems; Rotary joints/swivels handling drilling fluids.
