Gipfel Engineering

Type : SC620

, ,

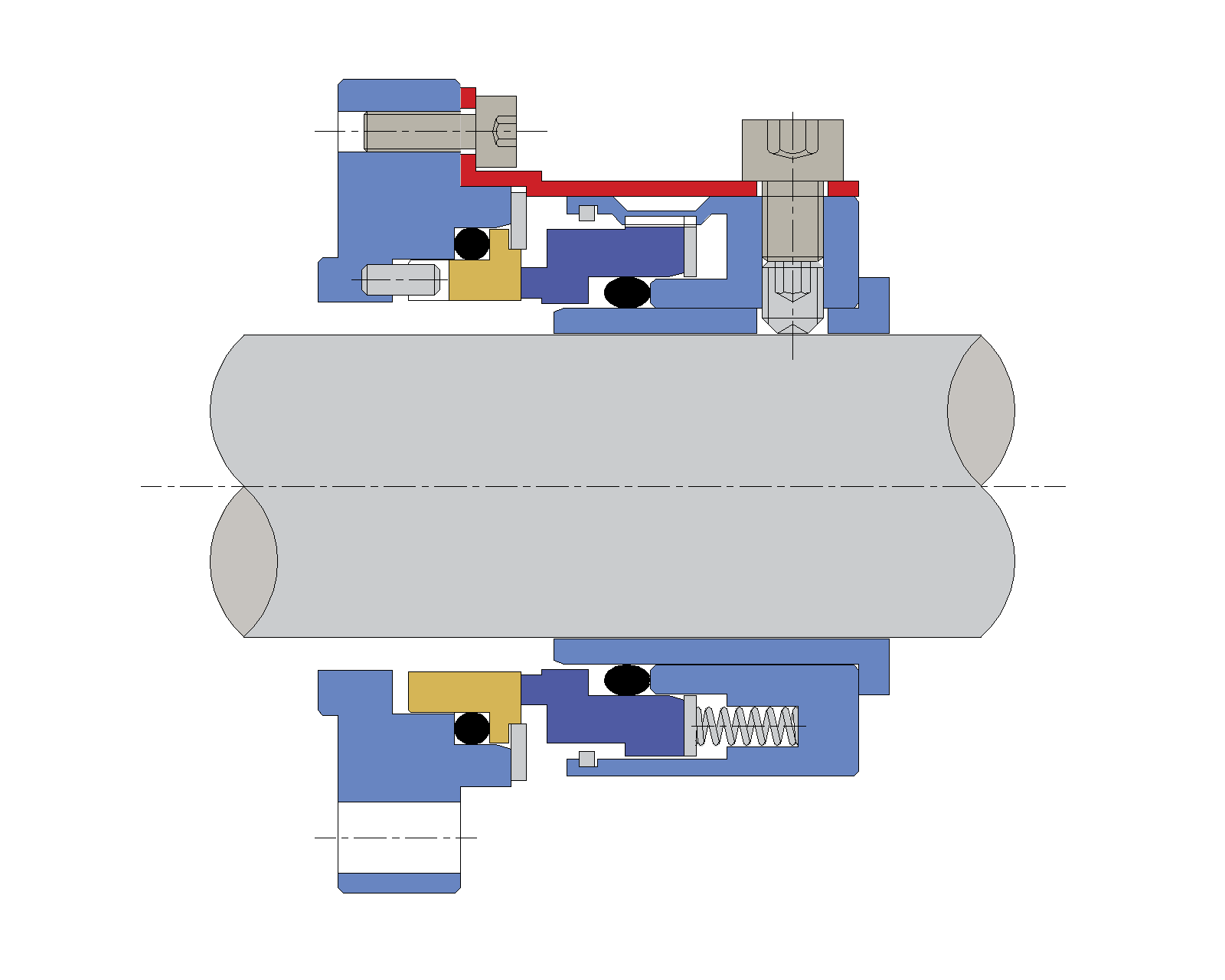

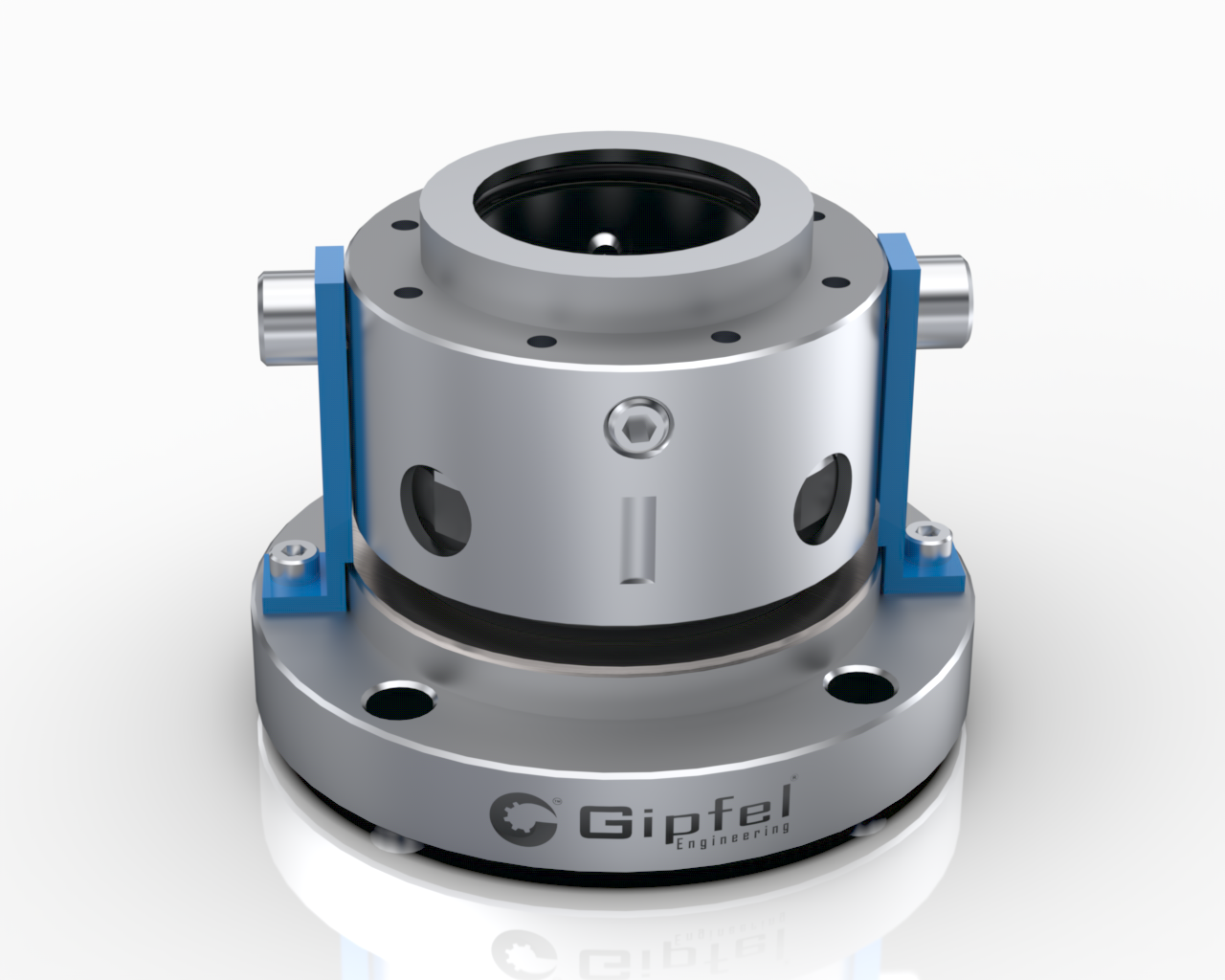

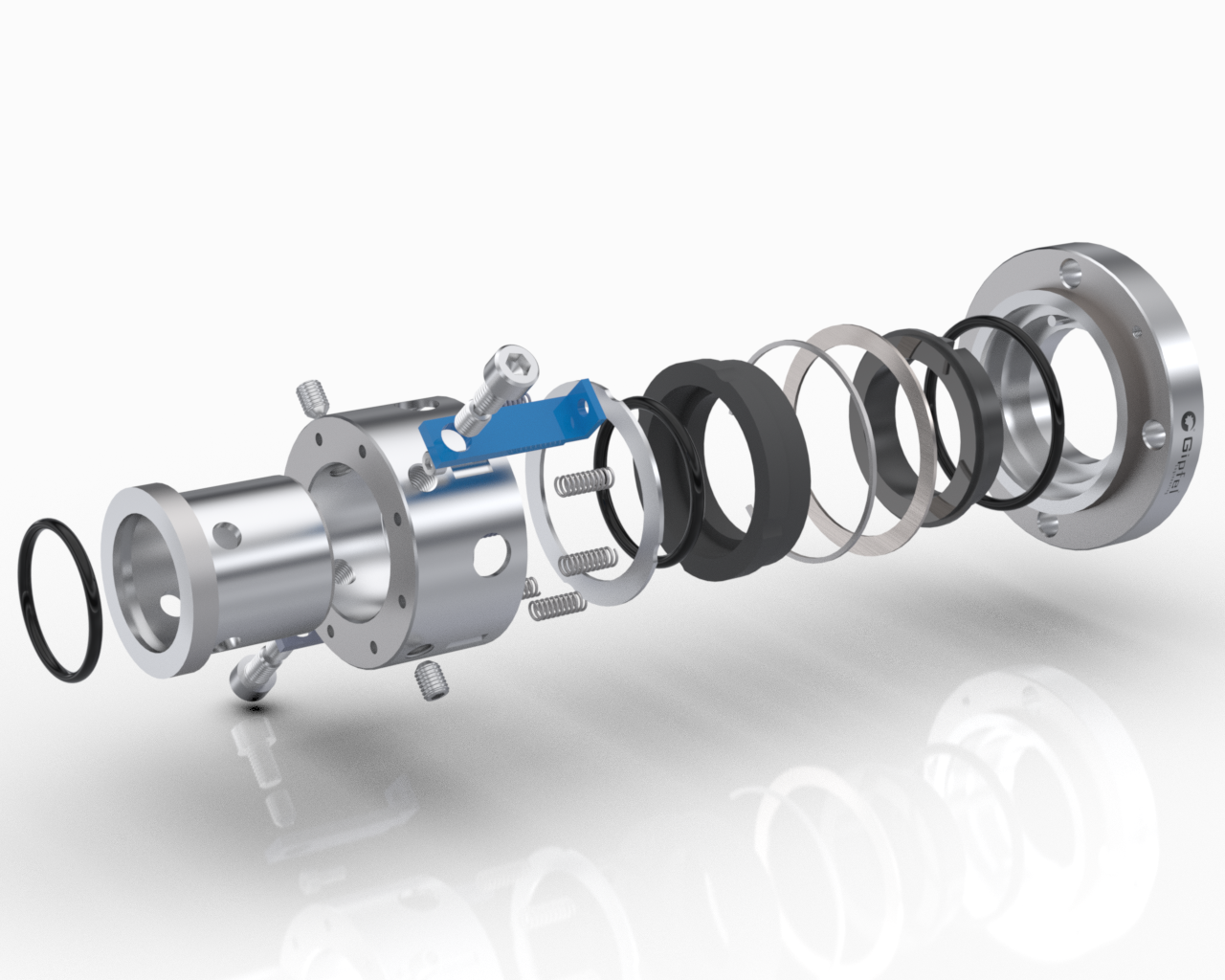

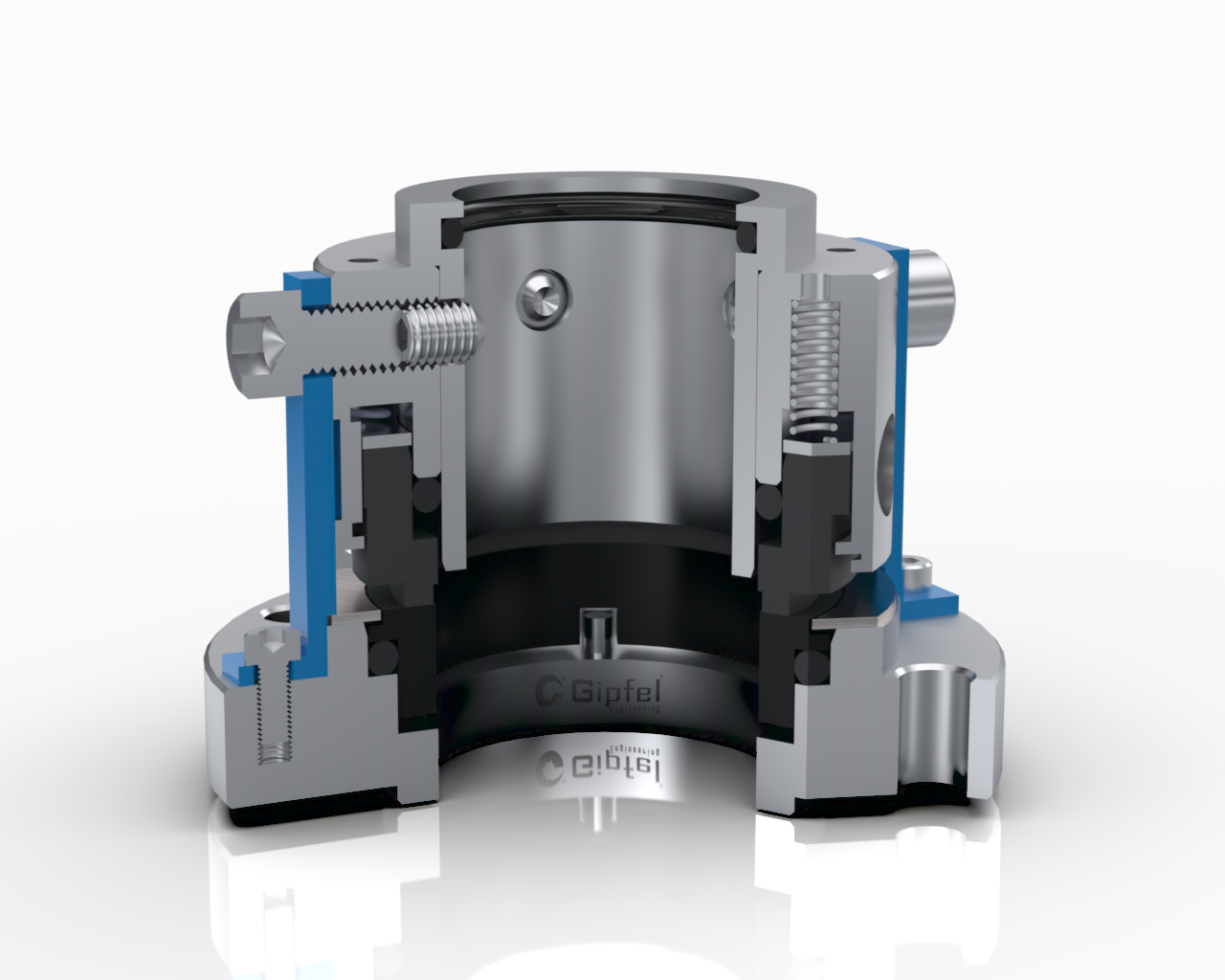

Reverse-Balanced Multi-Spring Cartridge Mechanical Seal

The SC620 is a high-performance single cartridge mechanical seal featuring a multi-spring, reverse-balance design engineered for demanding industrial services involving pressure fluctuations, elevated temperatures, and chemically aggressive media. The cartridge-mounted construction ensures precise axial setting, minimizes installation errors, and improves equipment reliability while reducing commissioning time. Its hydraulically balanced face geometry reduces face loading and heat generation, enabling stable sealing performance under variable operating conditions.

Designed for process industries requiring dependable sealing performance and extended service life, the SC620 is suitable for centrifugal pumps, process pumps, industrial blowers, mixers, and auxiliary rotary equipment operating in chemical, petrochemical, pharmaceutical, power, pulp & paper, steel, mining, food processing, and solvent handling environments. The robust multi-spring arrangement provides uniform face loading and enhanced operational stability in applications involving vibration, thermal cycling, and intermittent duty conditions.

Key Features

  • Available in both metric and inch shaft sizes for compatibility with global industrial standards and plant-wide standardisation.
  • Cost-effective, refurbishable design allowing replacement of wear components and reuse of hardware, reducing long-term sealing costs.
  • Quick installation and easy removal of the cartridge assembly minimise downtime and simplify routine maintenance and refurbishment.
  • Single cartridge mechanical seal with factory-assembled, preset working length for simplified installation, precise alignment and reduced setting errors.
  • Bidirectional capability, independent of shaft rotation direction, allowing flexible integration into a wide variety of pump and rotating-equipment configurations.
  • Hydraulically balanced (reverse-balanced) seal faces minimise face loading at higher pressures, reducing wear and extending seal service life across a broad pressure range.
  • Internal, single-seal arrangement promotes effective lubrication, good pressure handling and improved protection of springs and dynamic components from contamination.
  • Multi-spring / wave-spring reverse-balanced design providing stable, uniform face loading, improved heat dissipation and reliable performance under varying operating conditions.
  • Optional flushing and quench connections enable integration with seal support systems for enhanced cooling, solids management and environmental control where required by the service.
  • High corrosion resistance through a wide selection of metallurgy and elastomer combinations, enabling customisation to clean liquids, light slurries and moderate chemical process applications.

Service Overview

Parameter Value
Equipment Centrifugal pumps, process pumps, industrial blowers, rotary machines
Fluid Chemicals, hydrocarbons, solvents, light slurry, water, process fluids
Service Nature Continuous industrial process duty
Operating Mode Single cartridge, reverse-balanced multi-spring mechanical seal

Specifications & Operating Limits

Parameter Min Max Notes
Shaft Size 20 mm / 0.750” 300 mm / 12.000” Metric & inch sizes available
Pressure Vacuum 40 bar (580 psi) Depending on seal face & metallurgy
Temperature -40°C (-40°F) +220°C (+428°F) Based on elastomer selection
Speed — 2900 rpm Application dependent
Note: Limits are maximum values for individual parameters and are not simultaneous. Actual limits depend on the fluid, materials and seal size; contact Gipfel Engineering to confirm suitability for your duty.

Materials of Construction

Seal face pairs (standard pair: carbon vs silicon carbide)

Pair Face grades offered
Carbon vs silicon carbide Resin-impregnated or antimony-impregnated carbon graphite vs sintered or reaction-bonded silicon carbide
Carbon vs tungsten carbide Resin-impregnated or antimony-impregnated carbon graphite vs cobalt-bound or nickel-bound tungsten carbide
Silicon carbide vs silicon carbide Sintered or reaction-bonded silicon carbide on both faces
Silicon carbide vs tungsten carbide Sintered or reaction-bonded silicon carbide vs cobalt-bound or nickel-bound tungsten carbide
Tungsten carbide vs tungsten carbide Cobalt-bound or nickel-bound tungsten carbide on both faces
Component Standard Options
Elastomers FKM EPDM; PTFE; FFKM
Metal parts SS 316 Hastelloy® C-276; Duplex SS; Alloy 20
Springs SS 316 Hastelloy® C
  • Faces: hard-on-hard pairs for abrasive or solids-laden services; carbon vs silicon carbide for general duties.
  • Elastomers: selected against the process fluid; EPDM is not for petroleum oils.
  • Metals: selected by corrosion level, chloride content and temperature.

Hastelloy® is a registered trademark of their respective owners.

Applications

  • Chemical process pumps
  • Steel and mining process pumps
  • Petrochemical and refinery services
  • Pharmaceutical production systems
  • Oil & gas auxiliary rotating equipment
  • Food & beverage processing equipment
  • Industrial blowers and rotary equipment
  • Water and wastewater treatment pumps
  • Chilling plants and solvent recovery systems
  • Pulp & paper stock and chemical handling systems

Recommended API Plans (Single Seal)

Plan Purpose Typical use
Plan 11 Product recirculation to the seal faces Clean services
Plan 21 Recirculation through a cooler Hot services
Plan 23 Internal circulation with pumping ring and cooler Hot services needing more efficient cooling
Plan 32 External clean flush to the faces Dirty or slurry services
Plan 62 Quench on the atmospheric side Preventing icing or crystallisation

The plan is selected with the P&ID and project specification for each duty.

More Downloads

Frequently Asked Questions

  1. What shaft sizes does the SC620 cover?
    20 mm to 300 mm (0.750” to 12.000”). Metric and inch sizes are available.
  2. What are the operating limits of the SC620?
    Vacuum to 40 bar (580 psi); -40°C to +220°C (-40°F to +428°F), depending on elastomer selection; and up to 2900 rpm. These limits are not simultaneous.
  3. What is the SC620?
    The SC620 is a high-performance single cartridge mechanical seal featuring a multi-spring, reverse-balance design engineered for demanding industrial services involving pressure fluctuations, elevated temperatures, and chemically aggressive media.
  4. Which API plans suit the SC620?
    Plans 11, 21, 23, 32 and 62, selected by duty: 11 for clean services, 21 and 23 for hot services, 32 for dirty or slurry services and 62 as an atmospheric-side quench.
  5. Which seal face materials are available?
    Carbon vs silicon carbide is standard. Carbon vs tungsten carbide, silicon carbide vs silicon carbide, silicon carbide vs tungsten carbide and tungsten carbide vs tungsten carbide are also offered, in resin- or antimony-impregnated carbon graphite, sintered or reaction-bonded silicon carbide, and cobalt- or nickel-bound tungsten carbide.
  6. Which elastomers and metals are available?
    Elastomers: FKM as standard, with EPDM, PTFE or FFKM as options. Metal parts: SS 316 as standard, with Hastelloy® C-276, Duplex SS or Alloy 20 as options.
  7. Does the SC620 need on-site setting?
    No. It is supplied as a factory-assembled unit with preset working length, which reduces installation time and the risk of assembly errors.
  8. Can the SC620 be refurbished?
    Yes. Wear components can be replaced during overhaul instead of replacing the complete seal.
  9. Does the SC620 work in both directions of rotation?
    Yes. It operates independently of the direction of shaft rotation.
  10. Where is the SC620 used?
    Chemical process pumps; Steel and mining process pumps; Petrochemical and refinery services; Pharmaceutical production systems; Oil & gas auxiliary rotating equipment; Food & beverage processing equipment.
  11. Is an installation manual available?
    Yes. The Installation, Operation & Maintenance Manual is available under More Downloads.
