Rotary Spring Configuration

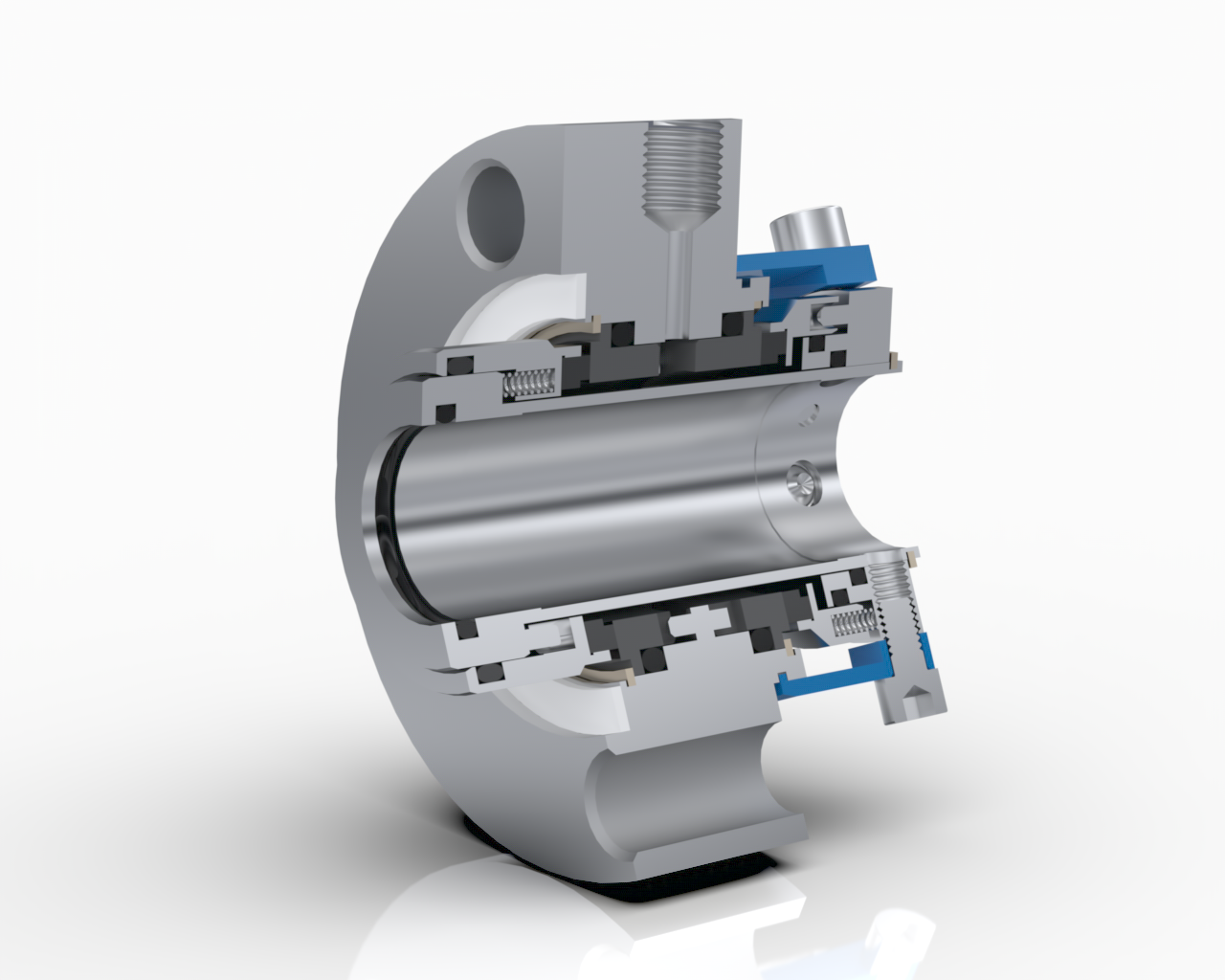

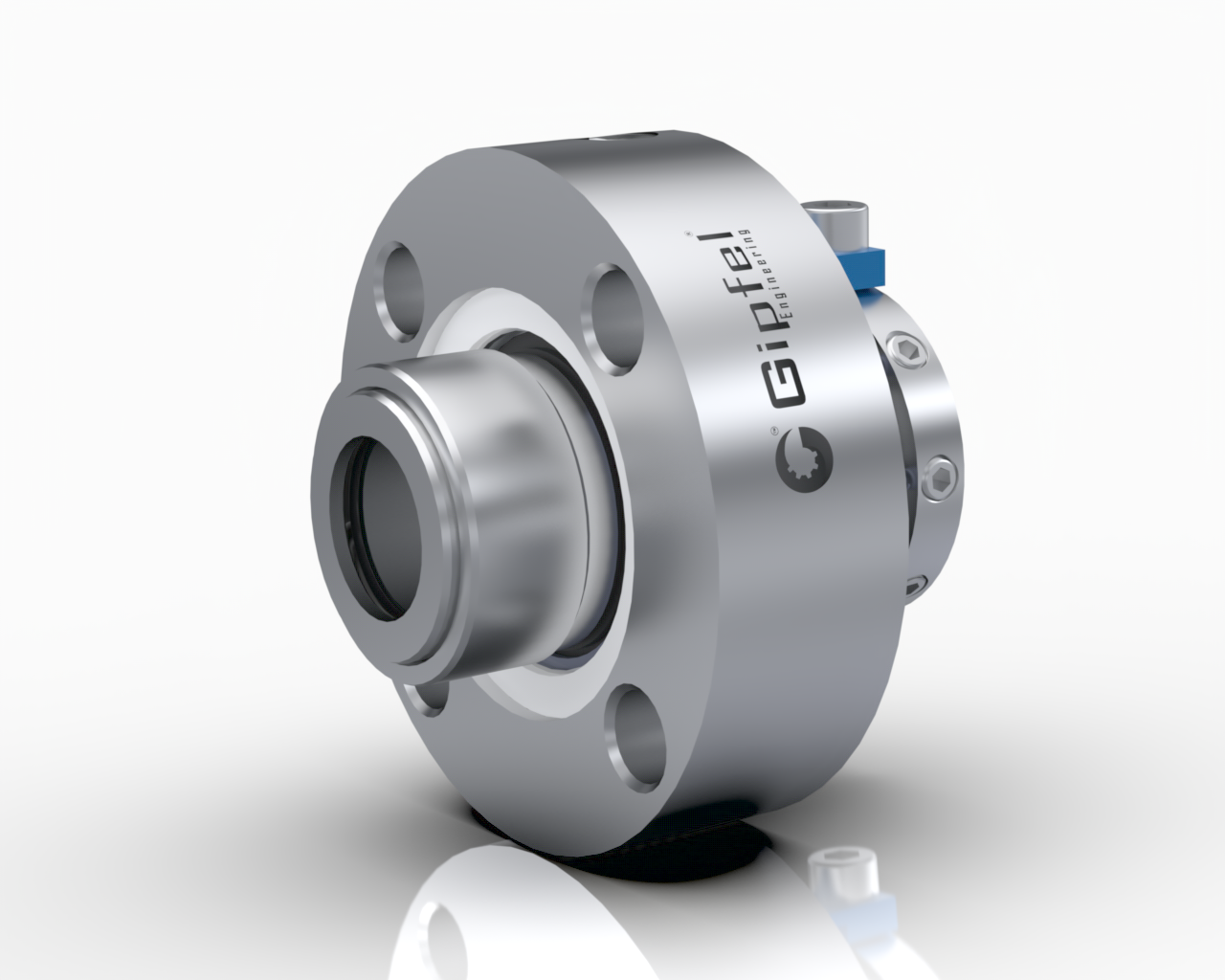

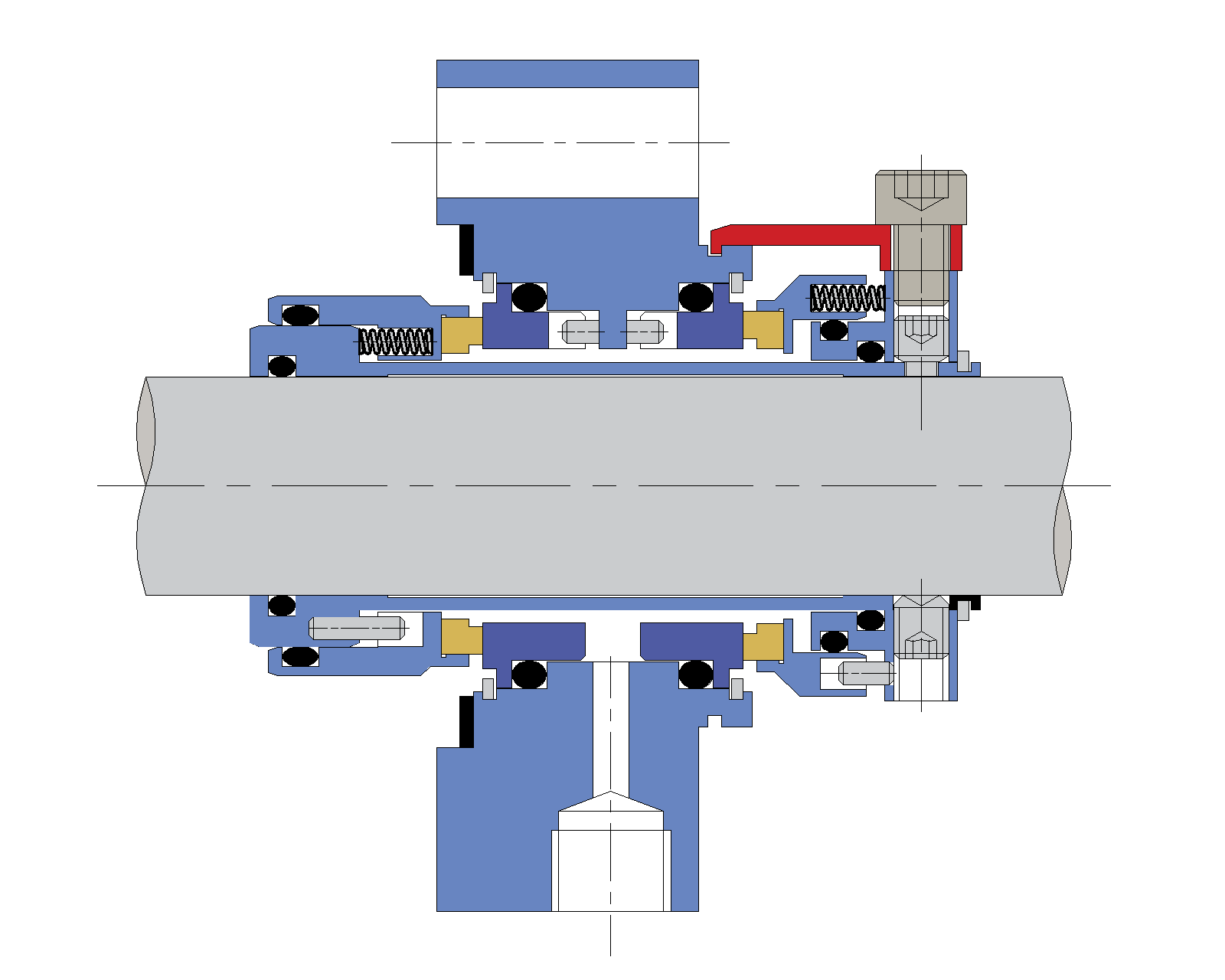

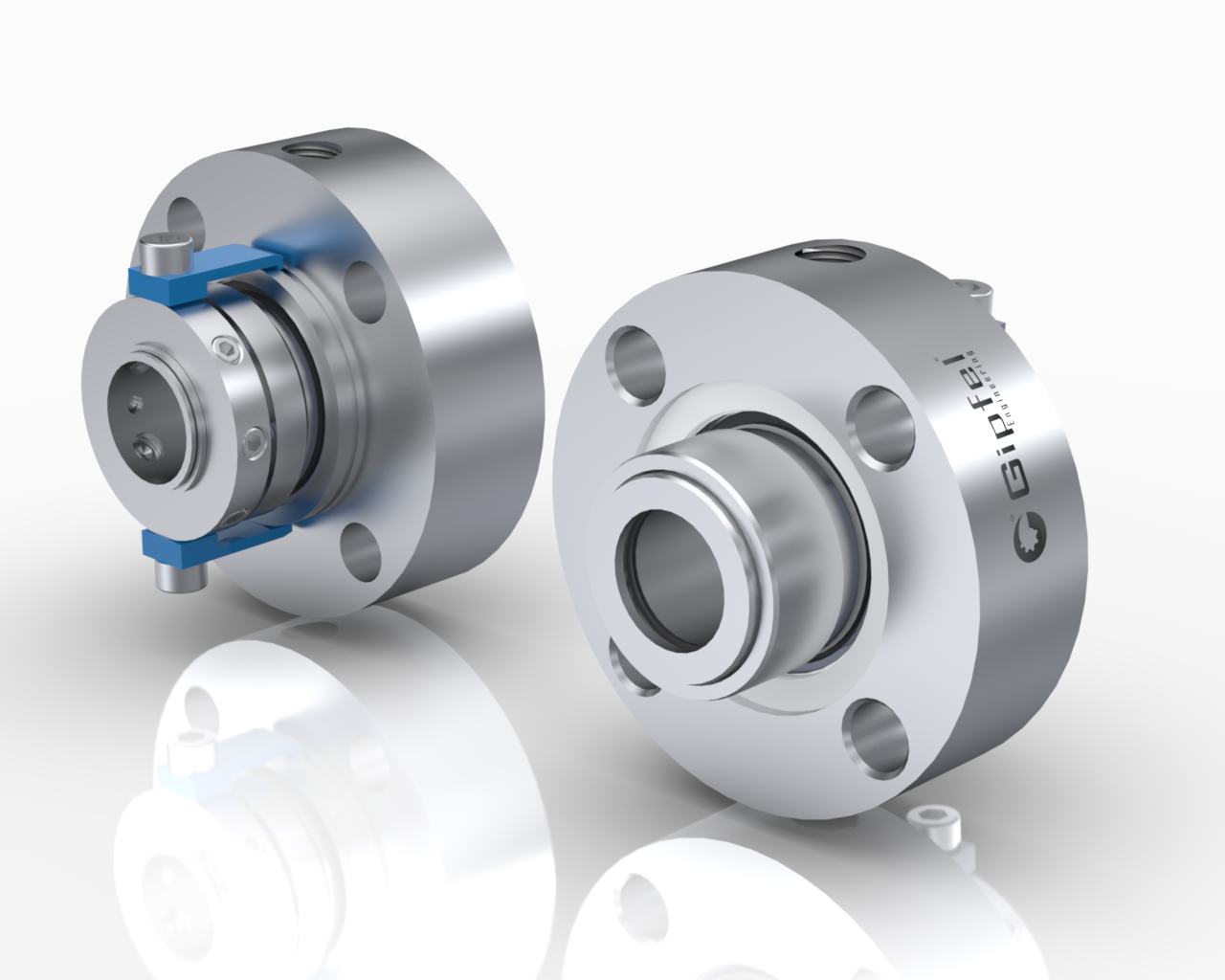

The Rotary Spring Configuration Heavy Duty Slurry Mechanical Seal is engineered for rigorous slurry processing environments where rotating equipment faces constant exposure to abrasive, high-solid-content media. Unlike stationary spring designs, this configuration integrates the springs directly into the rotating element, offering dynamic response and consistent loading even in variable operating conditions.

Technical Description:

Designed to perform reliably in industries such as mining, ore beneficiation, power generation, and industrial wastewater, this mechanical seal utilizes a rotary-mounted spring system that maintains axial loading between seal faces during continuous shaft rotation. This dynamic setup ensures effective sealing under misalignment, shaft deflection, and pressure surges common in heavy-duty slurry systems.

The rotary springs are often shielded or semi-isolated, reducing direct exposure to the slurry and improving service life. The compact, modular construction supports efficient maintenance and offers enhanced durability in high-wear environments.

Key Technical Features:

• Durability & Reliability;
  • Vibration & Shock Resistant: Engineered to withstand pump vibrations and process pulsations without compromising sealing performance in slurry service.
  • Robust Seal Faces: Utilizes hard face materials such as silicon carbide or tungsten carbide, ensuring superior abrasion resistance and durability under high solids loading.
  • Heavy-Duty Housing Materials: Constructed from corrosion- and erosion-resistant materials such as stainless steel, Hastelloy, or alloy-coated steel to handle chemically aggressive and abrasive slurries.
  • Wide Elastomer Compatibility: Seal elastomers are available in materials like Viton, EPDM, and FFKM to match process fluid compatibility for thermal and chemical resistance.
• Performance & Efficiency;
  • Application Versatility: Compatible with vertical and horizontal pumps, agitators, and other rotating equipment operating in severe slurry services.
  • Hydraulically Balanced Design: Reduces seal face load, friction, and heat generation, which significantly prolongs seal and equipment life even under fluctuating pressure conditions.
  • Springs Isolated: Springs are located in a non-wetted area, preventing exposure to abrasive particles; improves seal longevity and eliminates clogging issues common in slurry applications.
  • Multiple Spring Type: Provides even face load distribution for consistent sealing pressure, compensates for shaft misalignment and face wear, and ensures reliable performance under dynamic operating conditions.
  • Double Seal: Offers superior containment and reliability for abrasive and hazardous slurry environments; provides added protection through a pressurized barrier fluid, ensuring enhanced sealing performance and environmental control.
  • Rotary Spring Configuration: Springs rotate with the shaft, maintaining uniform face pressure even under vibration and axial movement. Ideal for applications where space, shaft dynamics, or layout constraints favor a rotating spring system.
• Installation & Maintenance;
  • Metric and Inch Sizes Available: Provides broad compatibility with international equipment standards; simplifies inventory management and supports global deployment.
  • Quick Installation & Easy Removal: Cartridge-style assembly allows fast and error-free installation or replacement; reduces downtime and simplifies maintenance in high-demand operations.
  • Modular Cartridge Construction: Pre-assembled, pressure-tested cartridge unit simplifies installation, maintains factory-set tolerances, and enables quick maintenance with minimal downtime.
  • Independent of Direction of Rotation: Seal design functions effectively regardless of shaft rotation direction, offering versatility across various rotating equipment and simplifying inventory requirements.
  • Factory Assembled & Tested: Pre-assembled under controlled conditions with verified alignment and tolerances; ensures readiness for installation and reduces the risk of installation errors in the field.
• Environmental & Safety;
  • Flush, Quench & Barrier Fluid Options: Designed to integrate with industry-standard API plans (e.g., Plan 32, 54). These features support cooling, particle removal, and environmental containment for improved reliability and seal face protection.
  • With Connection of Flushing & Quenching: Equipped with ports for optional flush, quench, and drain lines; helps manage slurry buildup, control temperature, prevent crystallization, and improve seal reliability in aggressive process environments.

Specification:
