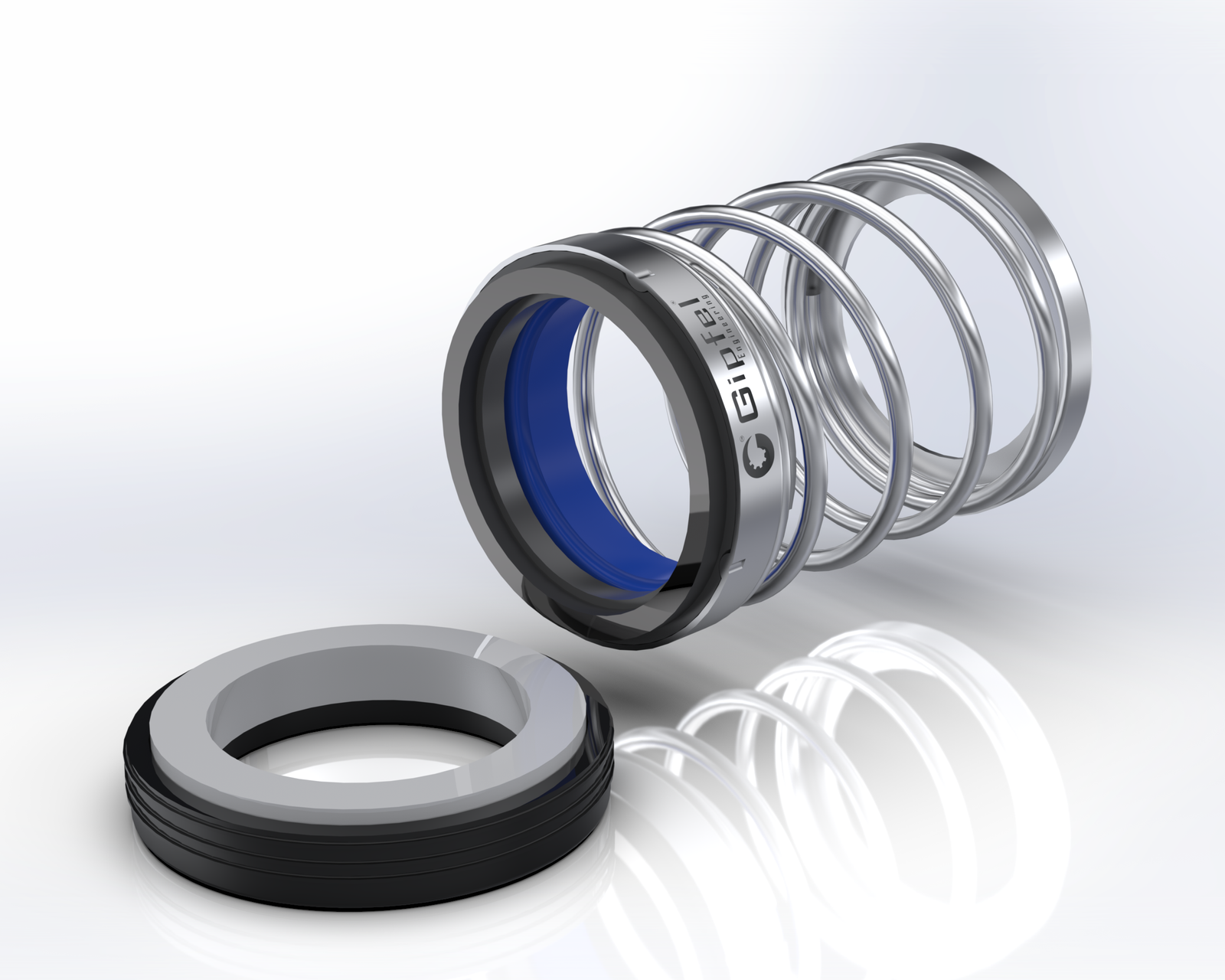

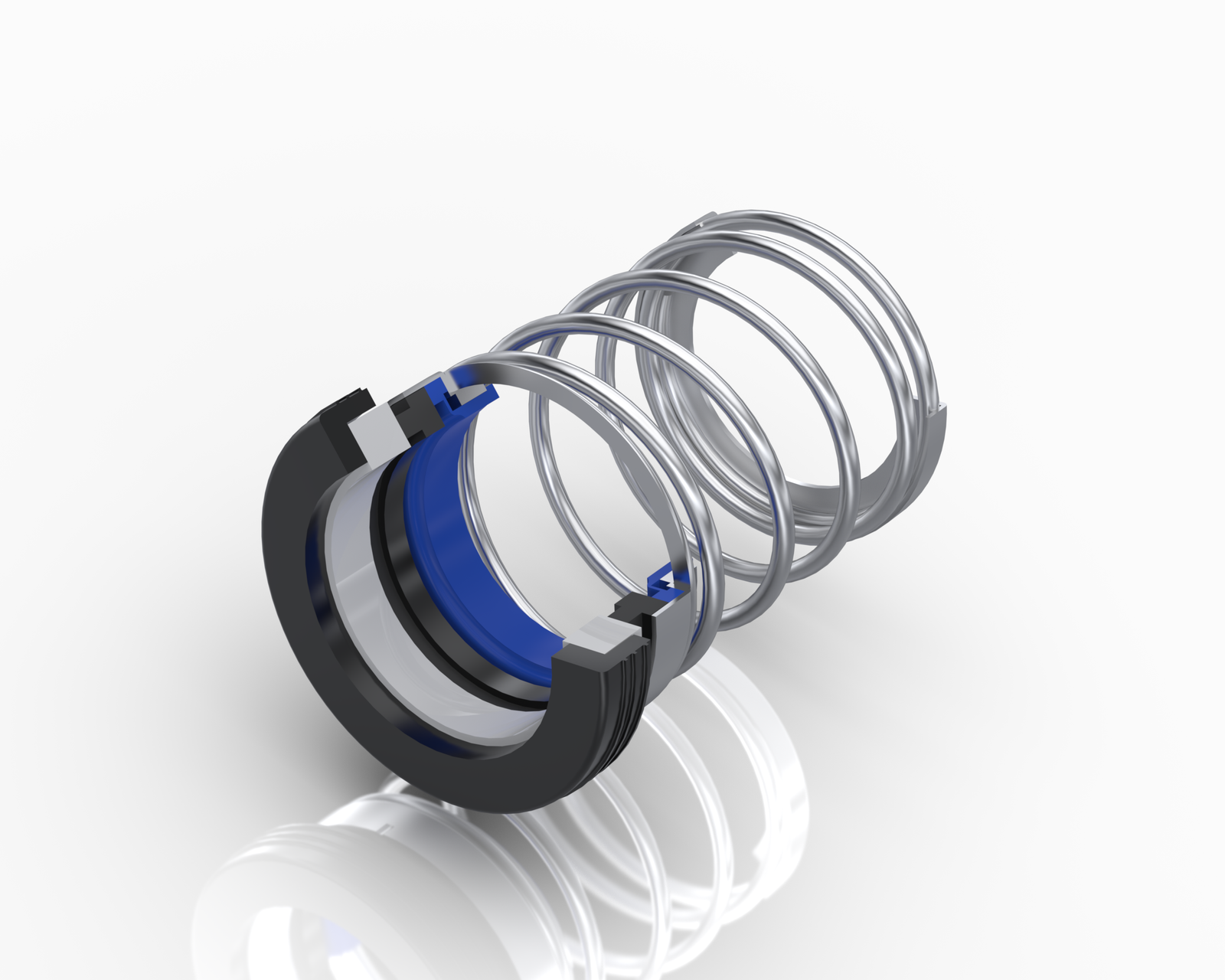

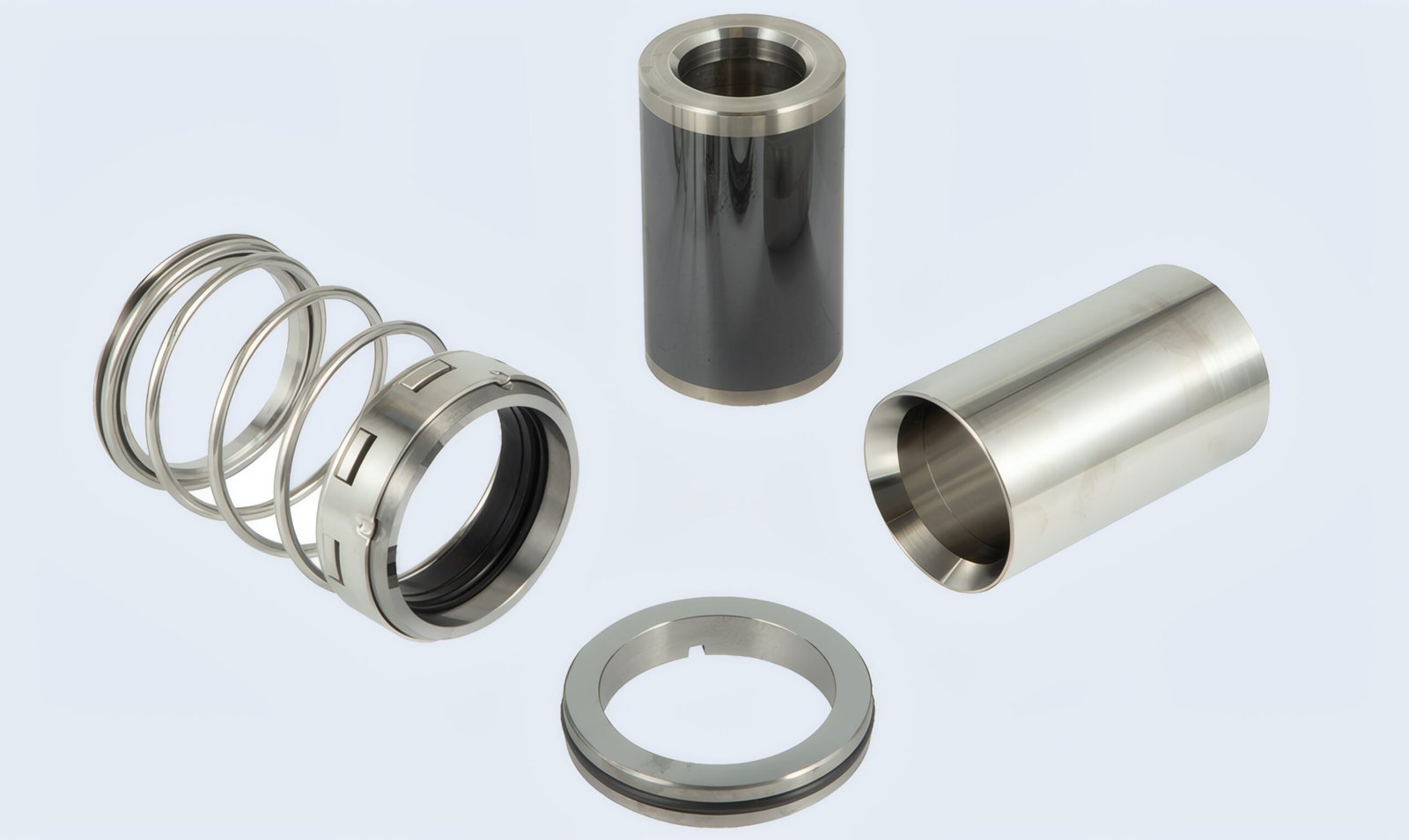

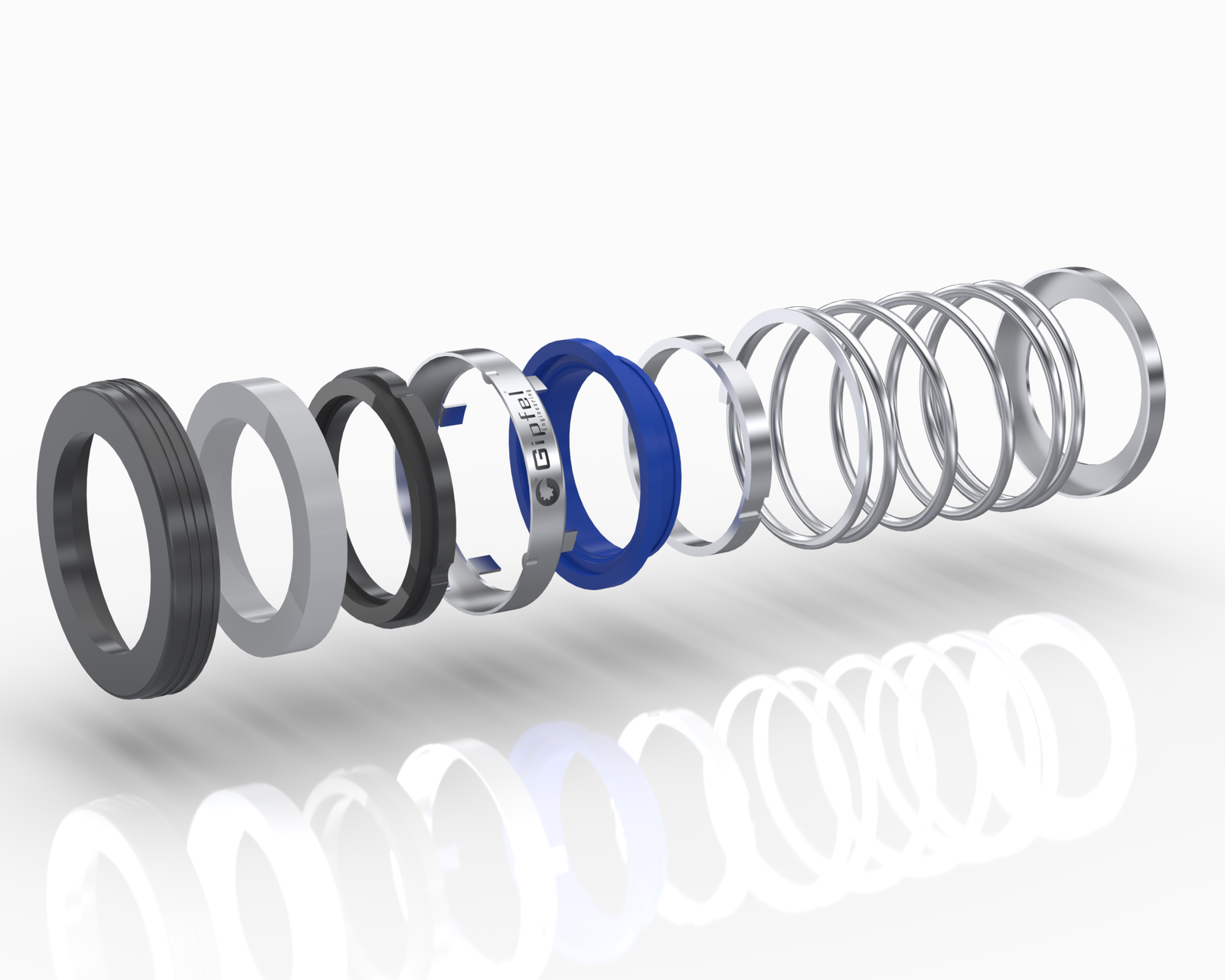

The Rubber Bellow Mechanical Seal (Equivalent to JC – 21 Type) is the most common and low-priced type used for simple and non-critical applications. It’s having a single spring for non-clogging, self-cleaning operation and bellows for self-alignment in case of axial and radial end play & run out in the shaft. There are a lot of designs and shapes available in this series to accommodate almost all types of stuffing boxes. This series is available in Metric as well as British Standard sizes. It finds great usage in the light applications like Water, Milk, Juice, Coolants & soft slurry, etc. Elastomeric Bellow Mechanical Seals can be designed according to the dimensions of the stuffing box. Length and Diameter can be adjusted to fit any type of cavity, therefore it finds usage in a wide variety of Equipment. We can develop these seals in custom-made designs also.
Key Features
- Single seal
- Pusher type
- Elastomeric bellow
- Unbalanced design
- Internally mounted
- Rotating single spring
- Single helical coil spring
- Low cost & mass produced
- Torque transmission by spring holder
- Independent of the direction of rotation
Specifications & Operating Limits
| Parameter | Value |
|---|---|
| Shaft Size | 12.0 mm to 100.0 mm / 0.500” to 4.000” (inch series) |
| Pressure | Up to 10 bar (145 psi) |
| Temperature | -20 °C to +120 °C (-4 °F to + 248 °F) |
| Speed | Up to 2900 rpm |
Materials of Construction
| Component | Materials offered |
|---|---|
| Seal faces | Carbon; Ceramic; Silicon Carbide; Tungsten carbide |
| Elastomers | NBR; FKM; EPDM |
| Hardware | SS 304; SS 316 |
- Faces: hard-on-hard pairs for abrasive or solids-laden duties; carbon-based pairs for clean, lubricating fluids.
- Elastomers: selected against the process fluid; EPDM is not for petroleum oils.
- Metals: selected by corrosion level, chloride content and temperature.
Applications
Mass-produced hot and cold-water pumps for non-critical services; sewage applications; gear pumps; vacuum pumps; oil compressors, etc.
Brand names are trademarks of their respective owners and indicate dimensional interchangeability only.
More Downloads
Frequently Asked Questions
- What is the RB60?
The Rubber Bellow Mechanical Seal (Equivalent to JC – 21 Type) is the most common and low-priced type used for simple and non-critical applications. - What shaft sizes does the RB60 cover?
12.0 mm to 100.0 mm (0.500” to 4.000”). - What are the operating limits of the RB60?
Up to 10 bar (145 psi); -20 °C to +120 °C (-4 °F to + 248 °F); and up to 2900 rpm. These limits are not simultaneous. - Which materials are available?
Faces in carbon, ceramic, silicon carbide or tungsten carbide; elastomers in NBR, FKM or EPDM; hardware in SS 304 or SS 316. - Does the RB60 work in both directions of rotation?
Yes. It operates independently of the direction of shaft rotation. - Is the RB60 interchangeable with the John Crane 21 Type?
Yes. It is designed to be dimensionally interchangeable with the John Crane 21 Type. - Where is the RB60 used?
Mass-produced hot and cold-water pumps for non-critical services; sewage applications; gear pumps; vacuum pumps; oil compressors.
