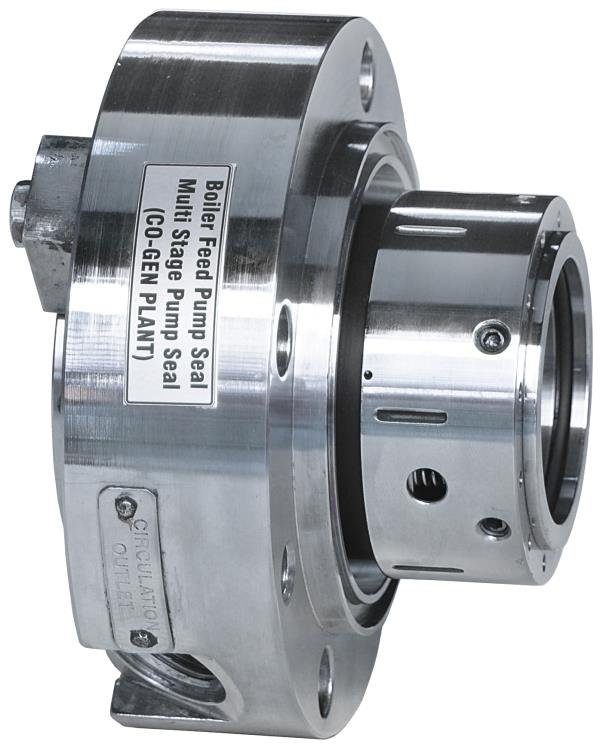

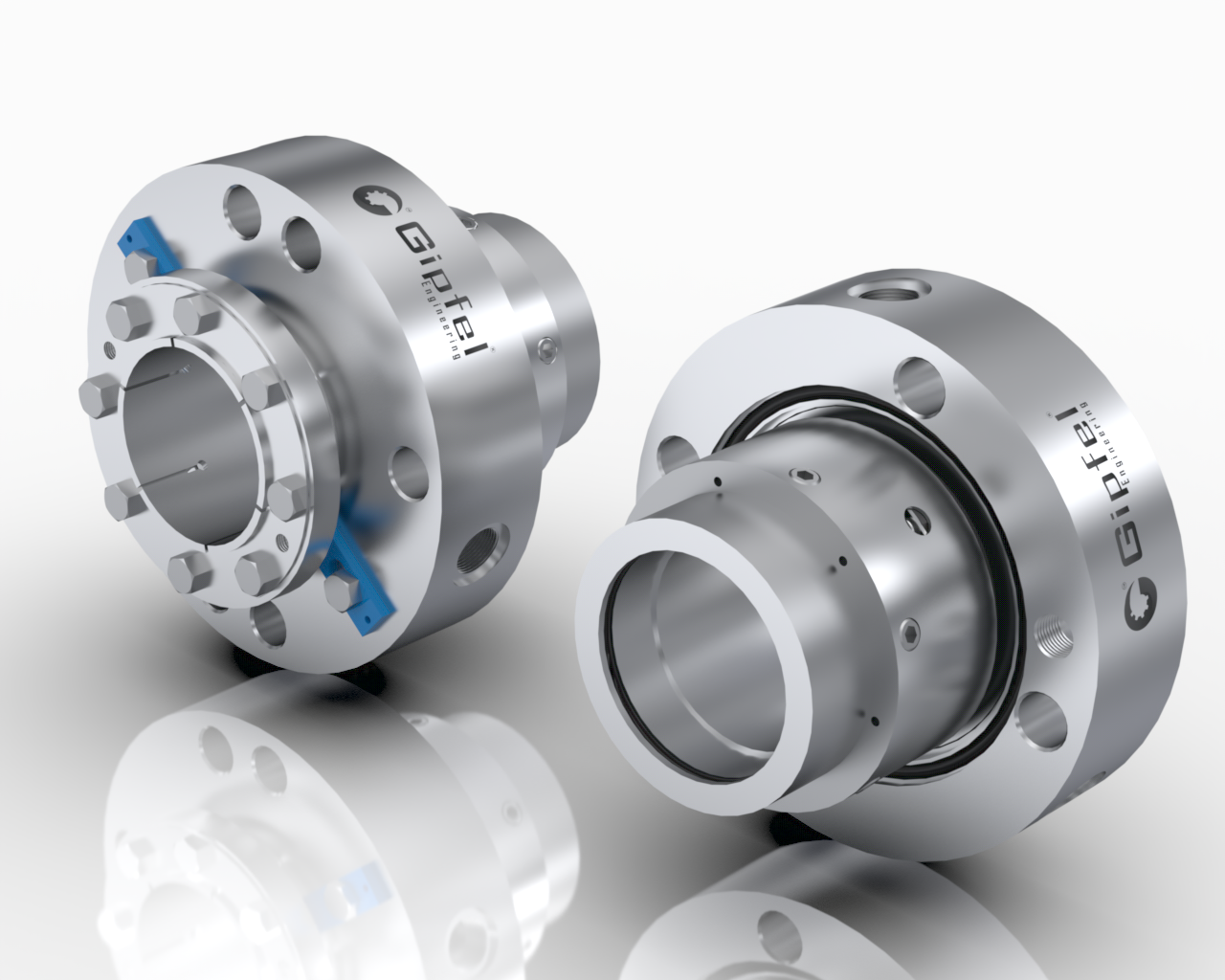

High Pressure Mechanical Seal

High-pressure mechanical seals are specifically engineered to operate under extreme conditions commonly found in critical industrial applications such as high-pressure water injection systems, chemical processing pumps, and power generation equipment. These seals are designed to handle elevated pressures (often exceeding 100 bar or 1450 psi), high temperatures, and aggressive media while maintaining a tight seal to prevent fluid leakage.

Constructed using advanced materials like silicon carbide, tungsten carbide, and corrosion-resistant alloys, these seals are built to endure mechanical stress, thermal expansion, and chemical attack. Depending on the application, they may incorporate features such as dual-seal configurations, barrier fluid systems (API Plan 53/54), and external cooling to ensure consistent and reliable performance in harsh environments.

By preventing leakage and maintaining a stable seal interface, high-pressure mechanical seals help enhance equipment uptime, reduce environmental and safety risks, and improve overall process efficiency.

High-pressure mechanical seals are essential for the safe and reliable operation of equipment in high-demand industrial applications. Proper selection based on pressure, temperature, fluid characteristics, and system configuration—along with regular maintenance—ensures optimal performance, extended equipment life, and improved safety across critical operations.



Technical Key Features;

1. Construction & Materials

• Robust Build Quality
  • Engineered from high-grade stainless steels, alloy steels, and corrosion-resistant alloys.
  • Ensures high mechanical strength, wear resistance, and chemical durability for long-term operation.
• Durable Seal Faces
  • Utilizes hard materials such as silicon carbide, tungsten carbide, and ceramics.
  • Offers superior thermal stability, abrasion resistance, and extended operational life.
• Secondary Sealing Elements
  • Includes O-rings and elastomeric gaskets for backup sealing.
  • Maintains sealing effectiveness under pressure, temperature, and chemical exposure.

2. Pressure Handling & Seal Design

• High-Pressure Rating
  • Designed for operating pressures from several hundred to several thousand PSI.
  • Withstands extreme pressure differentials while maintaining tight sealing integrity.
• Balanced Seal Design
  • Hydraulically balanced to minimize axial face loading and reduce friction.
  • Enhances sealing performance and reduces wear, especially in high-pressure applications.
• Hydraulically Balanced Type
  • Minimizes face distortion and promotes longer seal life, even in variable load conditions.

3. Operational Flexibility

• Versatile Seal Types
  • Compatible with both clockwise and counterclockwise shaft rotations.
  • Available in single and dual seal configurations to suit various process conditions.
• Spring Mechanism Options
  • Enhances sealing reliability across a wide range of operating environments.
  • Multiple spring and rotary/stationary spring designs ensure uniform pressure distribution.
• Cartridge Construction
  • Reduces installation error and minimizes downtime during maintenance.
  • Preassembled, factory-tested units enable quick installation and alignment.
• Metric and Inch Sizes Available
  • Suitable for integration with both international and domestic pump standards.

4. Cooling, Flushing & Quenching

• Flush and Cooling Systems
  • Manages heat, flushes debris, and ensures effective lubrication of sealing faces.
  • Supports external flushing, cooling, and quenching configurations (e.g., API Plans).
• Flushing & Quenching Connections
  • Enhances seal performance and longevity in thermally or mechanically demanding applications.

5. Maintenance, Reliability & Serviceability

• Quick Installation & Easy Removal
  • Tool-friendly design simplifies servicing, reducing equipment downtime.
• Factory Assembled & Tested
  • Every seal unit is rigorously tested before shipment, ensuring consistent quality and reliability.
• Maintenance & Refurbishment Friendly
  • Supports periodic inspection, lubrication, and component replacement.
  • Many models can be refurbished, extending the lifecycle and reducing the overall cost of ownership.

Specification;

Application	Suitable for high‑pressure process duties in the oil and gas, petrochemical, chemical, power generation, mining and mineral processing, and refinery sectors, as well as water and wastewater, marine, and other energy-intensive process industries. Typical pump applications include multistage boiler feed pumps, condensate extraction pumps, booster and pipeline pumps, crude and fuel oil transfer pumps, high‑pressure process pumps, and other critical services handling clean or lightly contaminated liquids, including crystallizing media where reliable sealing is essential.
Materials	Faces	Carbon / Ceramic / Silicon Carbide / Tungsten Carbide
	Elastomer	FKM (Viton) / EPDM / FFKM (Kalrez)
	Hardware	SS 316 / SS 316L / Duplex / Super Duplex / Hastelloy C-276 / Alloy 20 / Titanium
Operating Limits	Size	20.0 mm to 300.0 mm (0.750” to 12.000”)
	Pressure	220 bars (3,191 psi)
	Temperature	+350 °C (+662 °F)
	Speed	6000 rpm
