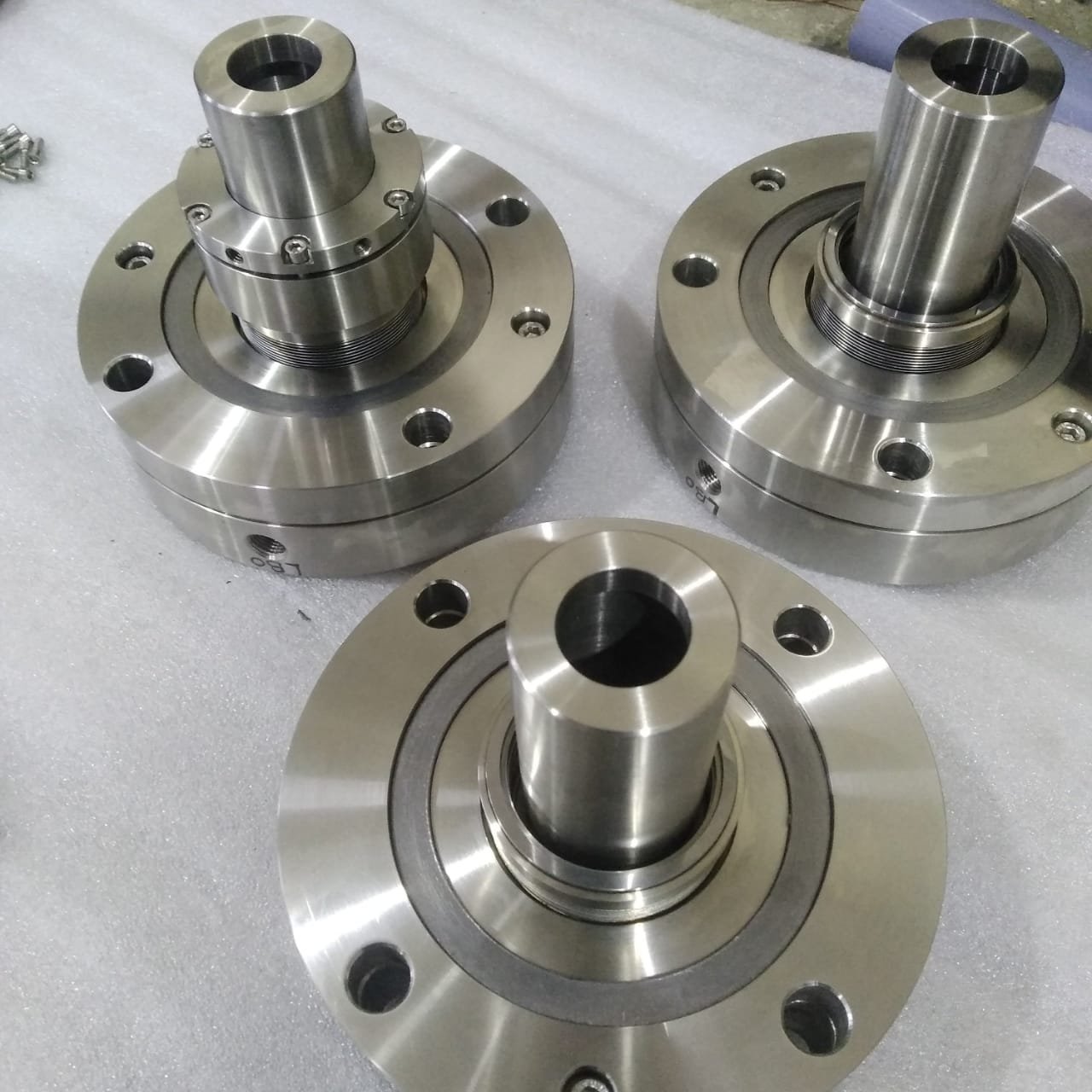

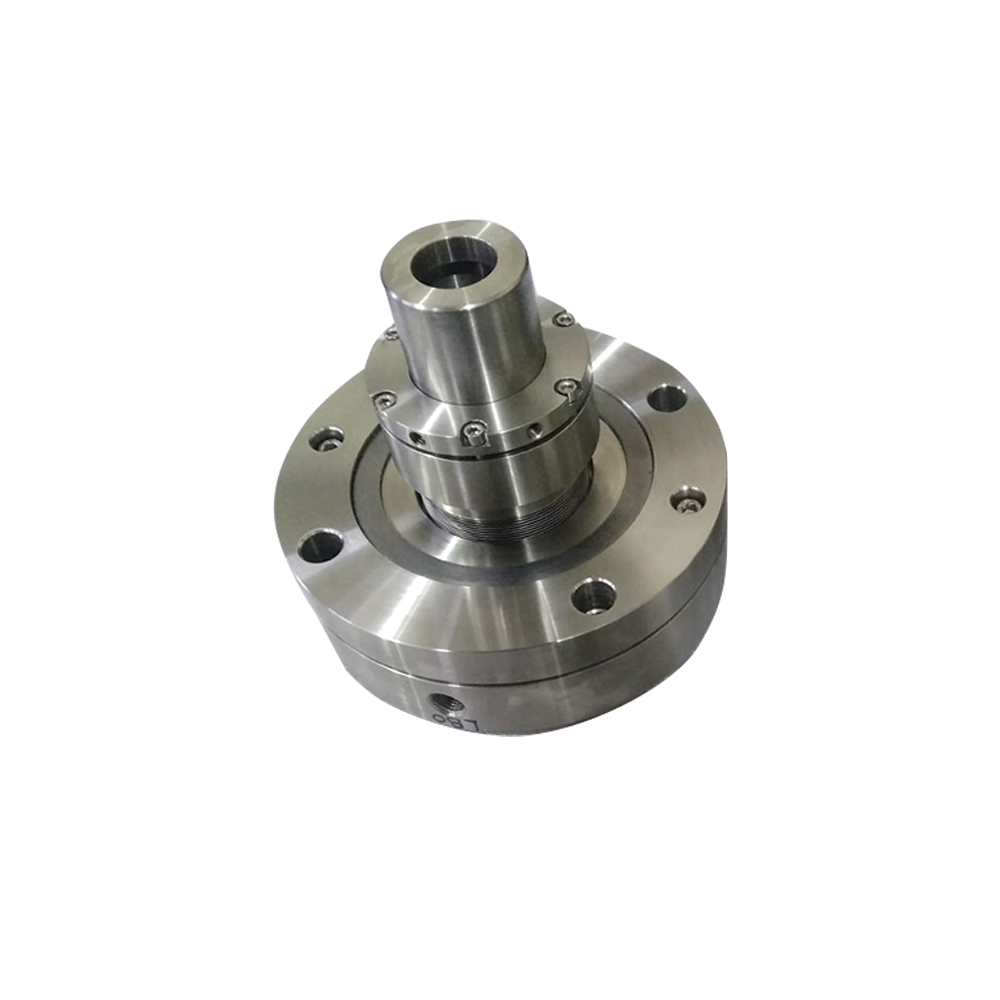

The BC730 is a high-performance stationary metal bellows single cartridge mechanical seal designed as a fully pre-assembled, ready-to-install unit for severe-duty hydrocarbon and high-temperature process services. Its stationary cartridge architecture enables quick, reliable installation with preset working length, significantly reducing equipment downtime and improving operational efficiency across plant-wide deployments.
Utilising a welded multi-ply metal bellows assembly, the BC730 eliminates dynamic secondary elastomers, removing common failure modes such as O-ring hardening, cracking and hang-up in extreme temperature and aggressive chemical environments. The stationary bellows and seal face are fixed in the gland, so the rotating hardware runs against them; this configuration minimises the influence of shaft run-out, deflection and vibration, maintaining precise face alignment and stable tracking for extended operational reliability.
Engineered for petrochemical processing, refinery operations, thermic-fluid circulation systems and hazardous chemical transfer duties, the BC730 delivers superior sealing integrity in applications involving hot oils, hydrocarbons, LPG, fatty acids, volatile solvents and other aggressive process media. A hydraulically balanced face geometry reduces face loading and heat generation, improving seal stability and life under severe thermal cycling, pressure transients and low-lubricity conditions typical of refinery and hydrocarbon-processing services.
Supplied as a cartridge-mounted assembly, the BC730 requires no on-site axial setting; factory precision assembly eliminates installation errors and shortens maintenance turnaround, making it ideal for standardisation on critical rotating equipment. The robust, compact design supports continuous-duty operation in power generation, steel, mining and allied industries as well as oil and gas applications. In addition to new units, we offer extensive expertise in the repair, refurbishment and reconditioning of stationary metal bellows mechanical seals, helping operators extend seal life, restore performance and reduce overall maintenance costs in high-temperature and hazardous-service pumping systems.
Key Features
- Integrated flushing and quenching connections provide built-in ports for auxiliary piping, enabling effective cooling, cleaning or containment to meet specific system and environmental requirements.
- Welded multi-ply metal bellows provide high resistance to thermal fatigue and corrosion, making the seal suitable for continuous-duty operation in severe chemical, hydrocarbon and high-temperature applications.
- Designed for API 682-style seal chamber dimensions, with API-compatible flush and quench arrangements for critical oil and gas and refinery services where standardised seal solutions are required.
- Hydraulically balanced seal faces reduce face loading and heat generation, improving thermal stability and seal reliability under pressure and temperature cycling typical of hot-oil, thermic-fluid and refinery process services.
- Available in metric and inch shaft sizes, with bi-directional operation independent of shaft rotation direction, supporting global compatibility and flexible installation across a wide range of pumps and rotating equipment.
- Reduced maintenance requirements and extended operating life result from the elimination of dynamic elastomer fretting, improved thermal management and robust construction tailored for severe-duty continuous operation.
- Single cartridge configuration, fully factory assembled and pressure-tested, is supplied as a preset unit for quick installation and easy removal, simplifying alignment, eliminating setting inaccuracies and reducing handling errors and downtime.
- Stationary welded metal bellows design eliminates dynamic O-rings and other secondary elastomers, minimising vibration sensitivity and shaft-deflection effects while providing excellent stability in high-temperature, viscous and hazardous media.
Service Overview
| Parameter | Value |
|---|---|
| Equipment | Process Pumps, Refinery Pumps, Thermic Fluid Pumps, Hydrocarbon Transfer Pumps |
| Fluid | Hydrocarbons, Hot Oil, Thermic Fluid, LPG, Hazardous Chemicals, Fatty Acids |
| Service Nature | High Temperature, Hazardous, Corrosive, Volatile Process Media |
| Operating Mode | Continuous Duty / Heavy Industrial Service |
Specifications & Operating Limits
| Parameter | Min | Max | Notes |
|---|---|---|---|
| Shaft Size | 25 mm / 1.000” | 150 mm / 6.000” | Larger sizes available on request |
| Pressure | Vacuum | 9 bar (131 psi) | Depending on seal arrangement |
| Temperature | -20°C (-4°F) | +150°C (+302°F) | Depends on bellow & face metallurgy |
| Speed | — | 2900 rpm | Application dependent |
Materials of Construction
Seal face pairs (standard pair: carbon vs silicon carbide)
| Pair | Face grades offered |
|---|---|
| Carbon vs silicon carbide | Resin-impregnated or antimony-impregnated carbon graphite vs sintered or reaction-bonded silicon carbide |
| Carbon vs tungsten carbide | Resin-impregnated or antimony-impregnated carbon graphite vs cobalt-bound or nickel-bound tungsten carbide |
| Silicon carbide vs silicon carbide | Sintered or reaction-bonded silicon carbide on both faces |
| Silicon carbide vs tungsten carbide | Sintered or reaction-bonded silicon carbide vs cobalt-bound or nickel-bound tungsten carbide |
| Tungsten carbide vs tungsten carbide | Cobalt-bound or nickel-bound tungsten carbide on both faces |
| Component | Standard | Options |
|---|---|---|
| Metal bellows | SS 316L | Hastelloy® C-276; Alloy 20; Inconel® |
| Secondary seals | Graphite; Flexible Graphite | PTFE |
| Hardware | SS 316 | Duplex SS; Hastelloy® C-276; Titanium |
- Faces: hard-on-hard pairs for abrasive or solids-laden services; carbon vs silicon carbide for general duties.
- Bellows and secondary seals: selected against temperature and fluid chemistry.
- Metals: selected by corrosion level, chloride content and temperature.
Hastelloy® and Inconel® are registered trademarks of their respective owners.
Applications
- Petrochemical process pumps
- Thermic fluid circulation pumps
- Power plant auxiliary pump systems
- API process pump sealing applications
- Chemical and hazardous liquid processing
- Fatty acid and hot oil transfer applications
- Refinery and hydrocarbon transfer systems
- LPG and volatile solvent handling equipment
- High-temperature reactor circulation systems
- Biochemical and specialty chemical processing
Recommended API Plans (Single Seal)
| Plan | Purpose | Typical use |
|---|---|---|
| Plan 11 | Product recirculation to the seal faces | Clean services |
| Plan 21 | Recirculation through a cooler | Hot services |
| Plan 23 | Internal circulation with pumping ring and cooler | Hot services needing more efficient cooling |
| Plan 32 | External clean flush to the faces | Dirty or slurry services |
| Plan 62 | Quench on the atmospheric side | Preventing icing or crystallisation |
The plan is selected with the P&ID and project specification for each duty.
More Downloads
- Product Guide – 8th Edition (PDF)
- IOM – Installation, Operation & Maintenance Manual, Single Cartridge Mechanical Seals (PDF)
Frequently Asked Questions
- What shaft sizes does the BC730 cover?
25 mm to 150 mm (1.000” to 6.000”). Metric and inch sizes are available. - What are the operating limits of the BC730?
Vacuum to 9 bar (131 psi); -20°C to +150°C (-4°F to +302°F), depending on secondary seal selection; and up to 2900 rpm. These limits are not simultaneous. - What is the BC730?
The BC730 is a high-performance stationary metal bellows single cartridge mechanical seal designed as a fully pre-assembled, ready-to-install unit for severe-duty hydrocarbon and high-temperature process services. - Which API plans suit the BC730?
Plans 11, 21, 23, 32 and 62, selected by duty: 11 for clean services, 21 and 23 for hot services, 32 for dirty or slurry services and 62 as an atmospheric-side quench. - Which seal face materials are available?
Carbon vs silicon carbide is standard. Carbon vs tungsten carbide, silicon carbide vs silicon carbide, silicon carbide vs tungsten carbide and tungsten carbide vs tungsten carbide are also offered, in resin- or antimony-impregnated carbon graphite, sintered or reaction-bonded silicon carbide, and cobalt- or nickel-bound tungsten carbide. - Which secondary seal and metal options are available?
Bellows: SS 316L as standard, with Hastelloy® C-276, Alloy 20 or Inconel® as options. Secondary seals: graphite or flexible graphite as standard, with PTFE as options. Metal parts: SS 316 as standard, with Duplex SS, Hastelloy® C-276 or titanium as options. - Does the BC730 need on-site setting?
No. It is supplied as a factory-assembled unit with preset working length, which reduces installation time and the risk of assembly errors. - Can the BC730 be refurbished?
Yes. Wear components can be replaced during overhaul instead of replacing the complete seal. - Where is the BC730 used?
Petrochemical process pumps; Thermic fluid circulation pumps; Power plant auxiliary pump systems; API process pump sealing applications; Chemical and hazardous liquid processing; Fatty acid and hot oil transfer applications. - Is an installation manual available?
Yes. The Installation, Operation & Maintenance Manual is available under More Downloads; its Annex D covers metal bellows seals.
