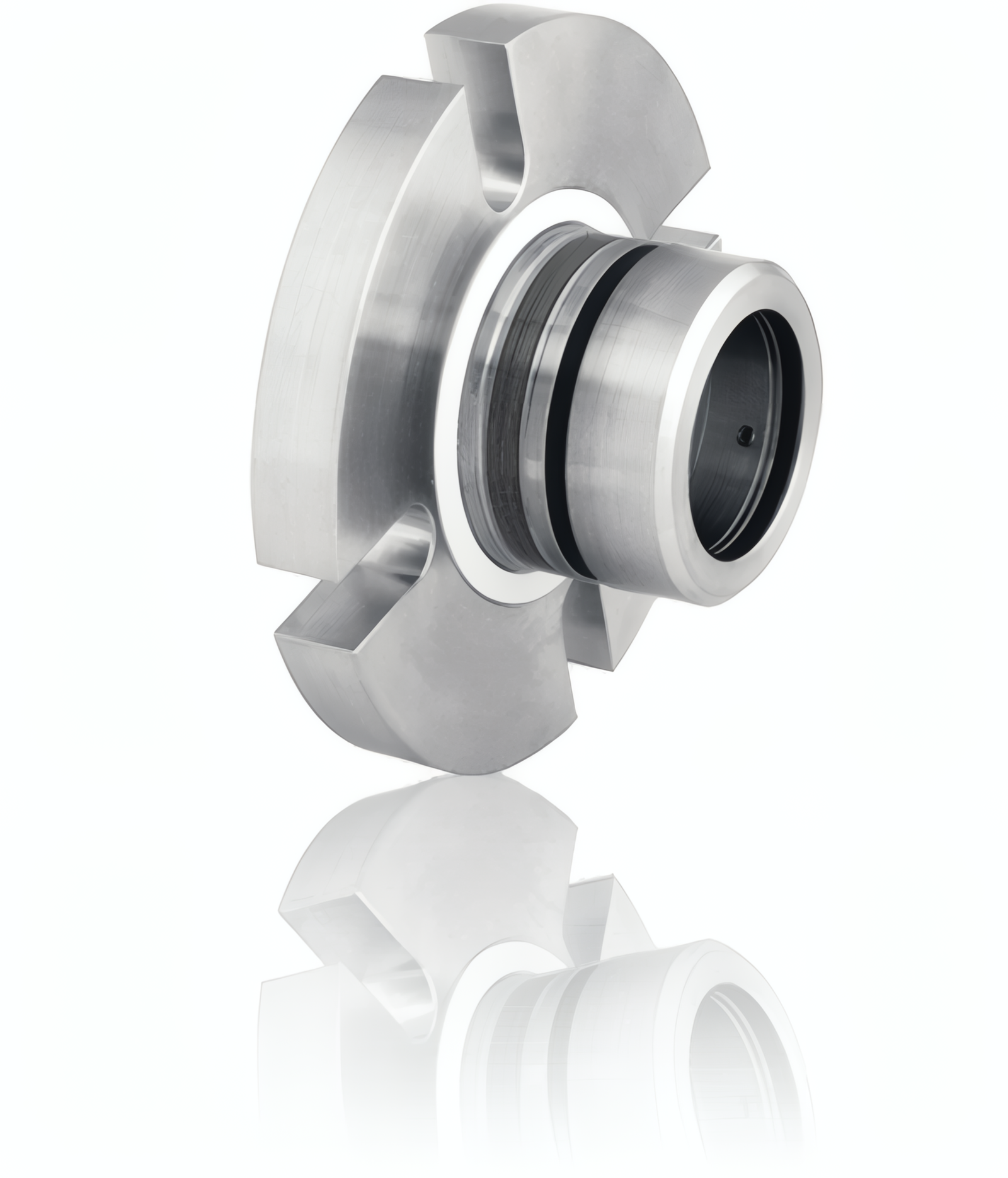

Stationary Spring Configuration

Light Duty Slurry Seal is designed for a wide variety of process equipment in multiple applications, including chemical leaching, extraction, water, and general services. Single pusher seals with hard-on-hard seal faces are suitable for light slurries up to 10% solids by weight. The LS810 seal’s smooth geometry reduces the opportunity for erosion, and the springs are isolated from the pumpage for the non-clogging operation, which makes it very suitable for slurry applications. It is designed to thrive in the harshest, abrasive slurry environments.

A family of self-contained cartridge seals designed for reliable operation in the majority of slurry & corrosive duties that provide economic seal life, with low operating and maintenance costs. Engineered primarily to be applied with no outside flush liquid to eliminate product dilution, increase plant efficiency, and reduce operating expenses.

Simple, single, balanced, multi-spring pusher cartridge construction specifically designed to operate without a process bypass or external flush liquid in the majority of common slurry services associated with the mineral & ore industry, slurry pumps, mixers, and other rotating equipment throughout slurry processing industries.

Designed to operate without external flush or water-based cooling, the LS810 eliminates the need for a continuous water supply, helping to significantly reduce water consumption and associated operating costs. This feature is especially valuable in plants seeking sustainable, water-efficient sealing solutions.

Key Features:

• Hard-Faced Seal Combinations: Abrasion-resistant faces extend service life.
• Multiple Spring Design: Ensures uniform face loading and extended seal life.
• Hydraulically Line-to-Line Balanced Type: Minimizes face wear and extends service life.
• Available in Metric and Inch Sizes: Facilitates global compatibility across equipment standards.
• Isolated Springs: Protects springs from slurry exposure, preventing clogging and improving reliability.
• Quick Installation & Easy Removal: Cartridge design simplifies maintenance and reduces downtime.
• Stationary Spring Arrangement: Provides stability and enhances performance in abrasive conditions.
• Bi-Directional Operation: Functions independently of shaft rotation direction, reducing inventory needs.
• Single Seal Configuration: Cost-effective and easy to maintain; suitable for light-duty slurry applications.
• Cartridge and Semi-Cartridge Options: Offers flexibility for equipment design and retrofit requirements.
• Optimized for Light Slurries: Suitable for up to 10% solids concentration and low to moderate slurry abrasiveness.
• Without Connection of Flushing & Quenching: Eliminates the need for external flush, preventing product dilution.
• Factory-Assembled & Pressure-Tested: Guarantees performance consistency and minimizes field installation errors.
• Water-Saving Design: Helps meet sustainability goals by reducing dependency on process or utility water for seal operation.
• No External Flush or Cooling Water Required: Eliminates product dilution, lowers water usage, and reduces environmental footprint.
• No Flush or Quench Connections Required: Operates reliably without external liquid support, reducing water usage and simplifying piping.

Specification:
