Stationary Spring Configuration

The Stationary Spring Configuration Heavy Duty Slurry Mechanical Seal is specifically engineered to operate in the most demanding slurry applications, where high solid content, aggressive media, and variable pressures are the norm. This seal configuration is ideal for minimizing clogging, reducing wear, and enhancing performance in extreme industrial environments.

Technical Overview:

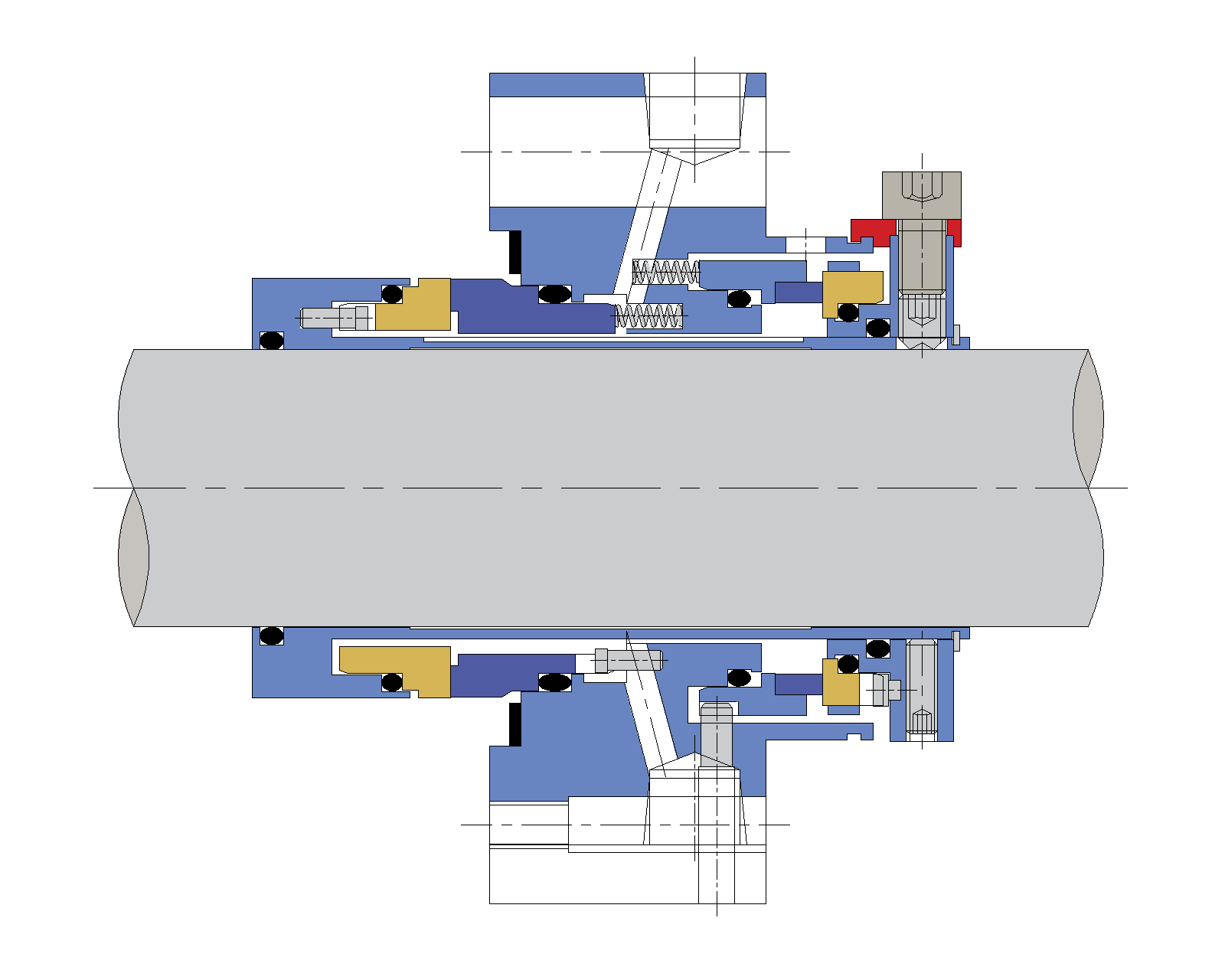

A slurry is a highly abrasive mixture of solids and liquid, which places significant mechanical and chemical stress on conventional sealing systems. This heavy-duty seal utilizes a stationary spring design in which the springs are located in the gland and isolated from direct exposure to the process media. This isolation greatly reduces the risk of clogging or corrosion due to slurry infiltration, making it an optimal design for applications such as mining, mineral processing, chemical slurries, wastewater treatment, and power generation.

Key Technical Features:

• Durability & Reliability;
  • Vibration & Shock Resistant: Engineered to withstand pump vibrations and process pulsations without compromising sealing performance in slurry service.
  • Robust Seal Faces: Utilizes hard face materials such as silicon carbide or tungsten carbide, ensuring superior abrasion resistance and durability under high solids loading.
  • Heavy-Duty Housing Materials: Constructed from corrosion- and erosion-resistant materials such as stainless steel, Hastelloy, or alloy-coated steel to handle chemically aggressive and abrasive slurries.
  • Wide Elastomer Compatibility: Seal elastomers are available in materials like Viton, EPDM, and FFKM to match process fluid compatibility for thermal and chemical resistance.
• Performance & Efficiency;
  • Application Versatility: Compatible with vertical and horizontal pumps, agitators, and other rotating equipment operating in severe slurry services.
  • Hydraulically Balanced Design: Reduces seal face load, friction, and heat generation, which significantly prolongs seal and equipment life even under fluctuating pressure conditions.
  • Springs Isolated: Springs are located in a non-wetted area, preventing exposure to abrasive particles; improves seal longevity and eliminates clogging issues common in slurry applications.
  • Multiple Spring Type: Provides even face load distribution for consistent sealing pressure, compensates for shaft misalignment and face wear, and ensures reliable performance under dynamic operating conditions.
  • Double Seal: Offers superior containment and reliability for abrasive and hazardous slurry environments; provides added protection through a pressurized barrier fluid, ensuring enhanced sealing performance and environmental control.

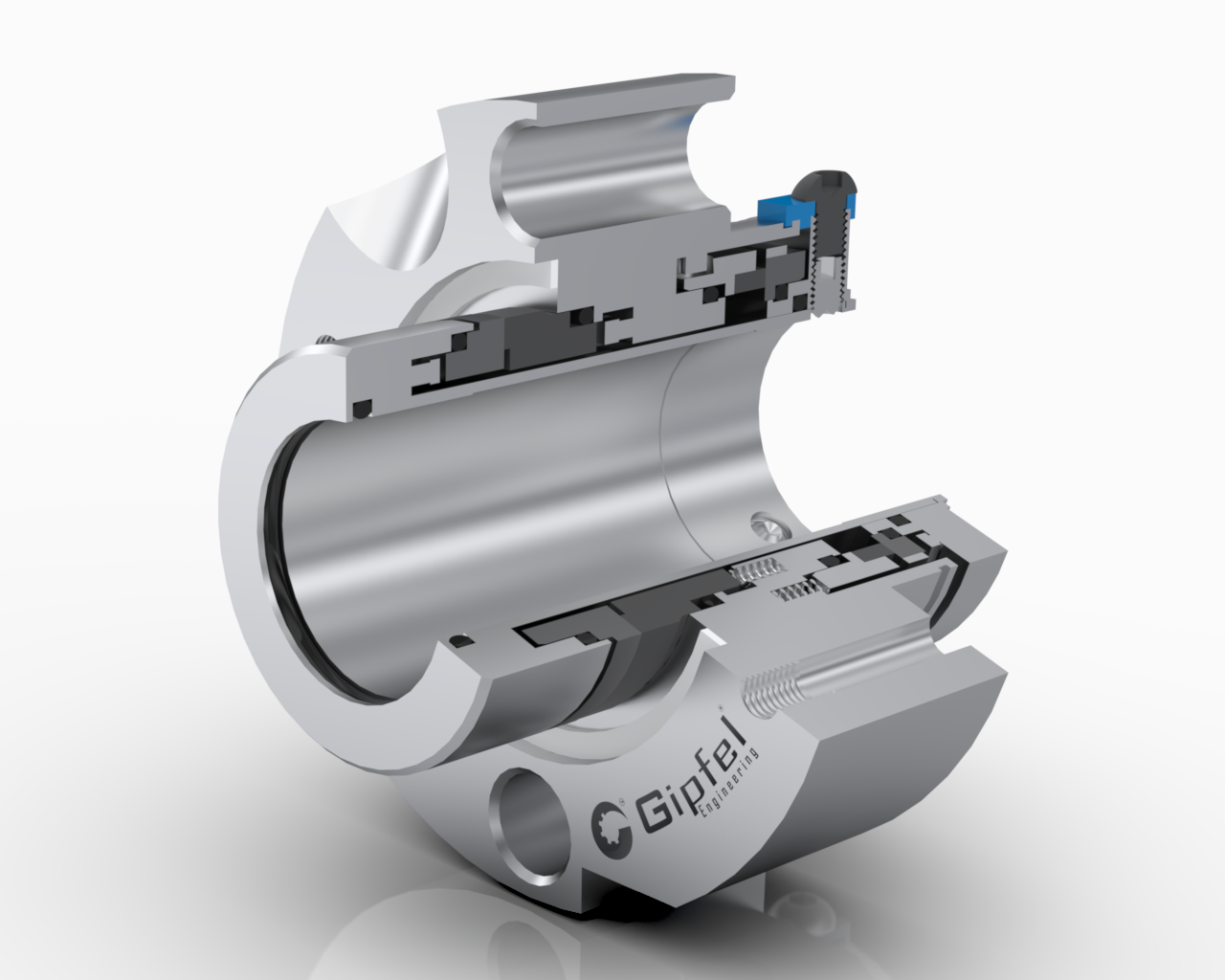

  • Stationary Spring Configuration: Springs are positioned outside the product (non-wetted) and remain static, eliminating clogging from solids and improving seal face stability. This design ensures consistent axial force distribution and extends Mean Time Between Failures (MTBF).
• Installation & Maintenance;
  • Metric and Inch Sizes Available: Provides broad compatibility with international equipment standards; simplifies inventory management and supports global deployment.

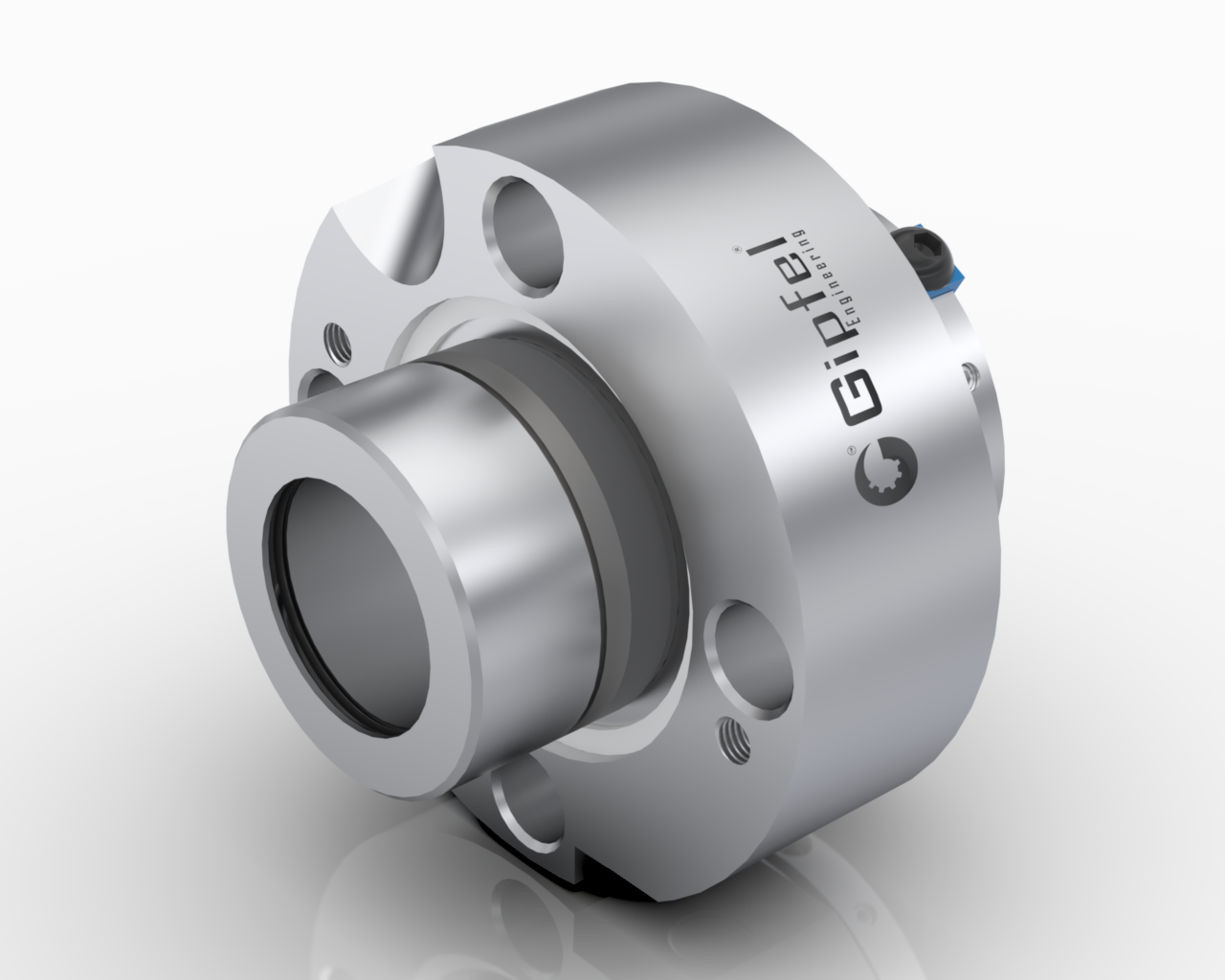

  • Quick Installation & Easy Removal: Cartridge-style assembly allows fast and error-free installation or replacement; reduces downtime and simplifies maintenance in high-demand operations.

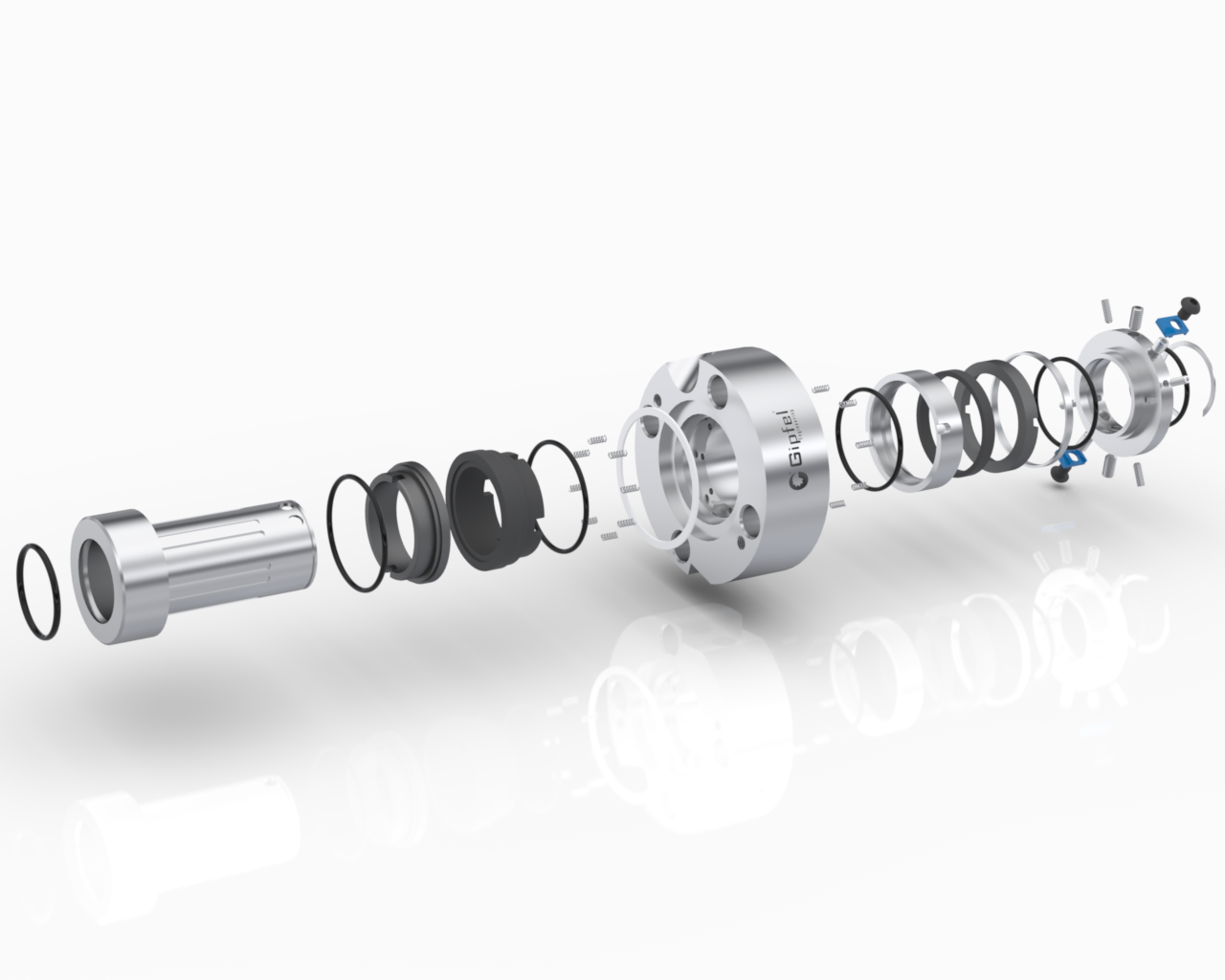

  • Modular Cartridge Construction: Pre-assembled, pressure-tested cartridge unit simplifies installation, maintains factory-set tolerances, and enables quick maintenance with minimal downtime.
  • Independent of Direction of Rotation: Seal design functions effectively regardless of shaft rotation direction, offering versatility across various rotating equipment and simplifying inventory requirements.
  • Factory Assembled & Tested: Pre-assembled under controlled conditions with verified alignment and tolerances; ensures readiness for installation and reduces the risk of installation errors in the field.
• Environmental & Safety;
  • Flush, Quench & Barrier Fluid Options: Designed to integrate with industry-standard API plans (e.g., Plan 32, 54). These features support cooling, particle removal, and environmental containment for improved reliability and seal face protection.
  • With Connection of Flushing & Quenching: Equipped with ports for optional flush, quench, and drain lines; helps manage slurry buildup, control temperature, prevent crystallization, and improve seal reliability in aggressive process environments.
