High Pressure Mechanical Seal

Description;

High‑pressure mechanical seals are specifically engineered to operate under the extreme conditions found in critical industrial applications such as high‑pressure water injection systems, chemical processing pumps, and power‑generation equipment. These seals are designed to handle elevated pressures, often exceeding 100 bar (1450 psi), along with high temperatures and aggressive media, while maintaining a tight, reliable seal to prevent fluid leakage.

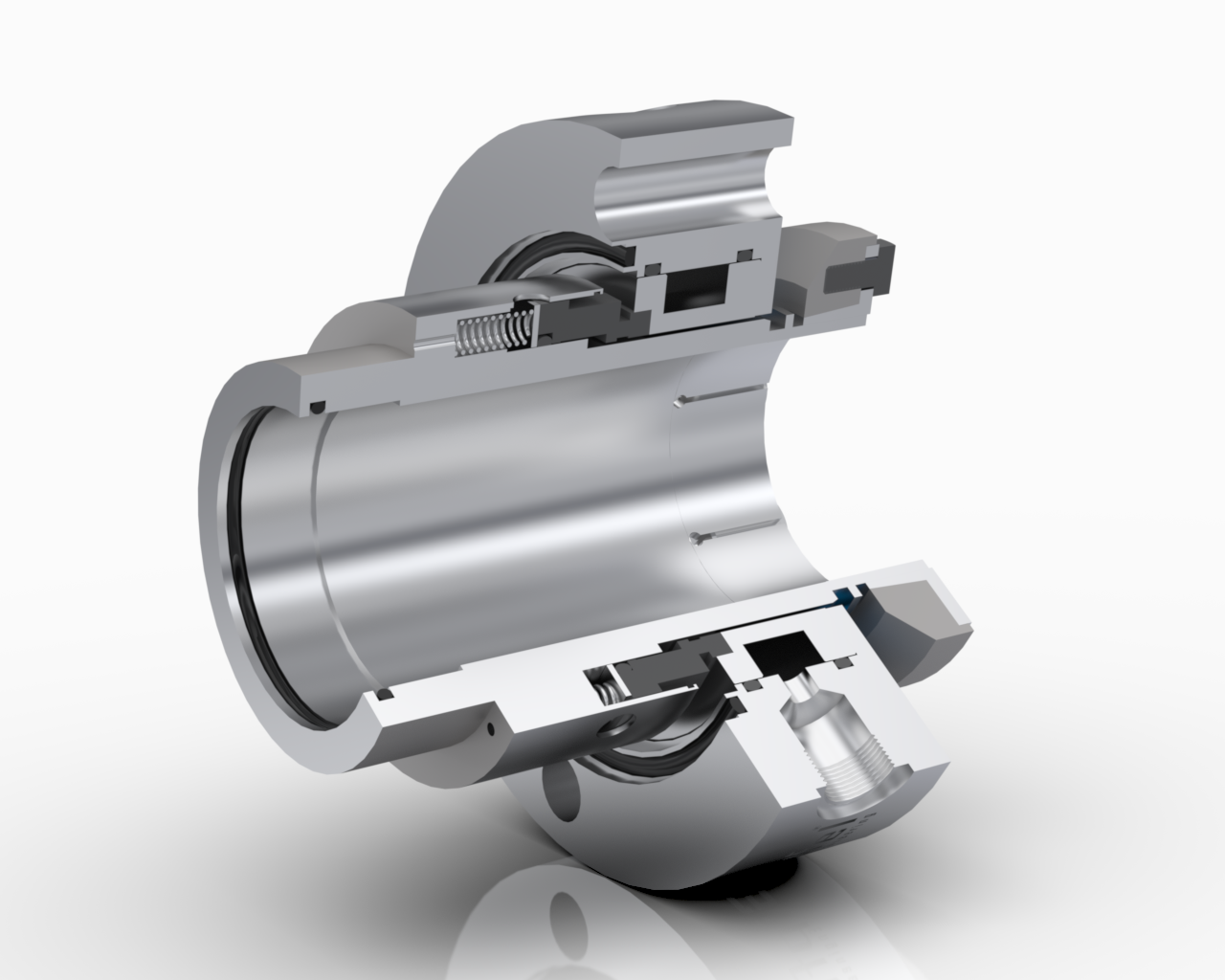

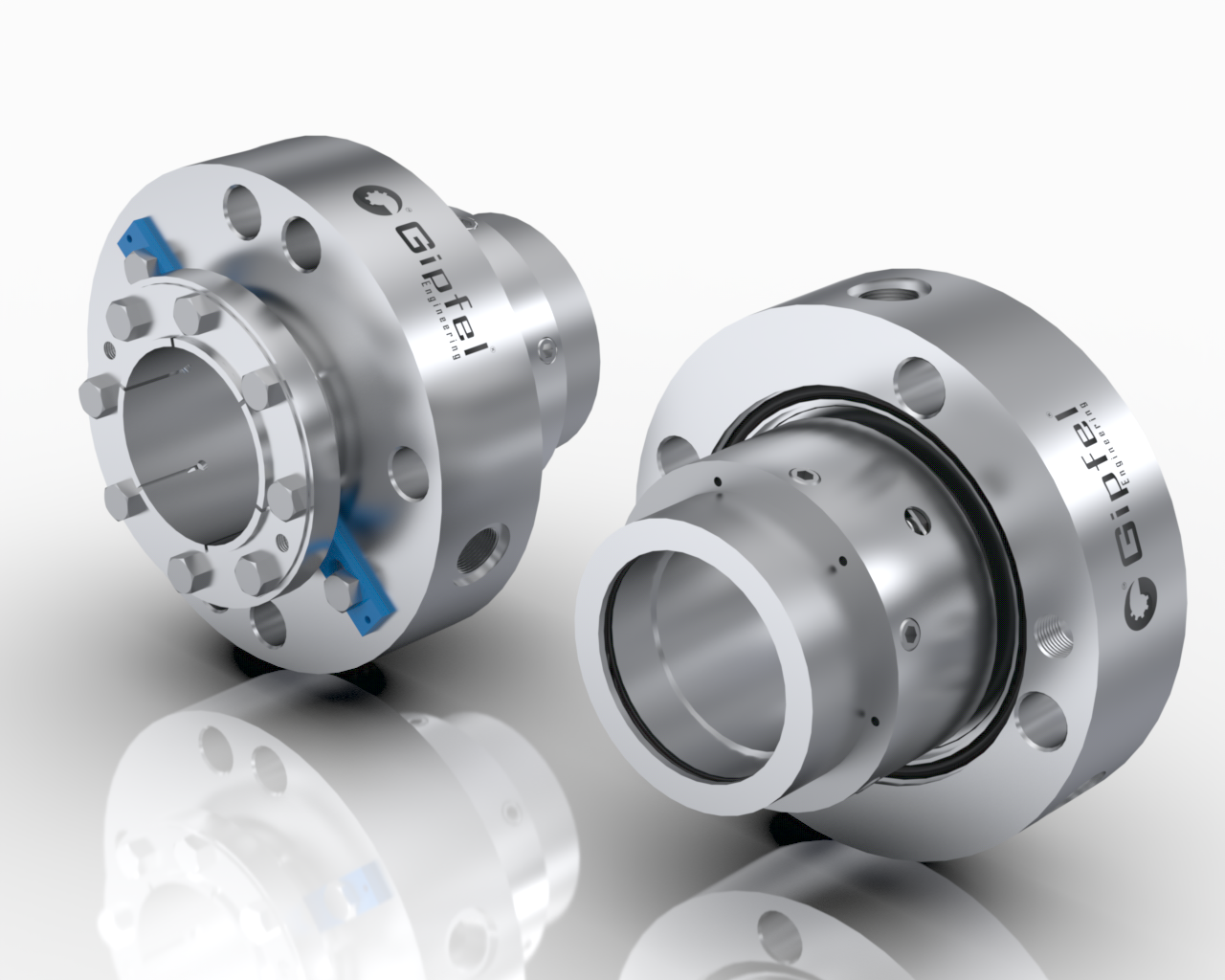

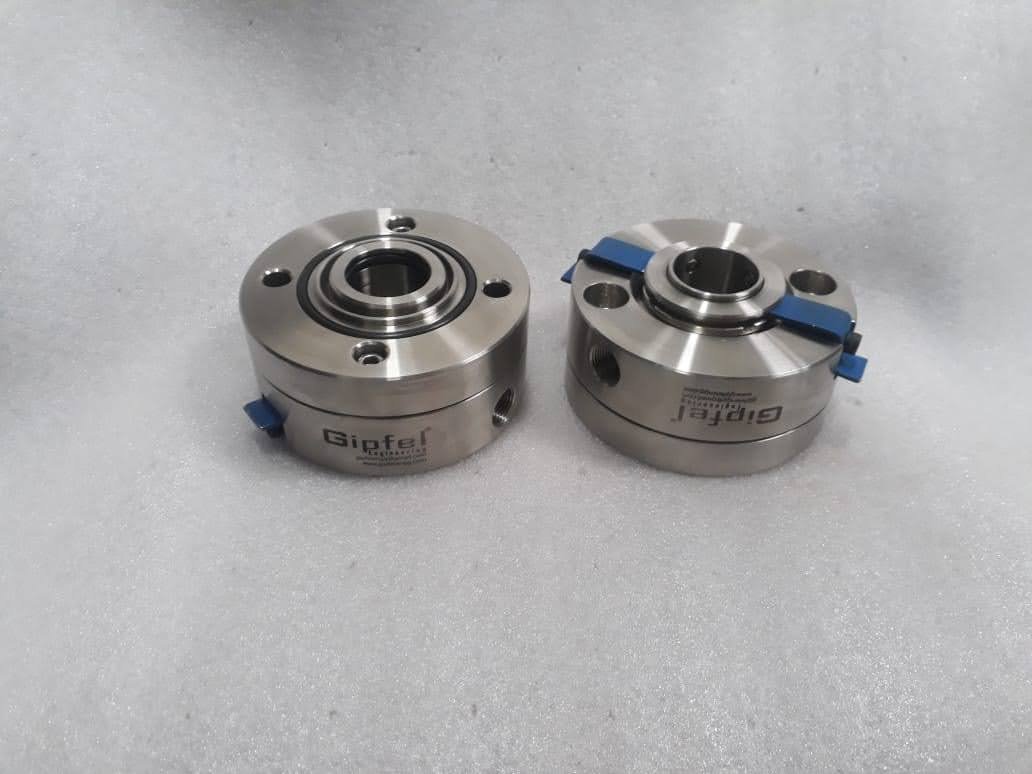

The HP760 High‑Pressure Mechanical Seal is engineered for demanding services where elevated pressure, thermal cycling, pressure transients, and continuous‑duty operation require stable seal‑face performance. Its hydraulically balanced design reduces face loading at high pressure, helping to control heat generation, leakage risk, and premature wear in critical rotating equipment.



Constructed using advanced materials such as silicon carbide, tungsten carbide, and corrosion‑resistant alloys, the HP760 is designed to endure mechanical stress, thermal expansion, and chemical attack. Depending on service requirements, it can be configured with hard‑face pairings, corrosion‑resistant metallurgy, and elastomers selected for chemical compatibility, temperature exposure, and service severity. The seal can also be applied with dual‑seal configurations and barrier‑fluid systems (for example, API Plan 53/54) and, where necessary, external cooling to ensure consistent, reliable operation under harsh process conditions.



By preventing leakage and maintaining a stable seal interface at high pressure, the HP760 helps enhance equipment uptime, reduce environmental and safety risks, and improve overall process efficiency. Designed for high‑pressure pumps and process machinery, it is suitable for power generation, oil and gas, chemical processing, desalination, mining, pulp and paper, marine, pharmaceutical, and industrial manufacturing duties, where safe and reliable high‑pressure sealing is critical.





Technical Key features;

• Broad material options for corrosive, abrasive, high‑temperature, and hygienic process environments.

• Compatible with API 682–oriented piping arrangements and external flush/barrier systems when required.

• Hydraulically balanced seal geometry for stable operation under elevated pressure and pressure transients.

• Heavy‑duty construction suitable for vibration, thermal cycling, and continuous service in critical pump duties.

• Hard‑face combinations available for clean liquids, hydrocarbons, chemicals, seawater, and light slurry services.

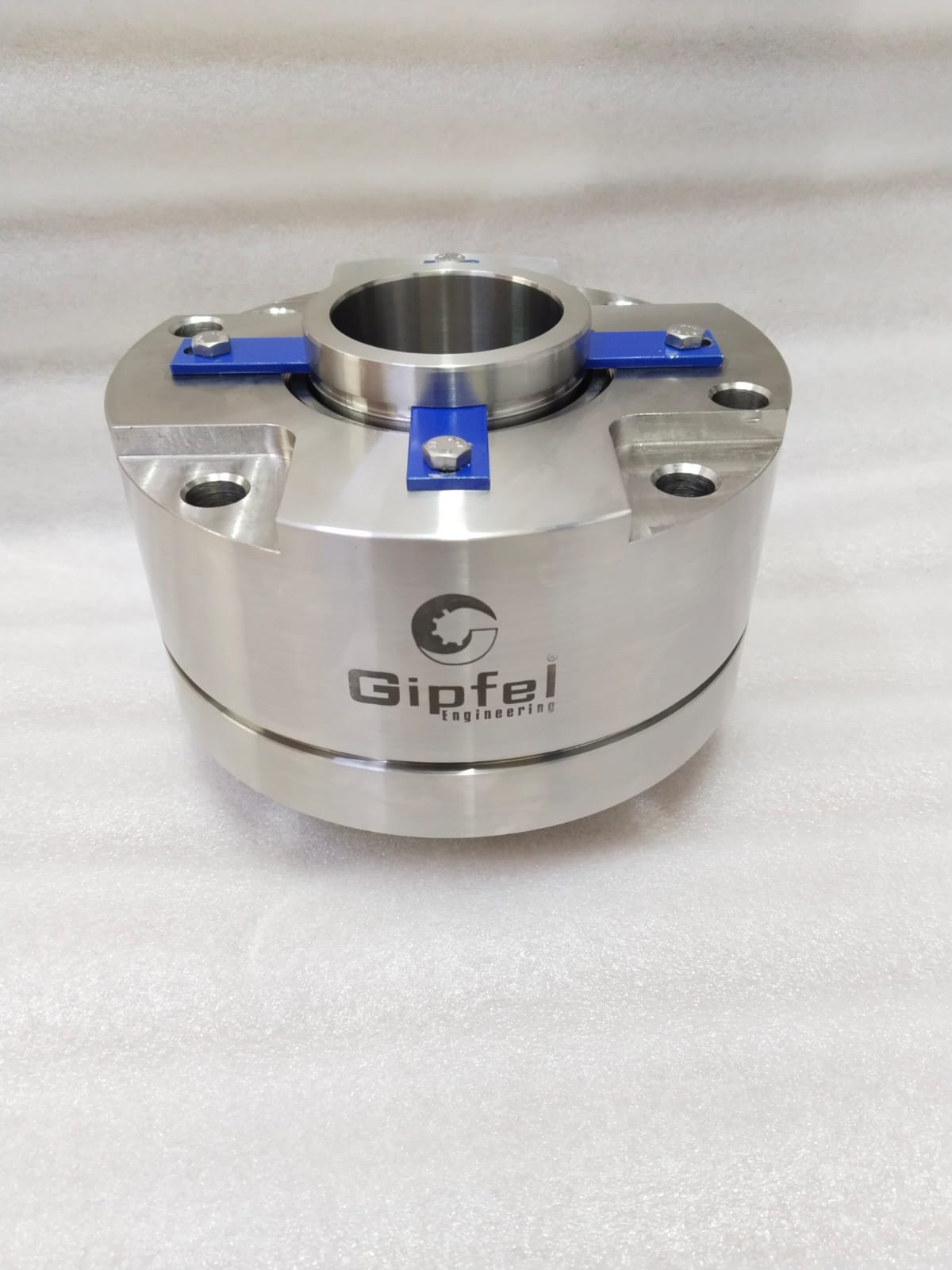

• Cartridge‑style configuration reduces installation errors, improves alignment, and enhances maintenance repeatability.

• Available in single or dual mechanical seal configurations depending on fluid hazard level and leakage‑control requirements.



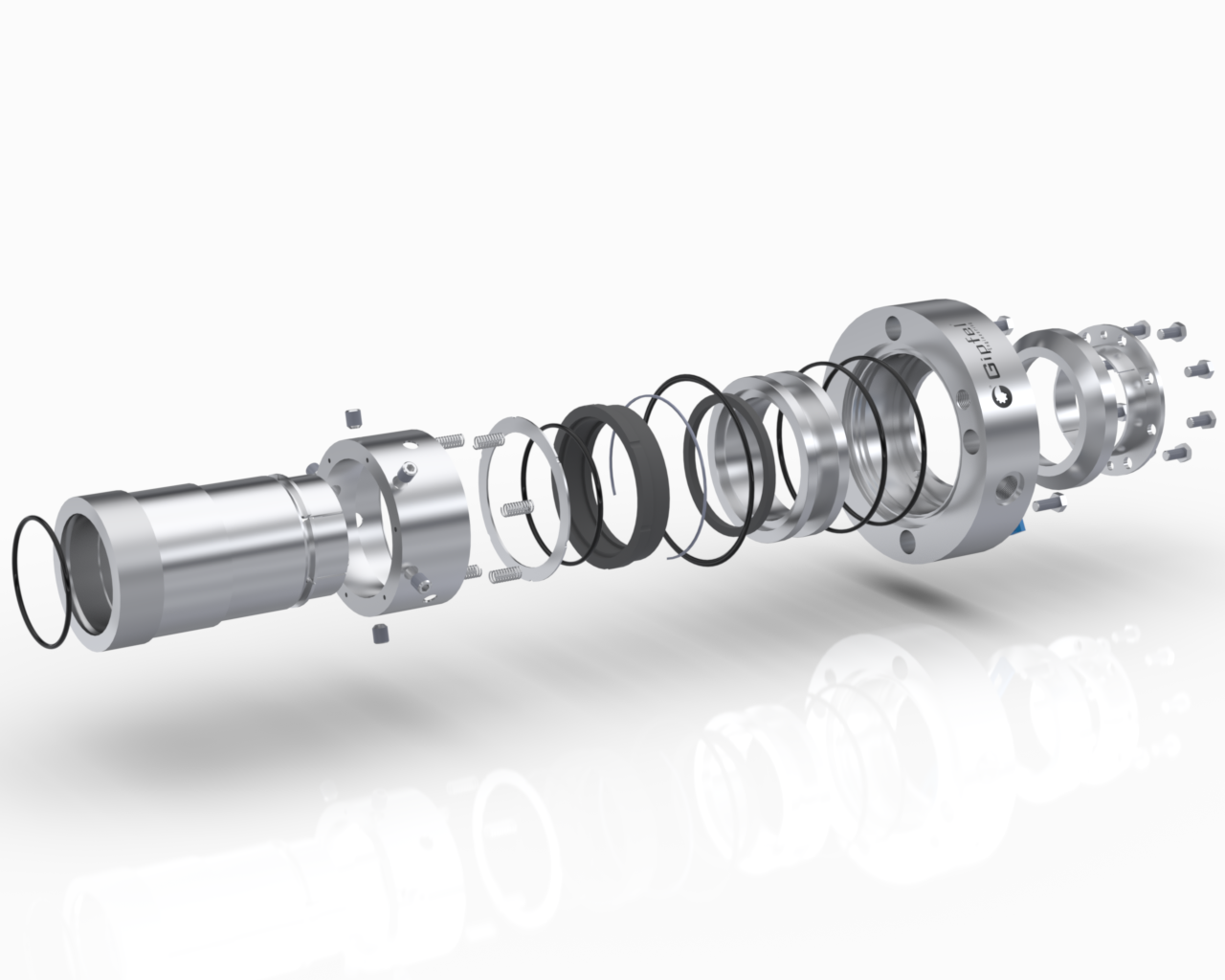

Construction & materials;

• Secondary sealing elements: Incorporates O‑rings and elastomeric gaskets as secondary seals to maintain sealing effectiveness under pressure, temperature, and chemical exposure.

• Durable seal faces: Utilizes hard materials such as silicon carbide, tungsten carbide, and selected ceramics to offer superior thermal stability, abrasion resistance, and extended operational life.

• Robust build quality: Engineered from high‑grade stainless steels, alloy steels, and corrosion‑resistant alloys to provide high mechanical strength, wear resistance, and chemical durability for long‑term operation.



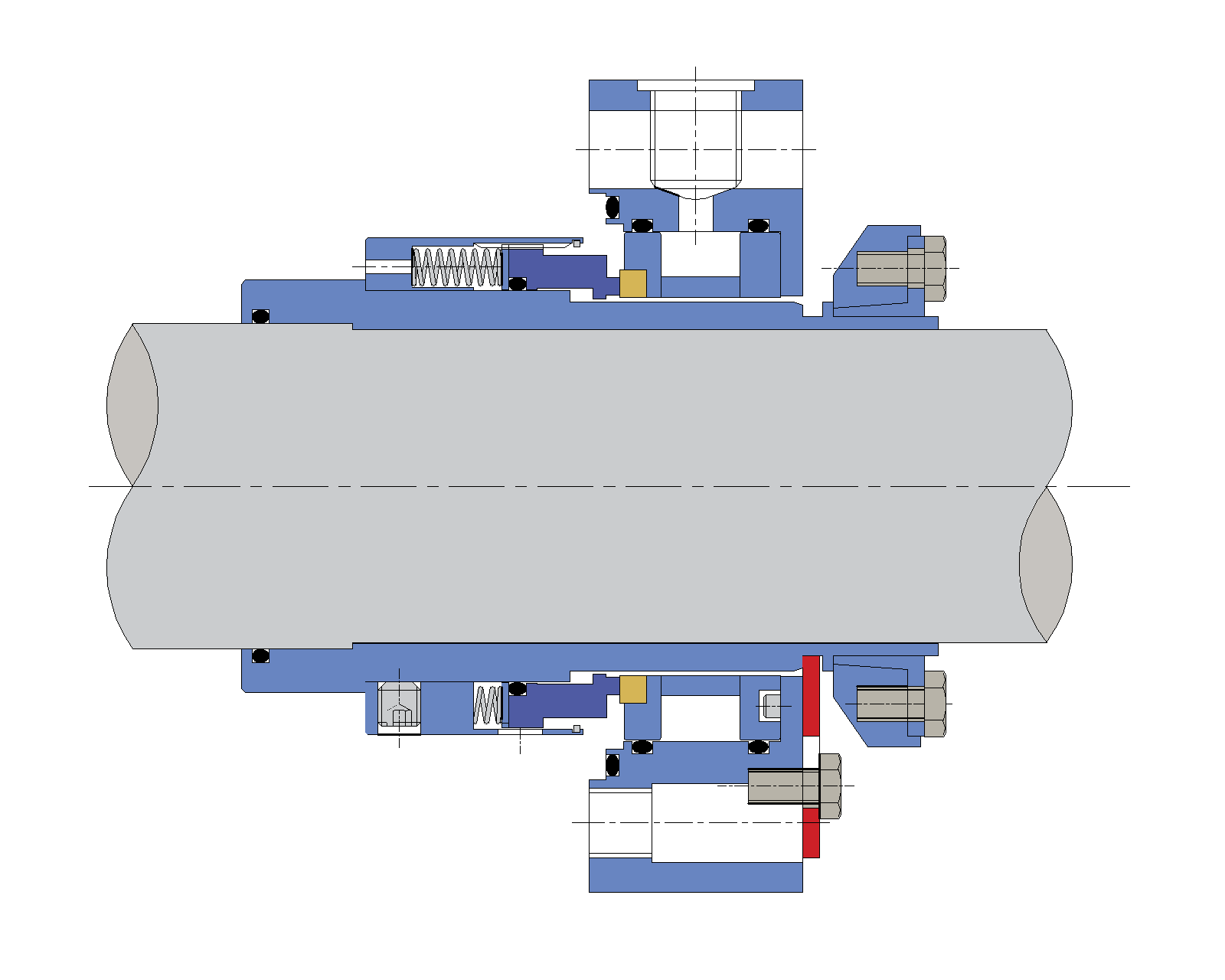

Pressure handling & seal design;

• Hydraulically balanced type: Minimizes face distortion and promotes longer seal life, even under variable load and transient operating conditions.

• Balanced seal design: Hydraulically balanced to minimize axial face loading, reduce friction, and control heat generation in high‑pressure applications.

• High‑pressure rating: Designed for operating pressures from several hundred up to several thousand psi, withstanding extreme pressure differentials while maintaining tight sealing integrity.



Operational flexibility;

• Metric and inch sizes available: Suitable for integration with both international and domestic pump and equipment standards.

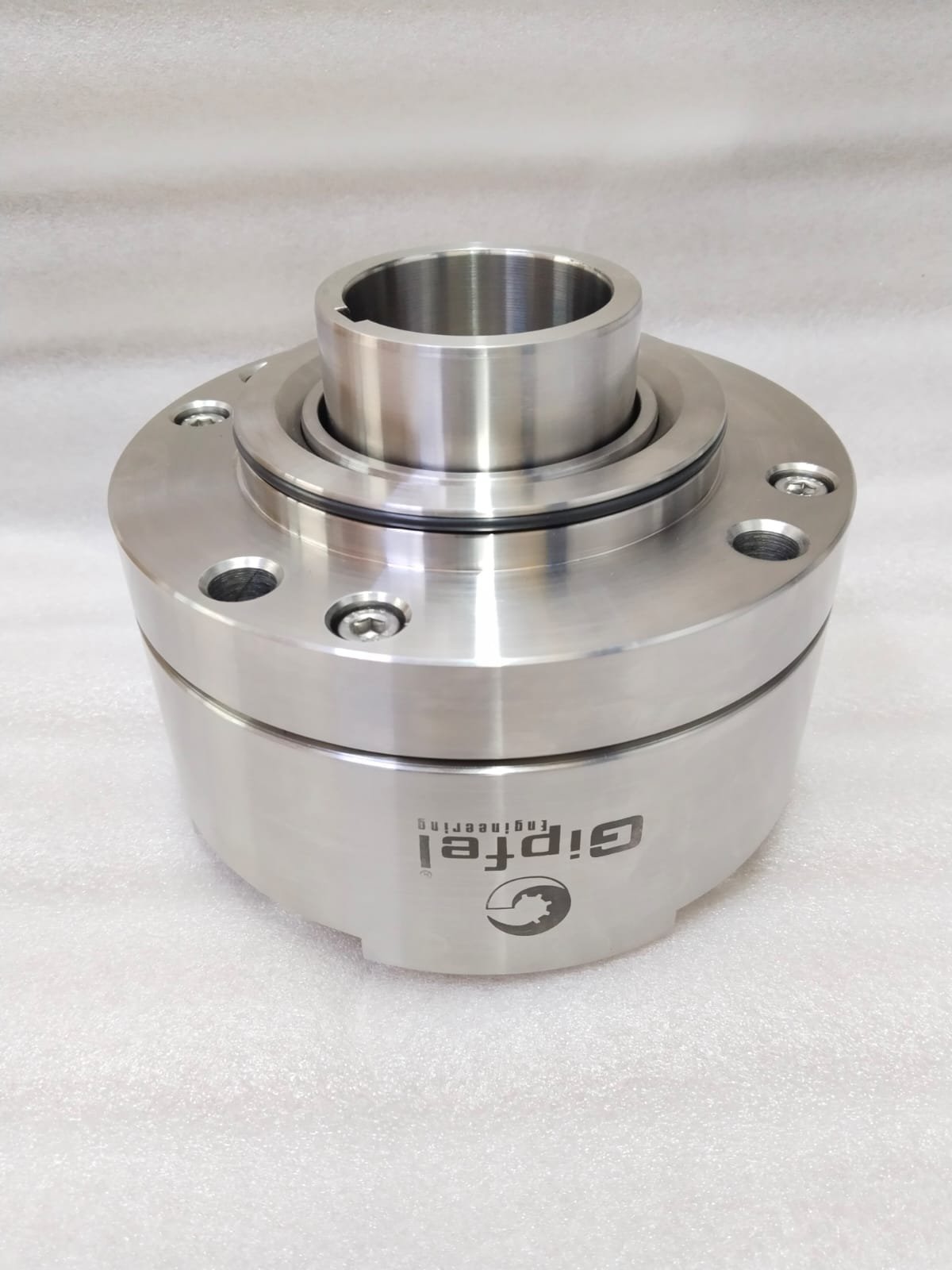

• Cartridge construction: Pre‑assembled, factory‑tested cartridge units reduce installation error, minimize downtime, and ensure quick, accurate installation and alignment.

• Versatile seal configurations: Compatible with both clockwise and counter‑clockwise shaft rotations, and available in single and dual arrangements to suit diverse process conditions.

• Spring mechanism options: Multiple‑spring and rotary/stationary spring designs ensure uniform pressure distribution across the faces, enhancing sealing reliability across a wide operating range.



Cooling, flushing & quenching;

• Flush and cooling systems: Supports external flushing, cooling, and quenching arrangements to manage heat, flush debris, and ensure effective lubrication of the sealing faces.

• Flushing & quenching connections: Dedicated ports allow implementation of appropriate API‑type plans, enhancing seal performance and longevity in thermally or mechanically demanding services.



Maintenance, reliability & serviceability;

• Quick installation & easy removal: Tool‑friendly, cartridge‑style design simplifies servicing and reduces equipment downtime.

• Factory assembled & tested: Each seal unit is precision‑assembled and rigorously tested prior to shipment, ensuring consistent quality and reliability.

• Maintenance‑ and refurbishment‑friendly: Supports periodic inspection, component replacement, and refurbishment, helping to extend seal lifecycle and reduce overall cost of ownership.



Service Overview;

Parameter	Value
Equipment	Boiler feedwater pumps, injection pumps, RO high-pressure pumps, condensate pumps, crude oil transfer pumps, chemical process pumps, slurry pumps, marine pumps, homogenisers, hydraulic test rigs
Fluid	Boiler feedwater, condensate, cooling water, seawater, crude oil, hydrocarbons, process chemicals, acids, caustics, sterile water, CIP fluids, light slurry, tailings water
Service Nature	High-pressure, continuous-duty, chemically aggressive, thermally variable, pressure-cycling, critical process service
Operating Mode	Continuous or intermittent operation; suitable for horizontal and vertical rotating equipment, subject to seal chamber design and flush plan selection



Specifications;

Item	Min	Max	Typical / Notes
Size	20 mm (0.750”)	300 mm (12.000”)	Custom sizes available on request
Pressure	Vacuum / atmospheric	220 bars (3,191 psi)	Higher ratings may be engineered with application review
Temperature	-40°C (-40°F)	+350°C (+662°F)	Depends on elastomer, face material, and flush arrangement
Speed	—	6,000 rpm	Final limit depends on shaft diameter, pressure, and fluid lubricity



Materials;

Component	Standard Material	Optional Material	Comment
Seal Faces	Silicon Carbide vs Silicon Carbide	Carbon vs Silicon Carbide, Tungsten Carbide vs Tungsten Carbide	SiC/SiC preferred for high-pressure water, seawater, and abrasive services
Elastomers	FKM / Viton	EPDM, FFKM, PTFE, FEP-encapsulated elastomers	Selected according to chemical compatibility and temperature
Metal Parts	SS 316	Duplex SS, Super Duplex SS, Hastelloy C, Alloy 20, Titanium	For chloride, acid, caustic, offshore, and corrosive duties
Springs / Drive Components	SS 316	Hastelloy C, Inconel, Alloy Steel	Material selected based on corrosion and fatigue resistance



Applications;

• Pulp and paper: recovery loops, chemical dosing systems, high-pressure shower pumps.

• Marine and shipbuilding: firefighting pumps, seawater pumps, ballast and bilge pressure systems.

• Industrial manufacturing: hydraulic power units, metalworking cooling systems, pressure test rigs.

• Food, beverage, and pharmaceutical: homogenisers, sterile water injection, CIP high-pressure pumps.

• Mining and minerals: autoclave feed pumps, slurry and tailings pumps, deep-mine dewatering systems.

• Water and wastewater: desalination booster pumps, RO high-pressure pumps, municipal high-lift pumps.

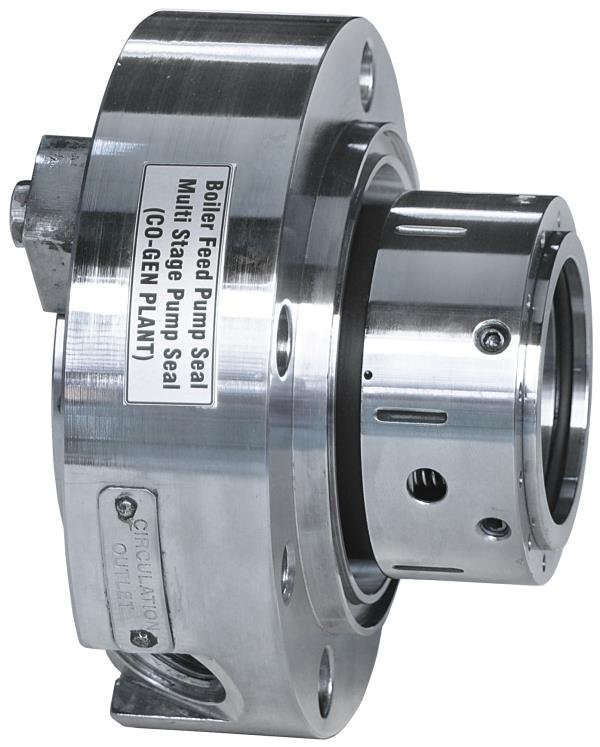

• Power generation: boiler feedwater systems, steam turbine auxiliary pumps, high-pressure condensate pumps.

• Oil and gas: crude oil pipeline pumps, offshore platform pumps, high-pressure water or chemical injection pumps.

• Chemical and petrochemical processing: reactor feed pumps, acid/caustic circulation systems, polymer blending units.



Operating Limits;

Parameter	Value
Pressure	Up to 220 bars (3,191 psi)
Temperature	-40°C to +350°C (-40°F to +662°F)
Speed	Up to 6,000 rpm
Size Range	20 mm to 300 mm (0.750” to 12.000”)



Engineering note;

Operating limits and materials above are inferred engineering defaults for the HP760 high-pressure seal concept. Final selection should be verified against actual fluid, pressure, temperature, speed, shaft size, seal chamber dimensions, flush plan, and applicable plant standards.
