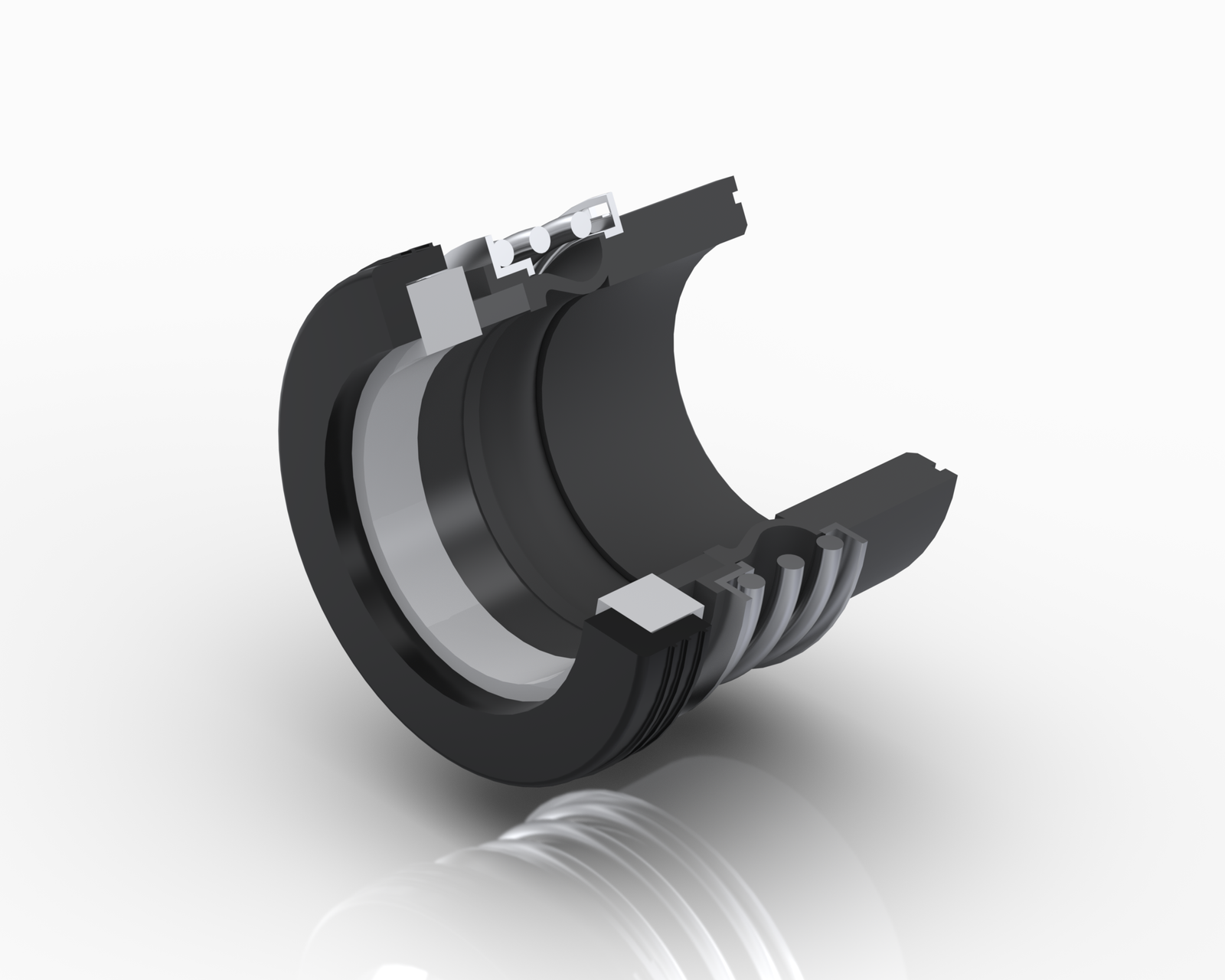

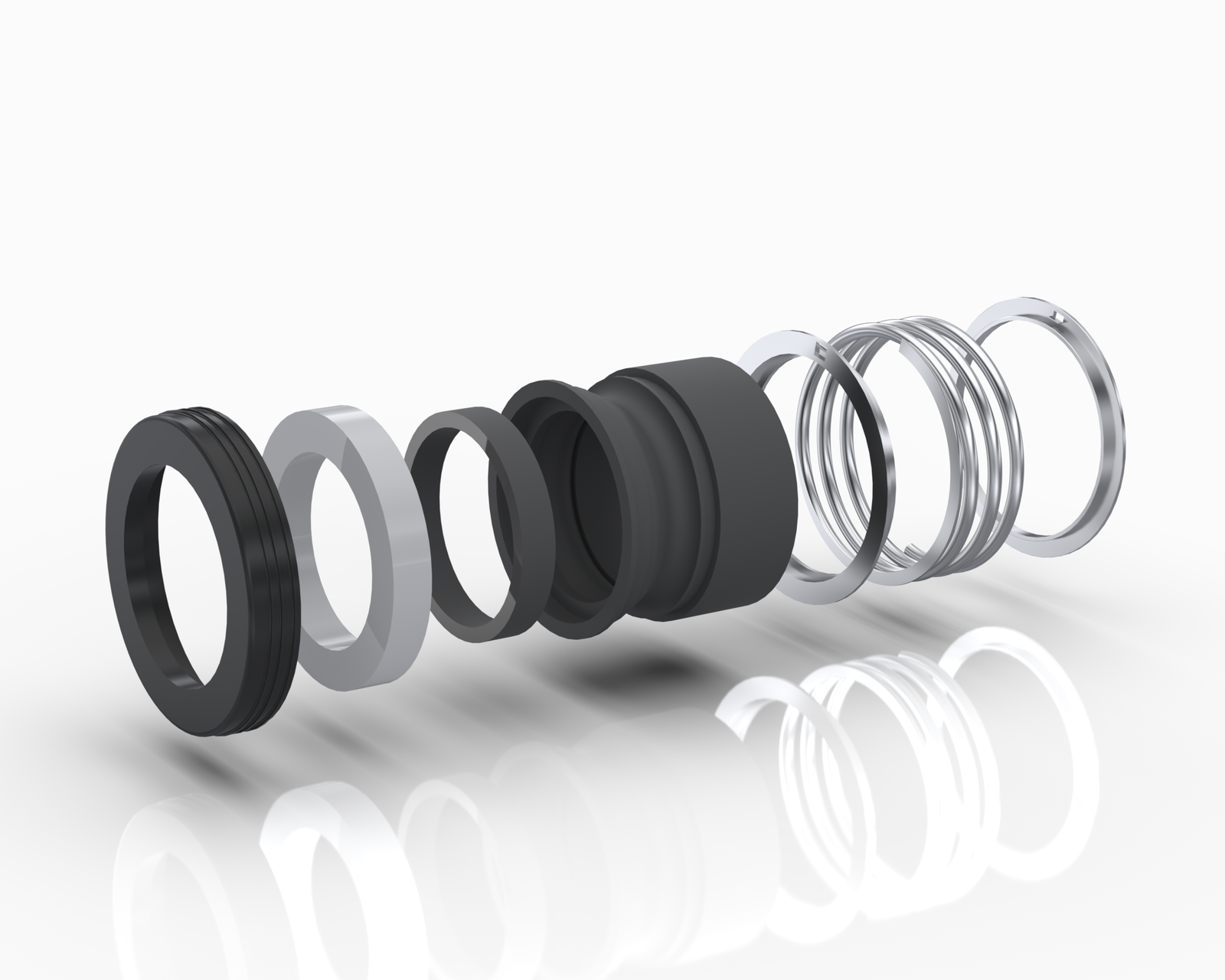

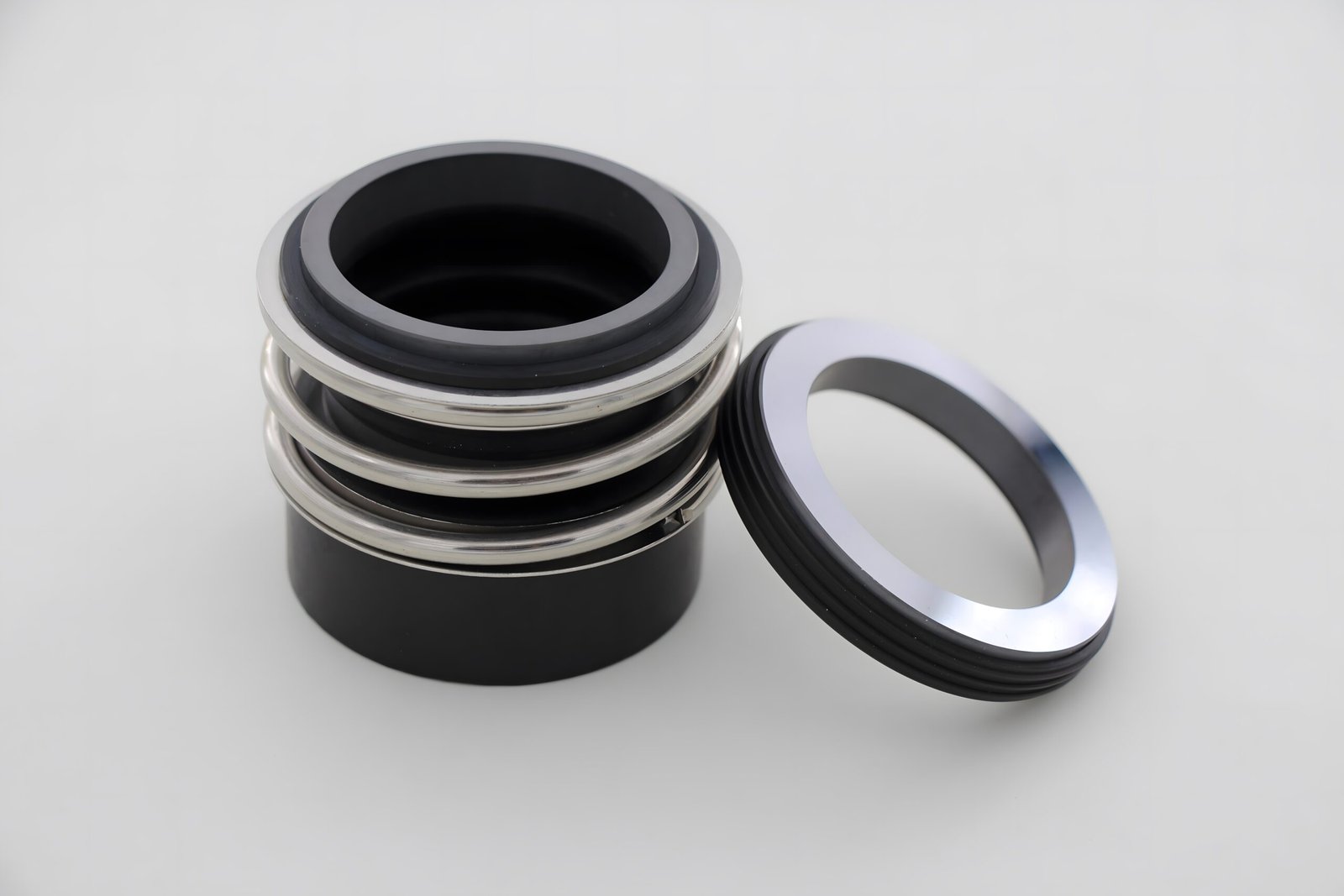

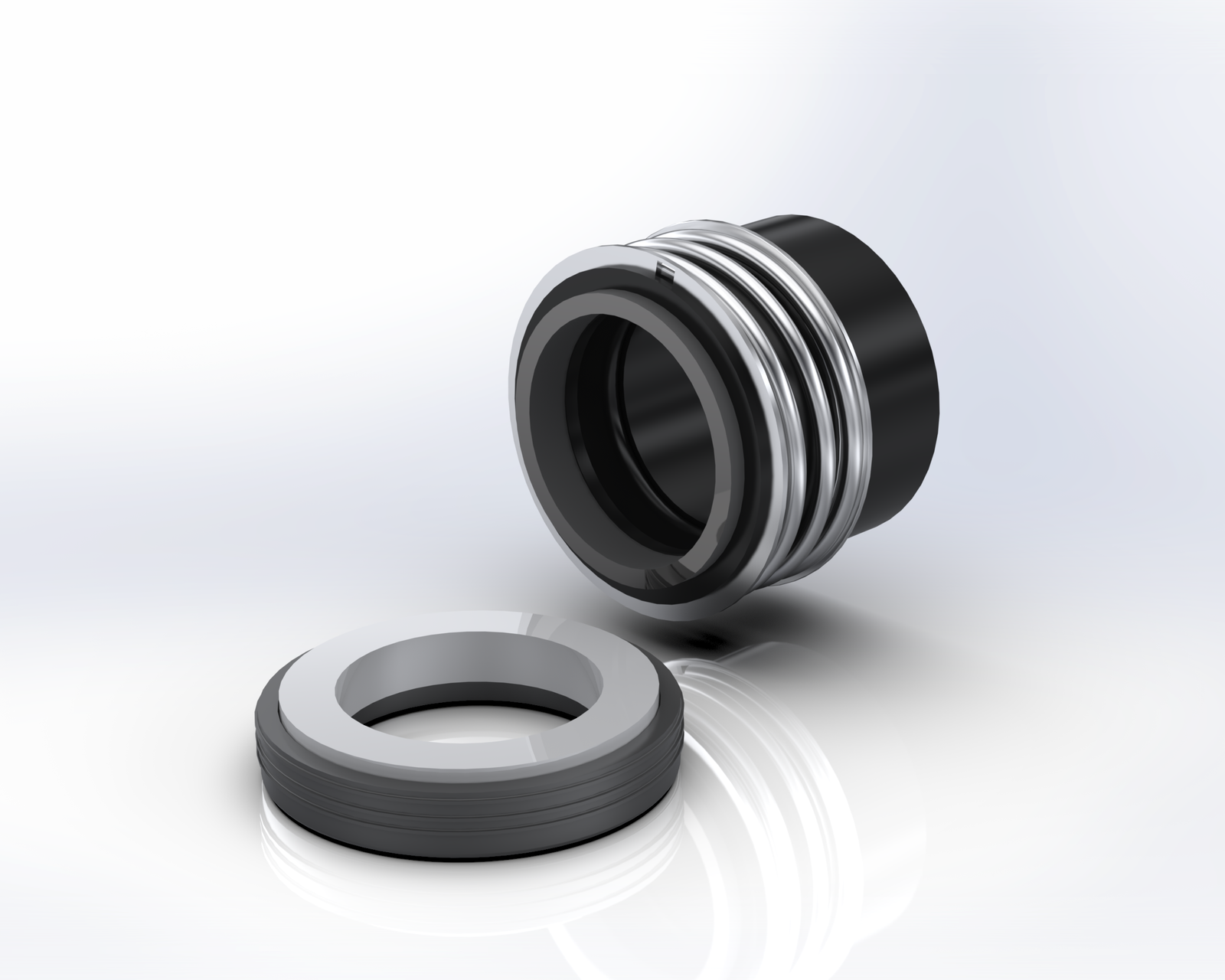

Rubber Bellow Mechanical Seal (Equivalent to Eagle Burgmann MG13 Type)

Product Type: RB30

The Rubber Bellow Mechanical Seal (Equivalent to EBIPL MG1 Type) is the most common and low-priced type used for simple and non-critical applications. It’s having a single spring for non-clogging, self-cleaning operation and bellows for self-alignment in case of axial and radial end play & run out in the shaft. There are a lot of designs and shapes available in this series to accommodate almost all types of stuffing boxes. This series is available in Metric as well as British Standard sizes. It finds great usage in the light applications like Water, Milk, Juice, Coolants & soft slurry, etc. Elastomeric Bellow Mechanical Seals can be designed according to the dimensions of the stuffing box. Length and Diameter can be adjusted to fit any type of cavity, therefore it finds usage in a wide variety of Equipment. We can develop these seals in custom-made designs also.

Key Features

  • Single seal
  • Pusher type
  • Elastomeric bellow
  • Unbalanced design
  • Internally mounted
  • Rotating single spring
  • Single helical coil spring
  • Low cost & mass produced
  • Torque transmission by spring holder
  • Independent of the direction of rotation

Specifications & Operating Limits

Parameter Value
Shaft Size 12.0 mm to 100.0 mm / 0.500” to 4.000” (inch series)
Pressure Up to 6 bar (87 psi)
Temperature -20 °C to +120 °C (-4 °F to + 248 °F)
Speed Up to 2900 rpm
Note: Limits are maximum values for individual parameters and are not simultaneous. Actual limits depend on the fluid, materials and seal size; contact Gipfel Engineering to confirm suitability for your duty.

Materials of Construction

Component Materials offered
Seal faces Carbon; Ceramic; Silicon Carbide; Tungsten carbide
Elastomers NBR; FKM; EPDM
Hardware SS 304; SS 316
  • Faces: hard-on-hard pairs for abrasive or solids-laden duties; carbon-based pairs for clean, lubricating fluids.
  • Elastomers: selected against the process fluid; EPDM is not for petroleum oils.
  • Metals: selected by corrosion level, chloride content and temperature.

Applications

Mass-produced hot and cold-water pumps for non-critical services; sewage applications; gear pumps; vacuum pumps; oil compressors, etc.

Brand names are trademarks of their respective owners and indicate dimensional interchangeability only.

More Downloads

Frequently Asked Questions

  1. What is the RB30?
    The Rubber Bellow Mechanical Seal (Equivalent to EBIPL MG1 Type) is the most common and low-priced type used for simple and non-critical applications.
  2. What shaft sizes does the RB30 cover?
    12.0 mm to 100.0 mm (0.500” to 4.000”).
  3. What are the operating limits of the RB30?
    Up to 6 bar (87 psi); -20 °C to +120 °C (-4 °F to + 248 °F); and up to 2900 rpm. These limits are not simultaneous.
  4. Which materials are available?
    Faces in carbon, ceramic, silicon carbide or tungsten carbide; elastomers in NBR, FKM or EPDM; hardware in SS 304 or SS 316.
  5. Does the RB30 work in both directions of rotation?
    Yes. It operates independently of the direction of shaft rotation.
  6. Is the RB30 interchangeable with the Eagle Burgmann MG13 Type?
    Yes. It is designed to be dimensionally interchangeable with the Eagle Burgmann MG13 Type.
  7. Where is the RB30 used?
    Mass-produced hot and cold-water pumps for non-critical services; sewage applications; gear pumps; vacuum pumps; oil compressors.
