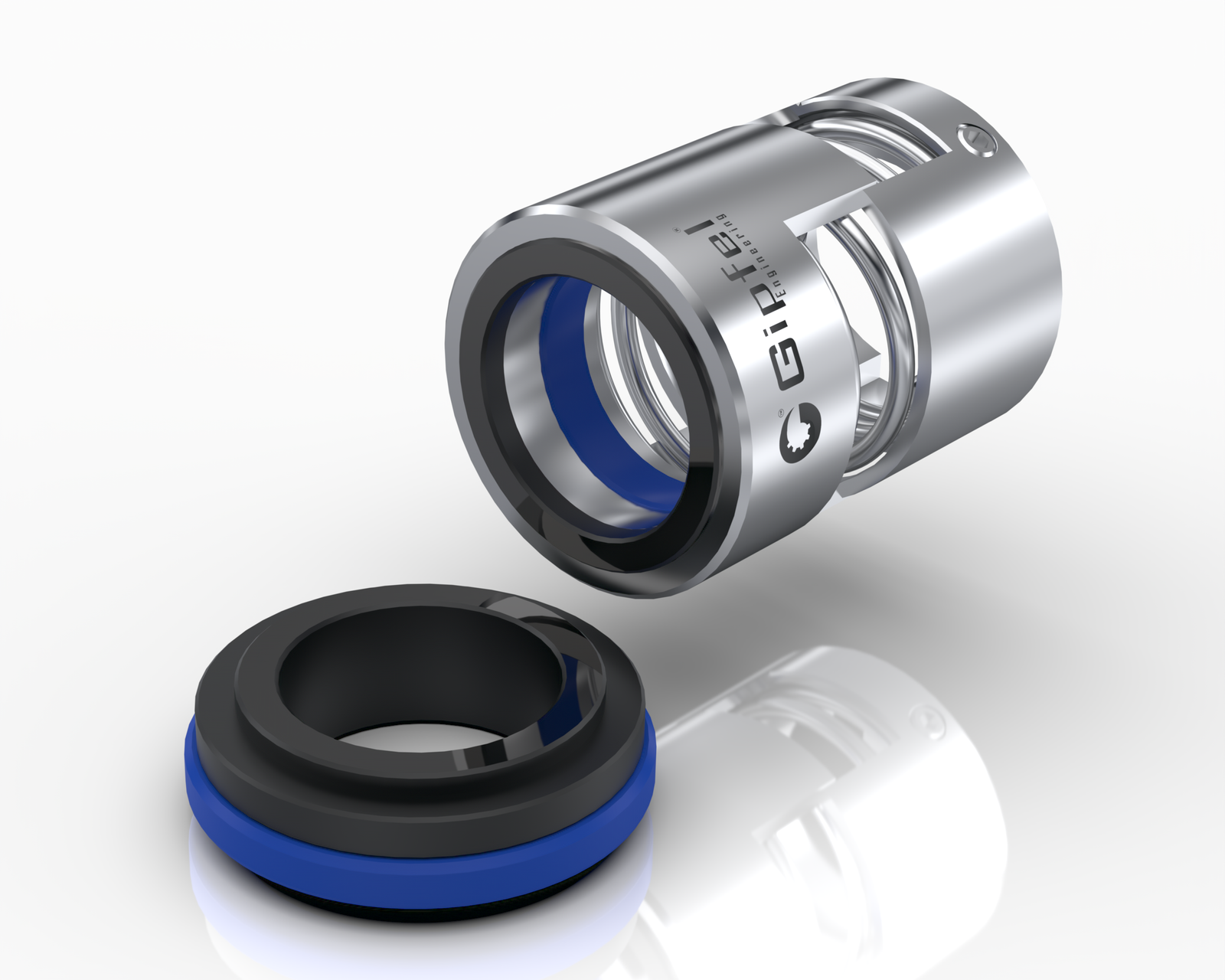

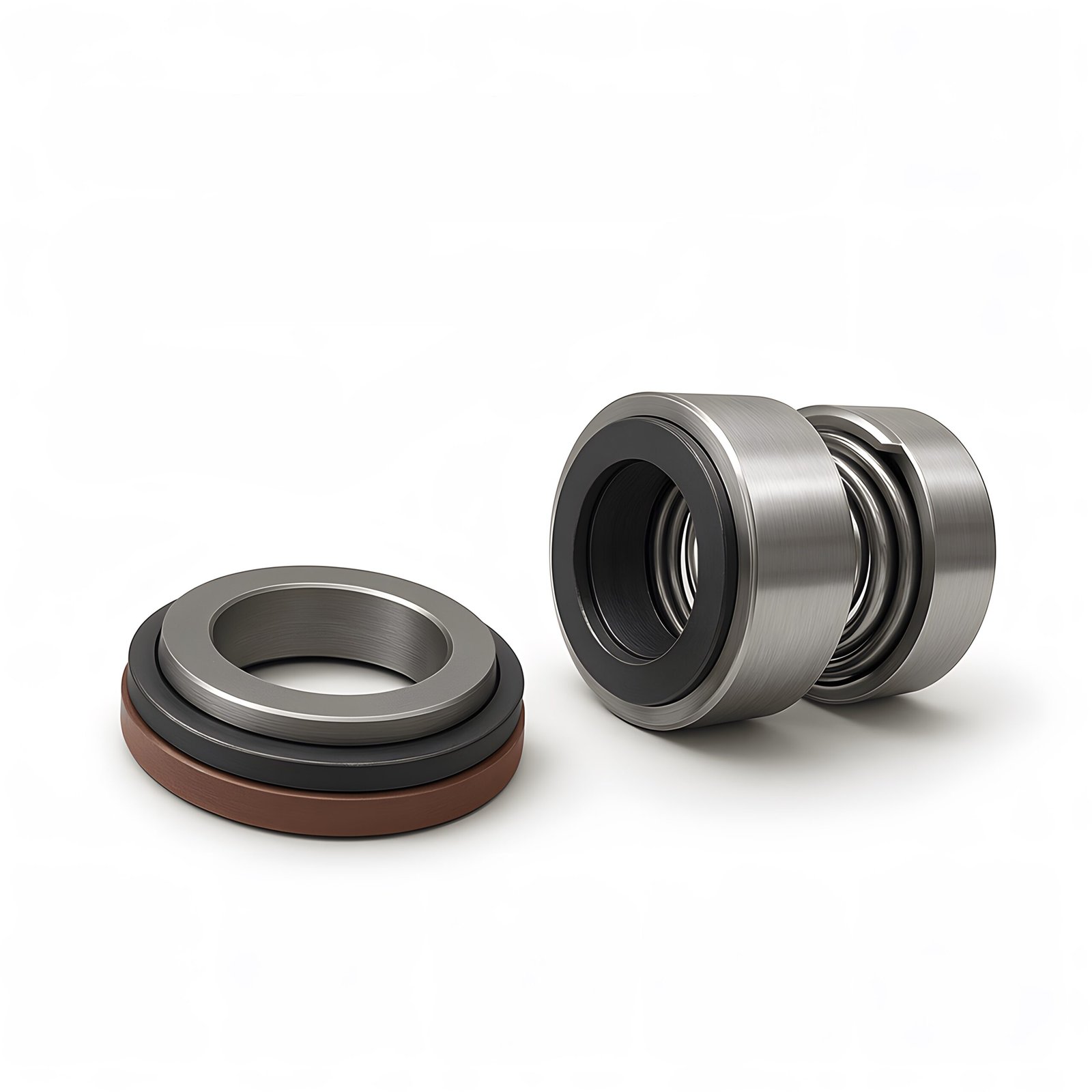

Our organisation offers an exclusively designed range of Star-Type Mechanical Seals to our esteemed customers. These seals are highly appreciated for their single-acting, unbalanced design, which operates independently of the direction of rotation, featuring a straight spring mechanism.
Our Star-Type Mechanical Seals are widely used in circulation pumps for water and heating systems, as well as in submerged pumps, sewage pumps, mud slurry pumps, sugar industries, and especially the textile industry.
Features;
- Single Seal
- Pusher Type
- Parallel Spring
- Internal Mounted
- Balanced & Unbalanced Type
- Dependent on the direction of rotation
Specification;
| Application | Mud slurry pumps, viscous fluids, textile industry, etc. | |
| Materials | Faces | Carbon / Ceramic / Silicon Carbide / Tungsten Carbide |
| Elastomers | Nitrile (NBR) / Viton (FKM) / Silicon | |
| Hardware | SS 304 / SS 316 | |
| Operating Limits | Size | 20.0 mm / 25.0 mm / 30.0 mm / 35.0 mm / 45.0 mm |
| Pressure | 8 bars (approx. 116 psi) | |
| Temperature | -20 °C to +130 °C (-4 °F to +266 °F) | |
| Speed | 2900 rpm | |
