Type : SC600 / SC605

, ,

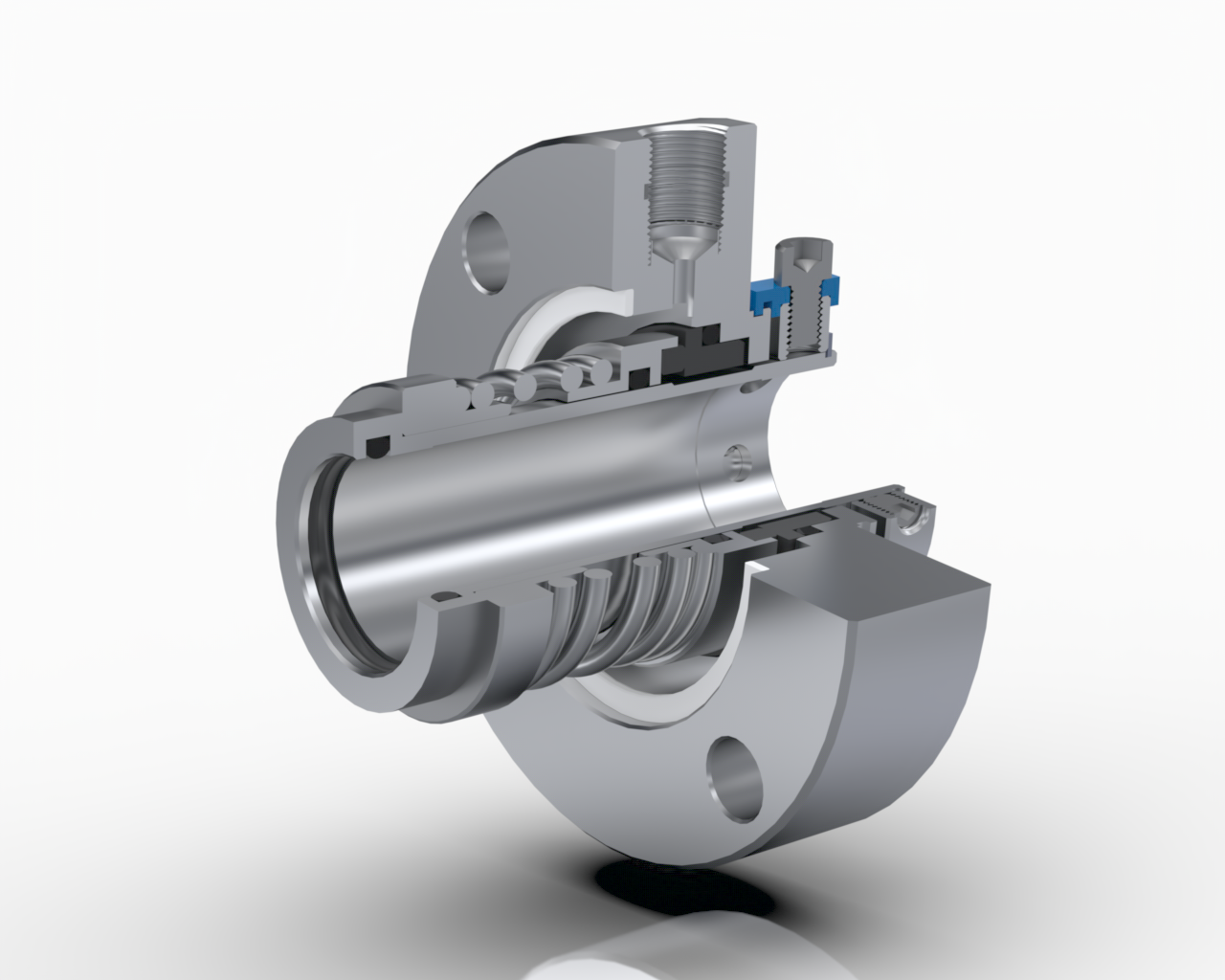

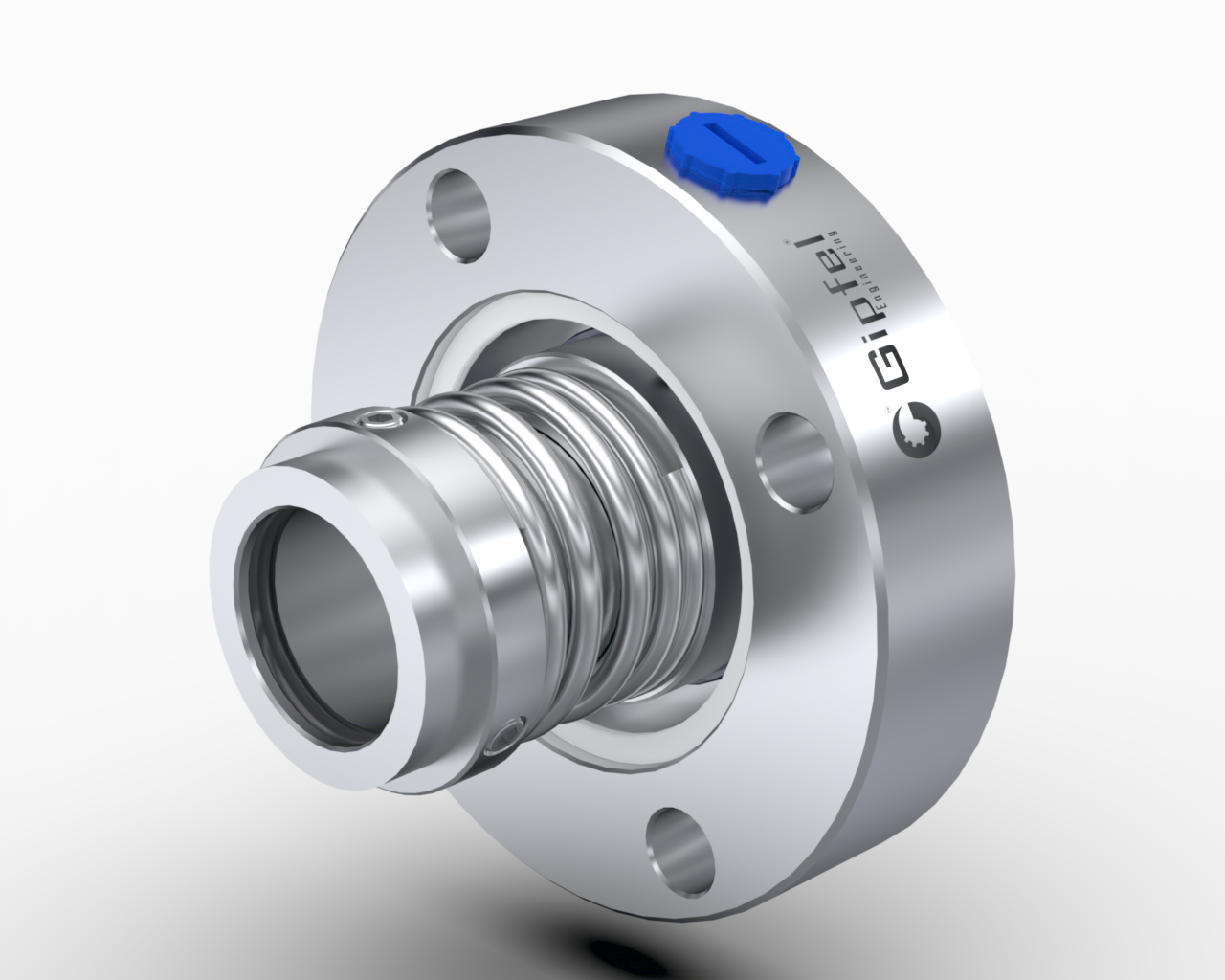

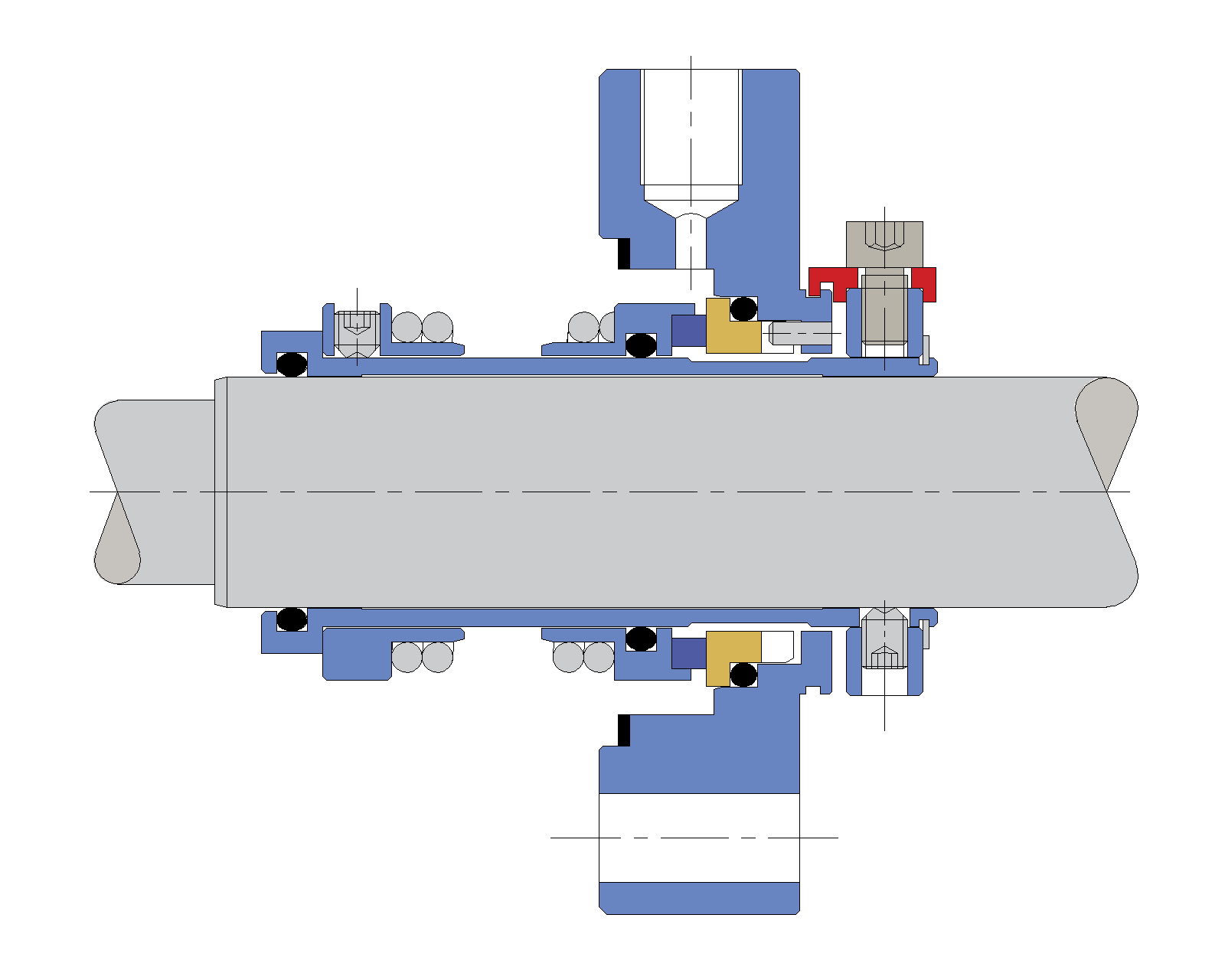

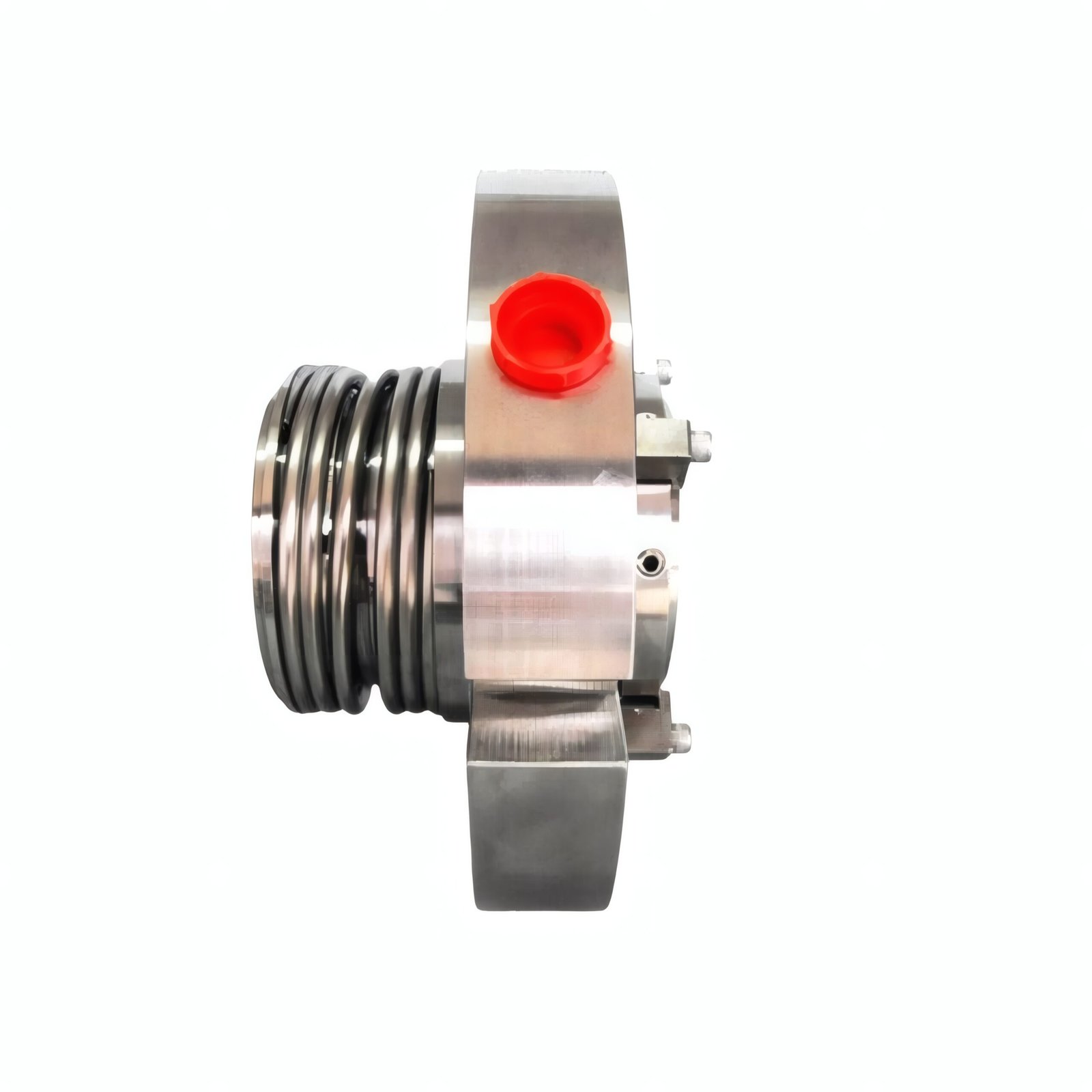

Single Spring Cartridge Mechanical Seal (Balanced & Unbalanced Design)

The SC600 / SC605 is a robust single cartridge mechanical seal engineered for high reliability and straightforward installation on pumps and rotating equipment. Supplied as a fully pre‑assembled cartridge unit with pre‑set working length, the seal can be installed without on‑site setting or alignment, significantly reducing installation time, downtime and the risk of assembly‑related failures.

This series is available in single‑spring balanced and unbalanced configurations, tailored for handling light slurries, viscous fluids, crystallising media and low‑solids suspensions in demanding industrial services. In the balanced version, hydraulically optimised face geometry reduces net closing force at elevated pressures, improving thermal stability, lowering face wear and extending service life. The rugged single‑spring construction offers generous cross‑sectional clearances, helping to resist clogging and buildup in slurry and viscous applications while maintaining reliable lubrication at the seal faces.

The seal is particularly well suited for wastewater treatment plants, steel and sugar factories, chemical processing units, general industrial process equipment handling contaminated or mildly abrasive media. Across these services, users benefit from plant‑wide standardisation: a single, rugged cartridge design that simplifies seal selection, installation and refurbishment, helping to lower inventory, reduce unplanned downtime and improve overall equipment reliability.

Key Features

  • Single, factory‑preset cartridge mechanical seal for fast, error‑free installation and easy removal.
  • Balanced and unbalanced single‑spring designs suitable for light slurries, viscous fluids, crystallising media and wastewater services.
  • Hydraulically optimised geometry reduces heat generation, improves thermal stability and extends seal life under demanding conditions.
  • Metric and inch shaft sizes with optional flush / quench connections, allowing integration with plant seal support systems and global pump standards.

Service Overview

Parameter Value
Equipment Process pumps, slurry pumps, mixers, agitators, wastewater pumps
Fluid Light slurries, viscous liquids, wastewater, sewage, low-solids suspensions
Service Nature Abrasive, viscous, crystallizing, contaminated fluids
Operating Mode Continuous industrial process duty

Specifications & Operating Limits

Item Min Max Typical / Notes
Shaft Size 12 mm / 0.500” 100 mm / 4.000” Metric & imperial sizes available
Pressure — 12 bar (174 psi) SC600 (Balanced) 12 bar; SC605 (Unbalanced) 6 bar (87 psi)
Temperature -20°C (-4°F) +120°C (+248°F) Depends on elastomer selection
Speed — 2900 rpm Application dependent
Note: Limits are maximum values for individual parameters and are not simultaneous. Actual limits depend on the fluid, materials and seal size; contact Gipfel Engineering to confirm suitability for your duty.

Materials of Construction

Seal face pairs (standard pair: carbon vs silicon carbide)

Pair Face grades offered
Carbon vs silicon carbide Resin-impregnated or antimony-impregnated carbon graphite vs sintered or reaction-bonded silicon carbide
Carbon vs tungsten carbide Resin-impregnated or antimony-impregnated carbon graphite vs cobalt-bound or nickel-bound tungsten carbide
Silicon carbide vs silicon carbide Sintered or reaction-bonded silicon carbide on both faces
Silicon carbide vs tungsten carbide Sintered or reaction-bonded silicon carbide vs cobalt-bound or nickel-bound tungsten carbide
Tungsten carbide vs tungsten carbide Cobalt-bound or nickel-bound tungsten carbide on both faces
Component Standard Options
Elastomers FKM EPDM; NBR; FEPM (Aflas®); PTFE
Metal parts SS 304 / SS 316 Hastelloy® C-276; Alloy 20
Springs SS 316 Hastelloy® C
  • Faces: hard-on-hard pairs for fines, abrasion and solids; carbon vs silicon carbide for general duties.
  • Elastomers: selected against the process fluid; EPDM is not for petroleum oils.
  • Metals: selected by corrosion level, chloride content and temperature.

Aflas® and Hastelloy® are registered trademarks of their respective owners.

Applications

  • Sewage and sludge transfer systems
  • Power plant utility and slurry services
  • Steel industry auxiliary process pumps
  • Water and wastewater treatment pumps
  • Crystallization and suspension handling systems
  • Pulp & paper stock pumps and process equipment
  • Low-solids slurry and viscous media circulation pumps
  • Chemical process pumps handling viscous or contaminated media

Recommended API Plans (Single Seal)

Plan Purpose Typical use
Plan 11 Product recirculation to the seal faces Clean services
Plan 21 Recirculation through a cooler Hot services
Plan 23 Internal circulation with pumping ring and cooler Hot services needing more efficient cooling
Plan 32 External clean flush to the faces Dirty or slurry services
Plan 62 Quench on the atmospheric side Preventing icing or crystallisation

The plan is selected with the P&ID and project specification for each duty.

More Downloads

Frequently Asked Questions

  1. What shaft sizes does the SC600 / SC605 cover?
    12 mm to 100 mm (0.500” to 4.000”).
  2. What is the difference between the SC600 and the SC605?
    The SC600 is the balanced design, rated up to 12 bar (174 psi). The SC605 is the unbalanced design, rated up to 6 bar (87 psi).
  3. What are the other operating limits?
    -20°C to +120°C (-4°F to +248°F), depending on elastomer selection, and up to 2900 rpm. These limits are not simultaneous.
  4. Which API plans suit the SC600 / SC605?
    Plans 11, 21, 23, 32 and 62, chosen according to the service.
  5. What are the standard materials?
    Carbon vs silicon carbide faces, FKM elastomers, SS 304 / SS 316 metal parts and SS 316 springs, with the options listed above.
  6. Is an installation manual available?
    Yes. The Installation, Operation & Maintenance Manual for single cartridge mechanical seals is available under More Downloads.
  7. Is the SC600 / SC605 suitable for slurry service?
    Yes, for light slurries, viscous fluids, crystallising media and low-solids suspensions.
  8. Does the seal need setting on site?
    No. It is supplied as a fully pre-assembled cartridge with a pre-set working length, so it installs without on-site setting or alignment.
  9. Where is the SC600 / SC605 typically used?
    Wastewater treatment plants, steel and sugar factories, chemical processing units and general industrial process equipment handling contaminated or mildly abrasive media.
