Description

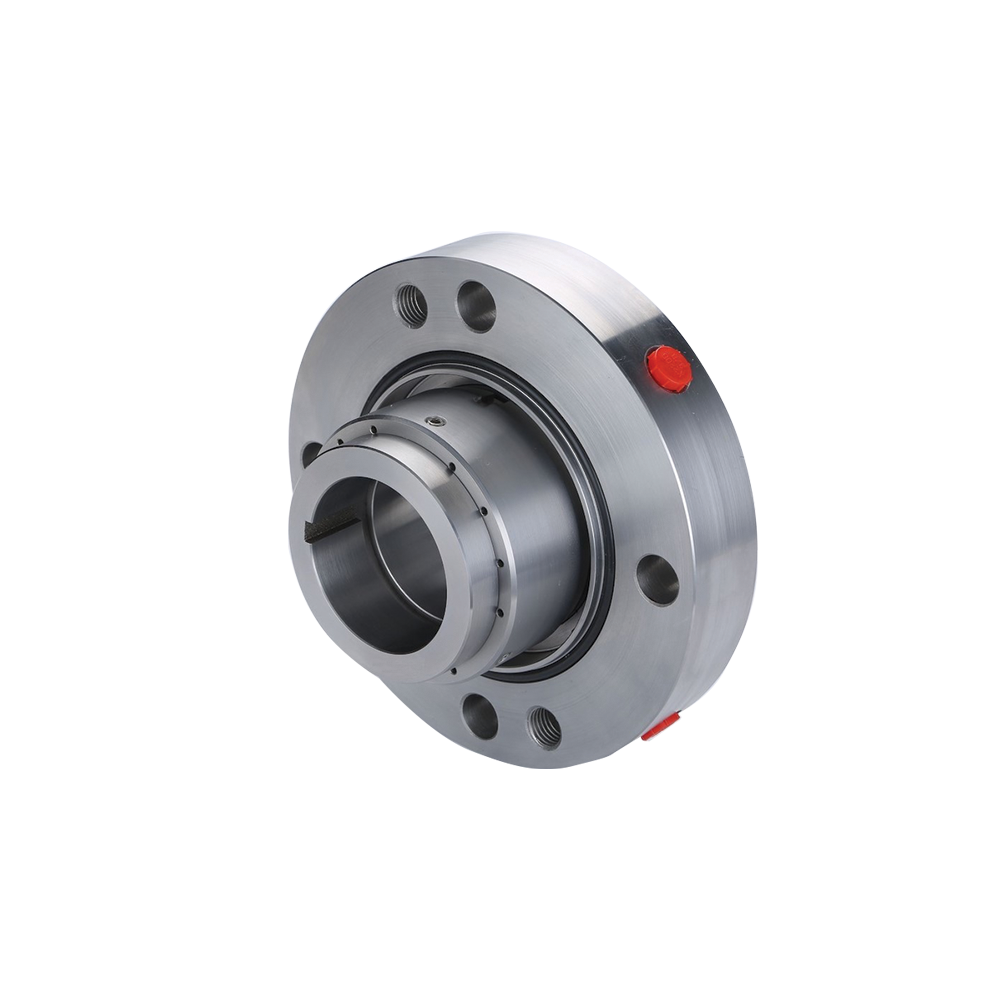

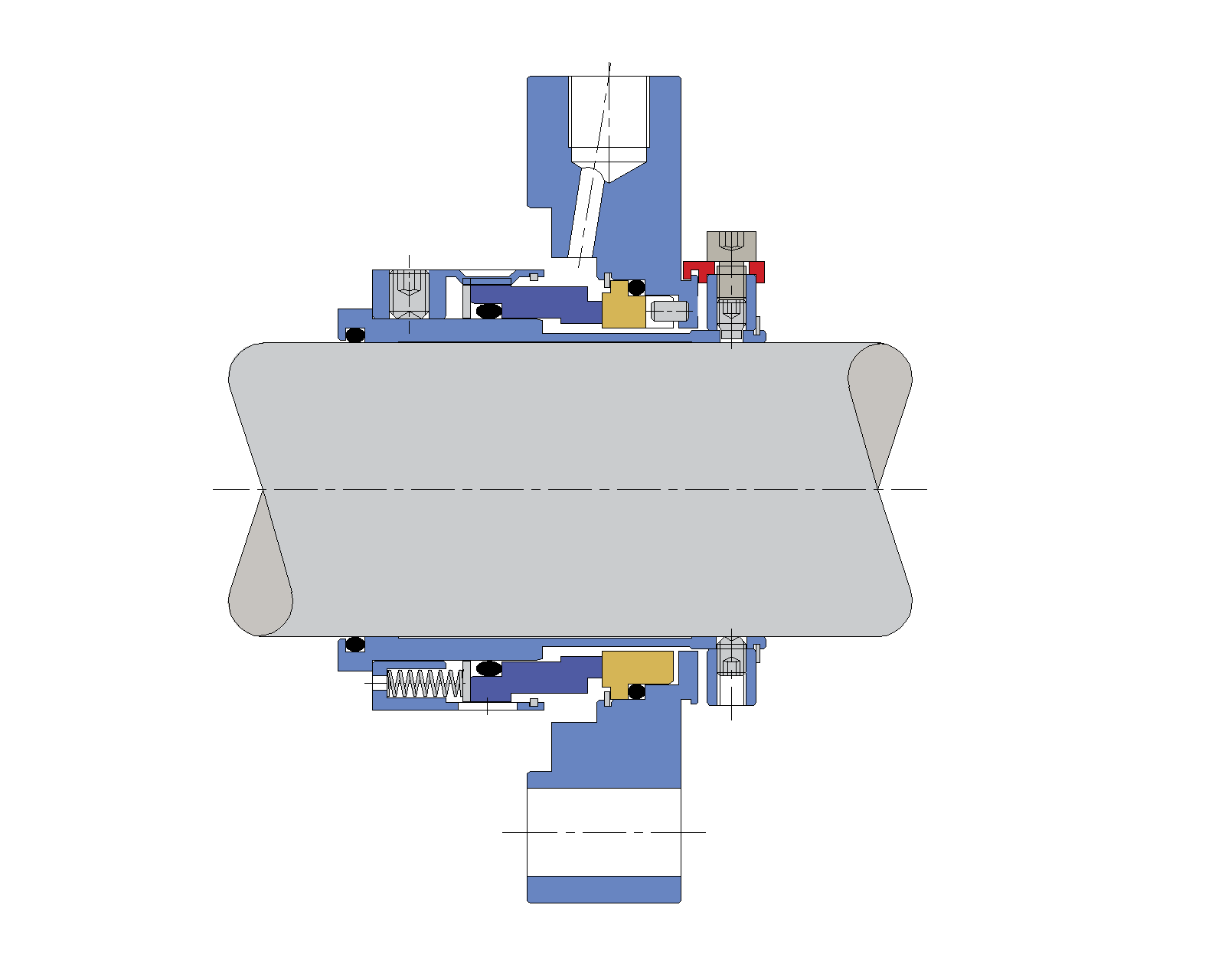

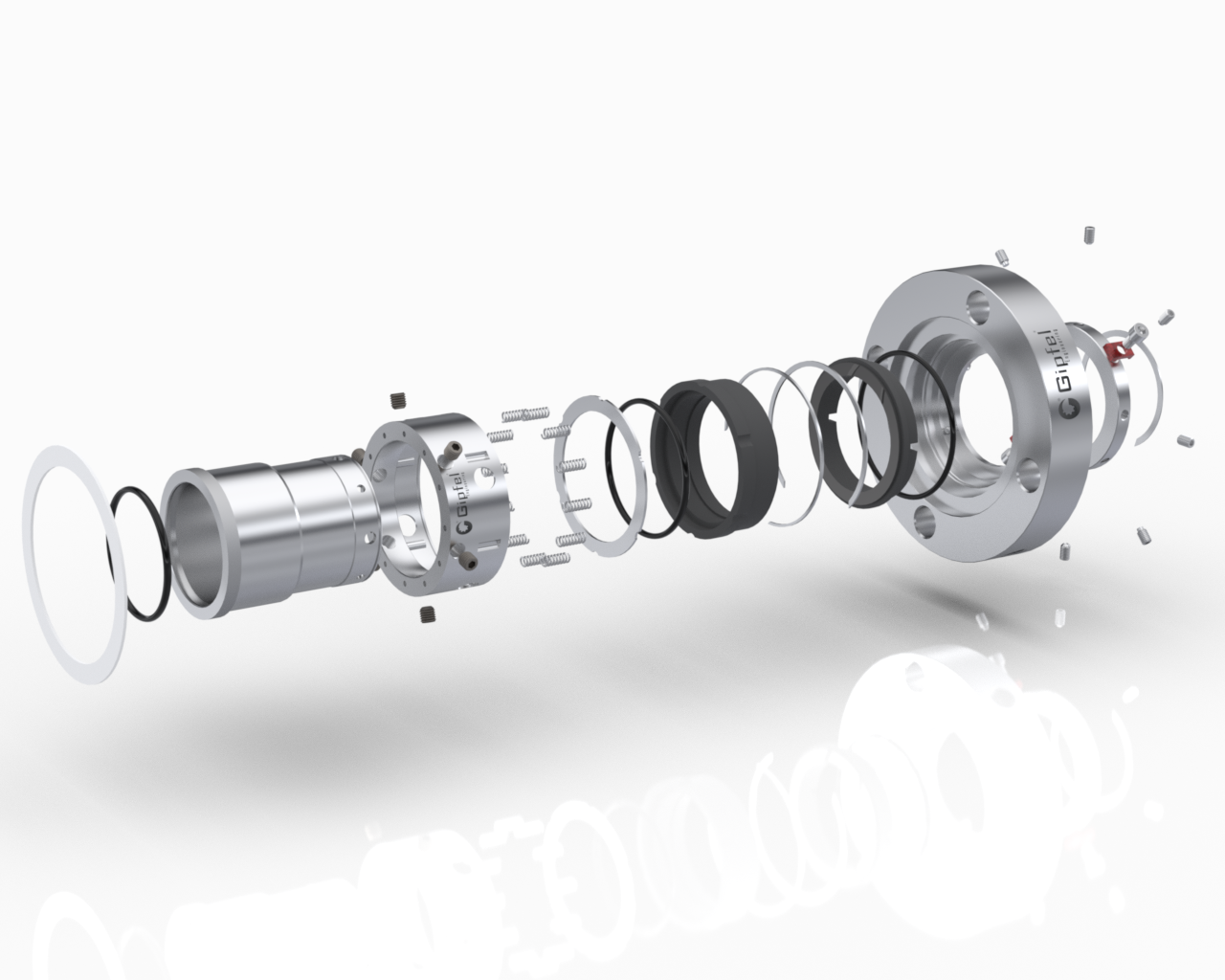

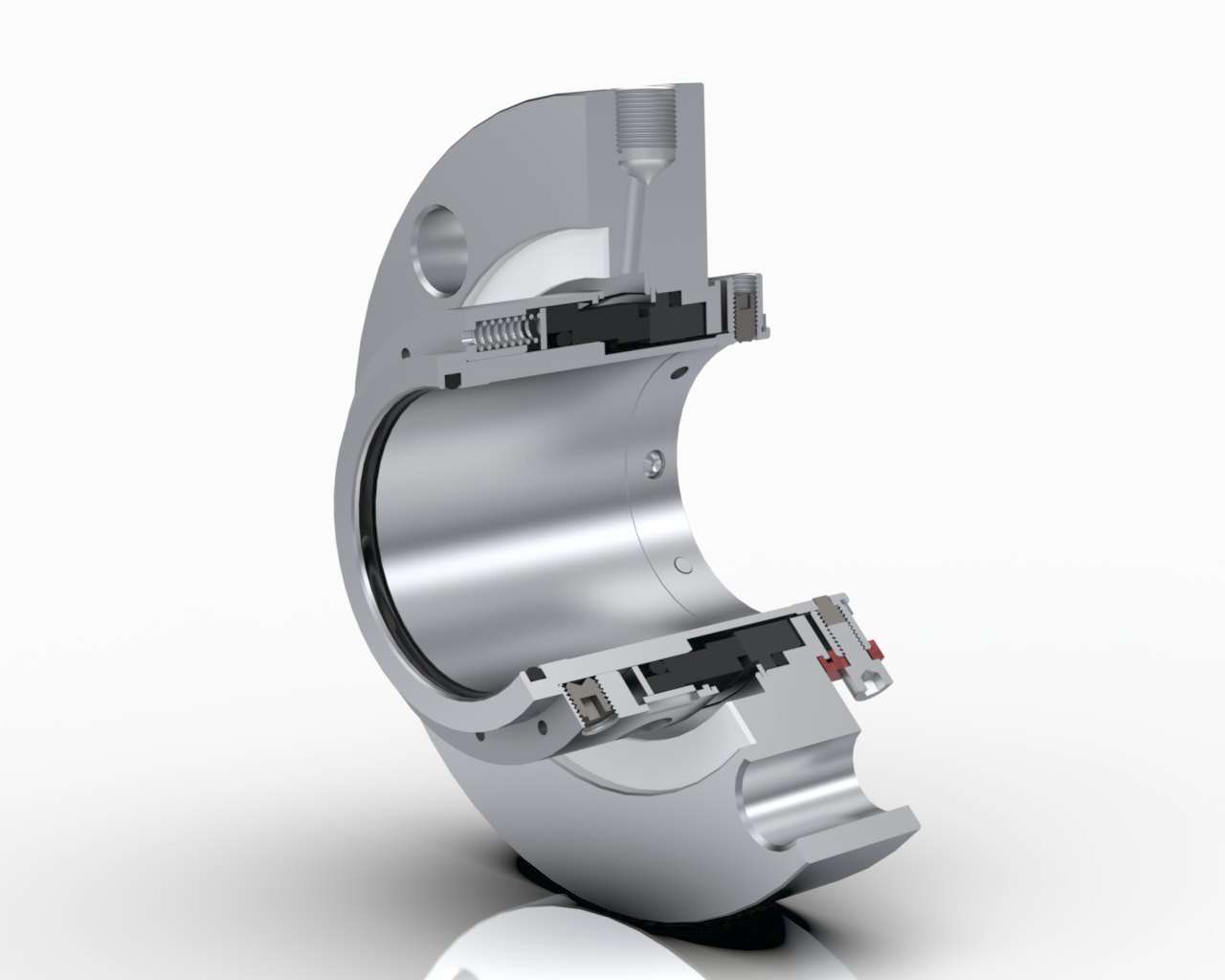

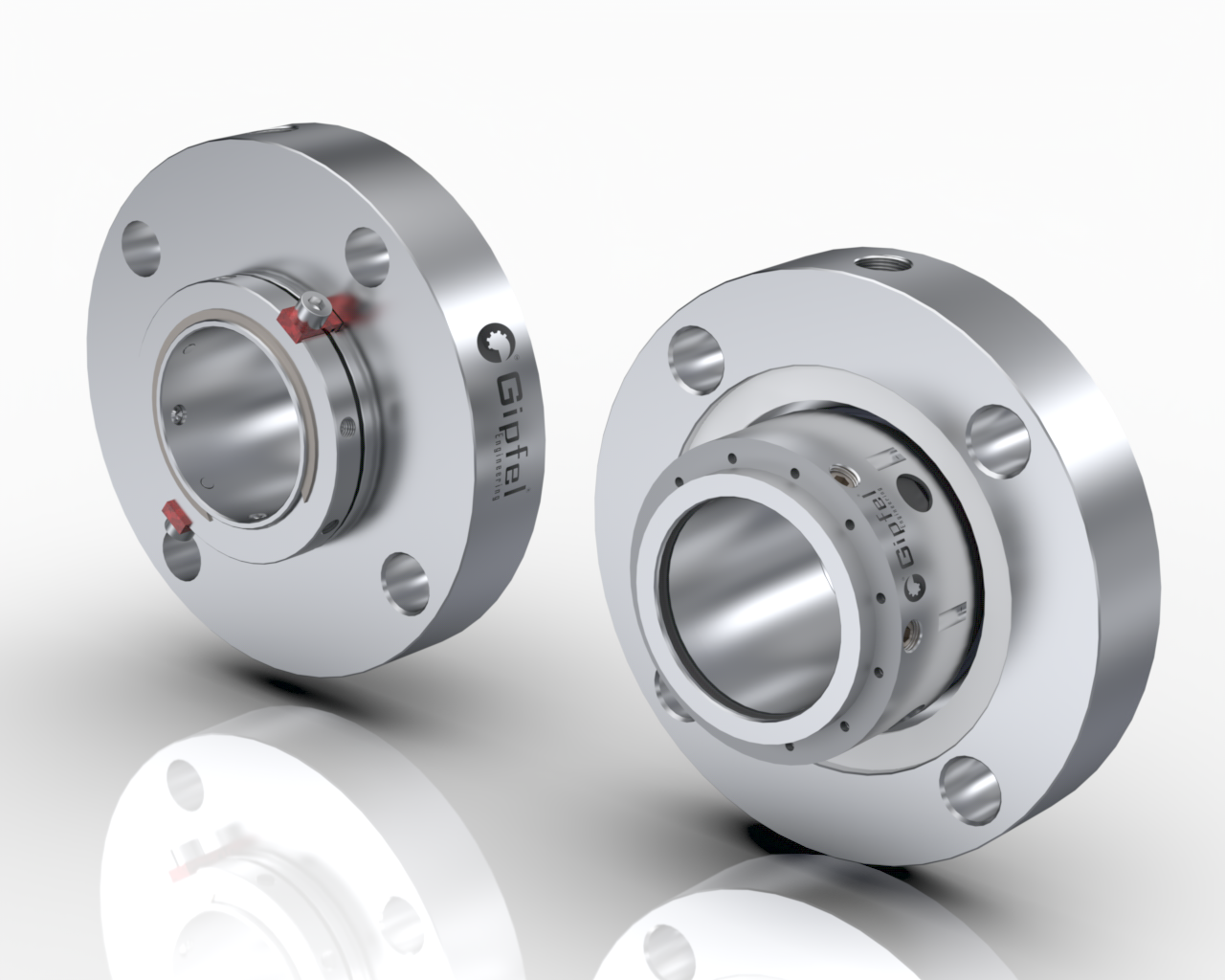

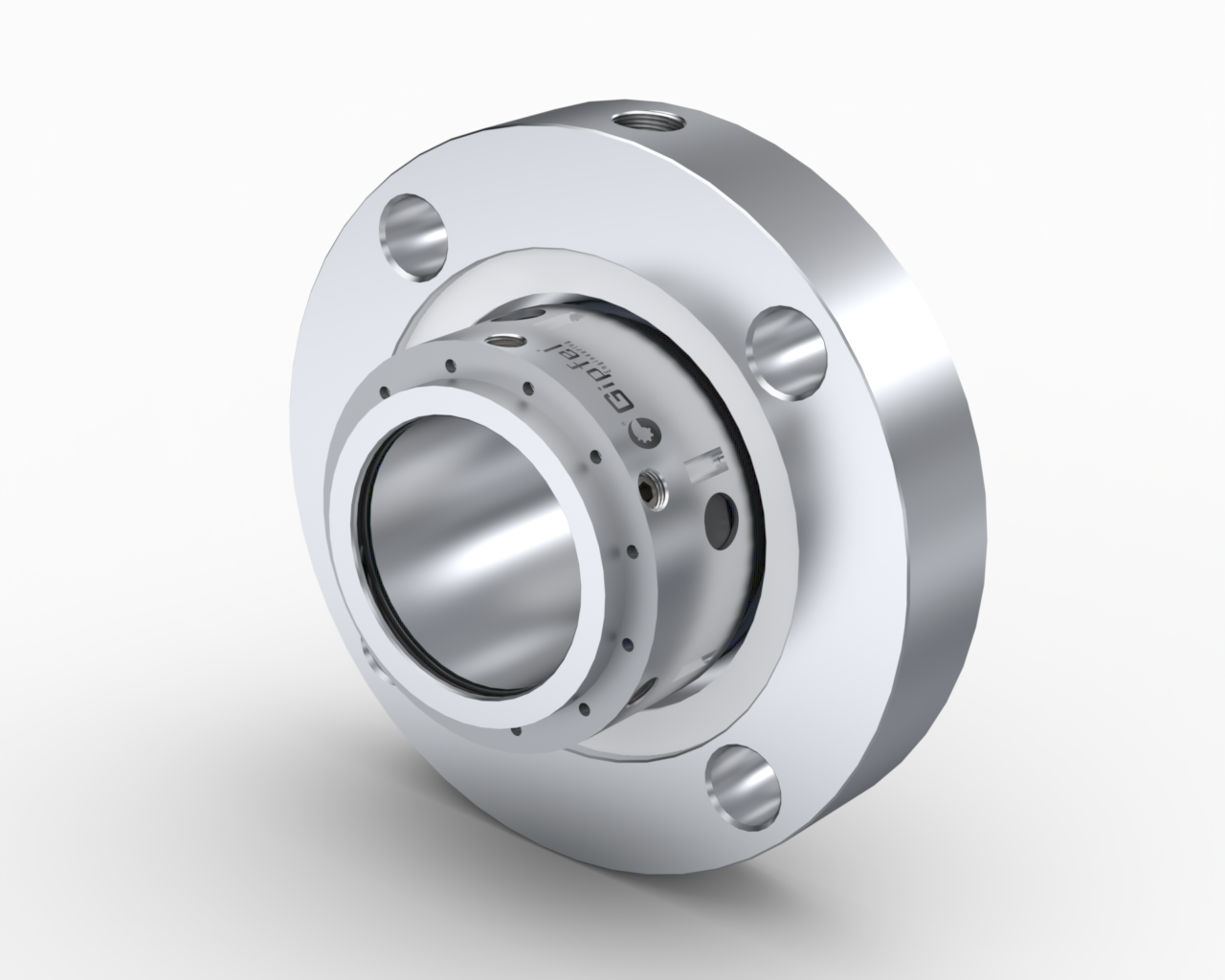

The SC630 is a single, balanced cartridge mechanical seal engineered for reliable sealing performance across a broad spectrum of industrial rotating equipment operating in demanding process environments. Designed as a pre-assembled cartridge unit, the SC630 minimizes installation errors, simplifies maintenance procedures, and ensures consistent face alignment under fluctuating pressure and temperature conditions. The balanced seal geometry reduces face loading and heat generation, improving seal stability and extending operational life in both clean and moderately contaminated services.
Built for versatility and operational reliability, the SC630 is suitable for centrifugal pumps, process pumps, industrial blowers, mixers, and other rotary equipment operating in chemical processing, petrochemical, food and beverage, pharmaceutical, oil and gas, steel, mining, pulp and paper, power generation, water treatment, chilling plants, and solvent handling systems. The seal is compatible with a wide range of process fluids including hydrocarbons, chemicals, solvents, water-based media, and light slurry services, making it a dependable sealing solution for continuous industrial operation.
Key Features
- Serviceable and refurbish-able construction contributes to lower lifecycle cost and improved long-term asset value.
- Rotation-independent design allows reliable operation regardless of shaft rotation direction, improving application versatility.
- Metric and inch size availability ensures compatibility with globally used equipment standards and installation requirements.
- Robust single seal arrangement is suitable for clean and lightly contaminated fluids in a broad range of industrial pumping applications.
- Engineered spring system, including multiple spring or wave spring configurations where specified, provides uniform closing force and stable face tracking.
- Internal seal configuration enhances lubrication at the seal faces while supporting pressure capability and protection against process-side contamination.
- Factory pre-set, assembled, and performance-tested construction ensures consistent quality, reliable operation, and minimized equipment downtime.
- Wide material selection for seal faces and elastomers enables optimized chemical compatibility across diverse process fluids and operating environments.
- Optional flush and quench connections are available to suit services requiring enhanced cooling, contamination control, or auxiliary support systems.
- Cartridge-mounted single seal design simplifies installation, eliminates critical setting errors, and reduces maintenance time during commissioning and replacement.
- Compact, application-friendly design supports integration with pumps manufactured to widely used ANSI, DIN, and ISO dimensional practices, depending on configuration.
- Hydraulically balanced sealing geometry reduces seal face loading and heat generation, delivering improved thermal stability and dependable performance under pressure fluctuations.
Service Overview
| Parameter | Value |
|---|---|
| Equipment | Centrifugal pumps, process pumps, industrial blowers, mixers, rotary equipment |
| Fluid | Chemicals, hydrocarbons, solvents, water, light slurry, process fluids |
| Service Nature | General process, chemical, petrochemical, utility, industrial duty |
| Operating Mode | Continuous industrial operation |
Specifications
| Item | Min | Max | Typical / Notes |
|---|---|---|---|
| Shaft Size | 20 mm / 0.750” | 300 mm / 12.000” | Standard metric & imperial sizes |
| Pressure | Vacuum | 40 bar (580 psi) | Depending on operating conditions |
| Temperature | -40°C (-40°F) | +220°C (+428°F) | Based on elastomer selection |
| Speed | — | 2900 RPM | Application dependent |
Operating Limits
| Parameter | Value |
|---|---|
| Pressure | Up to 40 bar (580 psi) |
| Temperature | -40°C to +220°C (-40°F to +428°F) |
| Speed | Up to 2900 RPM |
| Size Range | 20 mm to 300 mm (0.750” to 12.000”) |
Limits are maximum values for individual parameters and are not simultaneous. Actual limits depend on the fluid, materials and seal size; contact Gipfel Engineering to confirm suitability for your duty.
Materials of Construction
Seal face pairs (standard pair: carbon vs silicon carbide)
| Pair | Face grades offered |
|---|---|
| Carbon vs silicon carbide | Resin-impregnated or antimony-impregnated carbon graphite vs sintered or reaction-bonded silicon carbide |
| Carbon vs tungsten carbide | Resin-impregnated or antimony-impregnated carbon graphite vs cobalt-bound or nickel-bound tungsten carbide |
| Silicon carbide vs silicon carbide | Sintered or reaction-bonded silicon carbide on both faces |
| Silicon carbide vs tungsten carbide | Sintered or reaction-bonded silicon carbide vs cobalt-bound or nickel-bound tungsten carbide |
| Tungsten carbide vs tungsten carbide | Cobalt-bound or nickel-bound tungsten carbide on both faces |
| Component | Standard | Options |
|---|---|---|
| Elastomers | FKM | EPDM; NBR; FEPM (Aflas®); FFKM; PTFE |
| Metal parts | SS 316 / SS 316L | Duplex 2205; Alloy 20; Hastelloy® C; Hastelloy® B; nickel alloy; titanium |
| Springs | SS 316 | Hastelloy® C |
- Faces: hard-on-hard pairs for fines, abrasion and solids; carbon vs silicon carbide for general duties.
- Elastomers: selected against the process fluid; EPDM is not for petroleum oils.
- Metals: selected by corrosion level, chloride content and temperature; special alloys for aggressive media.
Aflas® and Hastelloy® are registered trademarks of their respective owners.
Applications
- Chemical process pumps
- Oil and gas process pumps
- Pulp and paper stock pumps
- Power plant auxiliary pumps
- Petrochemical and refinery equipment
- Food and beverage processing systems
- Industrial blowers and rotary machinery
- Pharmaceutical manufacturing equipment
- Water and wastewater treatment systems
- Chilling plants and solvent transfer systems
- Steel and mining industry rotating equipment
Recommended API Plans (Single Seal)
| Plan | Purpose | Typical use |
|---|---|---|
| Plan 11 | Product recirculation to the seal faces | Clean services |
| Plan 21 | Recirculation through a cooler | Hot services |
| Plan 23 | Internal circulation with pumping ring and cooler | Hot services needing more efficient cooling |
| Plan 32 | External clean flush to the faces | Dirty or slurry services |
| Plan 62 | Quench on the atmospheric side | Preventing icing or crystallisation |
The plan is selected with the P&ID and project specification for each duty.
More Downloads
- Product Guide – 8th Edition (PDF)
- IOM – Installation, Operation & Maintenance Manual, Single Cartridge Mechanical Seals (PDF)
Frequently Asked Questions
What shaft sizes does the SC630 cover?
20 mm to 300 mm (0.750” to 12.000”).
What are the operating limits of the SC630?
Vacuum to 40 bar (580 psi), -40°C to +220°C, and up to 2900 RPM. These limits are not simultaneous.
Which API plans suit the SC630?
Plans 11, 21, 23, 32 and 62, chosen according to the service.
What are the standard materials?
Carbon vs silicon carbide faces, FKM elastomers, SS 316 / SS 316L metal parts and SS 316 springs, with the options listed above.
Is an installation manual available for the SC630?
Yes. The Installation, Operation & Maintenance Manual for single cartridge mechanical seals is available under More Downloads.
