Description

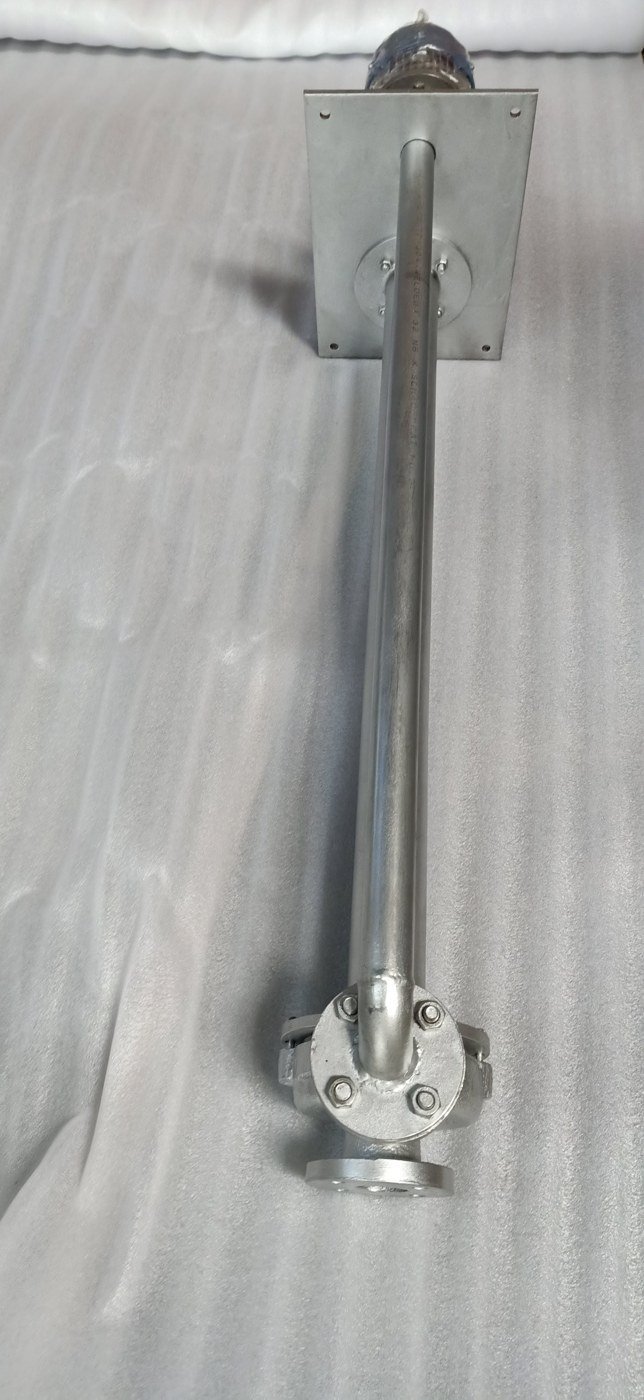

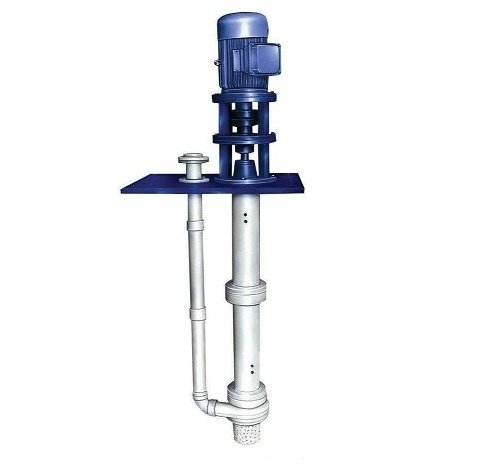

The VC-1140 Vertical Metallic Coupled Pump is a vertical sump-type centrifugal pump for transferring process liquids, effluents, utility water and chemical drains from pits, tanks, sumps and collection vessels. The motor is mounted above the liquid on a rigid mounting plate and drives the submerged pump casing through a vertical column assembly, with an external discharge pipe routed to the process line.
Metallic wetted construction in cast iron, WCB, stainless steels and Hastelloy C gives mechanical strength and corrosion resistance for power, steel, process, chemical and petrochemical plants, as well as effluent treatment and water extraction duties. Keeping the drive above the liquid zone improves access for inspection and supports continuous operation.
Technical Key Features
- Standard flanges for suction and discharge.
- Performance and dimensions comply with ISO 2858.
- Back pull-out design simplifies inspection and maintenance.
- Impellers dynamically balanced to grade 6.3 of ISO 1940.
- Available with gland packing or a mechanical shaft seal.
- Pumps and motors available with a fabricated steel base frame according to EN 23661.
- Motor, bearing bracket and impeller can be removed for servicing without disturbing the volute casing or the suction and delivery pipes.
- Column length, material and flange configuration customised to sump depth and plant layout.
Service Overview
| Parameter | Value |
|---|---|
| Equipment | Vertical metallic coupled pump / vertical sump pump |
| Fluid | Process liquids, effluents, utility and treated water, chemical drains |
| Service Nature | Transfer, drainage, recirculation, sump emptying and tank unloading |
| Operating Mode | Continuous or intermittent, depending on sump level and duty cycle |
Specifications
| Item | Min | Max | Typical / Notes |
|---|---|---|---|
| Size | On Request | On Request | Suction and discharge size selected to the duty point |
| Head | — | 100 m (328 ft) | Final head from the selected pump curve |
| Capacity | — | 150 m³/h (660 US gpm) | Final flow from the selected pump curve |
| Pressure | — | 15 bar (218 psi) | Pump casing rating |
| Temperature | — | +80°C (+176°F) | Liquid temperature |
| Speed | 960 rpm | 2900 rpm | 960, 1450 & 2900 rpm motor speeds |
Materials
| Component | Material Options | Comment |
|---|---|---|
| Wetted Parts / Hardware | CI / WCB / SS 304 / SS 316 / SS 904L / Hastelloy C | Selected to suit liquid chemistry, temperature and solids content |
| Shaft Sealing | Gland packing / mechanical shaft seal | Selected to suit the duty |
Applications
- Power plants
- Steel industry
- Process industry
- Chemical industry
- Petrochemical industry
- Effluent treatment plants and water extraction plants
Operating Limits
| Parameter | Value |
|---|---|
| Head | Up to 100 m (328 ft) |
| Capacity | Up to 150 m³/h (660 US gpm) |
| Pressure | Up to 15 bar (218 psi) |
| Temperature | Up to +80°C (+176°F) |
| Speed | 960, 1450 & 2900 rpm |
| Size Range | On request |
