Metallic Monoblock Type

The VM-1130 Vertical Metallic Monoblock Pump is a compact single-stage vertical pump for thin, clean, non-explosive and non-aggressive liquids free from solids, fibres and abrasive particles. The motor and pump form a single rigid unit mounted on the tank or sump plate, with the pump casing submerged and the motor above the liquid level.

Metallic wetted construction in cast iron or stainless steel gives mechanical robustness for clean-liquid transfer and circulation in effluent treatment plants, perfumery processing, electroplating lines and general utility systems.

Key Features

  • Monoblock motor-pump unit with no coupling alignment.
  • Vertical mounting saves floor space; direct suction from tanks and sumps.
  • Metallic wetted parts in cast iron, SS 304 or SS 316.
  • Easy installation on a tank cover or mounting plate.
  • Column length selected to suit sump depth.

Service Overview

Parameter Value
Equipment Vertical metallic monoblock pump
Fluid Thin, clean, non-explosive, non-aggressive liquids free from solids
Service Nature Clean-liquid transfer and circulation
Operating Mode Tank or sump mounted; continuous or intermittent duty

Specifications & Operating Limits

Parameter Min Max Notes
Flow On Request On Request Selected from the pump curve to the duty point
Head On Request On Request Selected from the pump curve to the duty point
Temperature — +100°C (+212°F) Liquid temperature
Speed 1450 rpm 2900 rpm 50 Hz motor speeds
Column Length On Request On Request To suit sump or tank depth
Note: Limits are maximum values for individual parameters and are not simultaneous. The duty point, materials and motor are selected for each application; contact Gipfel Engineering to confirm suitability for your duty.

Materials of Construction

Component Standard Options Notes
Casing / Pump Body Cast Iron SS 304 / SS 316 Stainless steel for clean or mildly corrosive liquids
Impeller Cast Iron / SS 304 SS 316 / Bronze Selected to the duty point and liquid
Shaft SS 410 / SS 304 SS 316 Based on liquid compatibility
Mounting Plate Mild Steel SS 304 / SS 316 Tank-mounted arrangement
Elastomers NBR EPDM / FKM Selected for chemical and temperature compatibility

Applications

  • Effluent treatment plants: clean-water transfer and circulation
  • Perfumery and fragrance processing (thin, clean liquids)
  • Electroplating auxiliary circulation without solids
  • Utility water, rinse water and process support liquids
  • Industrial tanks, reservoirs and sump transfer

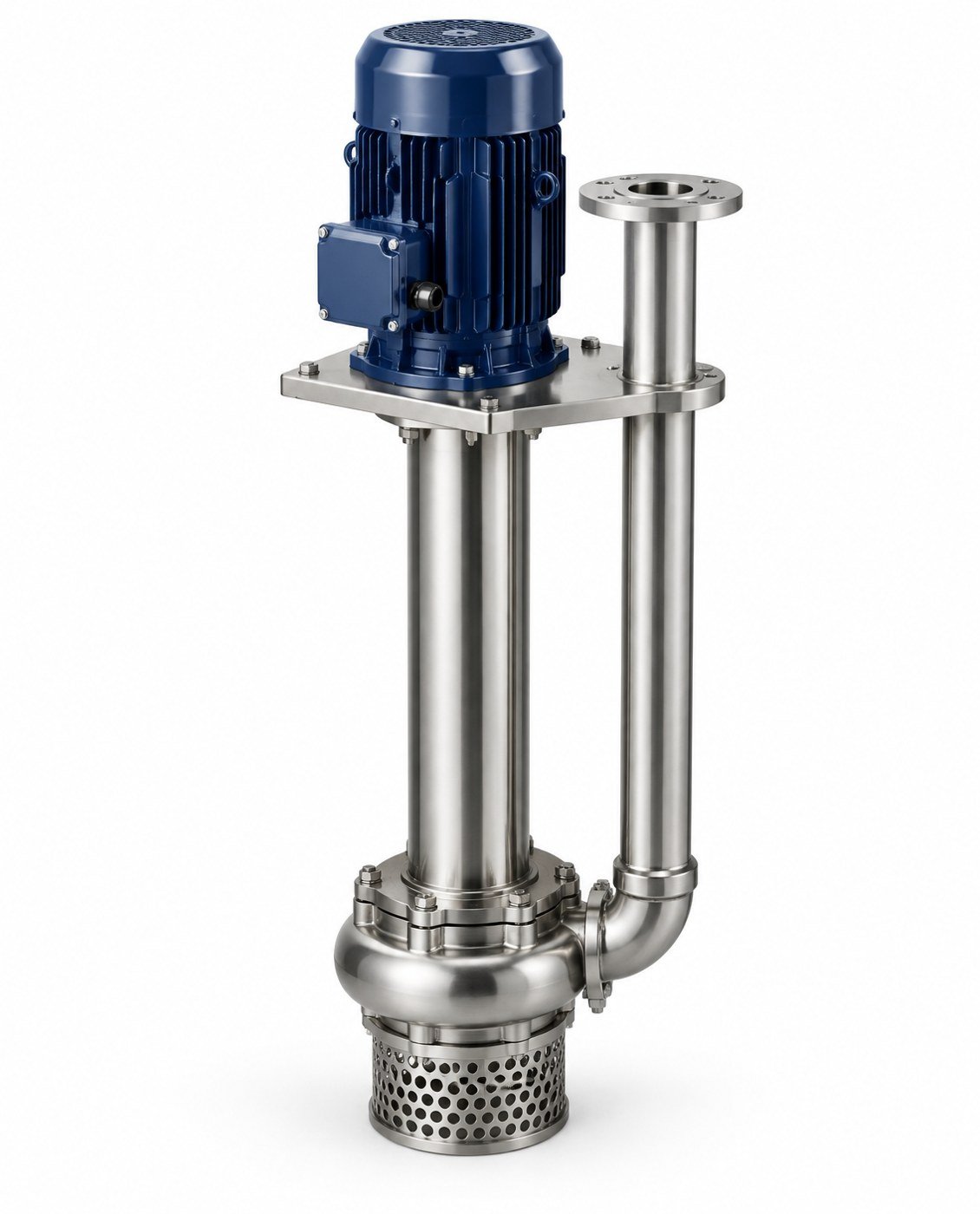

Product image is an illustrative rendering; actual construction is supplied to the approved drawing.

More Downloads

Frequently Asked Questions

  1. What is the VM-1130?
    The VM-1130 Vertical Metallic Monoblock Pump is a compact single-stage vertical pump for thin, clean, non-explosive and non-aggressive liquids free from solids, fibres and abrasive particles.
  2. What are the operating limits of the VM-1130?
    Temperature up to +100°C (+212°F); speed 1450 rpm to 2900 rpm. These limits are not simultaneous.
  3. Are sizes and ratings available on request?
    Yes. Flow, head and column length are confirmed on request for each duty.
  4. Which materials are used in the VM-1130?
    Casing / Pump Body: Cast Iron; Impeller: Cast Iron / SS 304; Shaft: SS 410 / SS 304. Options are listed in the materials table.
  5. Which fluids can the VM-1130 handle?
    Thin, clean, non-explosive, non-aggressive liquids free from solids.
  6. Where is the VM-1130 used?
    Effluent treatment plants: clean-water transfer and circulation; Perfumery and fragrance processing (thin, clean liquids); Electroplating auxiliary circulation without solids; Utility water, rinse water and process support liquids; Industrial tanks, reservoirs and sump transfer.
