Description
The VC-1135 Vertical Non-Metallic Coupled Pump is a vertical cantilever sump pump for corrosive, acidic, alkaline and chemically aggressive liquids. The non-metallic casing and column operate inside tanks, sumps, scrubber vessels or collection pits, while the motor, coupling and bearings stay above the liquid level, with no bearings submerged in the pumped liquid.
Wetted parts in polypropylene (PP) or PVDF suit dyes and intermediates, pharmaceuticals, acid regeneration, hydrochloric acid handling, electroplating, filter press circulation and corrosive gas scrubbing, in continuous or intermittent service.
Technical Key Features
- Cantilever design with no submerged bearings.
- Motor coupled through a motor stool above the liquid level.
- Non-metallic wetted parts in PP or PVDF.
- Shaft isolated from the pumped liquid by a non-metallic sleeve.
- Immersion length selected to suit tank or pit depth.
- Easy installation on tank covers, pits and scrubber sumps.
Service Overview
| Parameter | Value |
|---|---|
| Equipment | Vertical non-metallic coupled (cantilever) sump pump |
| Fluid | Acids, alkalis, dyes, scrubber liquors, plating and pickling solutions |
| Service Nature | Corrosive, chemically aggressive transfer and circulation |
| Operating Mode | Tank or pit mounted; continuous or intermittent duty |
Specifications
| Item | Min | Max | Typical / Notes |
|---|---|---|---|
| Flow | — | 120 m³/h (528 US gpm) | Final flow from the selected pump curve |
| Head | — | 55 m (180 ft) | Final head from the selected pump curve |
| Temperature (PP) | 0°C (+32°F) | +80°C (+176°F) | Polypropylene wetted parts |
| Temperature (PVDF) | — | +100°C (+212°F) | PVDF wetted parts |
| Immersion Length | 500 mm | 2000 mm | Standard range; longer on request |
| Discharge Size | 15 mm | 80 mm | Selected to the duty point |
| Speed | 1450 rpm | 2900 rpm | 50 Hz motor speeds |
Materials
| Component | Standard Material | Optional Material | Comment |
|---|---|---|---|
| Pump Casing / Volute | PP | PVDF | Selected for acid, alkali, solvent and temperature compatibility |
| Impeller | PP | PVDF | Open or semi-open design to suit liquid cleanliness |
| Column / Wetted Structure | PP | PVDF | Length to suit tank or sump depth |
| Shaft Sleeve | PP / PVDF sleeve | — | Isolates the metallic shaft from corrosive media |
| Mounting Plate | PP | PVDF / lined steel | To suit tank nozzle, pit cover and installation |
| Elastomers / Gaskets | EPDM | FKM / PTFE | Selected for chemical compatibility |
Applications
- Pharmaceutical and fine chemical manufacturing
- Hydrochloric acid loading and unloading stations
- Dyes, alkalis and intermediate chemical plants
- Acid regeneration plants
- Electroplating lines, pickling tanks and surface treatment plants
- Filter press circulation and corrosive gas scrubbing systems
Operating Limits
| Parameter | Value |
|---|---|
| Flow | Up to 120 m³/h (528 US gpm) |
| Head | Up to 55 m (180 ft) |
| Temperature | 0°C to +80°C (+32°F to +176°F) in PP; up to +100°C (+212°F) in PVDF |
| Speed | 1450 or 2900 rpm (50 Hz) |
| Immersion Length | 500 mm to 2000 mm standard; longer on request |
| Discharge Size | 15 mm to 80 mm |

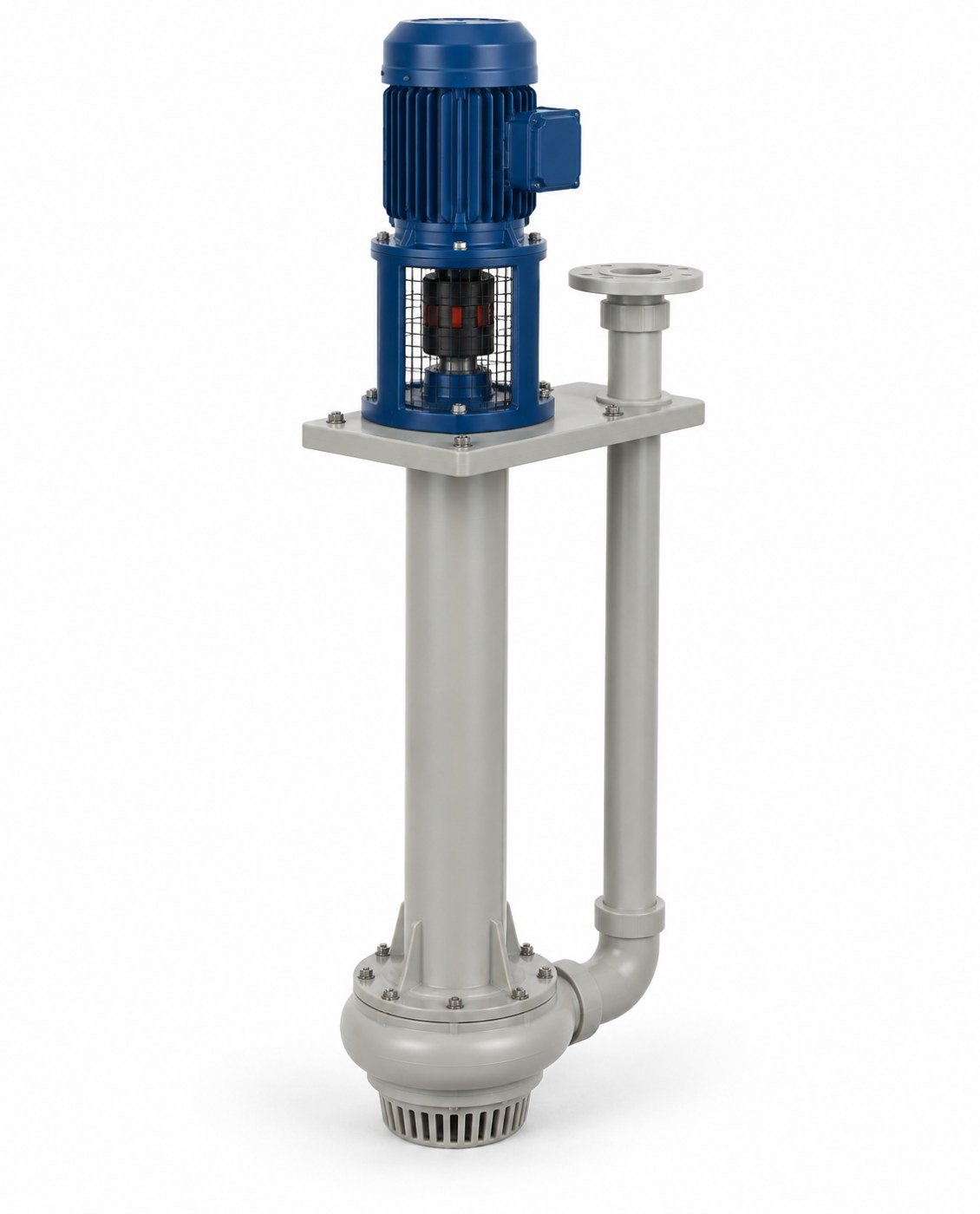

Product image is an illustrative rendering; actual construction is supplied to the approved drawing.
