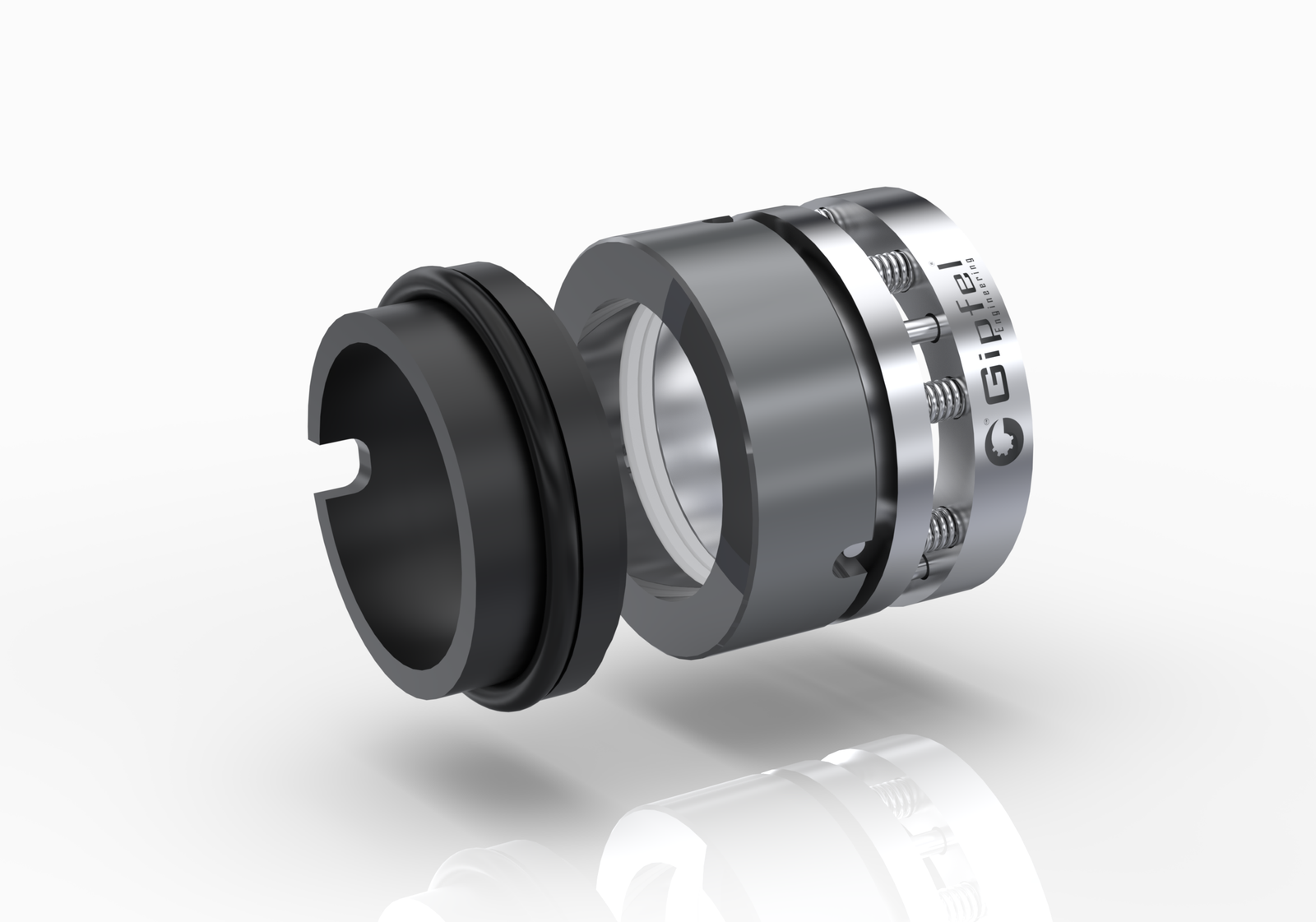

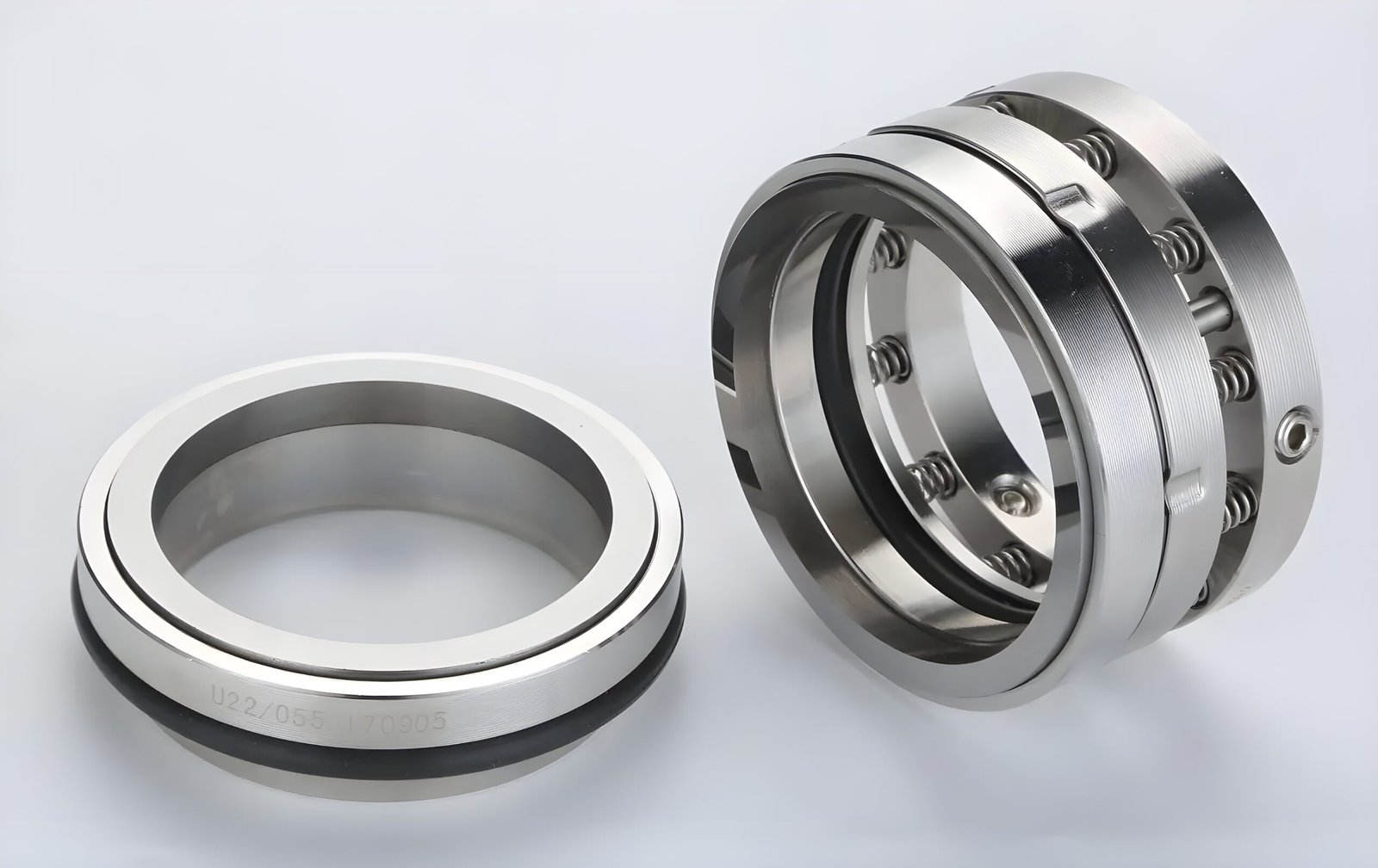

Multi Spring Seal (Equivalent to Flowserve RO Type)

Product Type: MF260S / MF265S

The MF260S / MF265S series multi-spring Mechanical Seals, equivalent to the Flowserve RO (single), are designed for universal applications. Their compact design makes them ideal for use in all types of centrifugal pumps. Torque transmission from the retainer shell to the seal ring is facilitated by durable drive lugs.

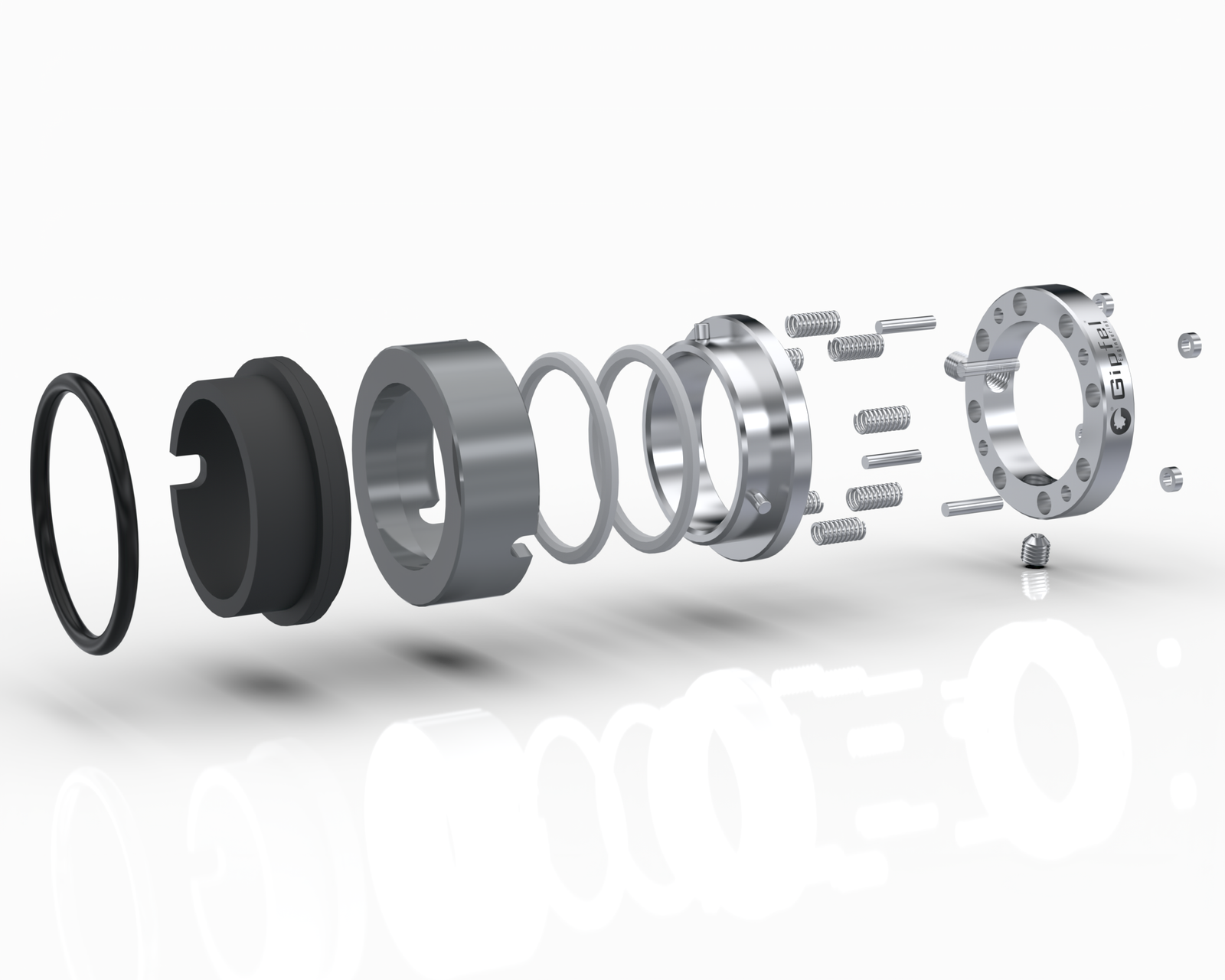

With fully interchangeable parts, these seals are perfect for stock rationalization. All seals are factory-assembled and undergo dynamic testing to ensure consistent performance and reliability.

Key Features

  • Single seal
  • Pusher type
  • Rotating spring
  • Internally mounted
  • Multiple spring type
  • Balanced & unbalanced design
  • Independent of the direction of rotation

Specifications & Operating Limits

Parameter Value
Shaft Size 14.0 mm to 200.0 mm / 0.500” to 8.000” (inch series)
Pressure Up to 12 bar (174 psi)
Temperature -20 °C to +120 °C (-4 °F to +248 °F)
Speed Up to 2900 rpm
Note: Limits are maximum values for individual parameters and are not simultaneous. Actual limits depend on the fluid, materials and seal size; contact Gipfel Engineering to confirm suitability for your duty.

Materials of Construction

Component Materials offered
Seal faces Carbon; Silicon Carbide; Tungsten Carbide
Elastomers FKM; EPDM; Aflas®; PTFE; FFKM
Hardware SS 304; SS 316; Hastelloy® C; Alloy – 20; Monel; Titanium
  • Faces: hard-on-hard pairs for abrasive or solids-laden duties; carbon-based pairs for clean, lubricating fluids.
  • Elastomers: selected against the process fluid; EPDM is not for petroleum oils.
  • Metals: selected by corrosion level, chloride content and temperature.

Hastelloy® and Aflas® are registered trademarks of their respective owners.

Applications

Clear, lubricating, non-corrosive liquids; general chemical services; petrochemical and refinery services, etc.

Brand names are trademarks of their respective owners and indicate dimensional interchangeability only.

More Downloads

Frequently Asked Questions

  1. What is the MF260S / MF265S?
    The MF260S / MF265S series multi-spring Mechanical Seals, equivalent to the Flowserve RO (single), are designed for universal applications.
  2. What shaft sizes does the MF260S / MF265S cover?
    14.0 mm to 200.0 mm (0.500” to 8.000”).
  3. What are the operating limits of the MF260S / MF265S?
    Up to 12 bar (174 psi); -20 °C to +120 °C (-4 °F to +248 °F); and up to 2900 rpm. These limits are not simultaneous.
  4. Which materials are available?
    Faces in carbon, silicon carbide or tungsten carbide; elastomers in FKM, EPDM, Aflas®, PTFE or FFKM; hardware in SS 304, SS 316, Hastelloy® C, Alloy – 20, Monel or Titanium.
  5. Does the MF260S / MF265S work in both directions of rotation?
    Yes. It operates independently of the direction of shaft rotation.
  6. Is the MF260S / MF265S interchangeable with the Flowserve RO Type?
    Yes. It is designed to be dimensionally interchangeable with the Flowserve RO Type.
  7. Where is the MF260S / MF265S used?
    Clear, lubricating, non-corrosive liquids; general chemical services; petrochemical and refinery services.
