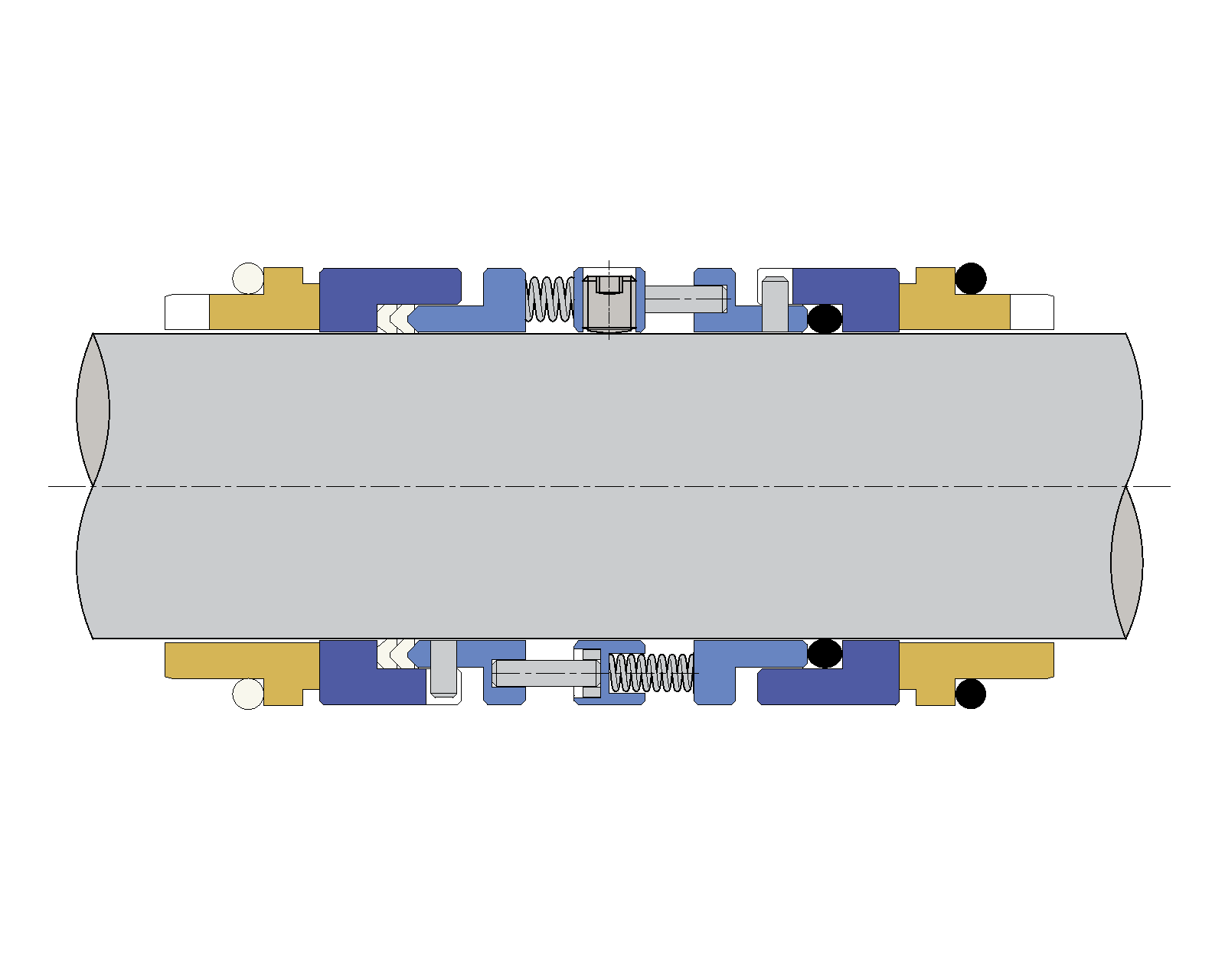

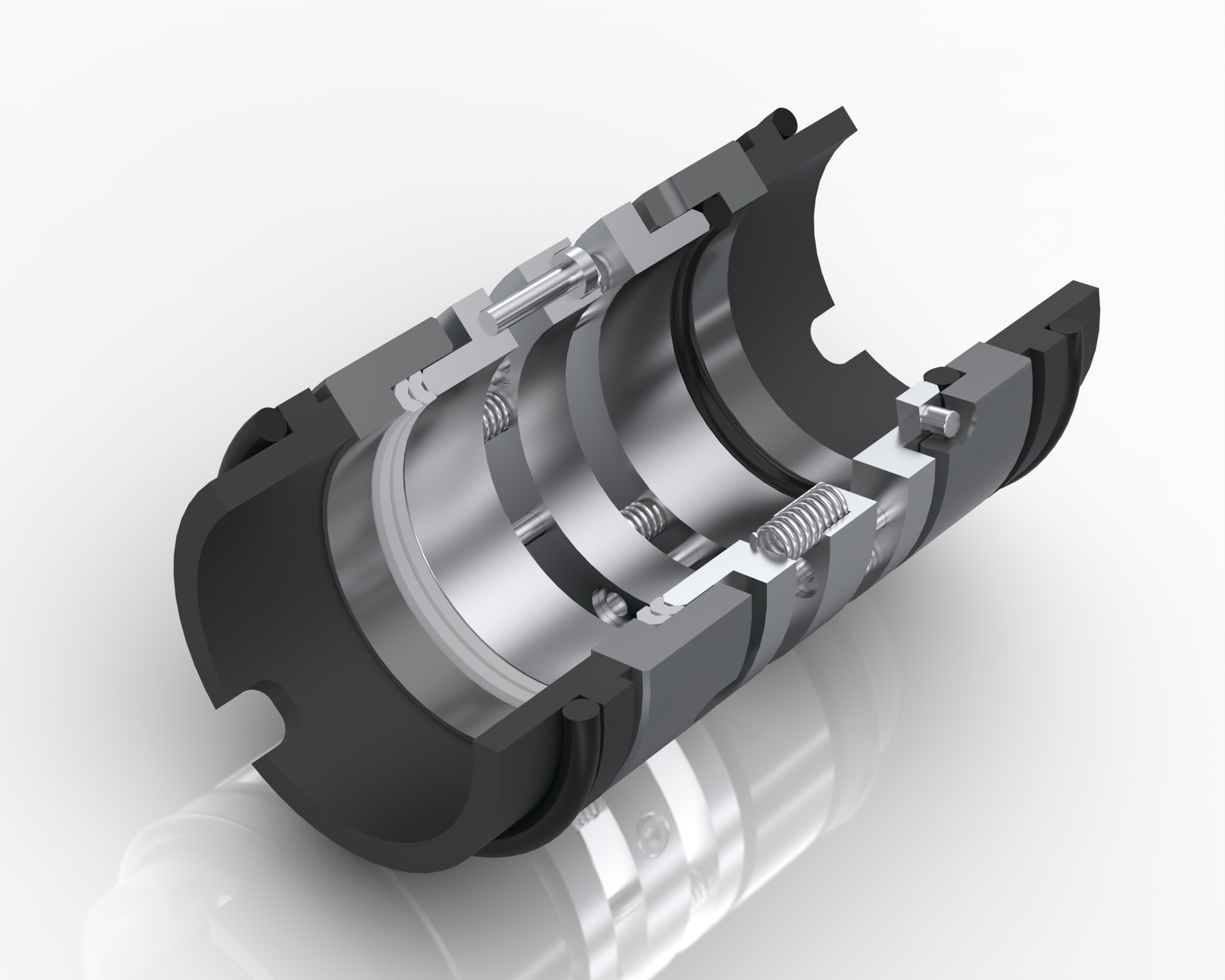

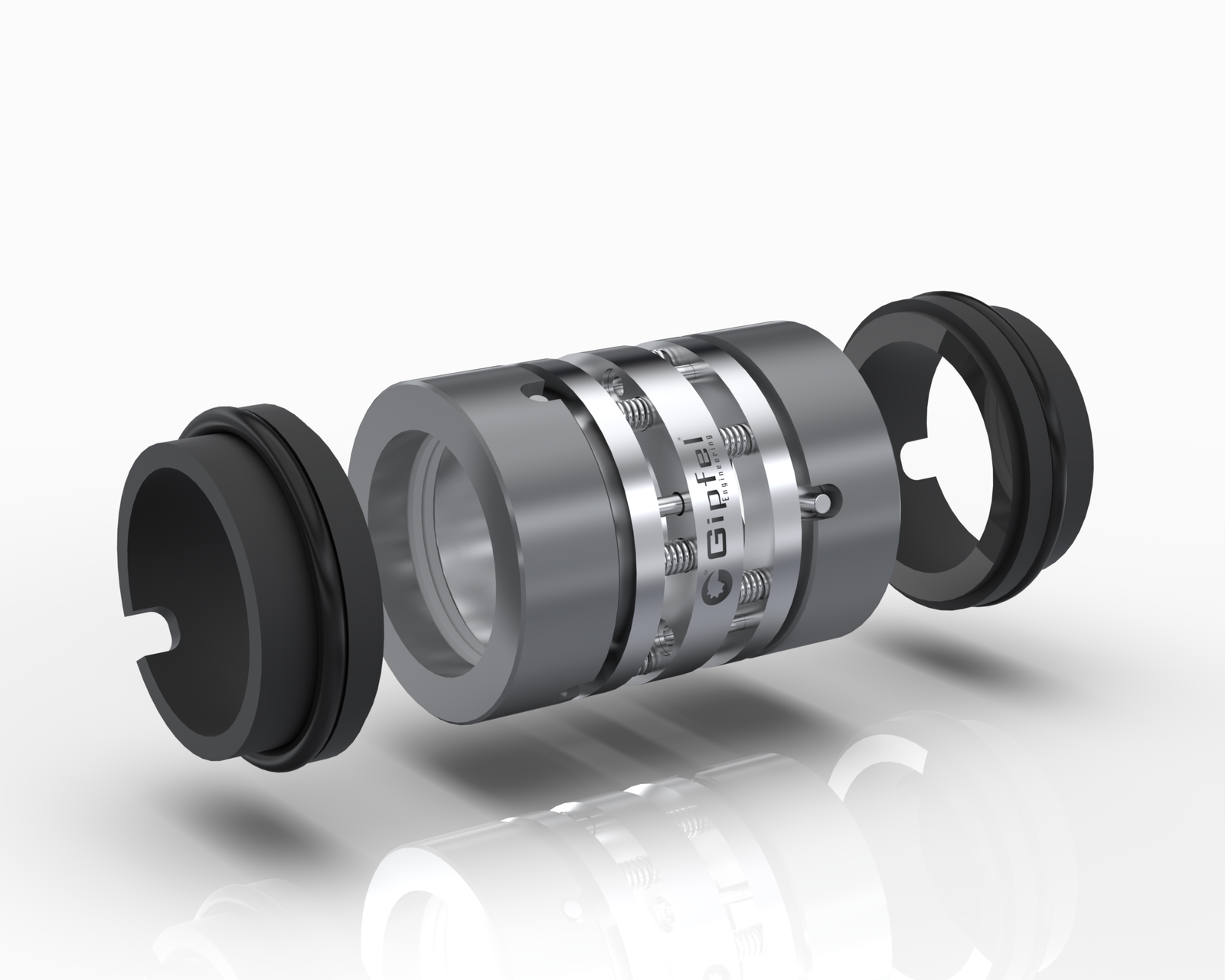

Multi Spring Seal (Equivalent to Flowserve ROTT Type)

Product Type: MF270D / MF275D

The MF270D / MF275D series multi-spring balanced and unbalanced Mechanical Seals are designed for universal applications. Their compact design makes them suitable for use in all types of centrifugal pumps. Torque transmission from the retainer shell to the seal ring is achieved through sturdy drive lugs.

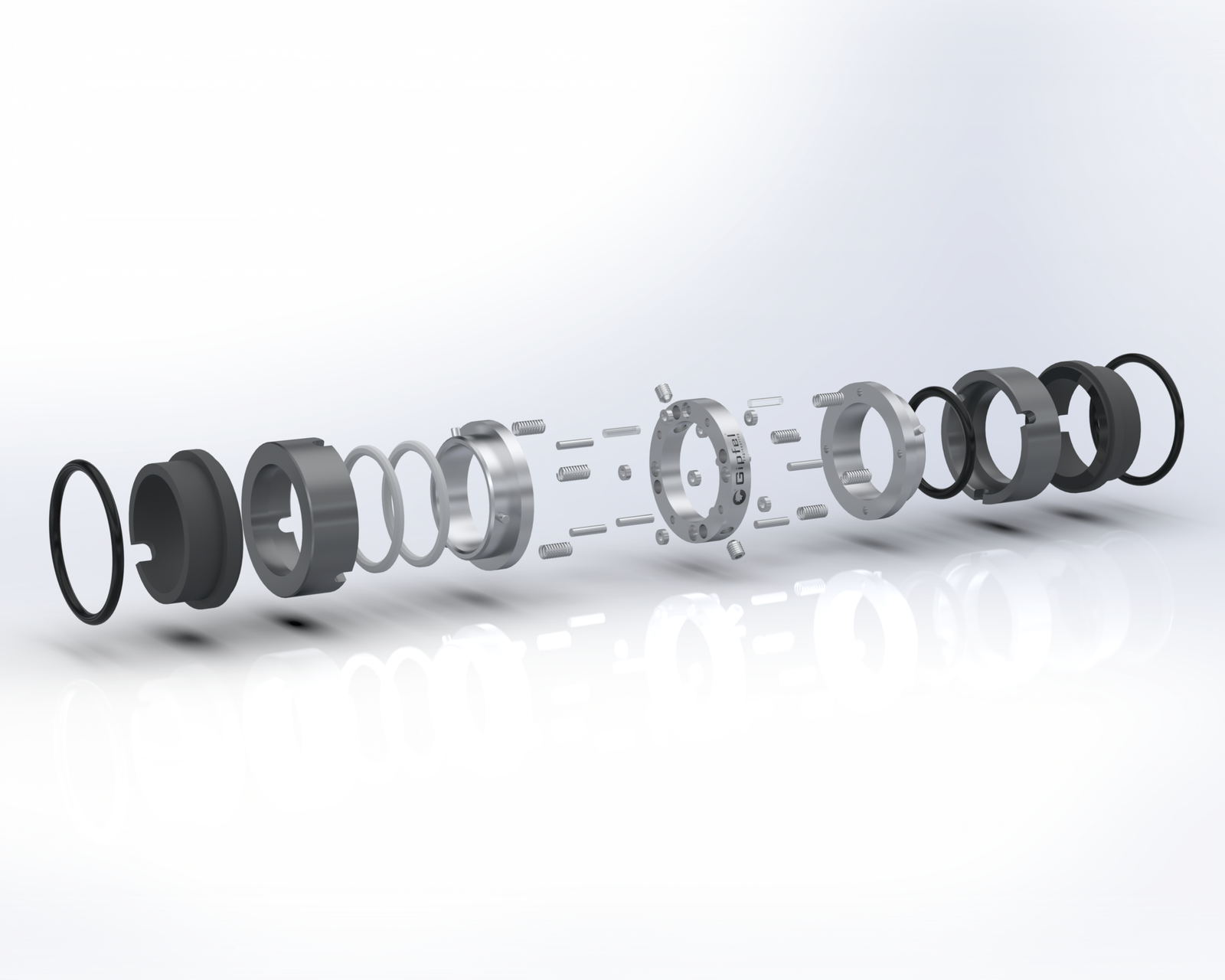

With fully interchangeable parts, these seals are ideal for stock rationalization. Each seal is factory-assembled and dynamically tested to ensure high performance and reliability.

Key Features

  • Double seal
  • Pusher type
  • Rotating spring
  • Internally mounted
  • Multiple spring type
  • Balanced & unbalanced design
  • Independent of the direction of rotation

Specifications & Operating Limits

Parameter Value
Shaft Size 14.0 mm to 200.0 mm / 0.500” to 8.000” (inch series)
Pressure Up to 16 bar (232 psi)
Temperature -20 °C to +150 °C (-4 °F to +302 °F)
Speed Up to 2900 rpm
Note: Limits are maximum values for individual parameters and are not simultaneous. Actual limits depend on the fluid, materials and seal size; contact Gipfel Engineering to confirm suitability for your duty.

Materials of Construction

Component Materials offered
Seal faces Carbon; Silicon Carbide; Tungsten Carbide
Elastomers NBR; FKM; EPDM; Aflas®; PTFE; FFKM
Hardware SS 304; SS 316; Hastelloy® C; Alloy – 20; Titanium
  • Faces: hard-on-hard pairs for abrasive or solids-laden duties; carbon-based pairs for clean, lubricating fluids.
  • Elastomers: selected against the process fluid; EPDM is not for petroleum oils.
  • Metals: selected by corrosion level, chloride content and temperature.

Hastelloy® and Aflas® are registered trademarks of their respective owners.

Applications

Clear, lubricating, non-corrosive liquids; general chemical services; petrochemical and refinery services, etc.

Brand names are trademarks of their respective owners and indicate dimensional interchangeability only.

More Downloads

Frequently Asked Questions

  1. What is the MF270D / MF275D?
    The MF270D / MF275D series multi-spring balanced and unbalanced Mechanical Seals are designed for universal applications.
  2. What shaft sizes does the MF270D / MF275D cover?
    14.0 mm to 200.0 mm (0.500” to 8.000”).
  3. What are the operating limits of the MF270D / MF275D?
    Up to 16 bar (232 psi); -20 °C to +150 °C (-4 °F to +302 °F); and up to 2900 rpm. These limits are not simultaneous.
  4. Which materials are available?
    Faces in carbon, silicon carbide or tungsten carbide; elastomers in NBR, FKM, EPDM, Aflas®, PTFE or FFKM; hardware in SS 304, SS 316, Hastelloy® C, Alloy – 20 or Titanium.
  5. Does the MF270D / MF275D work in both directions of rotation?
    Yes. It operates independently of the direction of shaft rotation.
  6. Is the MF270D / MF275D interchangeable with the Flowserve ROTT Type?
    Yes. It is designed to be dimensionally interchangeable with the Flowserve ROTT Type.
  7. Where is the MF270D / MF275D used?
    Clear, lubricating, non-corrosive liquids; general chemical services; petrochemical and refinery services.
