Reverse Balance Multi Spring Seal

Product Type: MR220

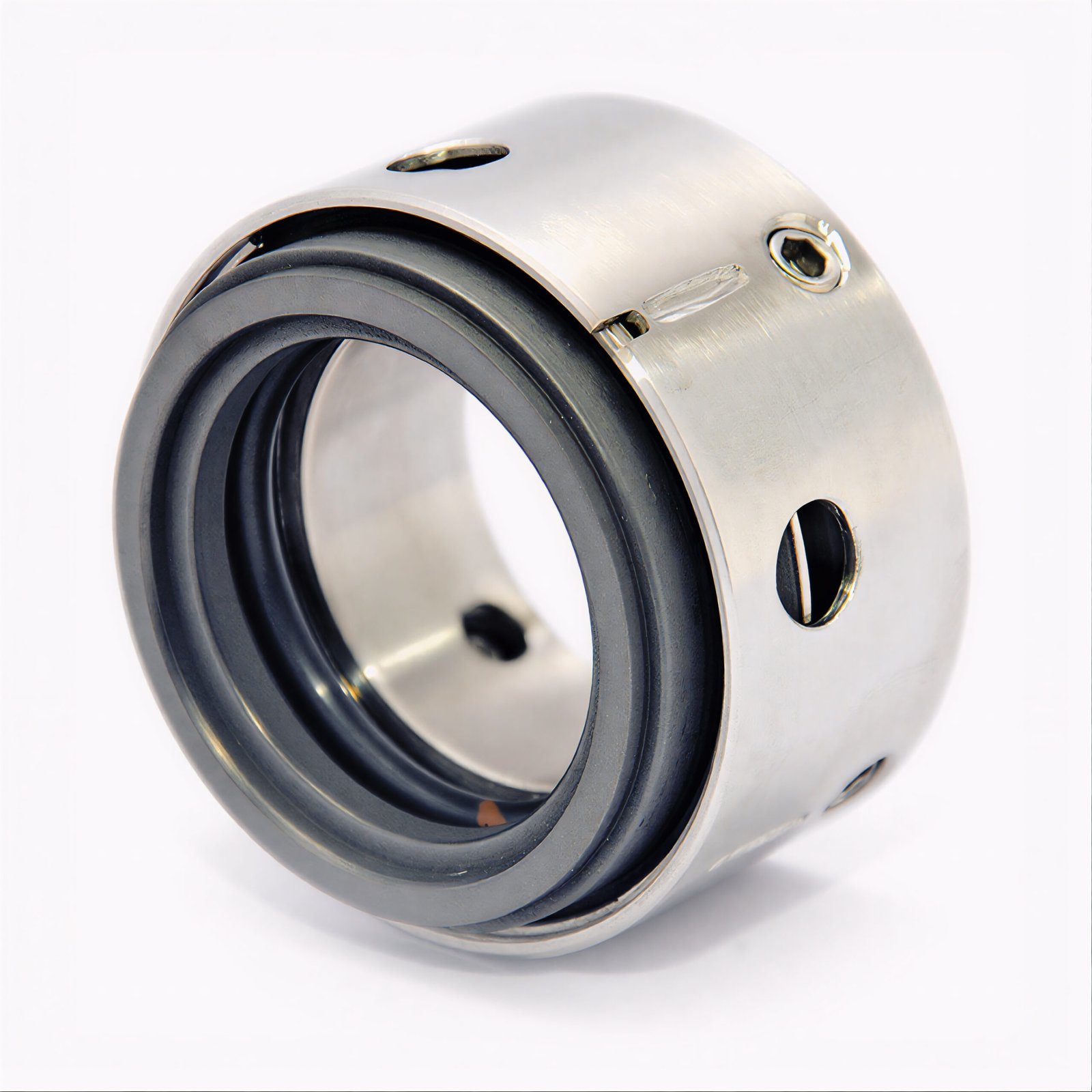

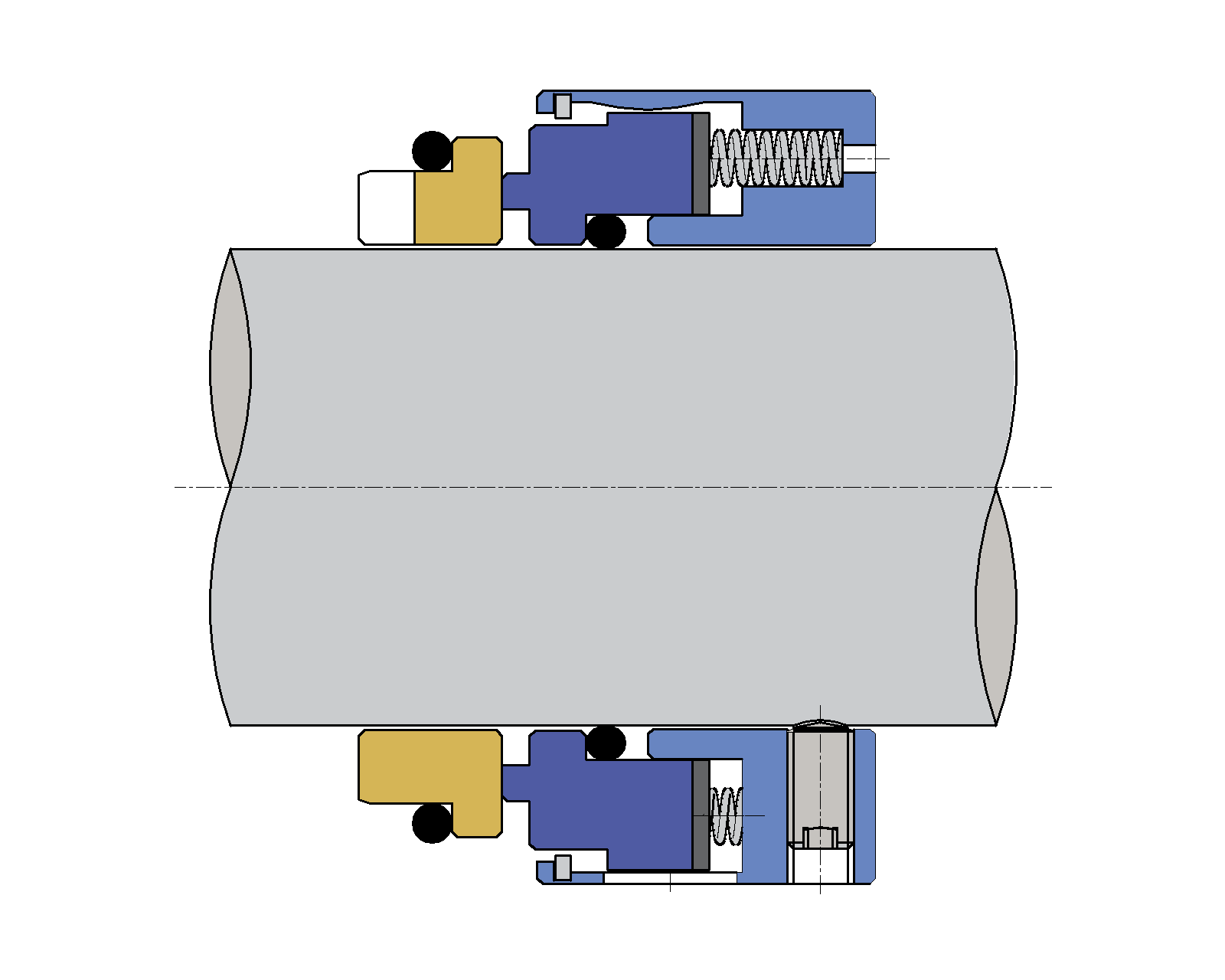

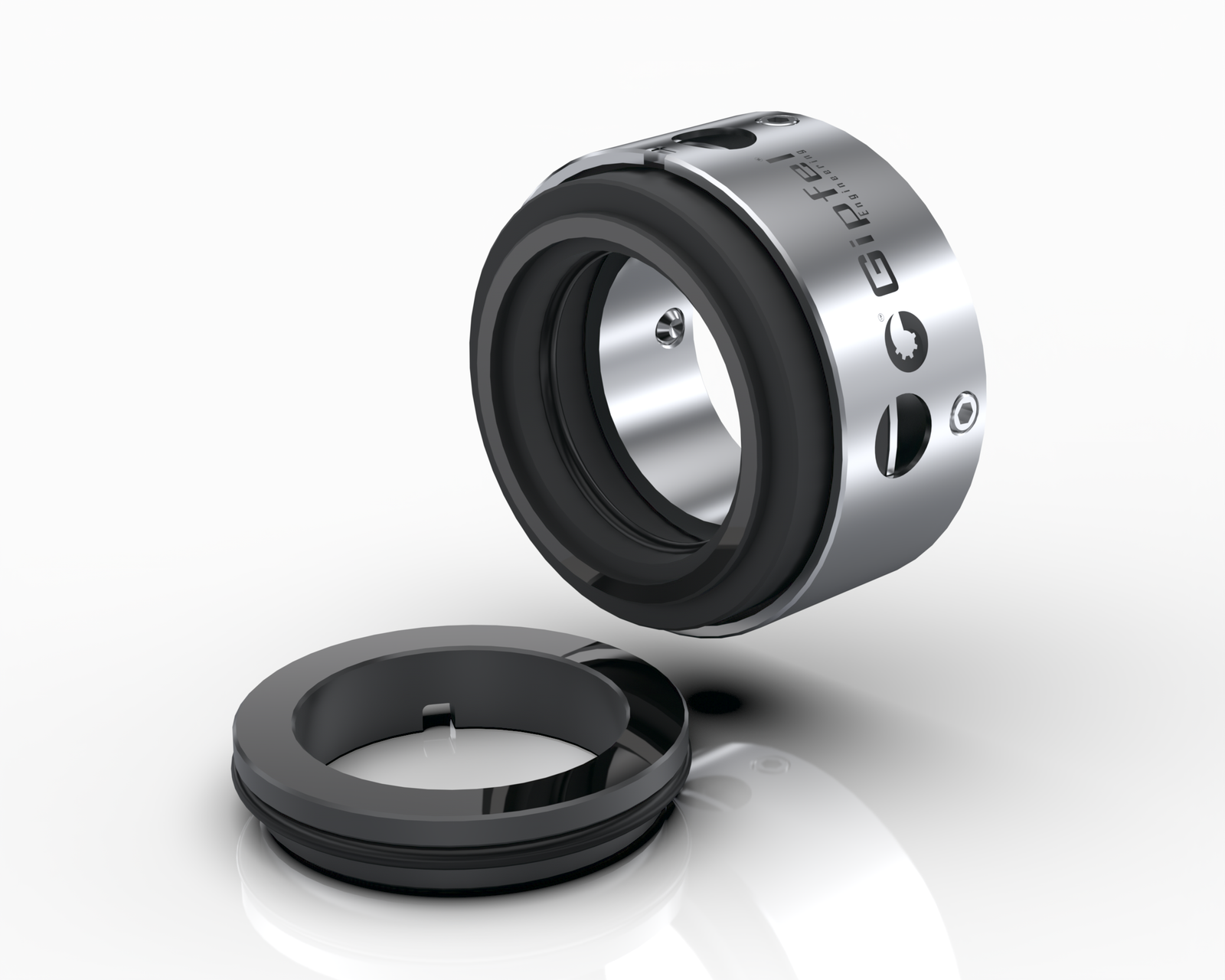

The MR220 Multi-spring reverse pressure-balanced Mechanical Seal is an externally mounted, reverse pressure-balanced seal that features an ‘O’ ring as its secondary seal. It is available with various seal face materials and elastomers, making it suitable for a wide range of applications.

This seal is ideal for corrosive environments, as the metallic components do not come into contact with the liquid being sealed. It can also be installed in a double back-to-back arrangement as an internal seal, and even if the barrier fluid pressure drops, it prevents process fluid from mixing with the barrier fluid, hence its designation as a Reverse Pressure Balanced Seal.

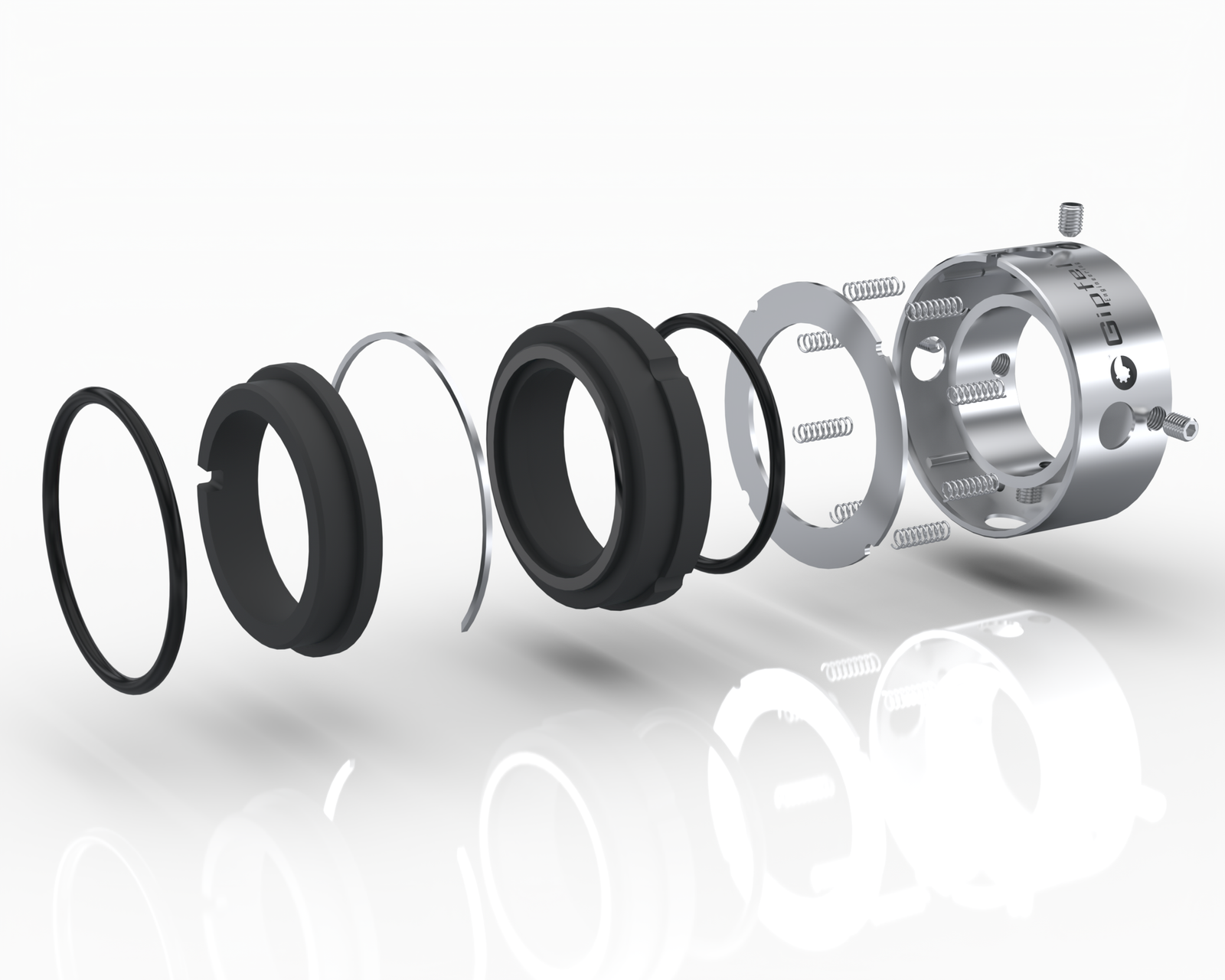

This design is perfect for stock rationalization. The seals are factory-assembled and dynamically tested to ensure optimal performance.

Key Features

  • Single seal
  • Pusher type
  • Rotating spring
  • Externally mounted
  • Multiple spring type
  • Reverse pressure balanced design
  • Independent of the direction of rotation

Specifications & Operating Limits

Parameter Value
Shaft Size 20.0 mm to 250.0 mm / 0.750” to 10.000” (inch series)
Pressure Up to 25 bar (363 psi)
Temperature -40 °C to +120 °C (-40 °F to +248 °F)
Speed Up to 2900 rpm
Note: Limits are maximum values for individual parameters and are not simultaneous. Actual limits depend on the fluid, materials and seal size; contact Gipfel Engineering to confirm suitability for your duty.

Materials of Construction

Component Materials offered
Seal faces Carbon; Silicon Carbide; Tungsten Carbide
Elastomers NBR; FKM; EPDM; Aflas®; FFKM
Hardware SS 304; SS 316; Hastelloy® C; Alloy – 20; Monel; Titanium
  • Faces: hard-on-hard pairs for abrasive or solids-laden duties; carbon-based pairs for clean, lubricating fluids.
  • Elastomers: selected against the process fluid; EPDM is not for petroleum oils.
  • Metals: selected by corrosion level, chloride content and temperature.

Hastelloy® and Aflas® are registered trademarks of their respective owners.

Applications

General and light chemicals; corrosive chemicals; hydrocarbons; petrochemical and refinery services, etc.

More Downloads

Frequently Asked Questions

  1. What is the MR220?
    The MR220 Multi-spring reverse pressure-balanced Mechanical Seal is an externally mounted, reverse pressure-balanced seal that features an ‘O’ ring as its secondary seal.
  2. What shaft sizes does the MR220 cover?
    20.0 mm to 250.0 mm (0.750” to 10.000”).
  3. What are the operating limits of the MR220?
    Up to 25 bar (363 psi); -40 °C to +120 °C (-40 °F to +248 °F); and up to 2900 rpm. These limits are not simultaneous.
  4. Which materials are available?
    Faces in carbon, silicon carbide or tungsten carbide; elastomers in NBR, FKM, EPDM, Aflas® or FFKM; hardware in SS 304, SS 316, Hastelloy® C, Alloy – 20, Monel or Titanium.
  5. Does the MR220 work in both directions of rotation?
    Yes. It operates independently of the direction of shaft rotation.
  6. Where is the MR220 used?
    General and light chemicals; corrosive chemicals; hydrocarbons; petrochemical and refinery services.
