Un-Balance Multi Spring Seal

Product Type: MS210

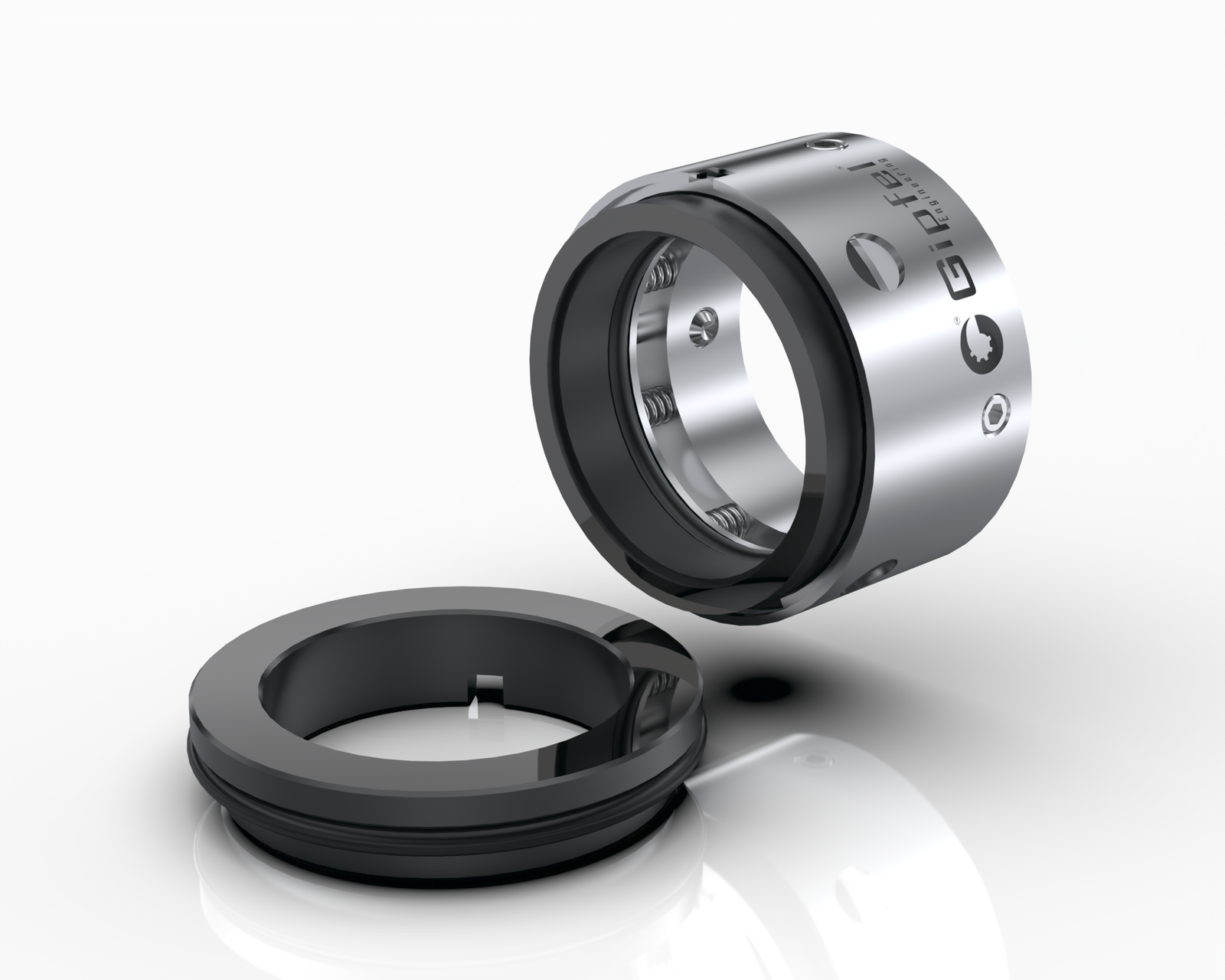

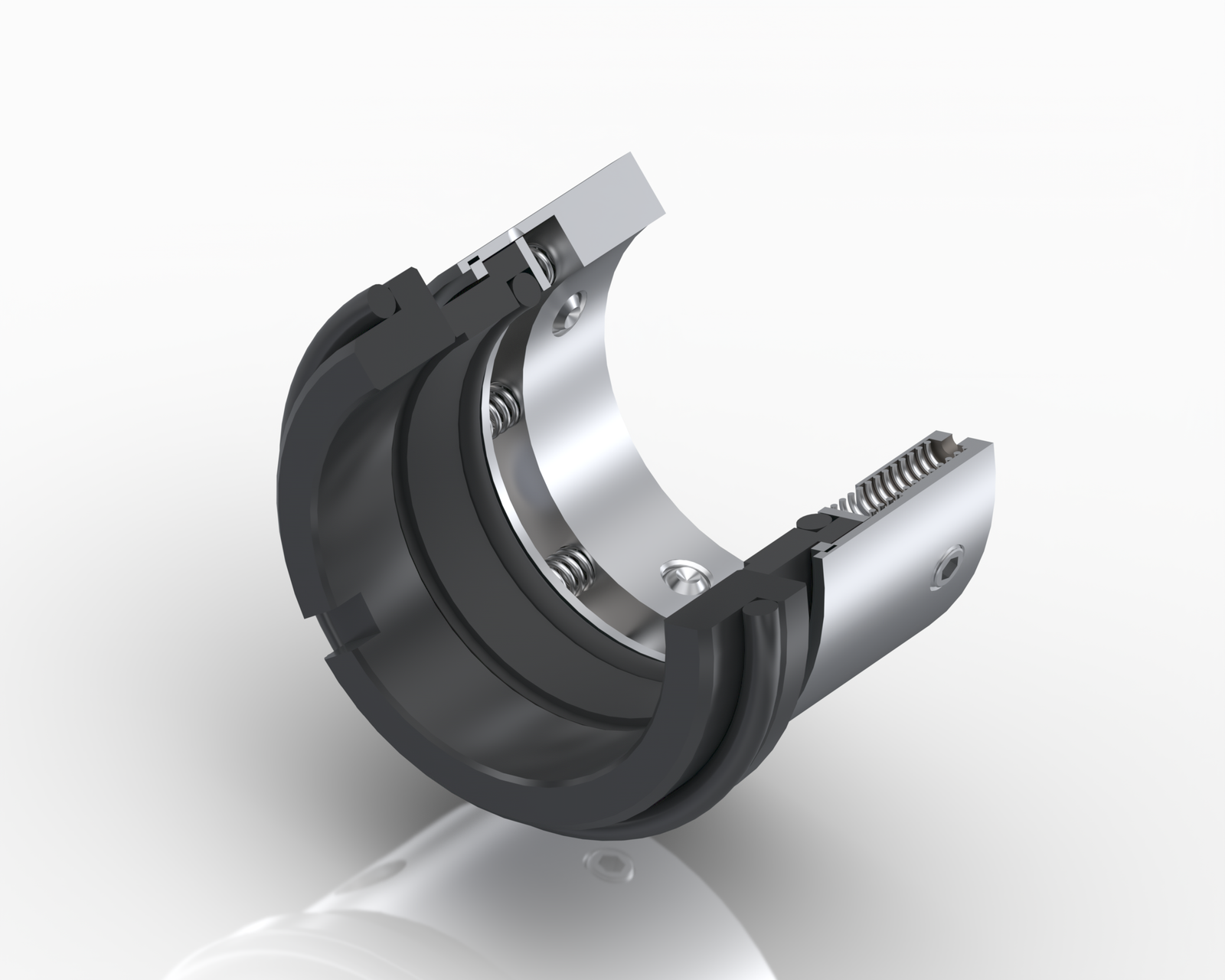

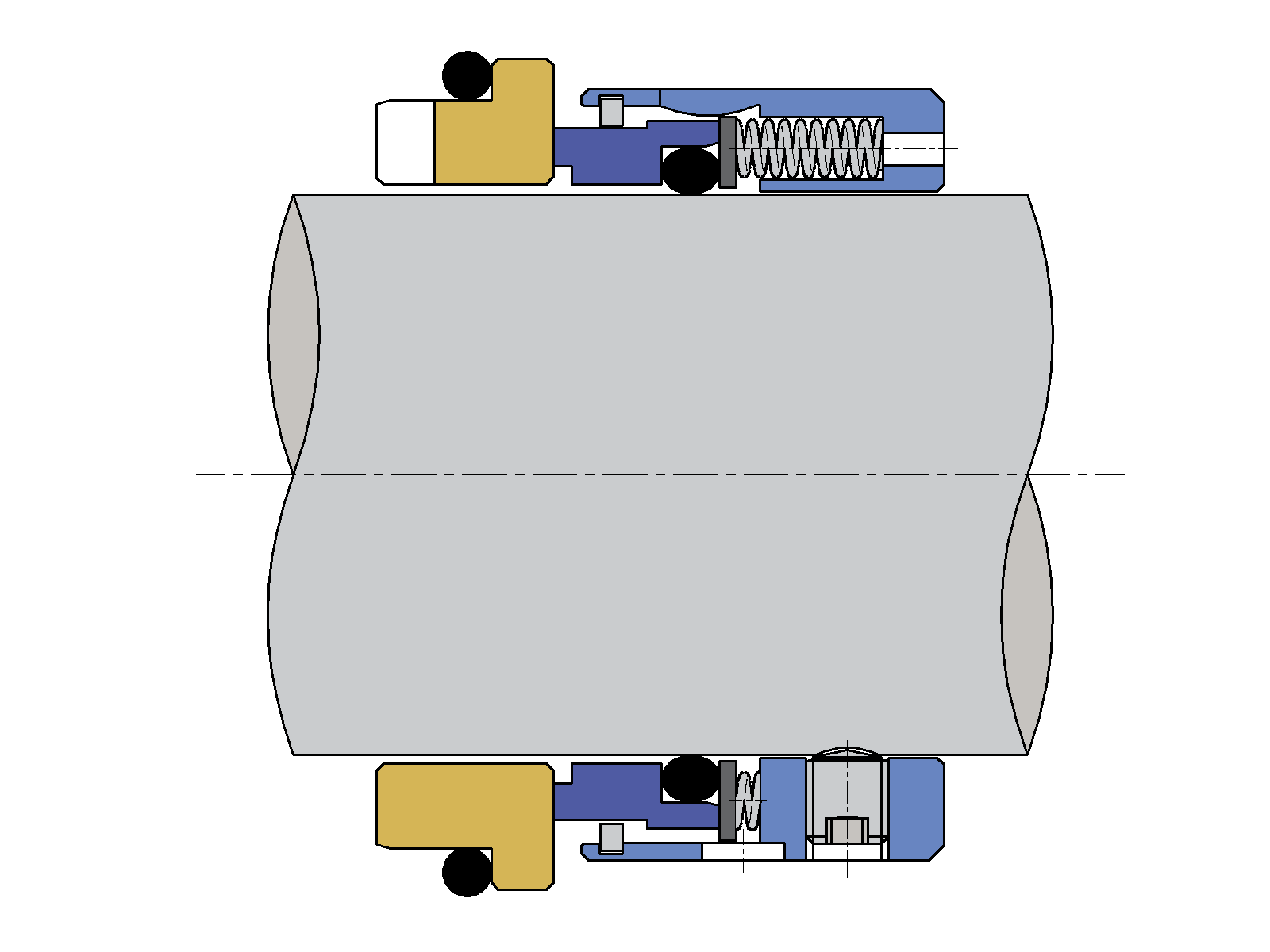

The MS210 Multi-spring unbalanced Mechanical Seal is designed for universal applications, with a compact structure that makes it suitable for all types of centrifugal pumps. Torque transmission from the retainer shell to the seal ring is efficiently handled by robust drive lugs.

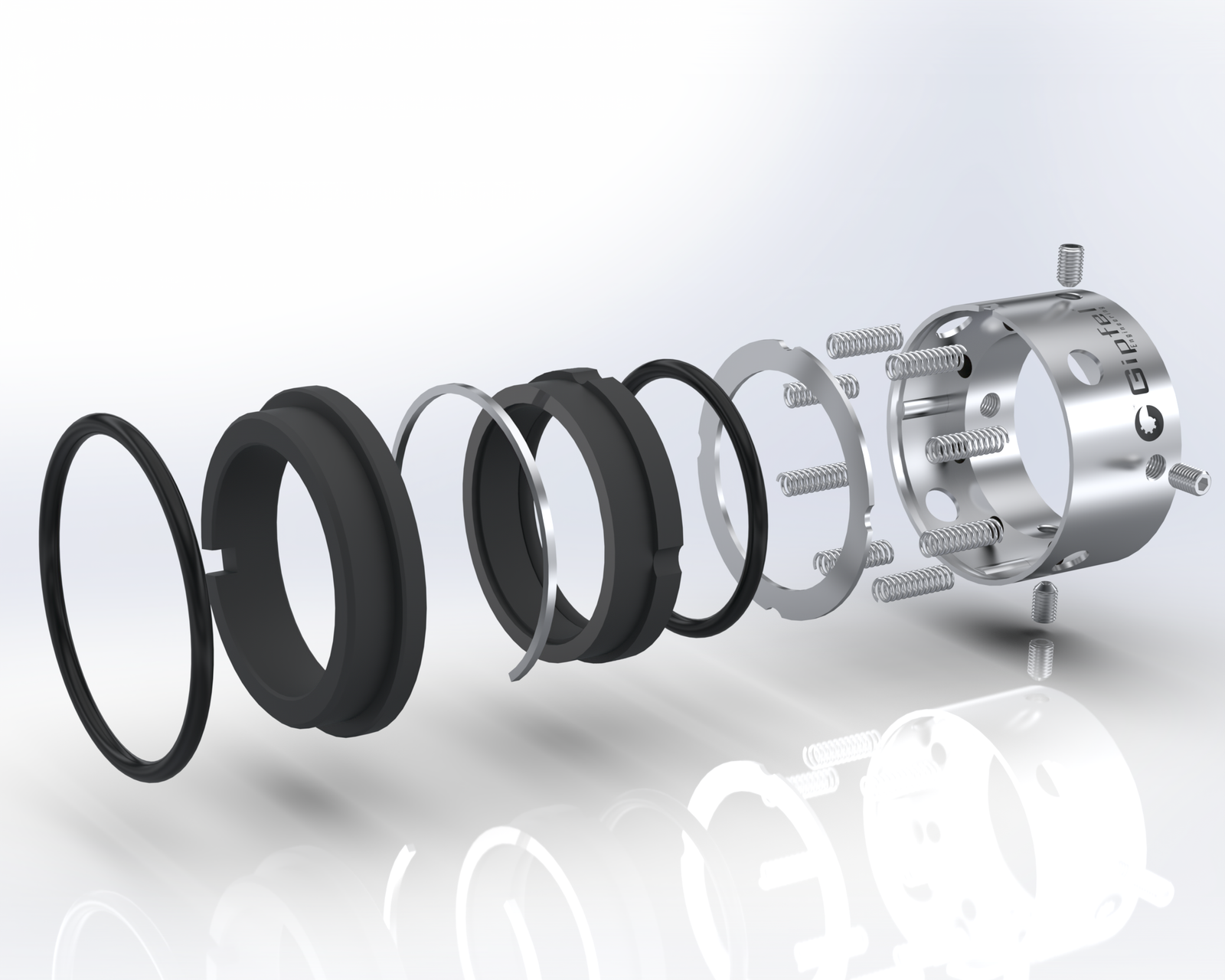

All components are secured by a snap ring, allowing for easy installation and removal. Since all parts are interchangeable, the MS210 seal can be converted from an ‘O’ ring to a ‘Wedge’ configuration by simply changing the seal ring and secondary seal, making it ideal for stock rationalization. These seals are factory-assembled and undergo dynamic testing to ensure reliable performance.

Key Features

  • Single seal
  • Pusher type
  • Rotating spring
  • Unbalance design
  • Multiple spring type
  • Internal & external mounted
  • Independent of the direction of rotation

Specifications & Operating Limits

Parameter Value
Shaft Size 14.0 mm to 250.0 mm / 0.500” to 10.000” (inch series)
Pressure Up to 12 bar (174 psi)
Temperature -20 °C to +120 °C (-4 °F to +248 °F)
Speed Up to 2900 rpm
Note: Limits are maximum values for individual parameters and are not simultaneous. Actual limits depend on the fluid, materials and seal size; contact Gipfel Engineering to confirm suitability for your duty.

Materials of Construction

Component Materials offered
Seal faces Carbon; Ceramic; Lecrolloy; Silicon Carbide; Tungsten Carbide
Elastomers NBR; FKM; EPDM; Aflas®; PTFE; FFKM
Hardware SS 304; SS 316; Hastelloy® C; Alloy – 20; Monel; Titanium
  • Faces: hard-on-hard pairs for abrasive or solids-laden duties; carbon-based pairs for clean, lubricating fluids.
  • Elastomers: selected against the process fluid; EPDM is not for petroleum oils.
  • Metals: selected by corrosion level, chloride content and temperature.

Hastelloy® and Aflas® are registered trademarks of their respective owners.

Applications

Clear, lubricating, non-corrosive liquids; general chemical services; petrochemical and refinery services, etc.

More Downloads

Frequently Asked Questions

  1. What is the MS210?
    The MS210 Multi-spring unbalanced Mechanical Seal is designed for universal applications, with a compact structure that makes it suitable for all types of centrifugal pumps.
  2. What shaft sizes does the MS210 cover?
    14.0 mm to 250.0 mm (0.500” to 10.000”).
  3. What are the operating limits of the MS210?
    Up to 12 bar (174 psi); -20 °C to +120 °C (-4 °F to +248 °F); and up to 2900 rpm. These limits are not simultaneous.
  4. Which materials are available?
    Faces in carbon, ceramic, lecrolloy, silicon carbide or tungsten carbide; elastomers in NBR, FKM, EPDM, Aflas®, PTFE or FFKM; hardware in SS 304, SS 316, Hastelloy® C, Alloy – 20, Monel or Titanium.
  5. Does the MS210 work in both directions of rotation?
    Yes. It operates independently of the direction of shaft rotation.
  6. Where is the MS210 used?
    Clear, lubricating, non-corrosive liquids; general chemical services; petrochemical and refinery services.
