Multi Spring Seal (Non-Clogged Type)

Product Type: MI250C

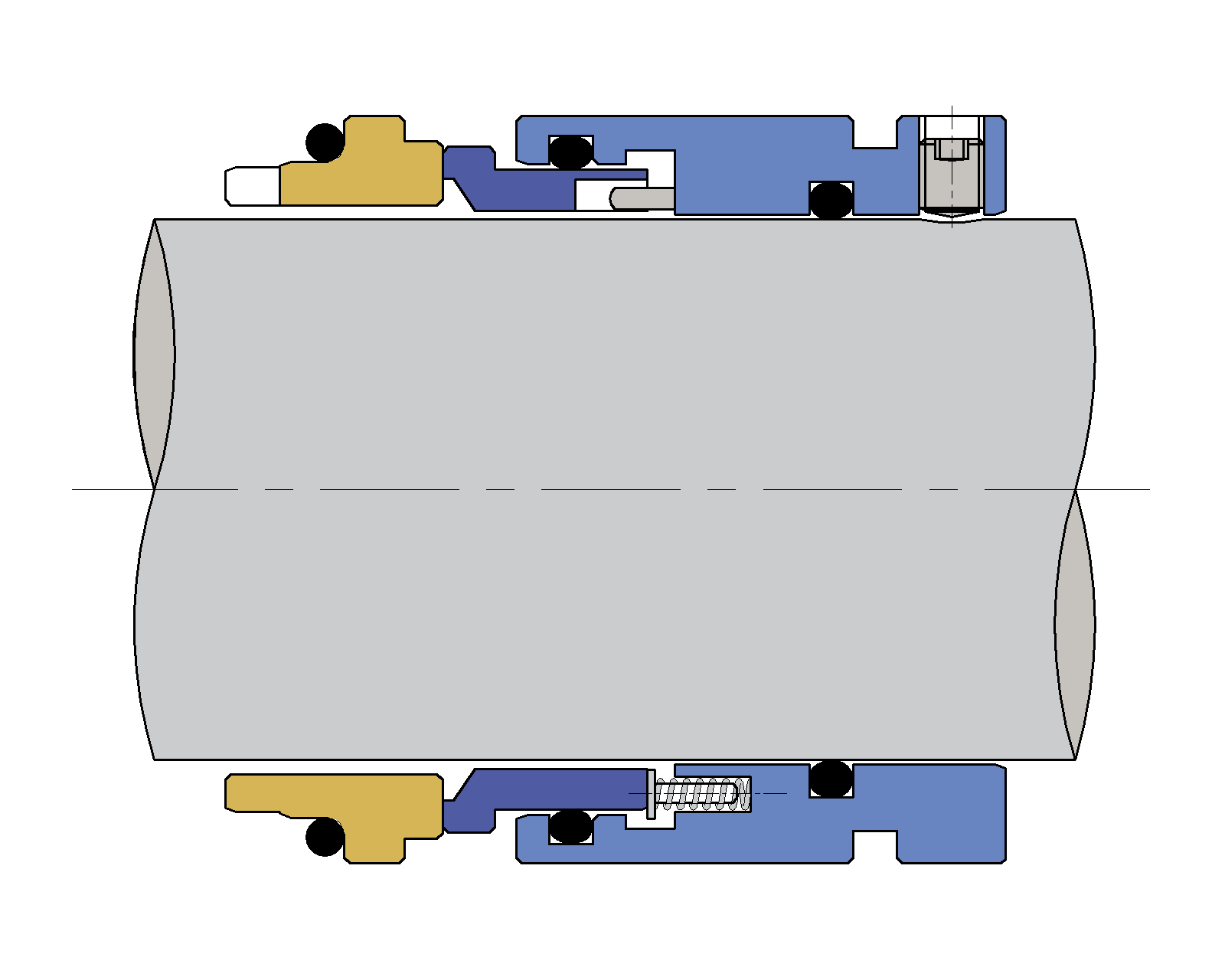

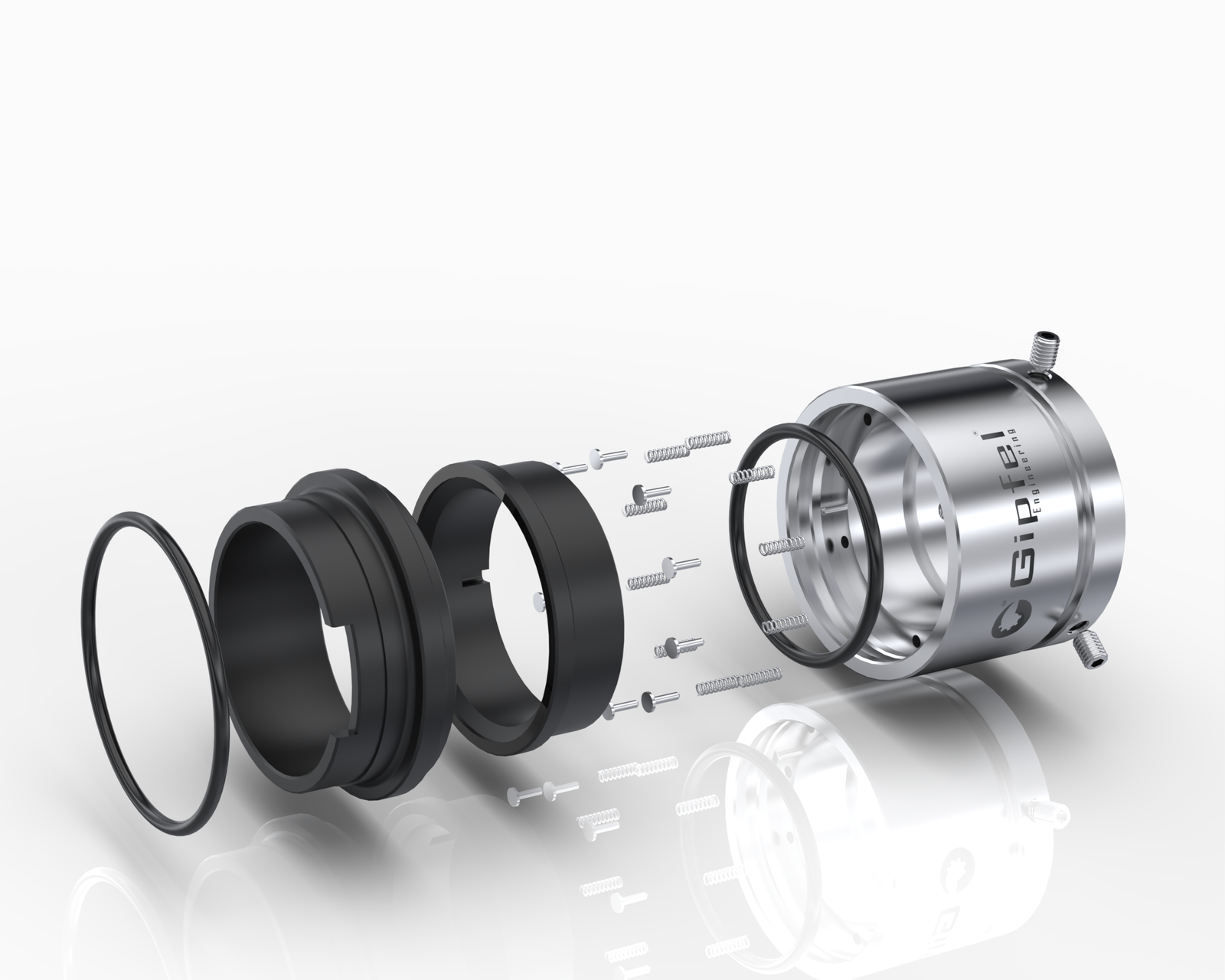

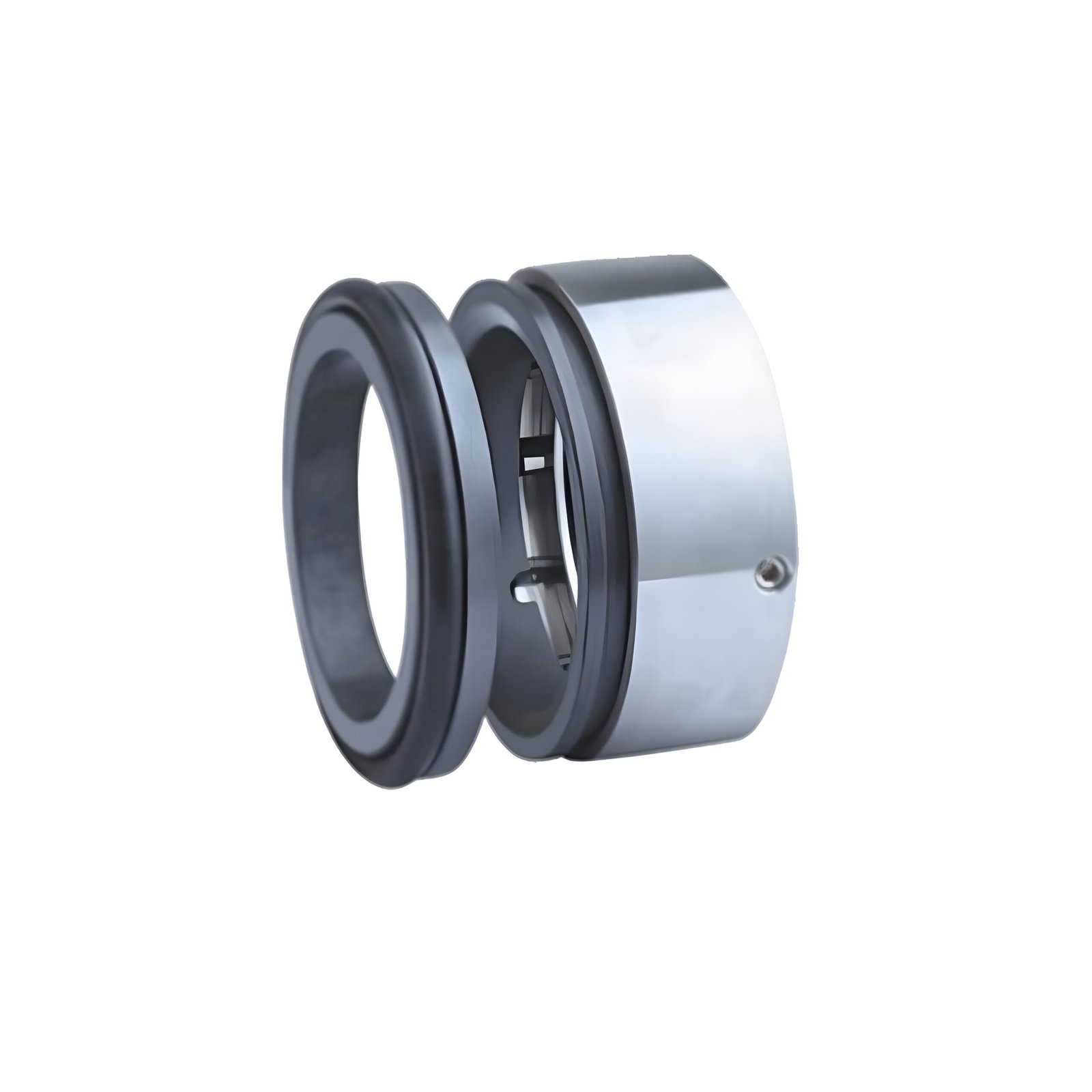

The MI250C is a high-performance, multi-spring mechanical seal specifically developed for slurry applications. Its design includes a dynamic ‘O’ ring that protects the springs from exposure to the media. Despite being a balanced seal, it does not require a stepped sleeve, allowing the sleeve from an unbalanced seal to be used without modification

Torque is transmitted to the seal ring through durable multiple drive pins or lugs. The MI250C can be paired with various stationary seal rings, providing flexibility across different applications. It features a balanced ‘O’ ring design with anti-clogging properties, where the springs are located outside the fluid, and the dynamic ‘O’ ring moves on a clean surface.

This design is ideal for stock rationalization, and all seals are factory-assembled and dynamically tested to ensure performance and reliability.

Key Features

  • Single seal
  • Pusher type
  • Rotating spring
  • No shaft fretting
  • Multiple spring type
  • Stable drive pins/lugs
  • Balanced & unbalance design
  • Internally & externally mounted
  • Independent of the direction of rotation
  • Springs are outside the media (non-clogged)

Specifications & Operating Limits

Parameter Value
Shaft Size 14.0 mm to 250.0 mm / 0.500” to 10.000” (inch series)
Pressure Up to 10 bar (145 psi)
Temperature -20 °C to +120 °C (-4 °F to +248 °F)
Speed Up to 2900 rpm
Note: Limits are maximum values for individual parameters and are not simultaneous. Actual limits depend on the fluid, materials and seal size; contact Gipfel Engineering to confirm suitability for your duty.

Materials of Construction

Component Materials offered
Seal faces Carbon; Silicon Carbide; Tungsten Carbide
Elastomers FKM; EPDM; Aflas®; FFKM
Hardware SS 304; SS 316; Hastelloy® C; Alloy – 20; Titanium
  • Faces: hard-on-hard pairs for abrasive or solids-laden duties; carbon-based pairs for clean, lubricating fluids.
  • Elastomers: selected against the process fluid; EPDM is not for petroleum oils.
  • Metals: selected by corrosion level, chloride content and temperature.

Hastelloy® and Aflas® are registered trademarks of their respective owners.

Applications

Food, chemical and mining industries; sewage and wastewater treatment; media containing slurry and high-viscosity or viscous-contaminated liquids; sugar and pulp & paper industries, etc.

More Downloads

Frequently Asked Questions

  1. What is the MI250C?
    The MI250C is a high-performance, multi-spring mechanical seal specifically developed for slurry applications.
  2. What shaft sizes does the MI250C cover?
    14.0 mm to 250.0 mm (0.500” to 10.000”).
  3. What are the operating limits of the MI250C?
    Up to 10 bar (145 psi); -20 °C to +120 °C (-4 °F to +248 °F); and up to 2900 rpm. These limits are not simultaneous.
  4. Which materials are available?
    Faces in carbon, silicon carbide or tungsten carbide; elastomers in FKM, EPDM, Aflas® or FFKM; hardware in SS 304, SS 316, Hastelloy® C, Alloy – 20 or Titanium.
  5. Does the MI250C work in both directions of rotation?
    Yes. It operates independently of the direction of shaft rotation.
  6. Where is the MI250C used?
    Food, chemical and mining industries; sewage and wastewater treatment; media containing slurry and high-viscosity or viscous-contaminated liquids; sugar and pulp & paper industries.
