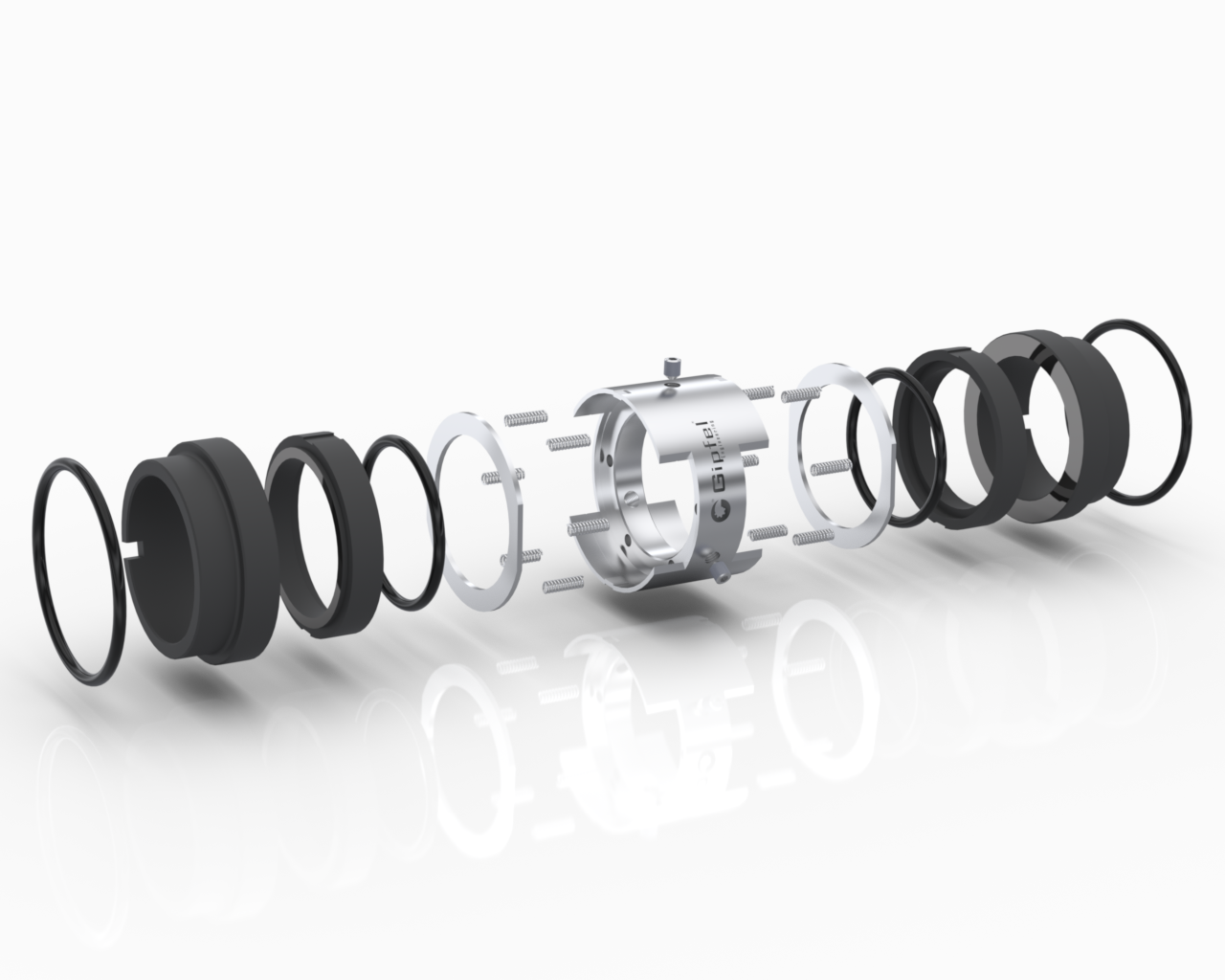

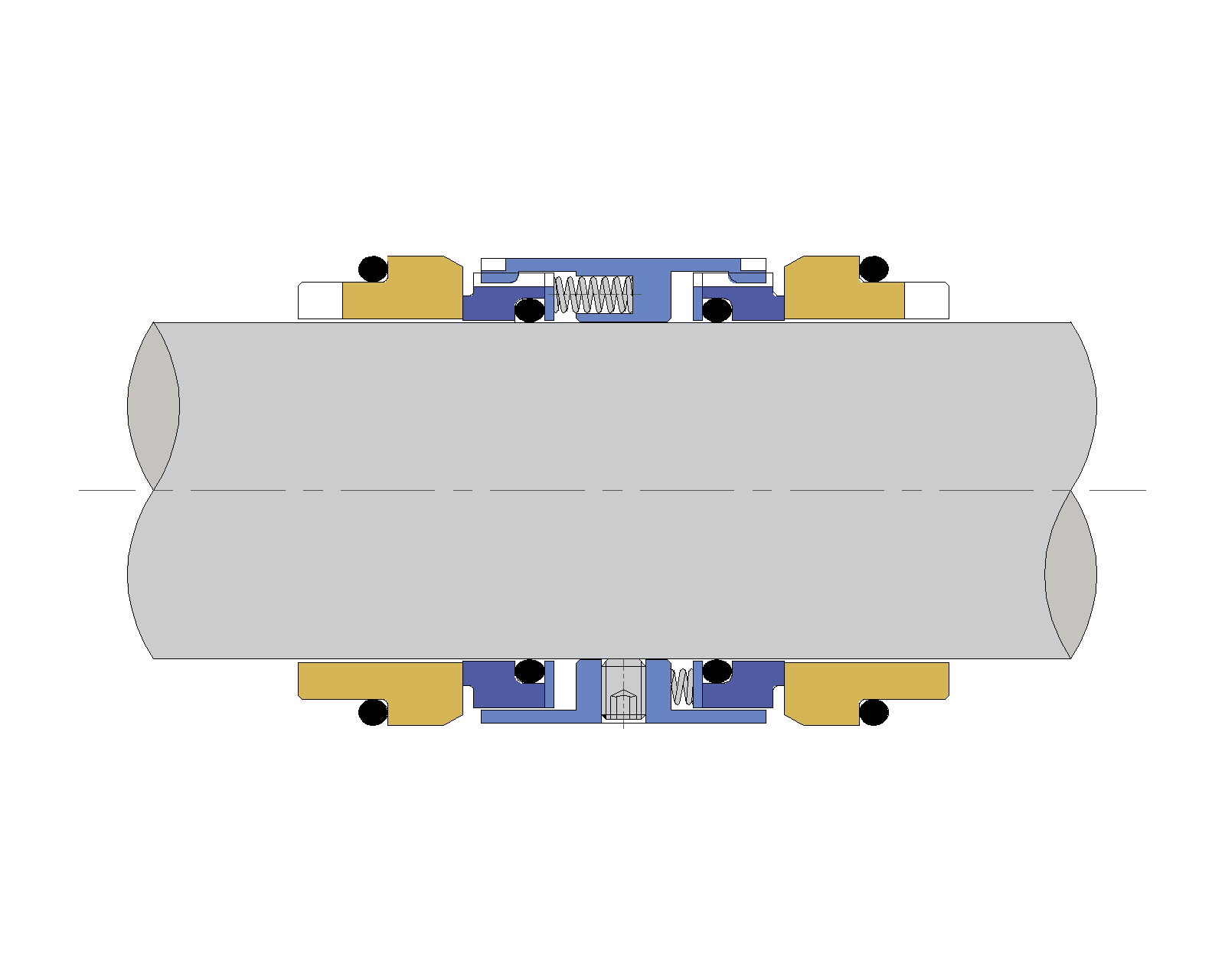

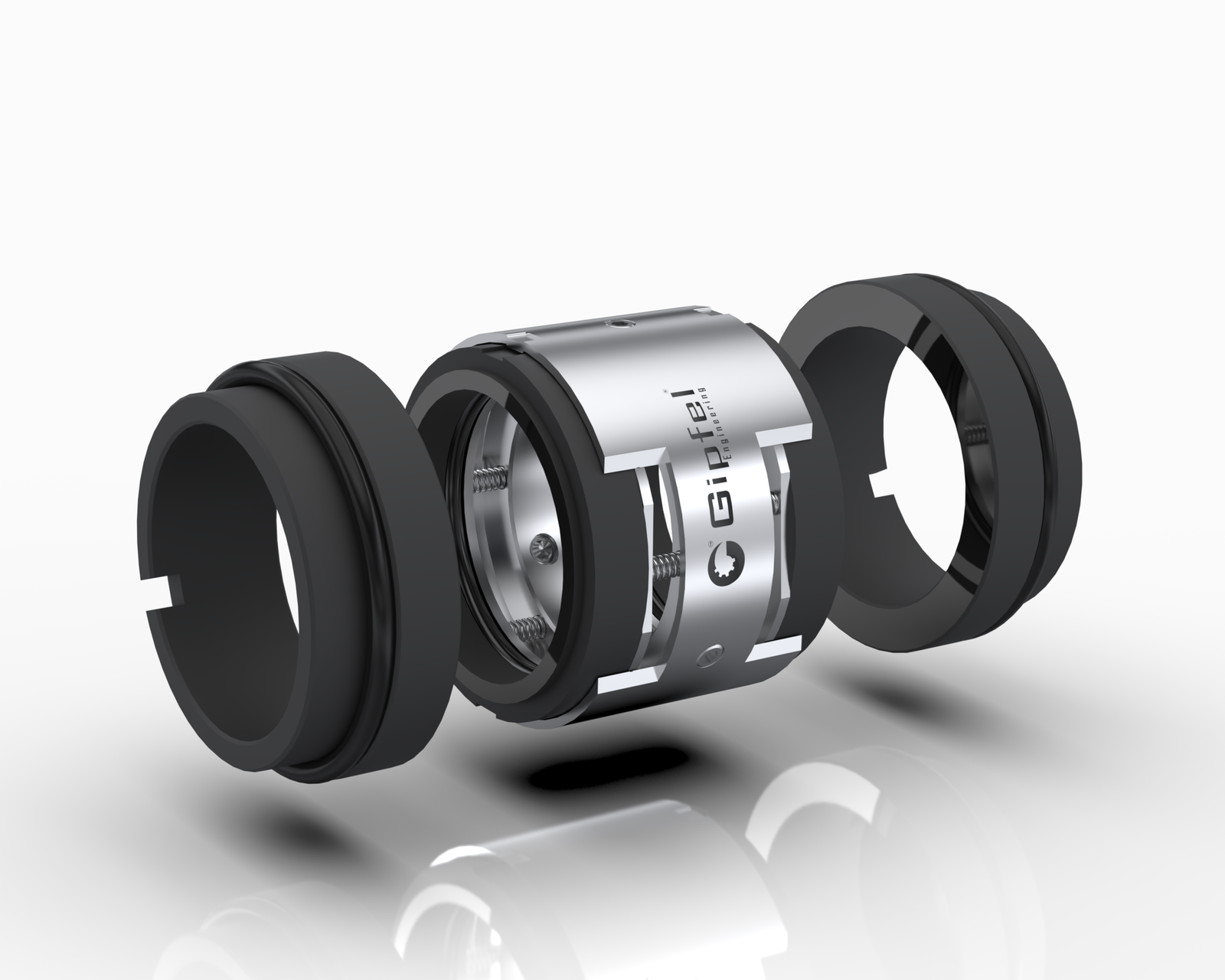

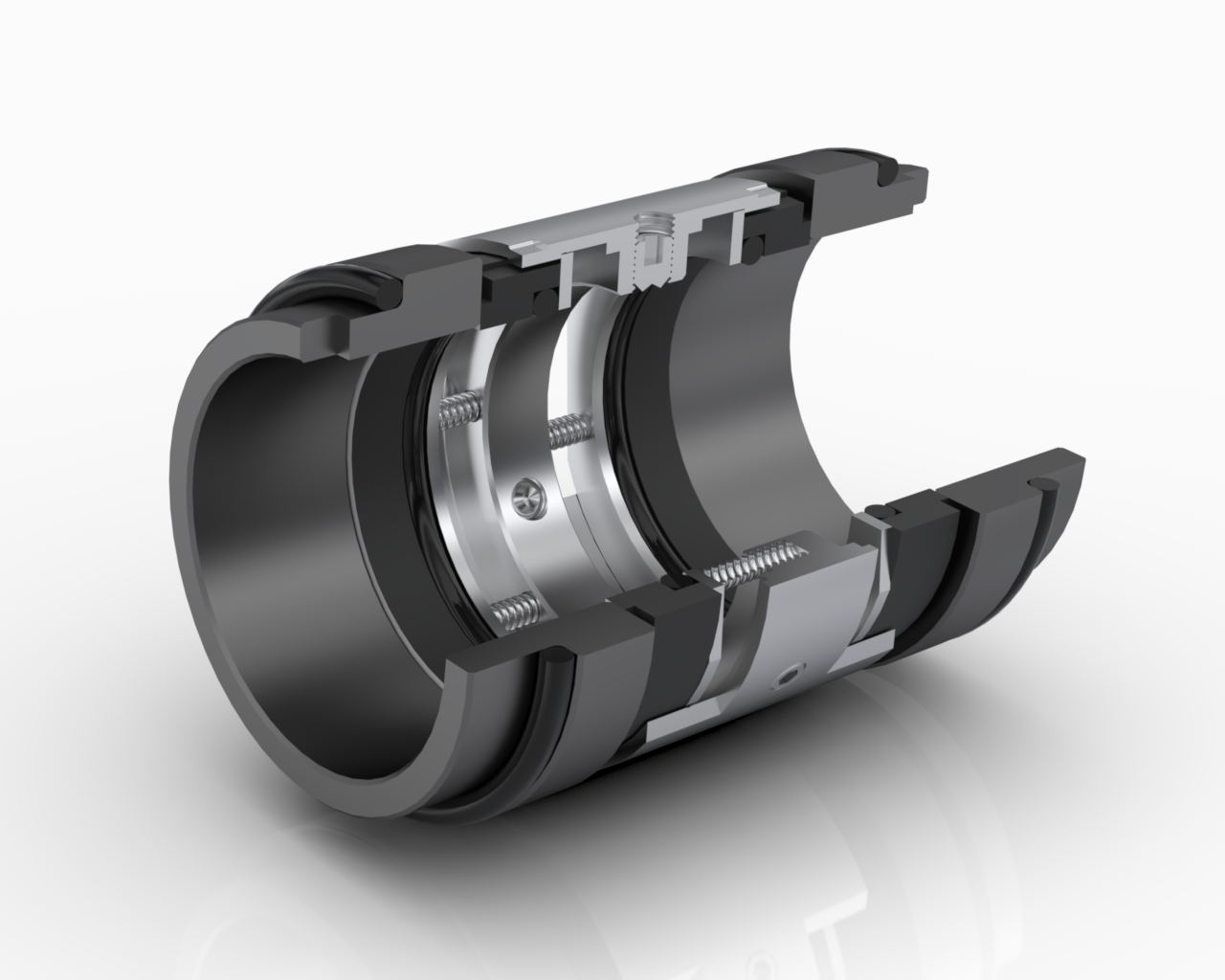

The ME280D / ME285D series multi-spring mechanical seals are engineered for demanding industrial applications, available in both balanced and unbalanced configurations. Their compact, space-efficient design ensures compatibility with a wide range of centrifugal pumps across multiple industries.
Reliable torque transmission from the retainer shell to the seal face is achieved through robust, precision-engineered drive lugs, ensuring stable operation under varying load conditions. The seals feature fully interchangeable components, enabling effective stock rationalization and simplified maintenance.
Each seal is factory-assembled and dynamically tested to stringent quality standards, ensuring consistent performance, operational reliability, and extended service life in continuous-duty applications.
Features;
- double seal
- pusher type
- rotating spring
- internally mounted
- multiple spring type
- balanced & unbalance design
- independent of the direction of rotation
Specification;
| Application | Clear, lubricating, non-corrosive liquids; general chemical services; petrochemical and refinery services, etc. | |
| Materials | Faces | Carbon / Silicon Carbide / Tungsten Carbide |
| Elastomer | Nitrile (NBR) / Viton (FKM) / EPDM / Aflas / PTFE / TTV / Kalrez (FFKM) | |
| Hardware | SS 304 / SS 316 / Hastelloy C-276 / Alloy 20 / Titanium | |
| Operating Limits | Size | 14.0 mm to 200.0 mm (0.500” to 8.000”) |
| Pressure | 16 bars (232 psi) | |
| Temperature | -20 °C to +150 °C (-4 °F +302 °F) | |
| Speed | 2900 rpm | |
