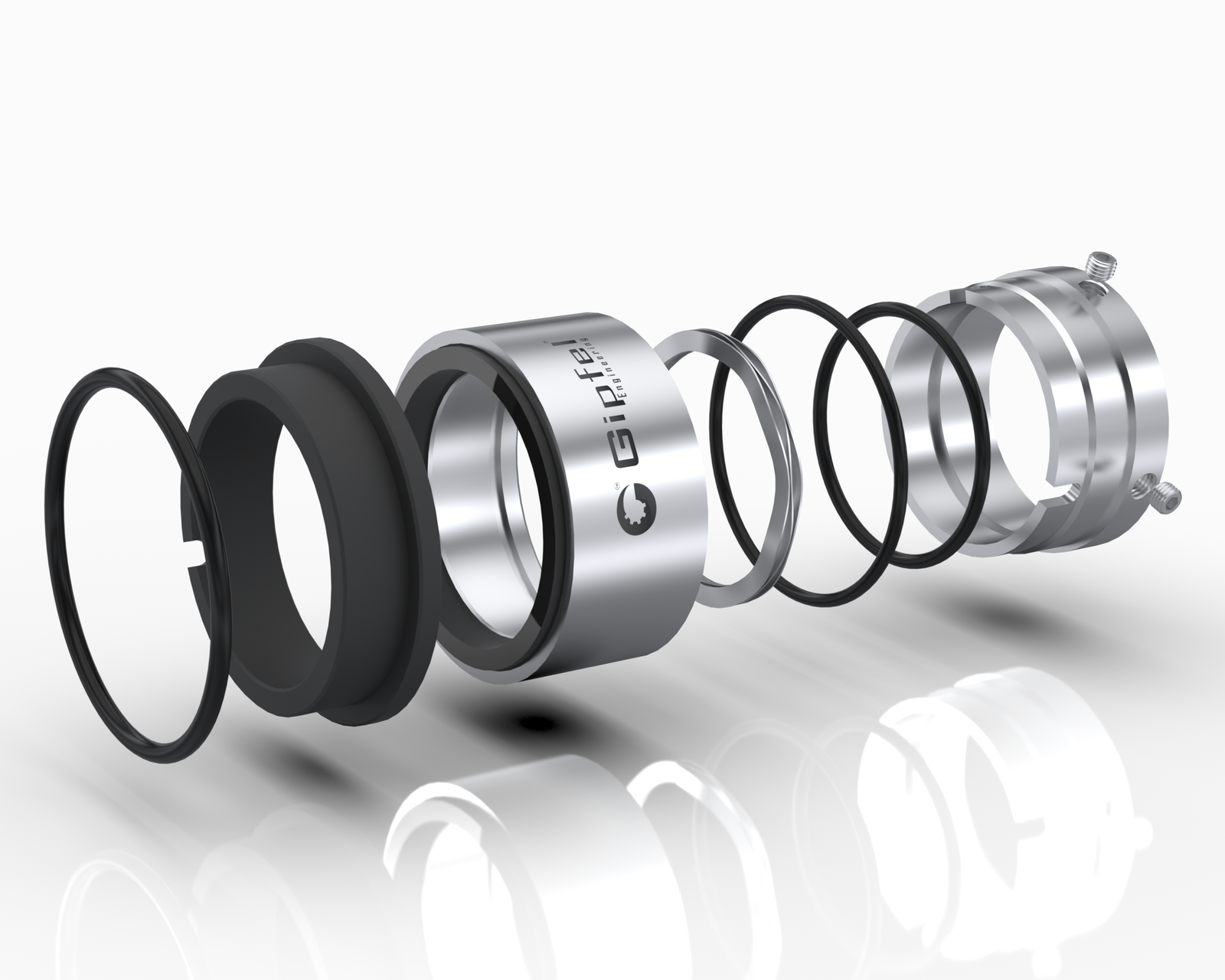

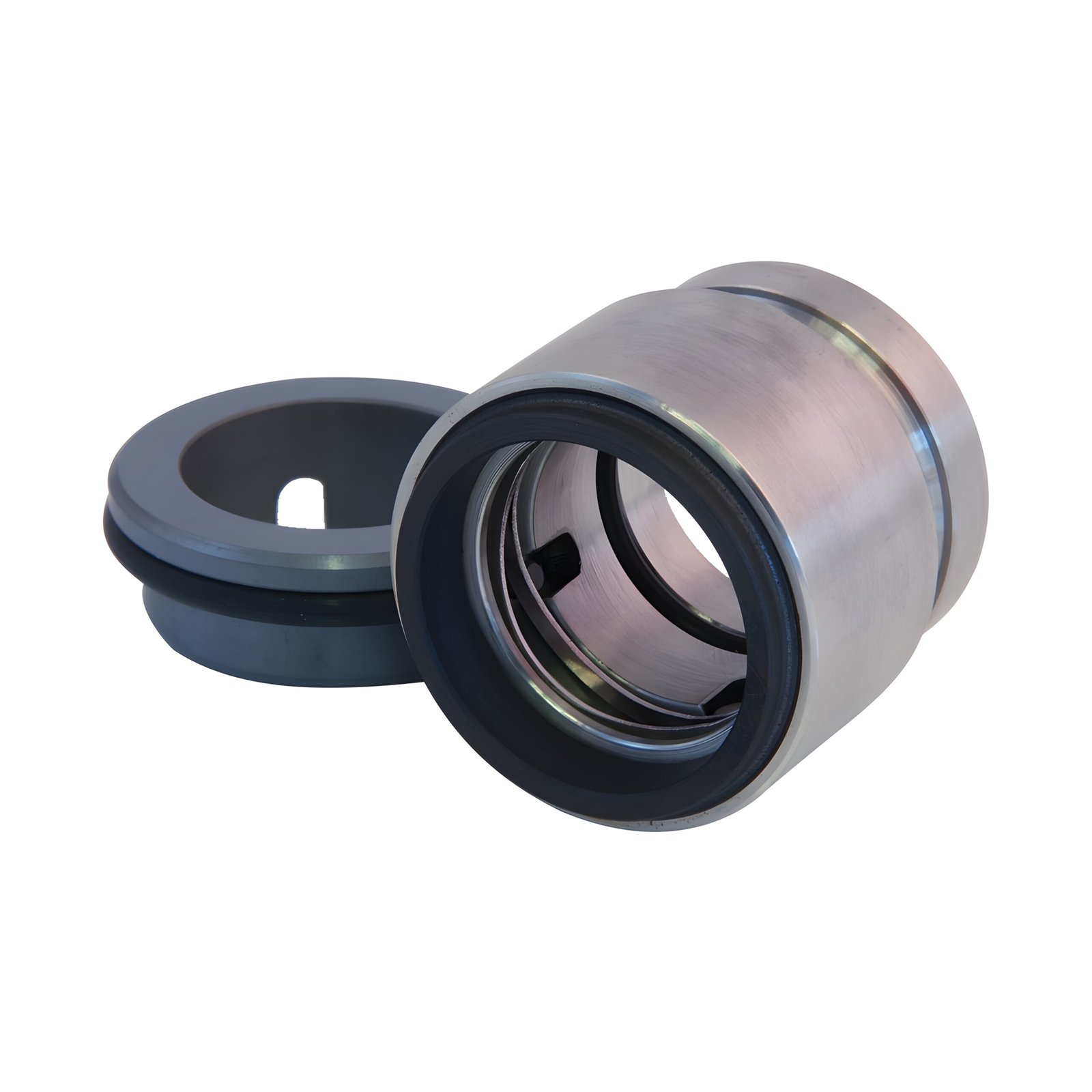

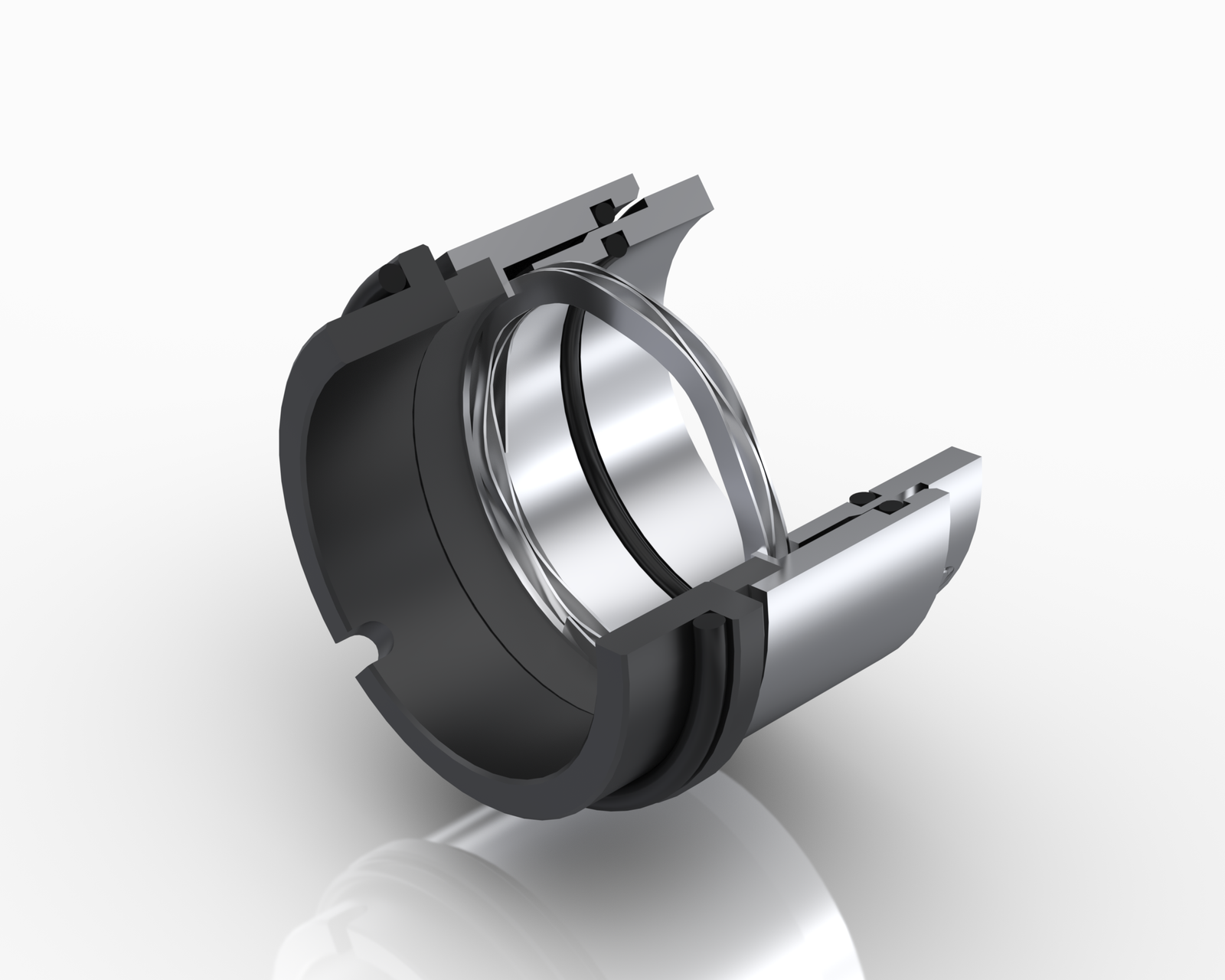

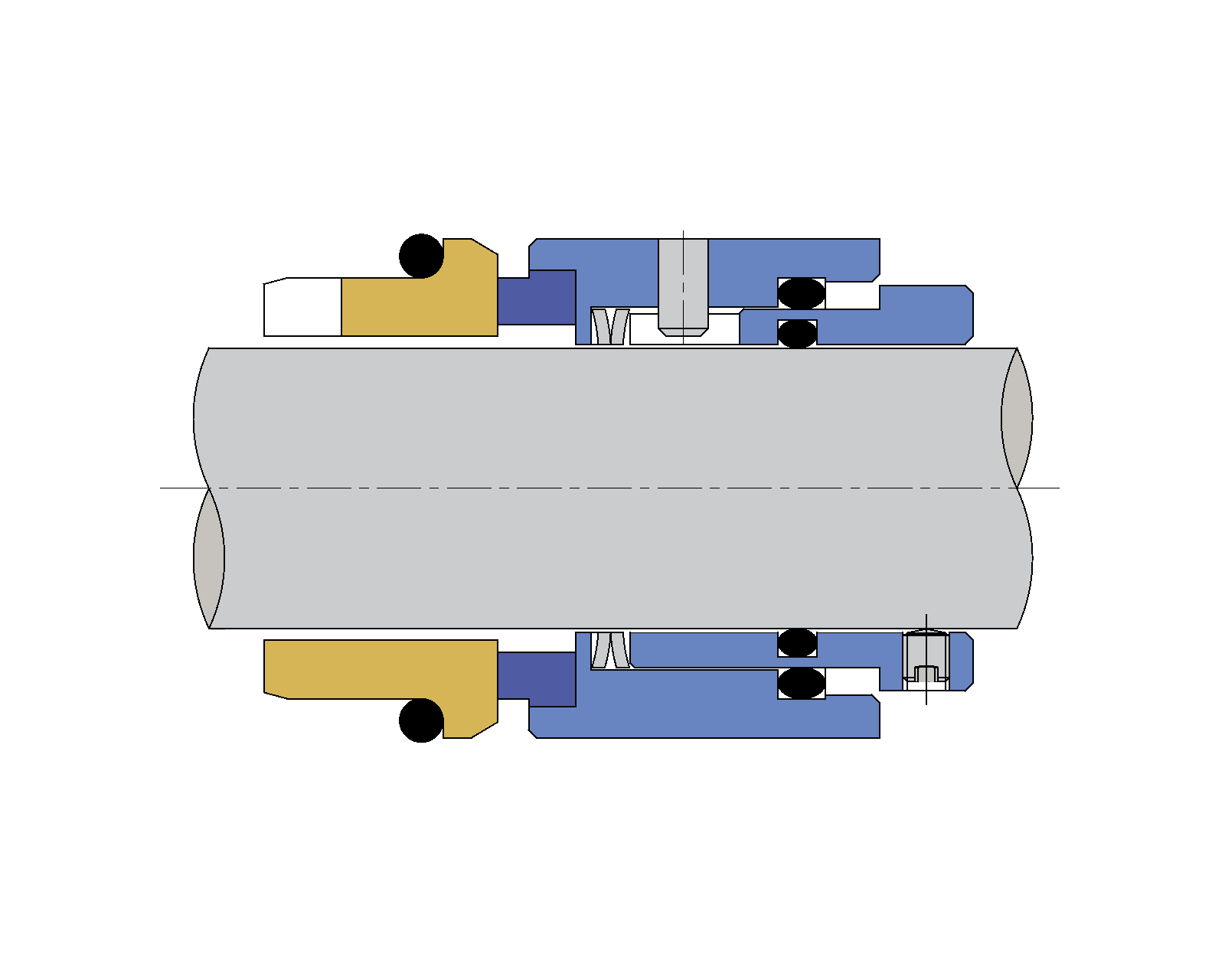

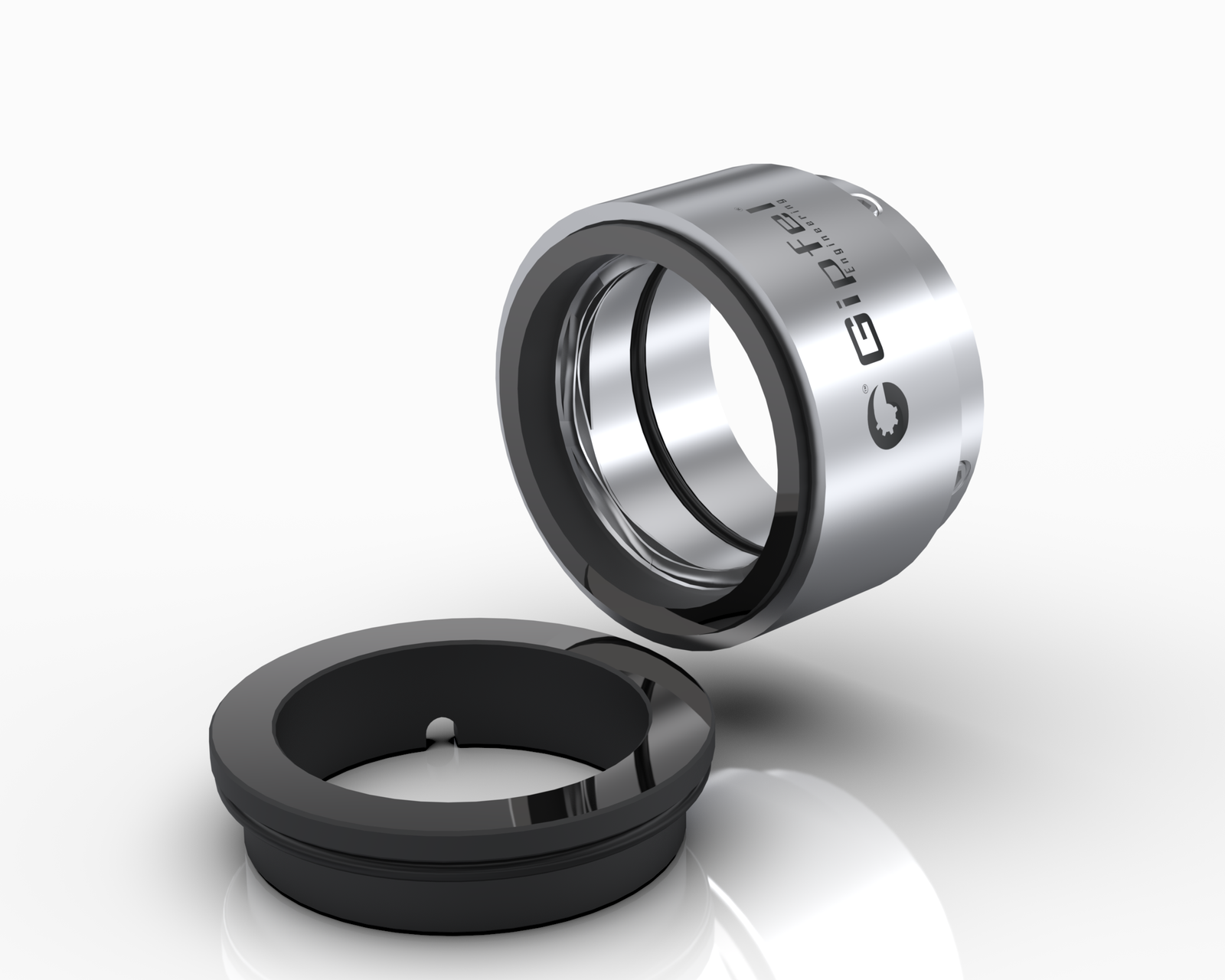

This Seal is designed with a wave spring for media containing solids or with high viscosity, e.g., sugar, paper, sewage and wastewater industry. This seal can also be used in a dirty application, as spring clogging does not occur. The springs are product-protected. There is no sticking or clogging; keep faces in contact. Additionally, these series are compact in design, featuring a reduced axial length. Torque transmission from the retainer shell to the seal ring is through the drive pin.
Features;
- Single seal
- Pusher type
- Internally mounted
- Wave spring-loaded
- Suitable for a short space
- Hydraulically balanced design
- Springs are outside the media
- Wave spring non-clogged design
- Independent of the direction of rotation
Specification;
| Application | Clear media; light sewage water; high‑viscosity fluids; light abrasive slurries; non-corrosive liquids; general and light process media; lubricating services; petrochemical, hydrocarbon processing and refinery applications, etc. | |
| Materials | Faces | Carbon / Ceramic / Silicon Carbide / Tungsten Carbide |
| Elastomer | Nitrile (NBR) / Viton (FKM) / EPDM / Aflas / PTFE / TTV / Kalrez (FFKM) | |
| Hardware | SS 304 / SS 316 / Hastelloy – C / Alloy – 20 / Titanium | |
| Operating Limits | Size | 20.0 mm to 100.0 mm (0.750” to 4.000”) |
| Pressure | 25 bars (363 psi) | |
| Temperature | -20 °C to +150 °C (-4 °F to +302 °F) | |
| Speed | 2900 rpm | |
