Rotary Spring Configuration

Product overview;

The Rotary Spring Configuration Heavy Duty Slurry Mechanical Seal is engineered for rigorous slurry processing environments where rotating equipment faces constant exposure to abrasive, high‑solid‑content media. Unlike stationary spring designs, this configuration integrates the springs directly into the rotating element, providing a dynamic response and consistent axial loading even under variable operating conditions.



Designed to perform reliably in industries such as mining, ore beneficiation, power generation, and industrial wastewater, this mechanical seal uses a rotary‑mounted spring system that maintains axial loading between the seal faces during continuous shaft rotation. This dynamic setup ensures effective sealing under misalignment, shaft deflection, and pressure surges common in heavy‑duty slurry systems.



The rotary springs are often shielded or semi‑isolated, reducing their direct exposure to the slurry and improving service life. The seal’s compact, modular construction supports efficient maintenance and offers enhanced durability in high‑wear environments.

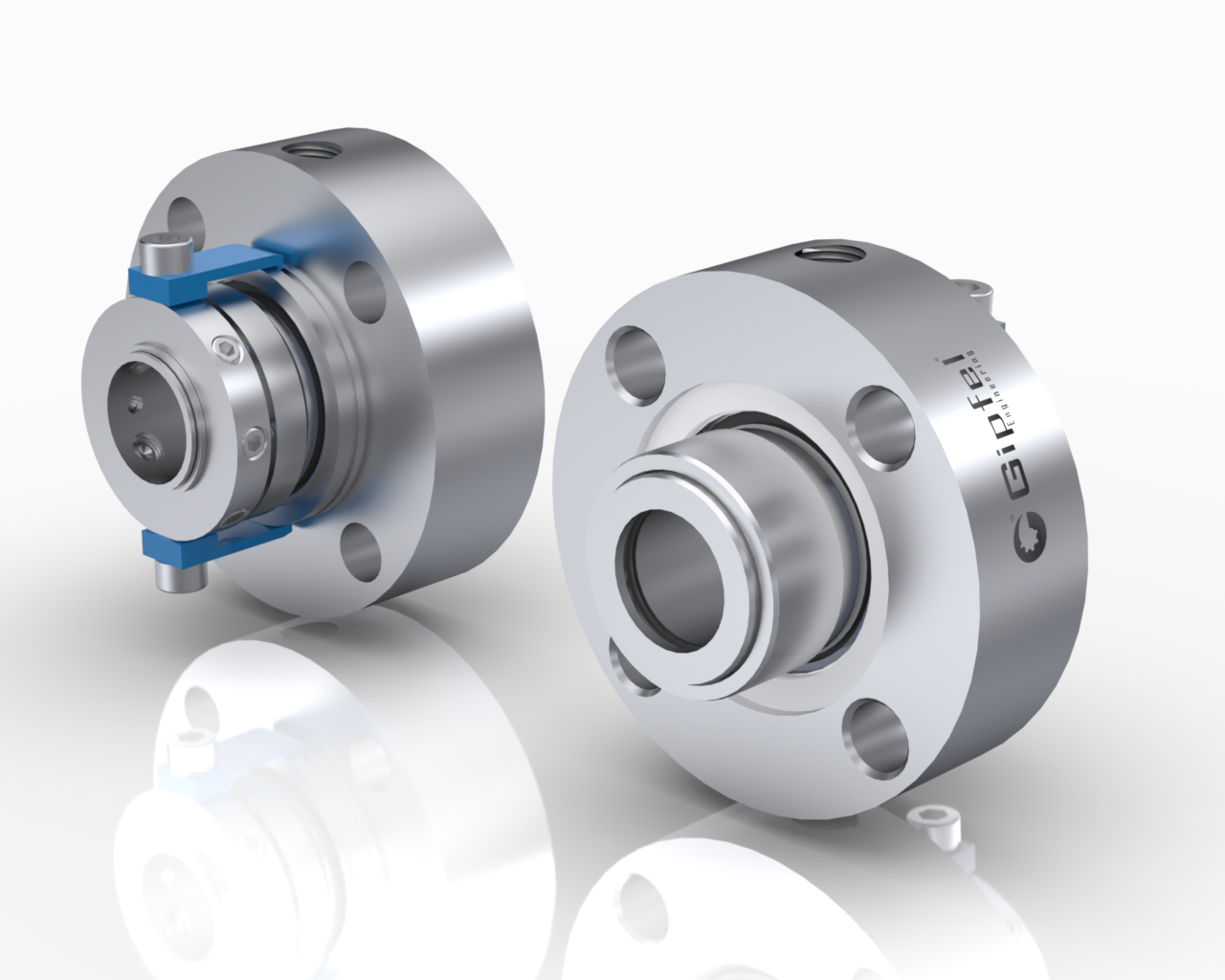

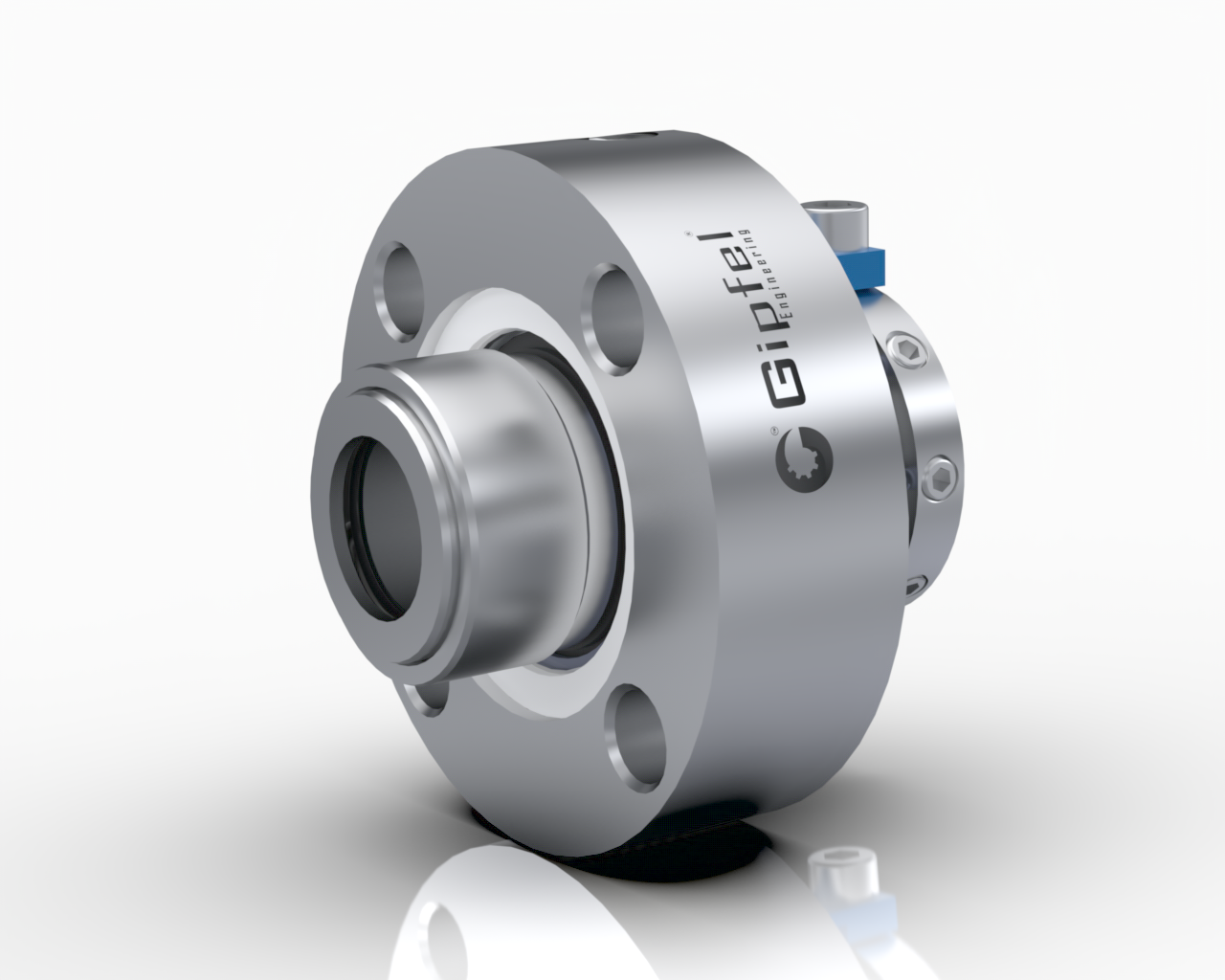

The HS870‑T1 Heavy Duty Slurry Mechanical Seal is a robust rotary spring mechanical seal engineered for abrasive slurry, viscous liquids, crystallizing media, and solids‑laden process streams. Its heavy‑duty construction supports operation in severe services where conventional process seals may suffer rapid face wear, clogging, spring fouling, or premature leakage.



The rotary spring configuration provides controlled axial loading of the seal faces, while hard‑face material options such as silicon carbide and tungsten carbide help improve resistance to abrasion, erosion, and thermal distortion. The seal is suitable for use in slurry pumps, process pumps, mixers, agitators, and other rotating equipment operating in mining, chemical, fertilizer, pulp & paper, refinery, power, wastewater, and mineral‑processing environments.





Key technical features;

• Heavy‑duty slurry seal design for abrasive, viscous, and solids‑laden fluids encountered in severe process duties.

• Suitable for slurry pumps, mixers, agitators, and other rotary equipment exposed to abrasive and high‑solids process media.

• Robust metallic hardware constructed from materials suitable for chemically aggressive and industrial process environments.

• Compatible with flush, quench, or barrier arrangements depending on slurry severity, enabling thermal and solids control where required.

• Suitable for crystallizing, scaling, and high‑solids process duties when properly flushed and configured in line with recommended piping plans.

• Hard‑face combinations available (for example silicon carbide and tungsten carbide) to improve wear resistance in abrasive and erosive services.

• Rotary spring configuration provides positive axial face loading and stable sealing performance under rotation, vibration, and dynamic operating conditions.







Durability & reliability;

• Wide elastomer compatibility offers materials such as Viton, EPDM, and FFKM to match process‑fluid chemistry and thermal requirements.

• Vibration‑ and shock‑resistant design engineered to withstand pump vibrations and process pulsations without compromising sealing performance in slurry service.

• Robust seal faces utilize hard materials such as silicon carbide or tungsten carbide, delivering superior abrasion resistance and long service life under high solids loading.

• Heavy‑duty housing materials are fabricated from stainless steel, Hastelloy, or alloy‑coated steel to resist corrosion and erosion in chemically aggressive and abrasive slurries.



Performance & efficiency;

• Application versatility supports use on vertical and horizontal pumps, agitators, and other rotating equipment operating in severe slurry services.

• Springs isolated in a non‑wetted area to minimize exposure to abrasive particles, improving seal longevity and virtually eliminating clogging issues common in slurry applications.

• Hydraulically balanced design reduces seal face load, friction, and heat generation, significantly extending seal and equipment life even under fluctuating pressure and flow conditions.

• Multiple‑spring design ensures even face‑load distribution, compensates for shaft misalignment and face wear, and maintains reliable performance under dynamic operating conditions.

• Double‑seal option provides superior containment and reliability for abrasive and hazardous slurry environments, using a pressurized barrier fluid to enhance sealing performance and environmental control.

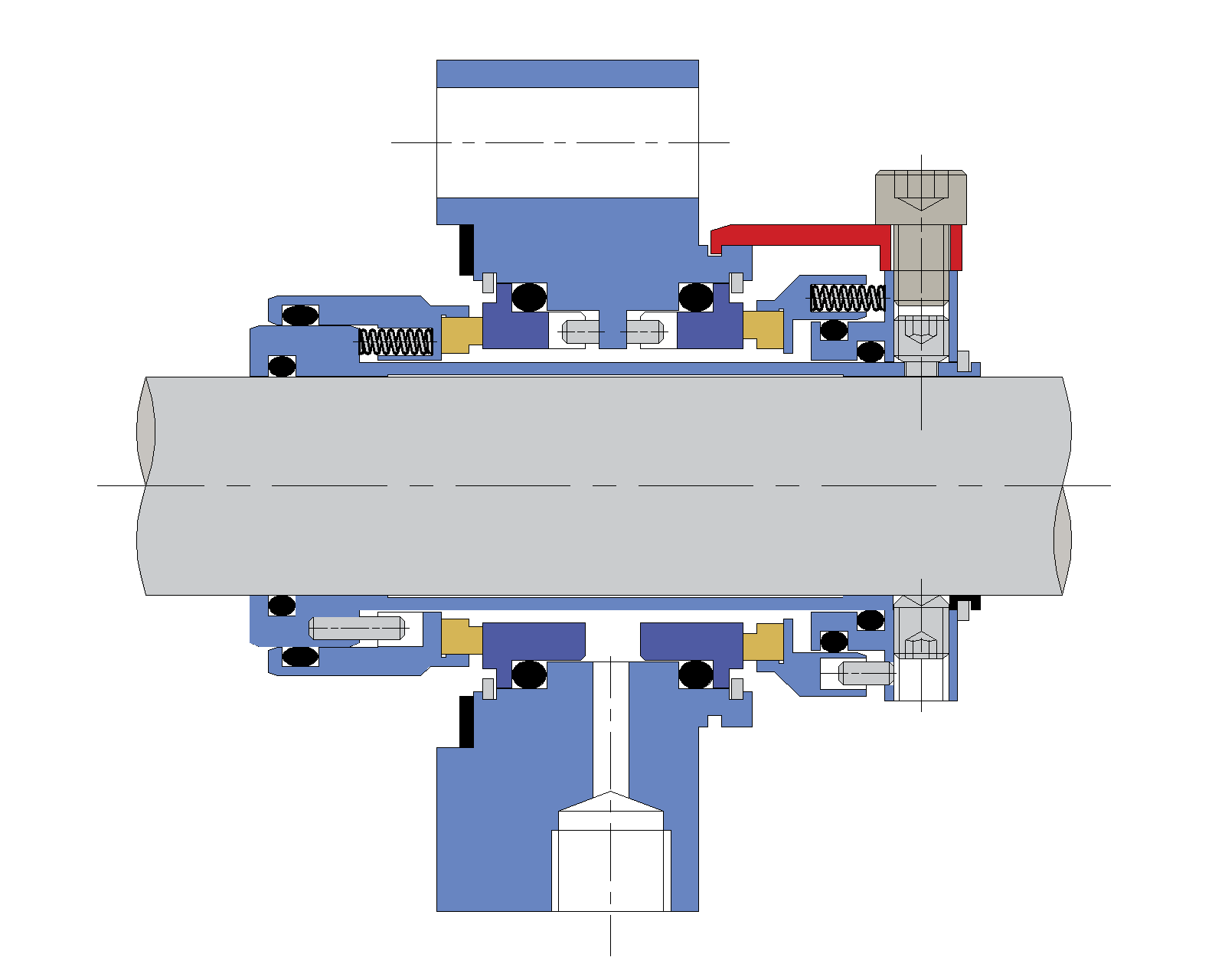

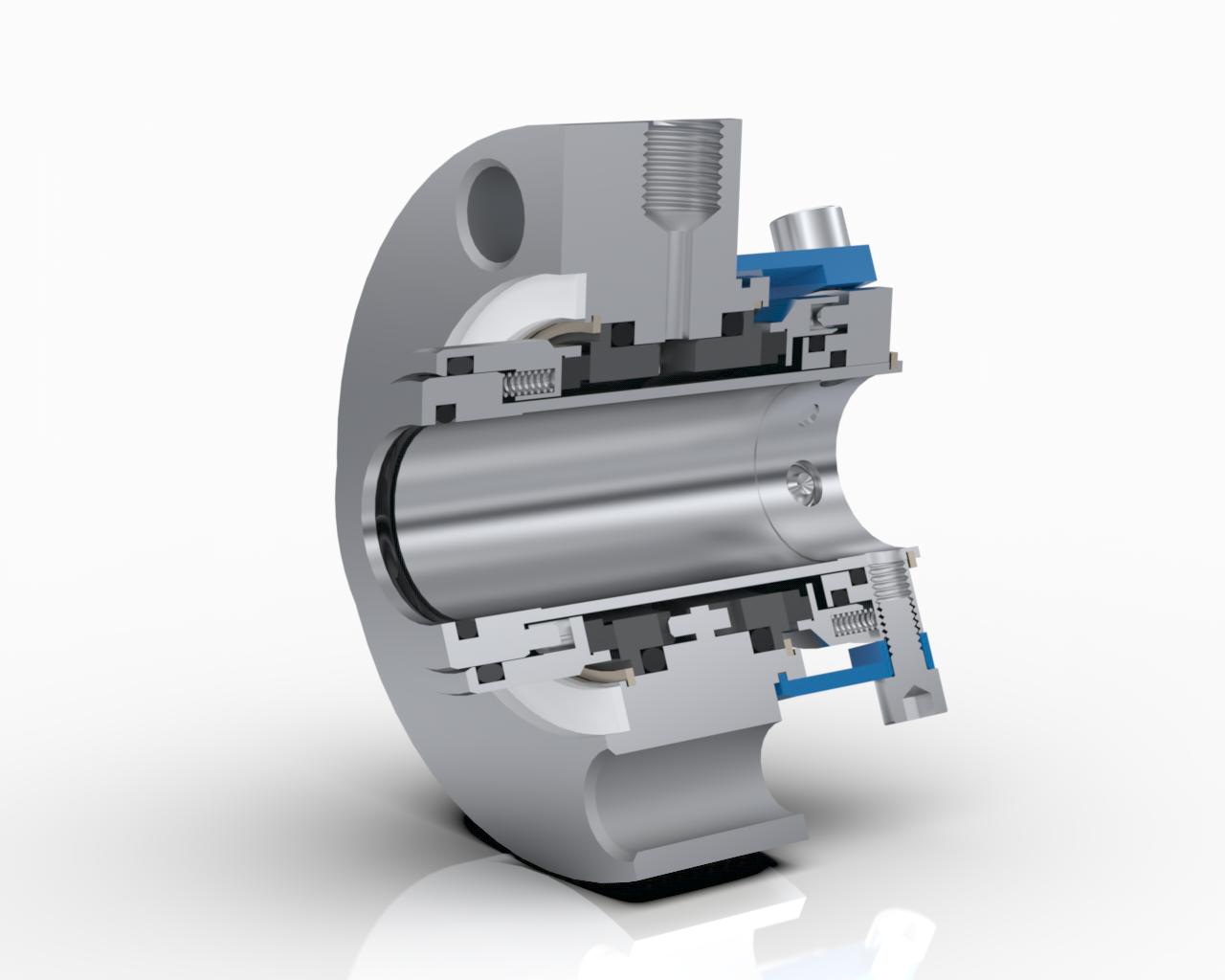

• Rotary spring configuration integrates springs into the rotating subassembly, enabling them to maintain uniform face pressure even under vibration and axial movement; well suited to applications where space, shaft dynamics, or layout constraints favor a rotating spring system.



Installation & maintenance;

• Factory‑assembled and tested seals are built and verified under controlled conditions to ensure correct alignment, concentricity, and readiness for installation.

• Independent of direction of rotation means the seal performs effectively regardless of shaft rotation direction, improving flexibility and reducing spare‑seal variants.

• Quick installation and easy removal are enabled by cartridge‑style pre‑assembly, allowing fast, error‑free installation or replacement and reducing plant downtime.

• Metric and inch sizes available for broad compatibility with international equipment standards, simplifying inventory management and supporting global deployment.

• Modular cartridge construction delivers a pre‑assembled, pressure‑tested unit that maintains factory‑set tolerances and enables rapid maintenance with minimal field adjustments.



Environmental & safety;

• Flush, quench, and barrier‑fluid options allow integration with industry‑standard API piping plans (such as Plans 32, 54) to support cooling, particle removal, and environmental containment, improving seal‑face protection and reliability.

• With connection of flushing and quenching means the seal is equipped with ports for optional flush, quench, and drain lines, enabling control of slurry buildup, temperature, crystallization, and overall seal performance in aggressive process environments.





Service Overview;

Parameter	Value
Equipment	Slurry pumps, process pumps, mixers, agitators, rotary equipment
Fluid	Slurry, abrasive liquids, crystallizing fluids, molasses, tailings, mineral slurry, chemical slurry
Service Nature	Abrasive, viscous, solids-laden, corrosive, crystallizing, hazardous liquid service
Operating Mode	Continuous duty / batch duty, wet running with suitable flush or external support system



Specifications;

Item	Min	Max	Typical/Notes
Size	20 mm (0.750”)	300 mm (12.000”)	Larger sizes on request
Pressure	Vacuum	25 bar (363 psi)	Application-dependent; higher ratings on engineered request
Temperature	-40°C (-40°F)	+220°C (+428°F)	Depends on elastomer, face material, and flush plan
Speed	—	3,000 rpm	Subject to shaft size, pressure, slurry concentration, and equipment condition



Materials;

Component	Standard Material	Optional Material	Comment
Seal Faces	Silicon Carbide vs Silicon Carbide	Tungsten Carbide vs Tungsten Carbide, Carbon vs SiC	Hard-face pairing recommended for abrasive slurry
Elastomers	FKM	EPDM, FFKM, PTFE wedge	Select based on chemical compatibility and temperature
Metal Parts	SS316	Alloy-20, Hastelloy-C, Duplex SS	For corrosive chemicals, refinery, fertilizer, and mining duties
Springs	SS316	Hastelloy-C, Alloy-20	Material selection depends on corrosion and slurry exposure
Secondary Hardware	SS316	Engineered alloys	Recommended for aggressive and hazardous services



Applications;

• Fertilizer, phosphate, potash, pigment, and crystallization services.

• Pulp & paper, food & sugar, distillery, molasses, and corn slurry applications.

• Dyeing, chemicals, solvents, pharmaceutical, and petrochemical process plants.

• Zinc, nickel, copper, alumina, uranium, bauxite, and iron ore refining or processing.

• Mining, gold mining, hard rock mining, mineral sand ore mining, and tailings disposal.

• Power plants, wastewater treatment plants, and flue gas desulphurization (FGD) systems.

• Hazardous liquid handling, building services, mixers, agitators, and other rotary equipment.

• Coal processing, wet cement processing, synthetic rutile, tar sand extraction, and offshore sand/gravel oil extraction.



Operating Limits;

Parameter	Limit
Pressure	Up to 25 bar (363 psi), typical inferred range
Temperature	-40°C to +220°C (-40°F to +428°F), material-dependent
Speed	Up to 3,000 rpm, equipment and slurry dependent
Size Range	20 mm to 300 mm (0.750” to 12.000”), larger sizes on request
Solids	60% Maximum solids by weight
Particle Size	10,000 Micron Maximum
Particle Hardness	9 Mohs Maximum



Engineering Note;

Exact operating limits, material selection, and flush arrangement should be verified against shaft size, slurry concentration, particle hardness, chemical compatibility, operating pressure, temperature, and equipment runout. Values above are inferred industry-standard ranges for a heavy-duty slurry mechanical seal where final HS870-T1 certified limits are not supplied.
