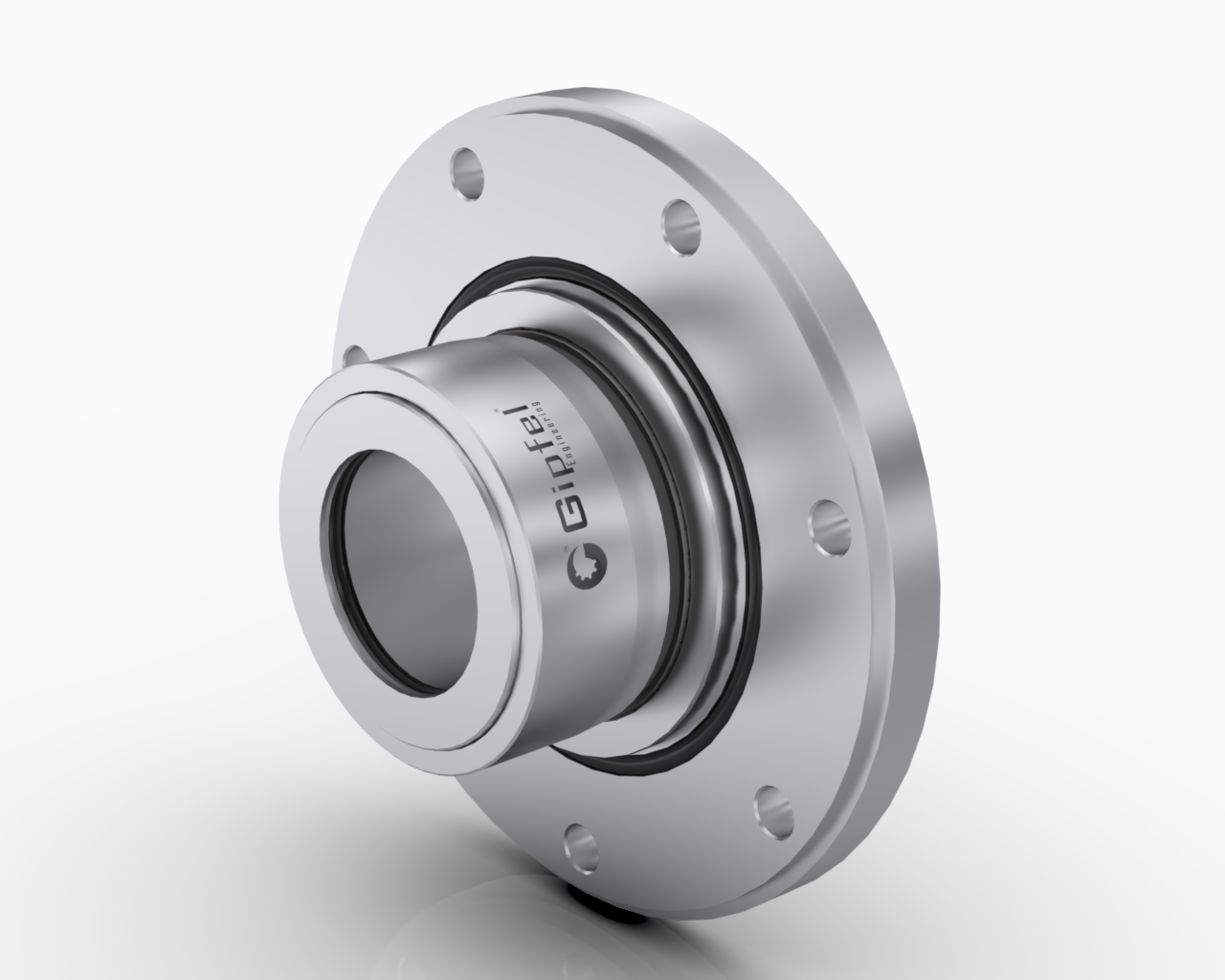

Rotary Spring Configuration

Product overview;

The LS830 is a compact, single, balanced, multi-spring pusher mechanical seal with a rotary-spring configuration engineered for light-to-moderate abrasive slurry services. Designed for equipment exposed to suspended solids, crystallizing media, viscous liquids, and process contamination, the LS830 provides stable face loading, consistent leakage control, and dependable operation where conventional seals fail prematurely.



Key benefits and technical features;

• Hard-faced seal combinations provide abrasion-resistant sealing interfaces that extend service life in slurry, crystallizing, and mildly erosive process fluids.

• Available in metric and inch sizes to facilitate global compatibility, retrofit into existing equipment, and alignment with international engineering standards.

• Single seal configuration offers a cost-effective solution that is straightforward to maintain and well-suited for light-duty slurry and general-purpose services.

• Quick installation and easy removal are achieved through cartridge-style construction, which shortens maintenance interventions and lowers mean time to repair.

• Bi-directional operation allows the seal to function independently of shaft rotation direction, reducing inventory complexity and the number of variants required in stock.

• Water-saving design supports plant sustainability initiatives by minimizing dependence on process or utility water for seal operation and lowering associated operating costs.

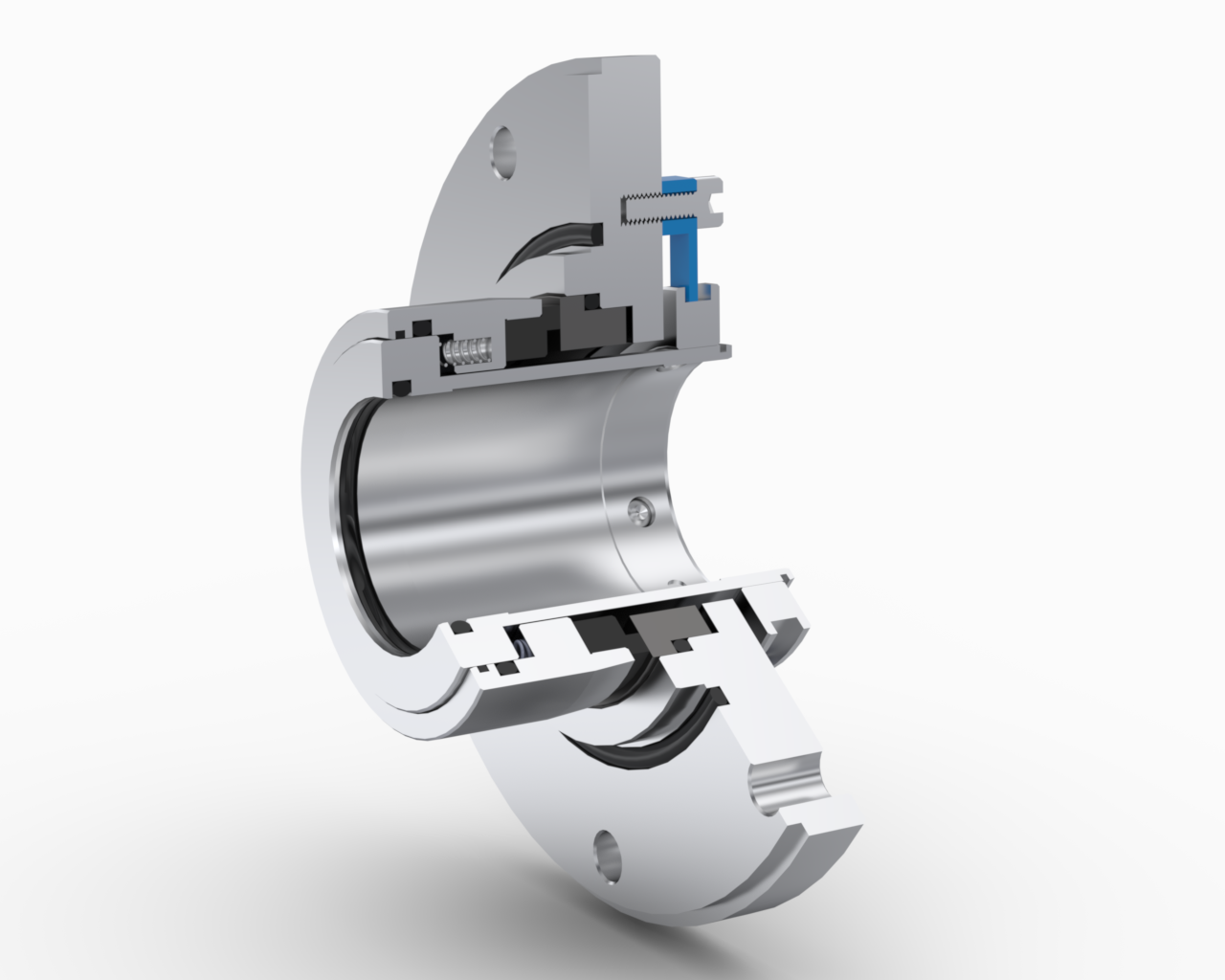

• Rotary spring configuration delivers a compact envelope and consistent mechanical face loading, particularly suitable where spring exposure to the process media is minimized.

• Optimized for light slurry service, typically up to about 10% solids concentration by weight and low-to-moderate abrasiveness, when particle size and hardness are within recommended limits.

• Hydraulically balanced, multi-spring design minimizes face loading, friction, and heat generation, improving seal stability and extending face life under fluctuating pressure and flow conditions.

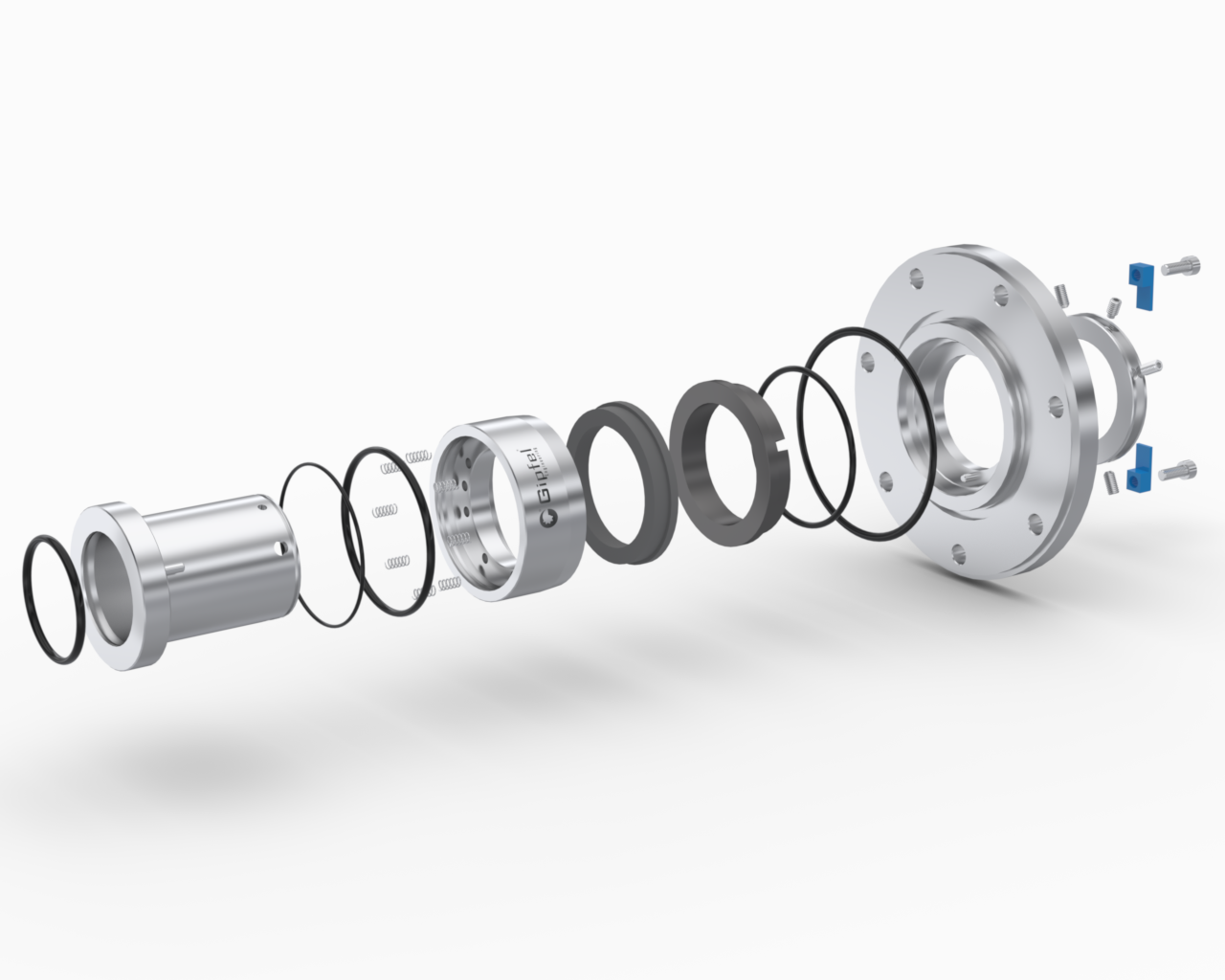

• Multiple-spring configuration ensures uniform face loading, better compensation for minor misalignment or shaft run-out, and enhanced performance under variable operating condition.

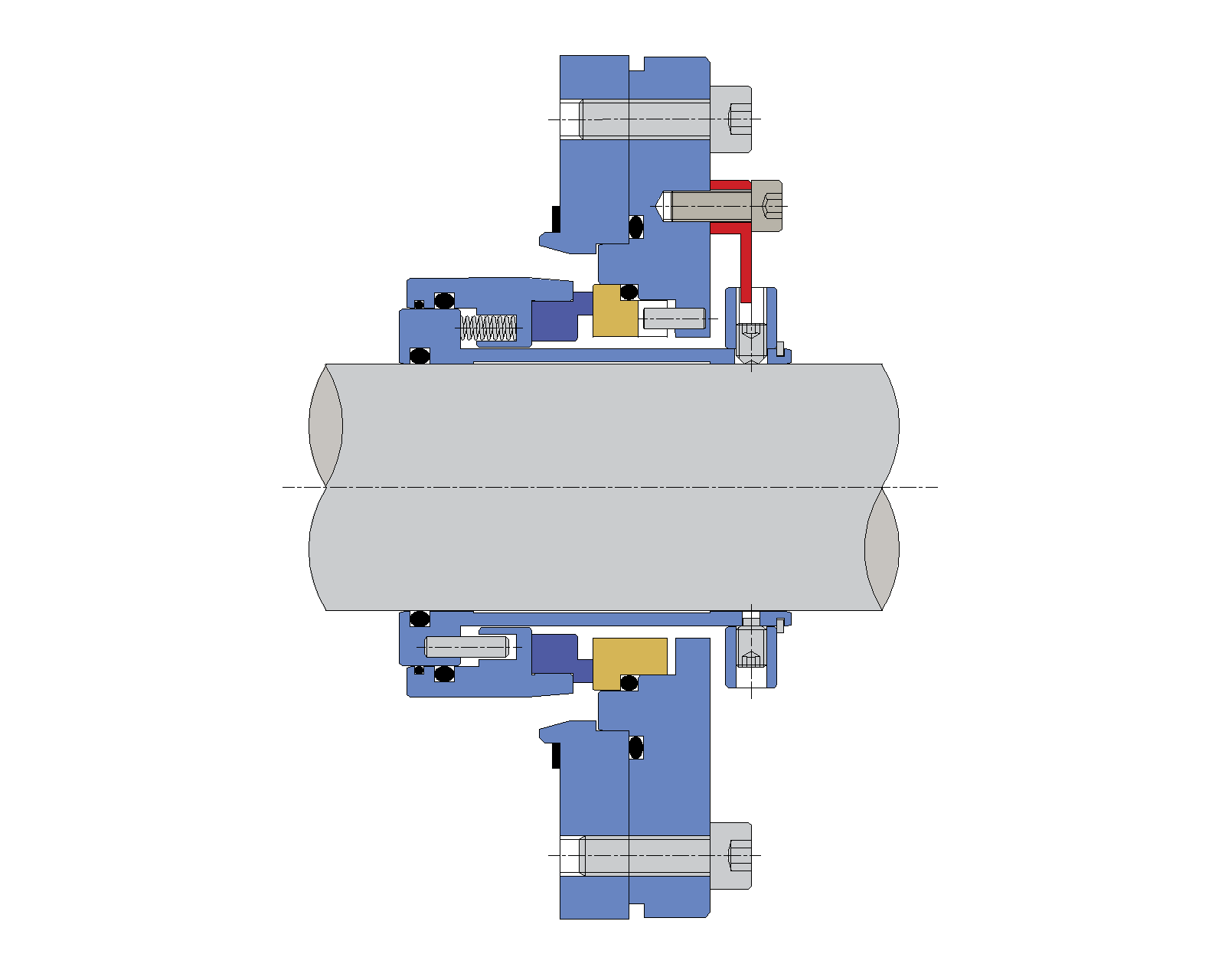

• Isolated spring arrangement protects springs from direct slurry exposure, preventing clogging, solids accumulation, and spring hang-up, which enhances reliability in abrasive and solids-laden services.

• Flush-free and quench-free operation allows the seal to run without external flush or cooling water in most duties, eliminating product dilution, simplifying piping, and reducing water usage and environmental impact.

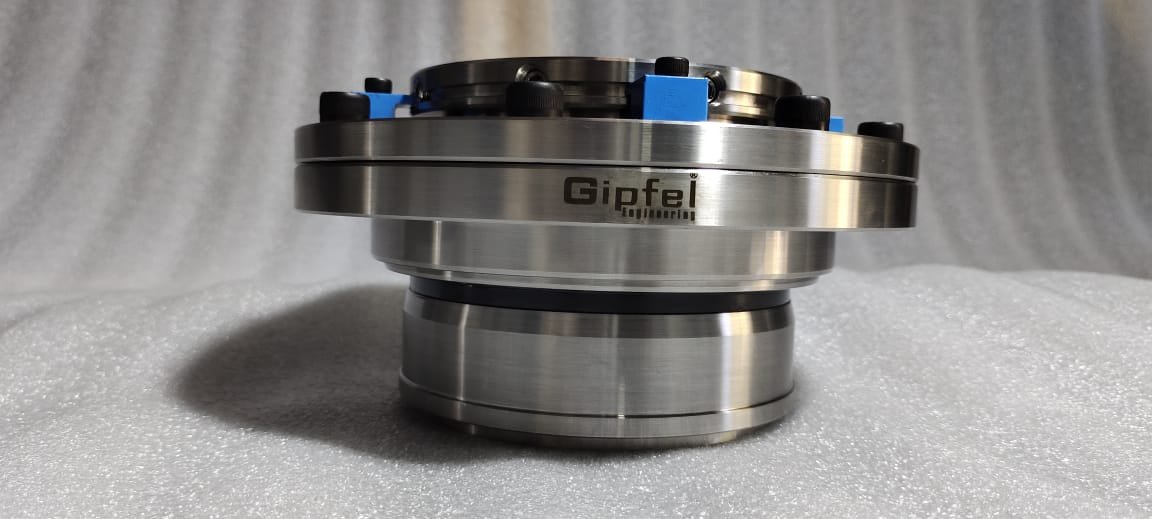

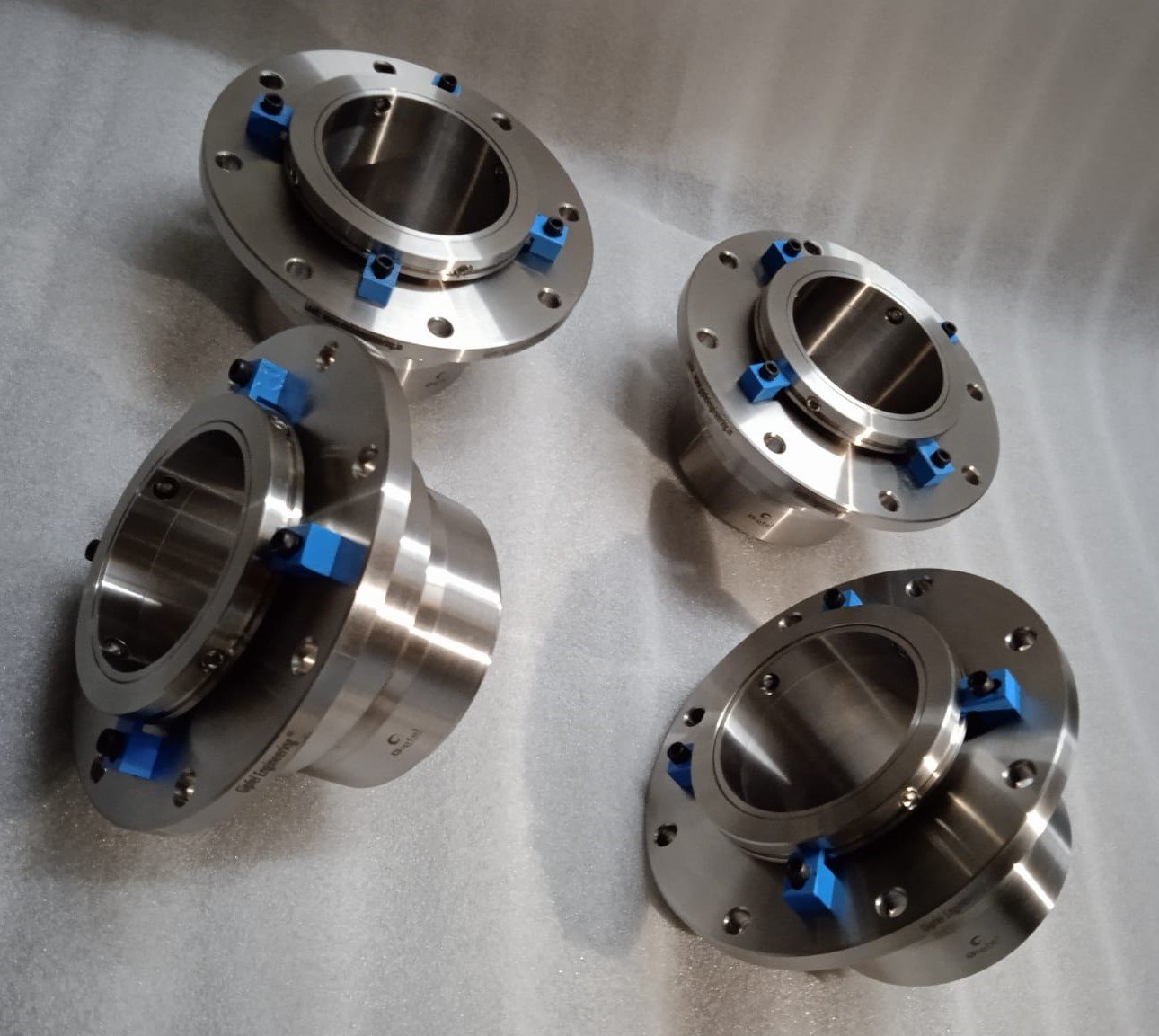

• Cartridge and semi-cartridge options are factory-assembled and pressure-tested, ensuring correct alignment and concentricity, simplifying installation and removal, and significantly reducing downtime and field installation errors.

• Broad equipment applicability, including pumps, mixers, agitators, and other rotary process equipment across mining, mineral processing, chemical, fertilizer, pulp & paper, wastewater, and utility plants, makes the design suitable as a standard slurry sealing solution.

Service Overview;

Parameter	Value
Equipment	Slurry pumps, process pumps, mixers, agitators, rotary joints, and other rotary equipment
Fluid	Light slurry, crystallizing media, molasses, corn slurry, mineral slurry, wastewater, solvent-based process liquids, FGD slurry, tailings, and process suspensions
Service Nature	Light abrasive, mildly erosive, viscous, crystallizing, contaminated, or solids-laden service
Operating Mode	Continuous or intermittent operation in process, utility, and slurry transfer systems



Specifications;

Item	Min	Max	Typical / Notes
Size	20 mm (0.750”)	300 mm (12.000”)	Metric and inch sizes available on request
Pressure	Atmospheric / vacuum on request	20 bar (174 psi)	Suitable for light-duty slurry service; higher pressure by design review
Temperature	-20°C (-4°F)	+180°C (+356°F)	Depends on elastomer and face material selection
Speed	—	3,000 rpm	Final limit depends on shaft size, fluid properties, and equipment dynamics



Materials;

Component	Standard Material	Optional Material	Comment
Seal Faces	Carbon / Ceramic or Carbon / Silicon Carbide	Silicon Carbide / Silicon Carbide, Tungsten Carbide / Silicon Carbide	Hard faces recommended for abrasive slurry and crystallizing service
Elastomers	NBR / FKM	EPDM, PTFE, FEP-encapsulated FKM, FDA-grade elastomers on request	Selected according to chemical, temperature, food, and pharma requirements
Metal Parts	SS 304	SS 316, Duplex SS, Alloy 20, Hastelloy, Titanium	Based on corrosion severity and plant fluid compatibility
Springs	SS 304 / SS 316	Hastelloy, Alloy 20	Spring material selected for chemical resistance and service environment







Applications;

• Dyeing, chemical, solvent, pigment, phosphate, potash, and fertilizer plants.

• Mining, gold mining, hard rock mining, mineral sand ore mining, and tailings disposal.

• Pulp & paper, food & sugar, pharmaceutical, distillery, and molasses handling systems.

• Power plants, FGD systems, wastewater treatment, wet cement processing, and building services.

• Zinc refining, nickel refining, copper refining, alumina refining, uranium processing, and iron ore processing.

• Oil & petrochemical plants, offshore sand/gravel oil extraction, hazardous liquid transfer, and process utilities.

• Corn slurry, bauxite slurry, iron ore slurry, crystallization, slurry transfer, mixers, and general rotary equipment.



Operating Limits;

Parameter	Value
Pressure	Up to 12 bars (174 psi)
Temperature	-20°C to +180°C (-4°F to +356°F)
Speed	Up to 3,000 rpm
Size Range	20 mm to 300 mm (0.750” to 12.000”)
Solids	10% Maximum solids by weight
Particle Size	1,000 Microns Maximum
Particle Hardness	4 Mohs Maximum



Engineering Note;

Pressure, temperature, speed, and material limits are inferred conservative values for a light-duty rotary spring slurry mechanical seal. Final selection should be verified against actual slurry concentration, particle size, shaft speed, equipment runout, fluid chemistry, and installation dimensions.
